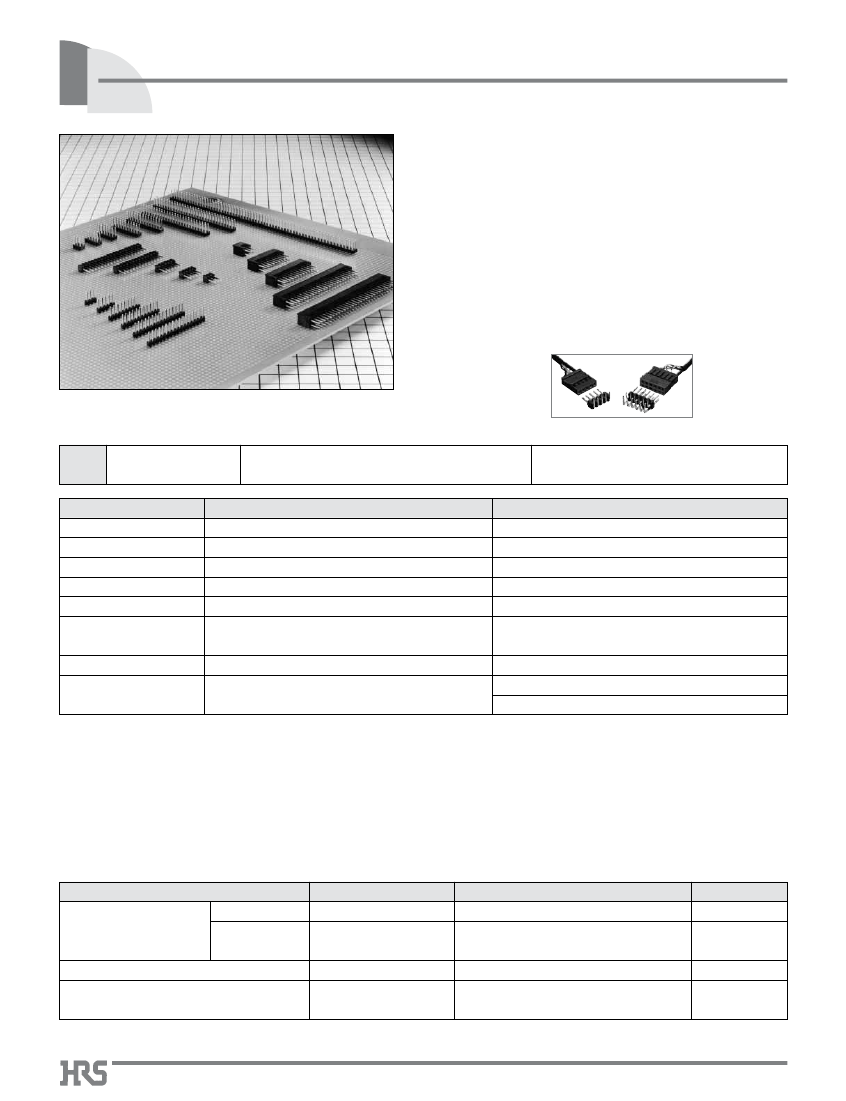

2.54mm Pitch High Density Connector
A1 and A2 Series
■Features
1. High Density Mounting
Connectors are aligned in the longitudinal direction on the
2.54 mm mesh board, so that no idle space can occur.
2. Variation in Number of Contacts
The A1 series contains 16 types of 6 to 64 contacts, while
the A2 series contains 20 types of 1 to 20 contacts,
3. Compatibility
The A1 series is compatible with HIF3B series cable side
and HIF3H receptacle for wide applications.
■Product
Specifications
Rating
Current rating: 3A
Operating Temperature Range:
-55 to +85ç (Note 1)
40 to 80%
Storage Temperature Range: -10 to +60ç (Note 2)
Storage Humidity Range:
Condition
500V DC
650V AC/1 minute
0.1A
Frequency: 10 to 55 Hz, single amplitude of 0.75 mm, 2 hours in each of the 3 directions.
96 hours at temperature of 40ç and humidity of 90% to 95%
No deformation of components affecting performance.
Specification
Note 1: Includes temperature rise caused by current flow.
Note 2: The term "storage" refers to products stored for long period of time prior to mounting and use. Operating Temperature Range and
Humidity range covers non conducting condition of installed connectors in storage, shipment or during transportation.
Note 3: Information contained in this catalog represents general requirements for this Series. Contact us for the drawings and specifications for a
specific part number shown.
■Applications
Computers, VTR, and other various kinds of electronic equipment
■Material
Part
Insulator
Pin header
Crimping socket
Crimping contact
Contact
Material
PBT
Brass
Polyamid
Phosphor bronze
DIP area
Contact area
Finish
Black
Contact area : gold plated
: tin plated
Black
: gold plated
Termination area : nickel plated
Remarks
UL94V-0
–––––––
UL94V-0
–––––––
C2
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website
A1 and A2 Series●2.54mm Pitch
contact
Density Connector
RoHS search at www.hirose-connectors.com, or
High
your Hirose sales representative.
■
Ordering Information
K
Pin Header
q
w
e
Series Name: A
Series No.:1 (double row)
2 (single row)
Number of contacts: A1...6, 8, 10, 12, 14, 16, 20, 24, 26,
34, 40, 50, 60, 64
A2...1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12,
13, 14, 15, 16, 17, 18, 19, 20
A 1 - 6 P A - 2.54 DS
q
w
e
r
t
y
u
r
t
y
u
P: Pin header
A: Selective gold plated
Contact pitch : 2.54mm
Contact type:
DS : Right angle type
DSA : Straight type
K
Crimping Socket
q
w
e
r
t
y
Series Name : A
Series No. : 1 (double row)
2 (single row)
Number of contacts: A1 : 8, 10, 12
A2 : 5, 6
Contact alignment : A1 : D (double row)
A2 : S (single row)
Contact pitch : 2.54mm
Connection type: C : crimping
A 1 - 12 D - 2.54 C
q
w
e
r
t
y
K
Crimping Contact
q
w
e
Series Name : A
Series No. : 1
Applicable cable size
2226: AWG#22~ AWG#26
2630: AWG#26~ AWG#30
A 1 - 2630 - SCFC
q
w
e
r
r
Packaging type
SCFC : Reel
SCC : Bag
C3
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products
A2 Series●2.54mm
will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
A1 and
have been discontinued, or
Pitch High Density Connector
■

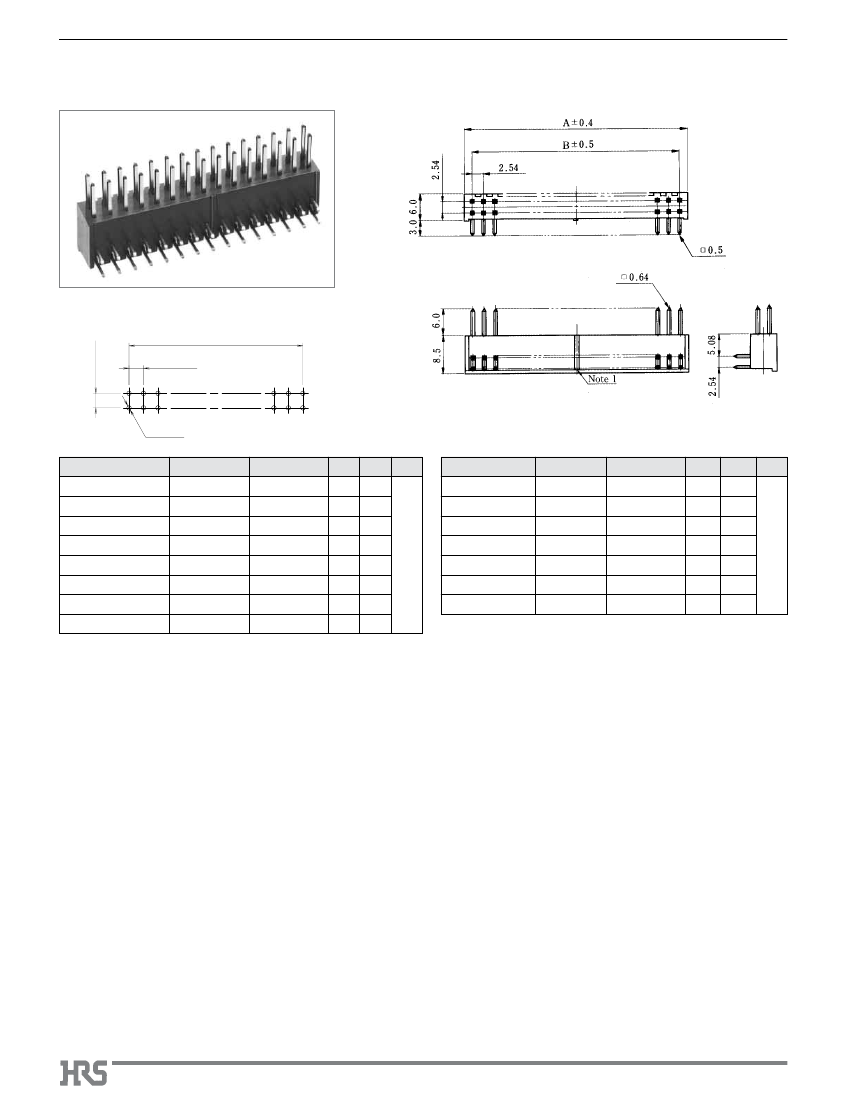

A1 (Double Row)- Right Angle Type
BPCB
mounting pattern
2.54±0.05
B±0.1
2.54±0.05
Ø0.8
+0.1
0
Unit: mm
Part Number
CL No.
Number of Contacts
6
8
10
12
14
16
18
20
Unit: mm
Part Number
CL No.
Number of Contacts
26
30
34
40
50
60
64
A
B
RoHS
A
B
RoHS
A1-06PA-2.54DS(71) 619-0001-7-71
A1-08PA-2.54DS(71) 619-0016-4-71
A1-10PA-2.54DS(71) 619-0002-0-71
A1-12PA-2.54DS(71) 619-0003-2-71
A1-14PA-2.54DS(71) 619-0004-5-71
A1-16PA-2.54DS(71) 619-0005-8-71
A1-18PA-2.54DS(71) 619-0006-0-71
A1-20PA-2.54DS(71) 619-0007-3-71
07.62 05.08
10.16
07.62
12.70 10.16
15.24 12.70
17.78 15.24
20.32 17.78
22.86 20.32
25.40 22.86
YES
A1-26PA-2.54DS(71) 619-0009-9-71
A1-30PA-2.54DS(71) 619-0010-8-71
A1-34PA-2.54DS(71) 619-0011-0-71
A1-40PA-2.54DS(71) 619-0012-3-71
A1-50PA-2.54DS(71) 619-0013-6-71
A1-60PA-2.54DS(71) 619-0014-9-71
A1-64PA-2.54DS(71) 619-0015-1-71
33.02 30.48
38.10 35.56
43.18 40.64
50.80 48.26 YES
63.50 60.96
76.20 73.66
81.28 78.74
Note: Right side and left side rib is added for 34pos, or more.
C4
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website
A1 and A2 Series●2.54mm Pitch
contact
Density Connector
RoHS search at www.hirose-connectors.com, or
High
your Hirose sales representative.
■

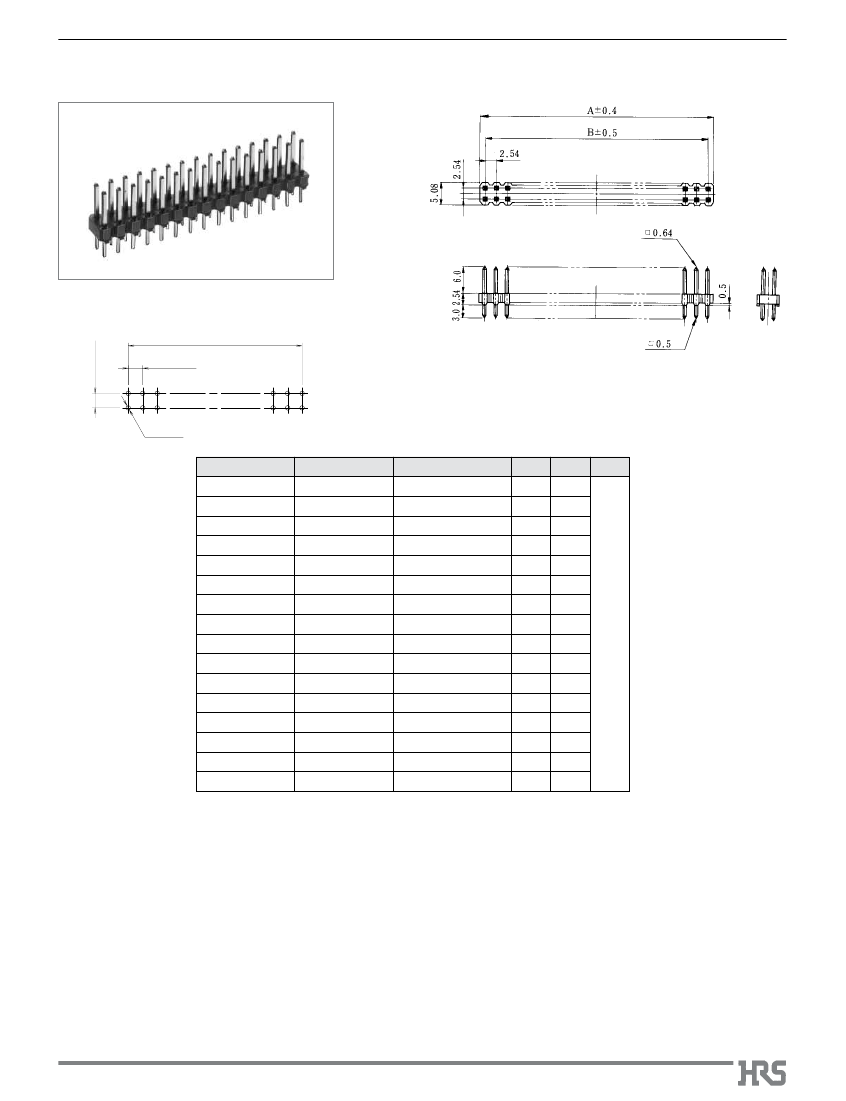

A1 (Double Row)- Straight Type
BPCB
mounting pattern
2.54±0.05
B±0.1
2.54±0.05
Ø0.8
+0.1
0
Unit: mm
Part Number
A1-06PA-2.54DSA(71)
A1-08PA-2.54DSA(71)
A1-10PA-2.54DSA(71)
A1-12PA-2.54DSA(71)
A1-14PA-2.54DSA(71)
A1-16PA-2.54DSA(71)
A1-18PA-2.54DSA(71)
A1-20PA-2.54DSA(71)
A1-24PA-2.54DSA(71)
A1-26PA-2.54DSA(71)
A1-30PA-2.54DSA(71)
A1-34PA-2.54DSA(71)
A1-40PA-2.54DSA(71)
A1-50PA-2.54DSA(71)
A1-60PA-2.54DSA(71)
A1-64PA-2.54DSA(71)
CL No.
619-0021-4-71
619-0037-4-71
619-0022-7-71
619-0023-0-71
619-0024-2-71
619-0025-5-71
619-0026-8-71
619-0027-0-71
619-0028-3-71
619-0029-6-71
619-0030-5-71
619-0031-8-71
619-0032-0-71
619-0033-3-71
619-0034-6-71
619-0035-9-71
Number of Contacts
6
8
10
12
14
16
18
20
24
26
30
34
40
50
60
64
A
07.32
09.86
12.40
14.94
17.48
20.02
22.56
25.10
30.18
32.72
37.80
42.88
50.50
63.20
75.90
80.98
B
05.08
07.62
10.16
12.70
15.24
17.78
20.32
22.86
27.94
30.48
35.56
40.64
48.26
60.96
73.66
78.74
YES
RoHS
C5
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products
A2 Series●2.54mm
will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
