282962-2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> terminals> 282962-2

282962-2: DescriptionTERMI-BLOK HEADER ASSY90 2P.; CategoryThe connector terminals; File Size127KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

282962-2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	282962-2	-	-	View	Buy Now

282962-2 Overview

TERMI-BLOK HEADER ASSY90 2P.

282962-2 Parametric

Parameter Name	Attribute value
Brand Name	Buchanan
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	STANDARDS: IEC 998-1/998-2-1; 94V-0, PA66
Fastening method	CONNECTOR
Manufacturer's serial number	282962
Installation type	BOARD
Number of layers	1
Rows	1
Number of channels	2
Rated current	15 A
Rated voltage	300 V
safety certificate	UL
Terminal and terminal strip types	MODULAR TERMINAL BLOCK
Base Number Matches	1

Preview

Download Datasheet

View All

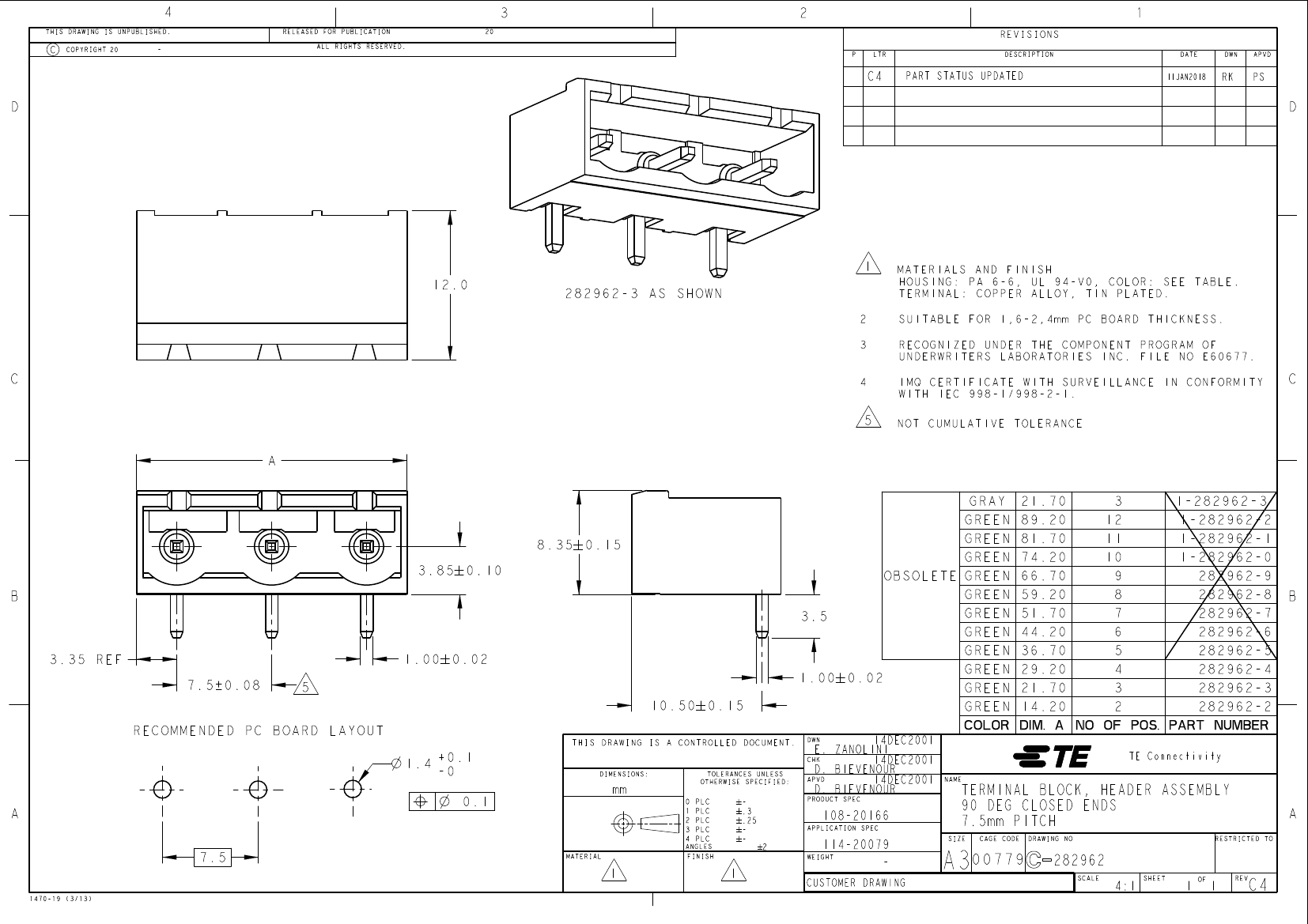

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

REVISIONS

LTR

DESCRIPTION

DATE

DWN

APVD

PART STATUS UPDATED

11JAN2018

12.0

282962-3 AS SHOWN

MATERIALS AND FINISH

HOUSING: PA 6-6, UL 94-V0, COLOR: SEE TABLE.

TERMINAL: COPPER ALLOY, TIN PLATED.

SUITABLE FOR 1,6-2,4mm PC BOARD THICKNESS.

RECOGNIZED UNDER THE COMPONENT PROGRAM OF

UNDERWRITERS LABORATORIES INC. FILE NO E60677.

IMQ CERTIFICATE WITH SURVEILLANCE IN CONFORMITY

WITH IEC 998-1/998-2-1.

NOT CUMULATIVE TOLERANCE

GREEN

8.35

3.85

0.10

3.5

3.35 REF

7.5±0.08

1.00

0.02

10.50

0.15

DWN

CHK

DIMENSIONS:

GRAY

0.15

OBSOLETE

GREEN

1.00

0.02

GREEN

E. ZANOLINI

14DEC2001

NAME

89.20

81.70

74.20

66.70

59.20

51.70

44.20

36.70

29.20

21.70

14.20

21.70

1-282962-2

1-282962-1

1-282962-0

282962-9

282962-8

282962-7

282962-6

282962-5

282962-4

282962-3

PART NUMBER

282962-2

1-282962-3

RECOMMENDED PC BOARD LAYOUT

+0.1

-0

THIS DRAWING IS A CONTROLLED DOCUMENT.

COLOR

DIM. A

NO OF POS.

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

7.5

1470-19 (3/13)

MATERIAL

ANGLES

PLC

.25

14DEC2001

D. BIEVENOUR

APVD

14DEC2001

D. BIEVENOUR

PRODUCT SPEC

APPLICATION SPEC

TE Connectivity

108-20166

114-20079

FINISH

WEIGHT

CUSTOMER DRAWING

00779

SIZE

TERMINAL BLOCK, HEADER ASSEMBLY

90 DEG CLOSED ENDS

7.5mm PITCH

CAGE CODE

DRAWING NO

RESTRICTED TO

282962

SCALE

4:1

SHEET

REV

282962-2 Related Products

	282962-2	282962-3	282962-4
Description	TERMI-BLOK HEADER ASSY90 2P.	TERMI-BLOK HEADER ASSY90 3P.	TERMI-BLOK HEADER ASSY90 4P.
Is it Rohs certified?	conform to	conform to	conform to
Reach Compliance Code	unknown	unknown	compliant
ECCN code	EAR99	EAR99	EAR99
Other features	STANDARDS: IEC 998-1/998-2-1; 94V-0, PA66	STANDARDS: IEC 998-1/998-2-1; 94V-0, PA66	STANDARDS: IEC 998-1/998-2-1; 94V-0, PA66
Fastening method	CONNECTOR	CONNECTOR	CONNECTOR
Installation type	BOARD	BOARD	BOARD
Number of layers	1	1	1
Rows	1	1	1
Number of channels	2	3	4
Rated current	15 A	15 A	15 A
Rated voltage	300 V	300 V	300 V
safety certificate	UL	UL	UL
Terminal and terminal strip types	MODULAR TERMINAL BLOCK	MODULAR TERMINAL BLOCK	MODULAR TERMINAL BLOCK
Base Number Matches	1	1	1
