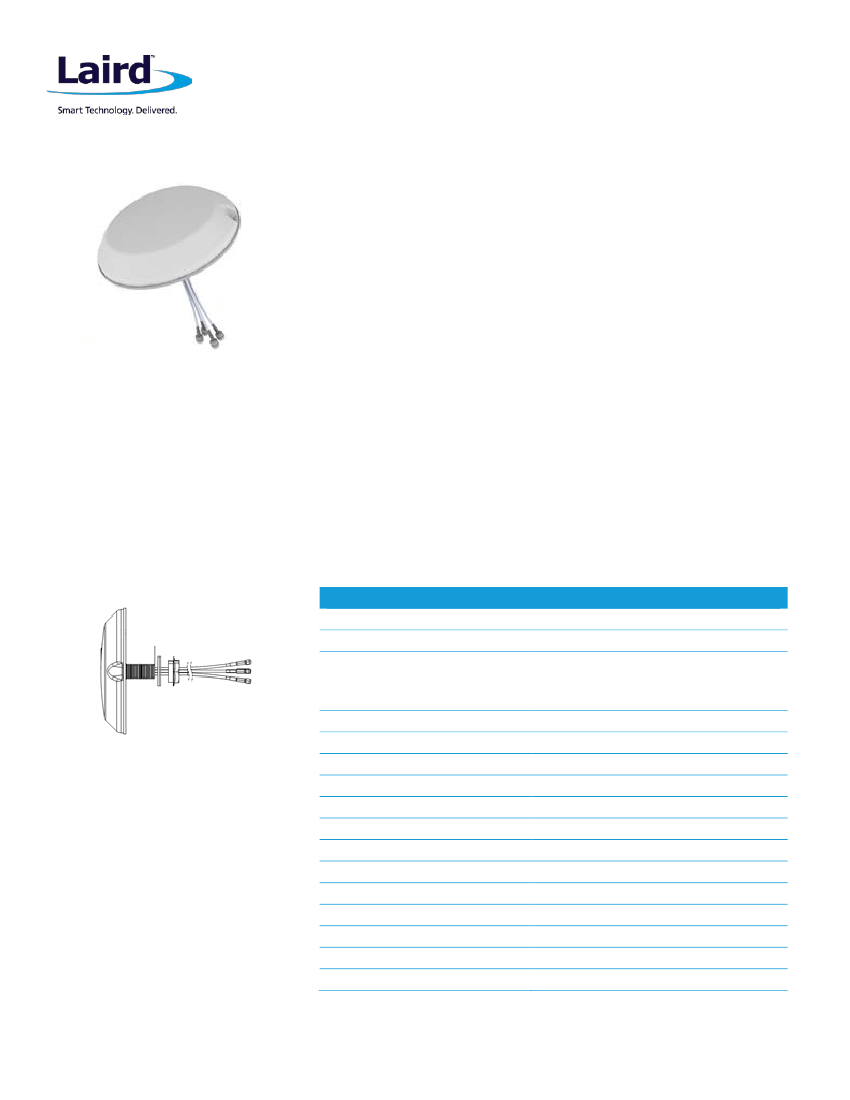

The CMM24513S4 is a four (4) port MIMO indoor wideband omnidirectional ceiling mount
antenna. It is designed to provide pattern coverage that is optimized for indoor coverage
requirements at 2400-2500 MHz and 5150-5875 MHz The antenna features a pattern that
has been specifically shaped to provide optimal performance from a ceiling mount location.
The pattern is also very uniform and symmetrical, providing system integrators with the
ability to precisely determine cell size.
CMM24513S4
FEATURES AND BENEFITS
•
•
•
•
•
Low profile aesthetically neutral housing
Mounts directly and easily to ceiling tile
Performance optimized using Laird proprietary
RF optimization tools
2-D Barcode QR labeling for easy smart phone
access to antenna performance data
•
RoHS compliant & excellent flame resistant rating
•
Uniform & symmetrical radiation pattern delivers
•
optimum performance.
MARKETS
•
Office Complexes &
Conference Rooms
•
Hotels, Auditoriums
& Convention Centers
•
Airports, Bus Terminals
& Train Stations
•
Museums, Libraries & Theaters
•
Retail Stores & Malls
•
Casinos & Entertainment Venues.
SPECIFICATIONS
Model
Antenna Type
Connector Type
91RTN
91RSM
Cable Type
Cable Length
Frequency
Max Gain
Azimuth Beam
Elevation Beam
Polarization
VSWR
Max Power
Weight
Americas: +1.847 839.6907
IAS-AmericasEastSales@lairdtech.com
Europe: +44.(0).1628.858941
IAS-EUSales@lairdtech.com
Asia: +86.21.5855.0827.127
IAS-AsiaSales@lairdtech.com
Storage and Operator Temp
Outdoor
Mounting
CMM24513S4
Omni
4 X Rev-Polarity TNC Male
4 X Rev-Polarity SMA Male
Ultralink, Plenum Rated
36
±
0.59 Inch
2400-2500 MHz / 5150-5875 MHz
6.6 dBi
Omnidirectional
68°
Linear, Omnidirectional
2.0:1 Max
5 Watts
1.10 Lbs
-30° C to 70° C
No
Ceiling
www.lairdtech.com
2400-2500 MHz / 5150 -5875 MHz
4- Port MIMO Ceiling Mount Antenna
Port 1
Radiation Pattern at 2400 MHz
Azimuth
Plane
Azimuth
Plane
120
5
0
-5
150
-10
-15
-20
-25
180
-30
0
270
CMM24513S4
Radiation Pattern at 2500 MHz
Azimuth Plane
Azimuth Plane
30
90
Phi
Phi 0°
Plane
0°
Plane
330
5
0
-5
-10
-15
-20
-25
-30
90
0
60
120
5
0
-5
-10
-15
-20
-25
90
Phi
Phi 0°
Plane
0°
Plane
60
330
5
0
-5
-10
-15
-20
-25
0
30
30
300
60
150
30
300
60
180
-30
0
270
-30
90
210
330
240
120
210
330
240
120
240
270
300
210
180
150
240
270
300
210
180
150

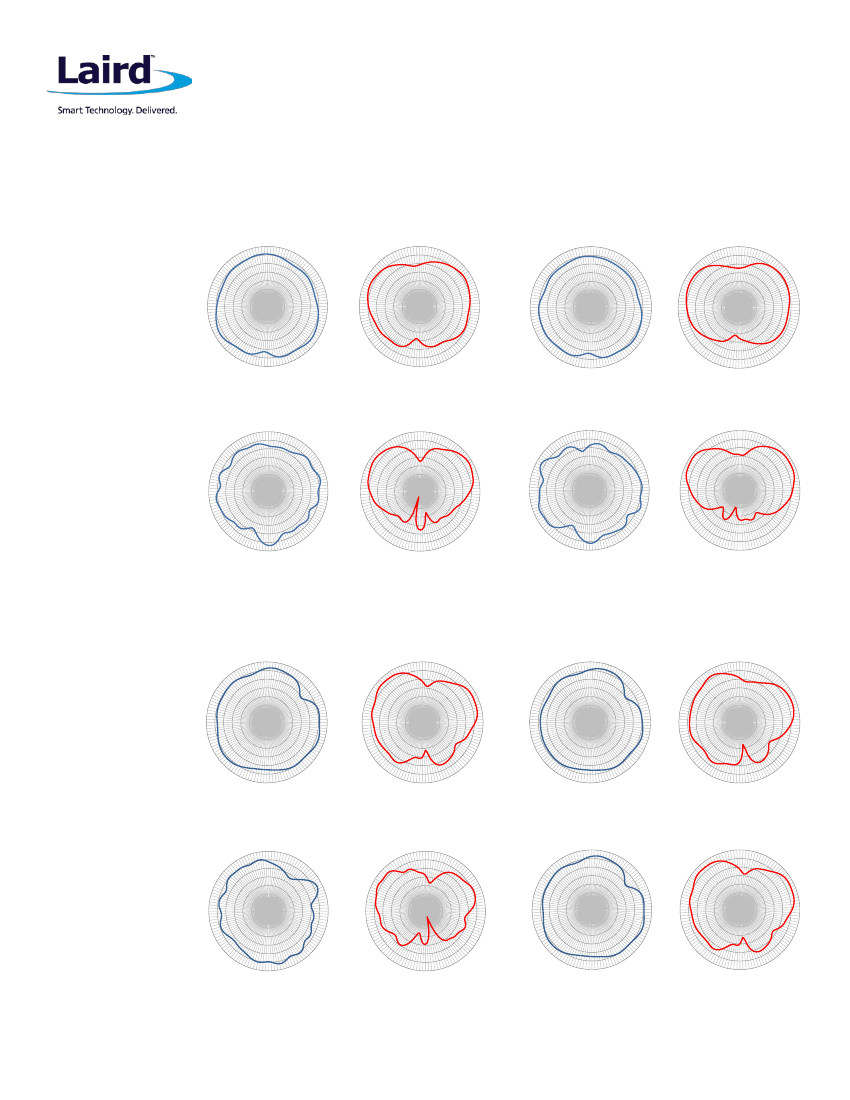

Radiation Pattern at 5150 MHz
Azimuth
Plane
Azimuth
Plane
120
5
0
-5
150
-10
-15
-20
-25
180
-30
0
30
90
60
Radiation Pattern at 5875 MHz
Azimuth
Azimuth
Plane
Plane
30
Phi
Phi 0°
Plane
0°
Plane
330
5
0
-5
300
-10
-15
-20
-25
270
-30
90
60
0
120
5
0
-5
-10
-15
-20
-25
90
Phi
Phi 0°
Plane
0°
Plane
60
330
5
0
-5
-10
-15
-20
-25
0
30
150
30
300
60
180
-30
0
270
-30
90
210
330
240
120
210
330
240
120
240
270
300
210
180
150
240
270
300
210
180
150
Port 2
Radiation Pattern at 2400 MHz
Azimuth
Plane
Azimuth
Plane
120
5
0
-5
150
-10
-15
-20
-25
180
-30
0
270
Radiation Pattern at 2500 MHz
Azimuth
Plane
Azimuth
Plane
30
Phi
Phi 0°
Plane
0°
Plane
330
5
0
-5
-10
-15
-20
-25
-30
90
0
Phi
Phi 0°
Plane
0°
Plane
60
330
5
0
-5
-10
-15
-20
-25
0
30
90
60
120
5
0
-5
-10
-15
-20
-25
90
30
300
60
150
30
300
60
180
-30
0
270
-30
90
210
330
240
120
210
330
240
120
240
270
300
210
180
150
240
270
300
210
180
150
Radiation Pattern at 5150 MHz
Azimuth
Plane
Azimuth
Plane
120
5
0
-5
150
-10
-15
-20
-25
180
-30
0
270
Radiation Pattern at 5875 MHz
Azimuth Plane
Azimuth Plane
30
Phi
Plane
Phi 0°
0° Plane
60
330
5
0
-5
-10
-15
-20
-25
-30
90
0
90
120
5
0
-5
-10
-15
-20
-25
90
Phi
Phi 0°
Plane
0°
Plane
60
330
5
0
-5
-10
-15
-20
-25
0
30
30
300
60
150
30
300
60
180
-30
0
270
-30
90
210
330
240
120
210
330
240
120
240
270
300
210
180
150
240
270
300
210
180
150
IAS-DS-CMM245113S4-91RSM 060217
2
Any information furnished by Laird Technologies, Inc. and its agents is believed to be accurate and reliable. All specifications are subject to change without notice. Responsibility for the use and application of
Laird Technologies materials rests with the end user. Laird Technologies makes no warranties as to the fitness, merchantability, suitability or non- infringement of any Laird Technologies materials or products
for any specific or general uses. Laird Technologies shall not be liable for incidental or consequential damages of any kind. All Laird Technologies products are sold pursuant to the Laird Technologies’ Terms and
Logo, and other marks are trademarks or registered trademarks of Laird Technologies, Inc. or an affiliate company thereof. Other product or service names may be the property of third parties. Nothing herein
provides a license under any Laird Technologies or any third party intellectual property rights.
2400-2500 MHz / 5150 -5875 MHz
4- Port MIMO Ceiling Mount Antenna

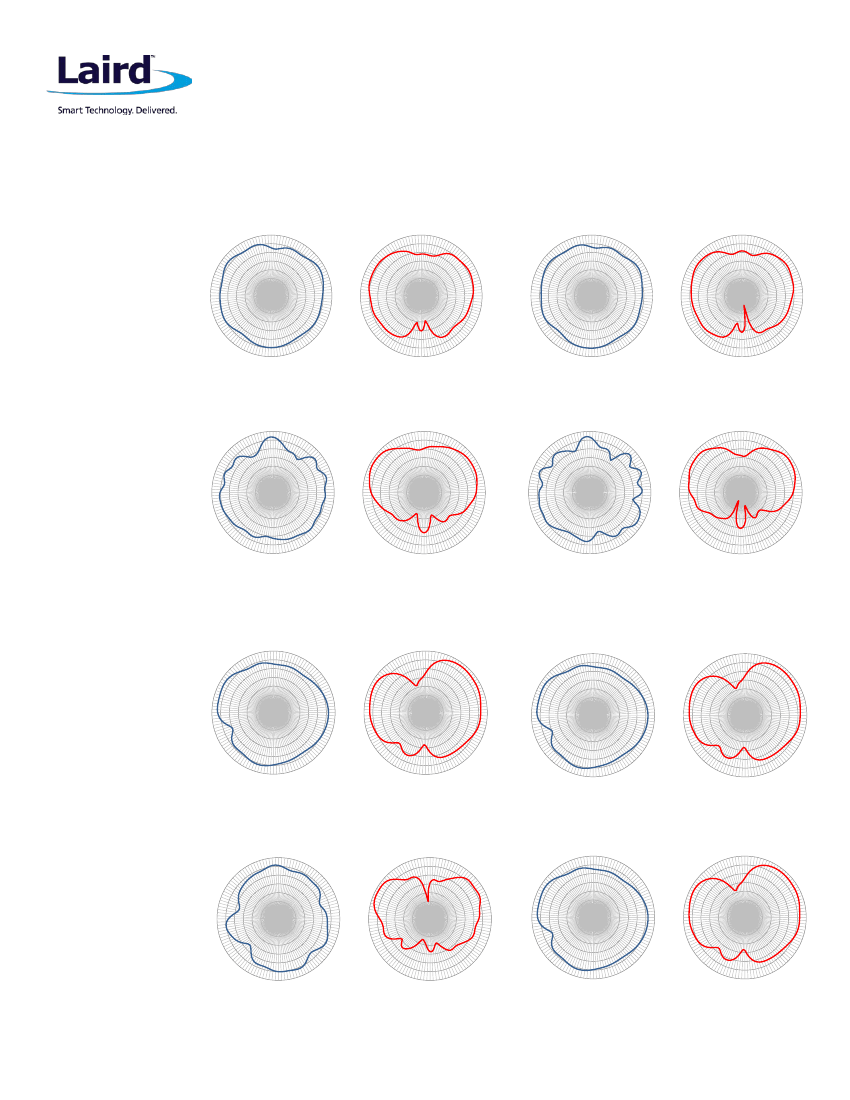

Port 3
Radiation Pattern at 2400 MHz
Azimuth
Plane
Azimuth
Plane
120
5
0
-5
150
-10
-15
-20
-25
180
-30
0
270
CMM24513S4
Radiation Pattern at 2500 MHz
Azimuth
Plane
Azimuth
Plane
30
90
Phi 0°
Plane
Phi 0°
Plane
330
5
0
-5
-10
-15
-20
-25
-30
90
0
60
120
5
0
-5
-10
-15
-20
-25
90
Phi
Phi 0° Plane
0° Plane
330
5
0
-5
-10
-15
-20
-25
0
30
60
30
300
60
150
30
300
60
180
-30
0
270
-30
90
210
330
240
120
210
330
240
120
240
270
300
210
180
150
240
270
300
210
180
150
Radiation Pattern at 5150 MHz
Azimuth Plane
Azimuth Plane
120
5
0
-5
150
-10
-15
-20
-25
180
-30
0
30
90
60
Radiation Pattern at 5875 MHz
Azimuth
Plane
Azimuth
Plane
30
Phi 0°
0° Plane
Phi
Plane
330
5
0
-5
300
-10
-15
-20
-25
270
-30
90
60
0
Phi
Phi 0°
Plane
0°
Plane
60
330
5
0
-5
-10
-15
-20
-25
0
30
120
5
0
-5
-10
-15
-20
-25
90
150
30
300
60
180
-30
0
270
-30
90
210
330
240
120
210
330
240
120
240
270
300
210
180
150
240
270
300
210
180
150
Port 4
Radiation Pattern at 2400 MHz
Azimuth
Plane
Azimuth
Plane
120
5
0
-5
150
-10
-15
-20
-25
180
-30
0
30
90
60
Radiation Pattern at 2500 MHz
Azimuth
Plane
Azimuth
Plane
30
120
5
0
-5
-10
-15
-20
-25
180
-30
0
270
Phi
Phi 0° Plane
0° Plane
330
5
0
-5
300
-10
-15
-20
-25
270
-30
90
60
150
0
Phi
Phi 0°
Plane
0°
Plane
60
330
5
0
-5
-10
-15
-20
-25
-30
90
0
30
90
30
300
60
210
330
240
120
210
330
240
120
240
270
300
210
180
150
240
270
300
210
180
150
Radiation Pattern at 5150 MHz
Azimuth
Plane
Azimuth
Plane
120
5
0
-5
150
-10
-15
-20
-25
180
-30
0
270
Radiation Pattern at 5875 MHz
Azimuth
Plane
Azimuth
Plane
30
Phi 0°
Plane
Phi 0°
Plane
60
330
5
0
-5
-10
-15
-20
-25
-30
90
0
Phi
Phi 0°
Plane
0°
Plane
60
330
5
0
-5
-10
-15
-20
-25
0
30
90
120
5
0
-5
-10
-15
-20
-25
90
30
300
60
150
30
300
60
180
-30
0
270
-30
90
210
330
240
120
210
330
240
120
240
270
300
210
180
150
240
270
300
210
180
150
IAS-DS-CMM245113S4-91RSM
060217
3
Any information furnished by Laird Technologies, Inc. and its agents is believed to be accurate and reliable. All specifications are subject to change without notice. Responsibility for the use and application of
Laird Technologies materials rests with the end user. Laird Technologies makes no warranties as to the fitness, merchantability, suitability or non- infringement of any Laird Technologies materials or products
for any specific or general uses. Laird Technologies shall not be liable for incidental or consequential damages of any kind. All Laird Technologies products are sold pursuant to the Laird Technologies’ Terms and
Logo, and other marks are trademarks or registered trademarks of Laird Technologies, Inc. or an affiliate company thereof. Other product or service names may be the property of third parties. Nothing herein
provides a license under any Laird Technologies or any third party intellectual property rights.
