Y1475R053000B9W datasheet, PDF

Datasheet> All Categories > Passive components> The resistor> Y1475R053000B9W

Y1475R053000B9W: DescriptionFixed Resistor, Metal Foil, 3W, 0.053ohm, 0.1% +/-Tol, 15ppm/Cel, Surface Mount, 3637, CHIP; CategoryPassive components The resistor; File Size394KB，4 Pages; ManufacturerVishay; Websitehttp://www.vishay.com; Environmental Compliance

Download Datasheet Parametric View All

Y1475R053000B9W Overview

Fixed Resistor, Metal Foil, 3W, 0.053ohm, 0.1% +/-Tol, 15ppm/Cel, Surface Mount, 3637, CHIP

Y1475R053000B9W Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	145057782679
package instruction	CHIP
Reach Compliance Code	compliant
Country Of Origin	Israel
ECCN code	EAR99
YTEOL	10
Other features	HIGH PRECISION
structure	Rectangular
Installation features	SURFACE MOUNT
Number of terminals	4
Maximum operating temperature	170 °C
Minimum operating temperature	-65 °C
Package height	1.016 mm
Package length	9.525 mm
Package form	SMT
Package width	9.271 mm
method of packing	Waffle Pack
Rated power dissipation(P)	3 W
Rated temperature	70 °C
resistance	0.053 Ω
Resistor type	FIXED RESISTOR
size code	3637
surface mount	YES
technology	METAL FOIL
Temperature Coefficient	15 ppm/°C
Terminal shape	WRAPAROUND
Tolerance	0.1%

Preview

Download Datasheet

View All

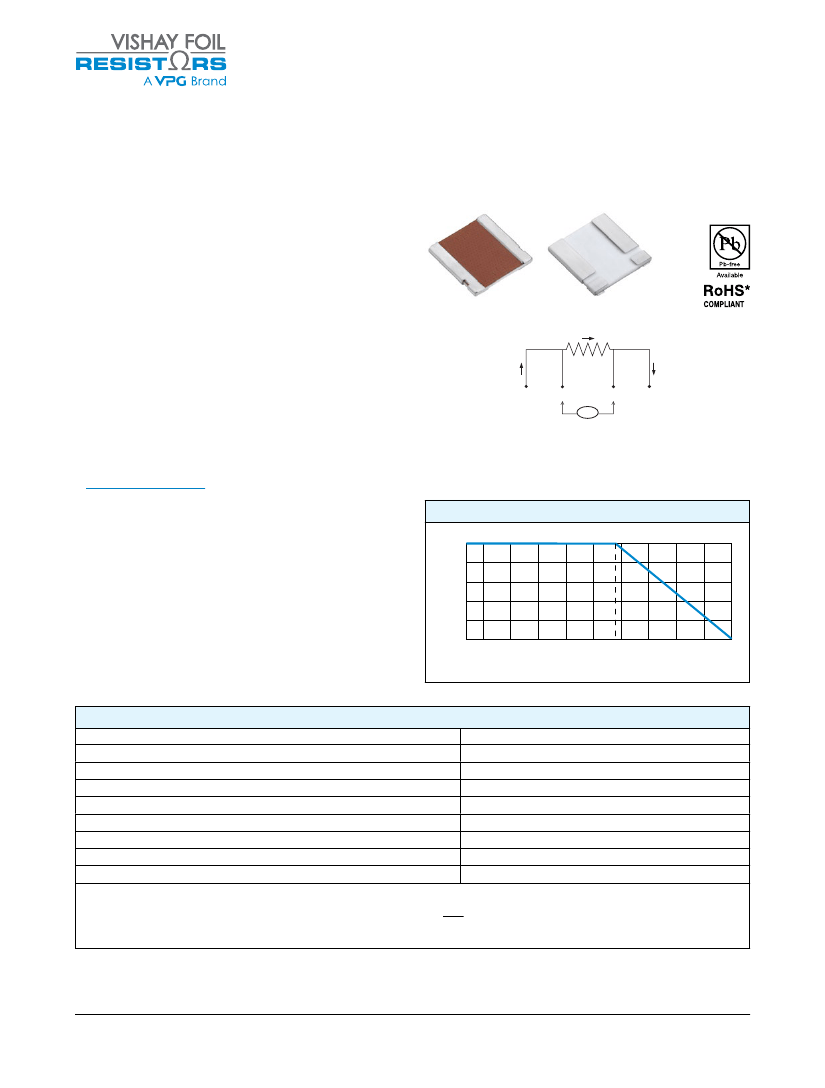

CSM3637F

Bulk Metal

BulkMetal®FoilT

Foil Technology High Precision, Current Sensing,

echnologyHighPrecision,CurrentSensing,

PowerSurfaceMountResistor

Power Surface Mount Resistor

with Rated Power up to 3 W and TCR ±10 ppm/°C

FEATURES

• Temperature coefficient of resistance (TCR):

10 ppm/°C max. (–55°C to +125°C, +25°C ref.)

For tighter TCR please contact us.

• Power rating: 3 W

• Resistance tolerance: to ±0.1%

• Resistance range: 20 mΩ to 200 mΩ

• Load-life stability: to ±0.05% typical

(70°C, 2000 h at rated power)

• Short-time overload: 0.02% typical

• Power coefficient of resistance (PCR), “∆R due to self

heating”: 5 ppm/W at rated power

• Electrostatic discharge (ESD): at least to 25 kV

• Solderable terminations

• Terminal finish available: lead (Pb)-free, tin/lead alloy

• Quick prototype quantities available; please contact

foil@vpgsensors.com

INTRODUCTION

Model CSM3637F is a surface mount chip resistor

designed with 4 pads for Kelvin connection. Utilizing

Bulk Metal

Foil as the resistance element, it provides

enhanced characteristic capabilities resulting in

superior performance when compared with other

resistor technologies. The unique combination of Z Foil

technology along with the designed 4 pads lead frame

configuration results in significant reduction of the

component’s sensitivity to applied power changes such

as power coefficient of resistance (PCR) and thermal

resistance.

Rated Power (%)

Table 1—Specifications

Resistance range

Parameter

Power rating at 70°C

Maximum current

(2)

Tolerance

Temperature coefficient maximum

(–55°C to +125°C, +25°C Ref.)

Operating temperature range

Maximum working voltage

Weight (maximum)

Notes

(1)

Contact application engineering for values outside this range.

(2)

Maximum current for a given resistance value is calculated using I = √P/R .

(3)

For tighter TCR, please contact application engineering: foil@vpgsensors.com.

Note

* This datasheet provides information about parts that are RoHS-compliant and/or parts that are non-RoHS-compliant. For example,

parts with lead (Pb) terminations are not RoHS compliant. Please see the information/tables in this datasheet for details.

Document No.: 63265

Revision: 12-Feb-2018

For any questions, contact

foil@vpgsensors.com

www.vishayfoilresistors.com

Top View

Bottom View

Zin

∞

Four terminal (Kelvin) design:

allows for precise and accurate measurements.

Figure 1—Power Derating Curve

100

+ 70 °C

–65 –50

–25

Ambient Temperature (°C)

100

125

150

170

Value

20 mΩ to 200 mΩ

(1)

2 W: 20 mΩ to <50 mΩ; 3 W: 50 mΩ to 200 mΩ

10 A

±0.1

±15 ppm/°C, R <100 mΩ; ±10 ppm/°C

(3)

R ≥100 mΩ

–65°C to +170°C

(P x R)

1/2

0.29 g

Legal Disclaimer Notice

Vishay Precision Group, Inc.

Disclaimer

ALL PRODUCTS, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE.

Vishay Precision Group, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf

(collectively, “VPG”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained herein or in

any other disclosure relating to any product.

The product specifications do not expand or otherwise modify VPG’s terms and conditions of purchase, including but

not limited to, the warranty expressed therein.

VPG makes no warranty, representation or guarantee other than as set forth in the terms and conditions of purchase.

To the maximum extent permitted by applicable law, VPG disclaims (i) any and all liability arising out of the

application or use of any product, (ii) any and all liability, including without limitation special, consequential or

incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular purpose,

non-infringement and merchantability.

Information provided in datasheets and/or specifications may vary from actual results in different applications and

performance may vary over time. Statements regarding the suitability of products for certain types of applications

are based on VPG’s knowledge of typical requirements that are often placed on VPG products. It is the customer’s

responsibility to validate that a particular product with the properties described in the product specification is suitable for

use in a particular application. You should ensure you have the current version of the relevant information by contacting

VPG prior to performing installation or use of the product, such as on our website at vpgsensors.com.

No license, express, implied, or otherwise, to any intellectual property rights is granted by this document, or by any

conduct of VPG.

The products shown herein are not designed for use in life-saving or life-sustaining applications unless otherwise

expressly indicated. Customers using or selling VPG products not expressly indicated for use in such applications do

so entirely at their own risk and agree to fully indemnify VPG for any damages arising or resulting from such use or sale.

Please contact authorized VPG personnel to obtain written terms and conditions regarding products designed for such

applications.

Product names and markings noted herein may be trademarks of their respective owners.

Document No.: 63999

Revision: 15-Jul-2014
