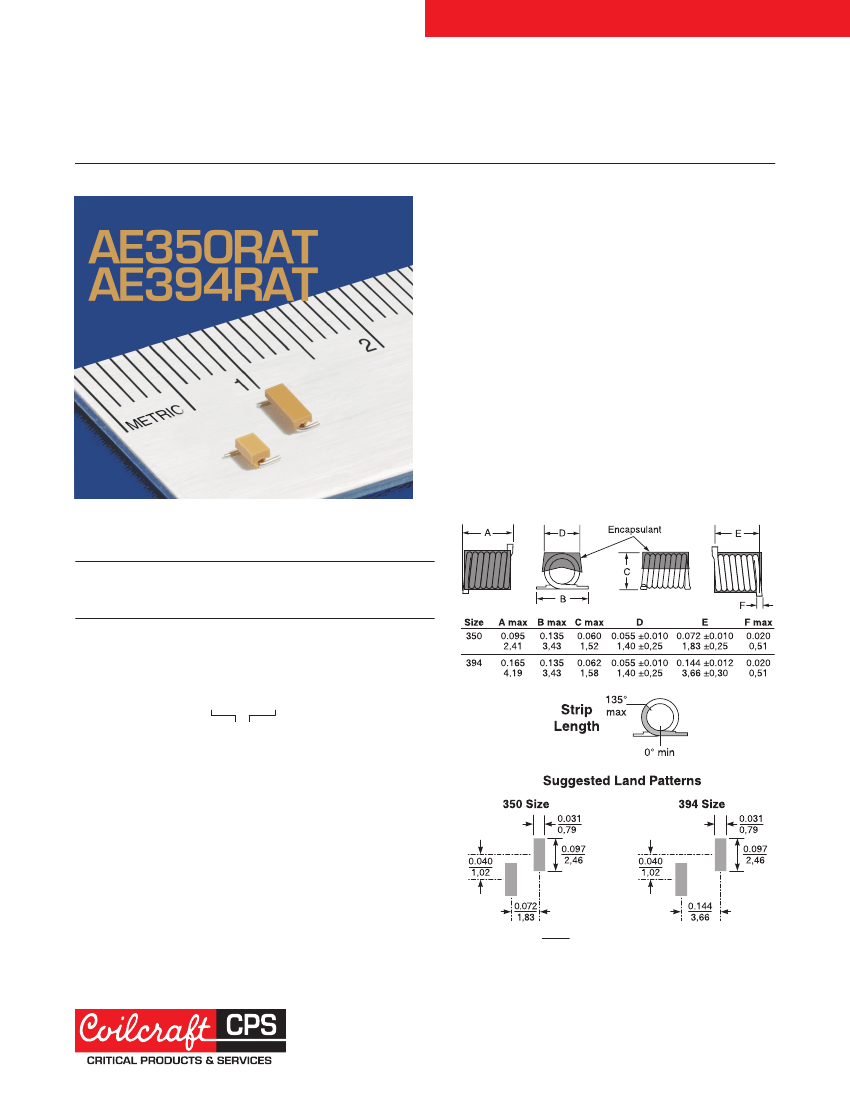

AIR CORE INDUCTORS
Outgassing Compliant Air Core Inductors
AE350RAT
AE394RAT
■
High Q over a wide range of frequencies
■
High temperature materials allow operation in ambient
temperatures up to 155°C.
■
Passes NASA low outgassing specifications
■
Tin-lead (Sn-Pb) terminations ensure the best possible
board adhesion
Terminations
Tin-lead (63/37) over copper
Ambient temperature
–55°C to +125°C with
Imax
current, +125°C
to +155°C with derated current
Storage temperature
Component: –55°C to +155°C.
Packaging: –55°C to +80°C
Resistance to soldering heat
Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Temperature Coefficient of Inductance (TCL)
+5 to +70 ppm/°C
Moisture Sensitivity Level (MSL)
1 (unlimited floor life at <30°C /
85% relative humidity)
Enhanced crush-resistant packaging
AE350RAT:
500 per 7″ reel Plastic tape: 8 mm wide, 0.3 mm thick,
4 mm pocket spacing, 1.5 mm pocket depth
AE394RAT:
500 per 7″ reel Plastic tape: 12 mm wide, 0.3 mm thick,
4 mm pocket spacing, 1.6 mm pocket depth
SRF DCR
L
2
Percent Q
3
min
4
max
5
Part number
1
Turns (nH)
tol
min (GHz) (mOhm)
AE350RAT1N7KSZ 2
1.65
10
100 10.0
4.0
AE350RAT2N6JSZ 3
2.55
5
100
8.2
5.0
AE350RAT3N9_SZ 4
3.85
5,2
100
7.5
6.0
AE350RAT5N4_SZ 5
5.40
5,2
100
7.0
8.0
AE394RAT5N6_SZ 6
5.60
5,2
100
6.5
9.0
AE394RAT7N2_SZ 7
7.15
5,2
100
6.0
10
AE394RAT8N8_SZ 8
8.80
5,2
100
6.0
12
AE394RAT9N9_SZ 9
9.85
5,2
100
5.2
13
AE394RAT13N_SZ 10 12.55
5,2
100
4.6
14
1. When ordering, specify
tolerance
and
testing
codes:
Imax
(A)
1.6
1.6
1.6
1.6
1.6
1.6
1.6
1.6
1.6
AE394RAT10GSZ
Tolerance: G
= 2%
J
= 5%
Testing:
Z
= COTS
H
= Group A screening per Coilcraft CP-SA-10001
N
= Group A screening per Coilcraft CP-SA-10003
2. Inductance measured at 800 MHz on an Agilent/HP 4286A or equiva-
lent with a Coilcraft SMD-A test fixture and correlation.
3. Q measured at 800 MHz on an Agilent/HP 4291A or equivalent with a
16193A test fixture or equivalent.
4. SRF measured on an Agilent/HP 8753ES or equivalent with a Coilcraft
CCF1268 test fixture. Parts with SRF >5 GHz are verified to >5 GHz in
screening.
5. DCR measured on a Keithley 580 Micro-Ohmmeter or equivalent.
6. Electrical specifications at 25°C.
Refer to Doc 362 “Soldering Surface Mount Components” before soldering.
Dimensions are in
inches
mm
®
Document AE163-1 Revised 06/10/13
1102 Silver Lake Road
Cary, IL 60013
Phone 800-981-0363
Fax 847-639-1508
Email cps@coilcraft.com
www.coilcraft-cps.com
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specifications subject to change without notice.
Please check our web site for latest information.
© Coilcraft, Inc. 2013
AIR CORE INDUCTORS
AE350RAT/AE394RAT Air Core Inductors

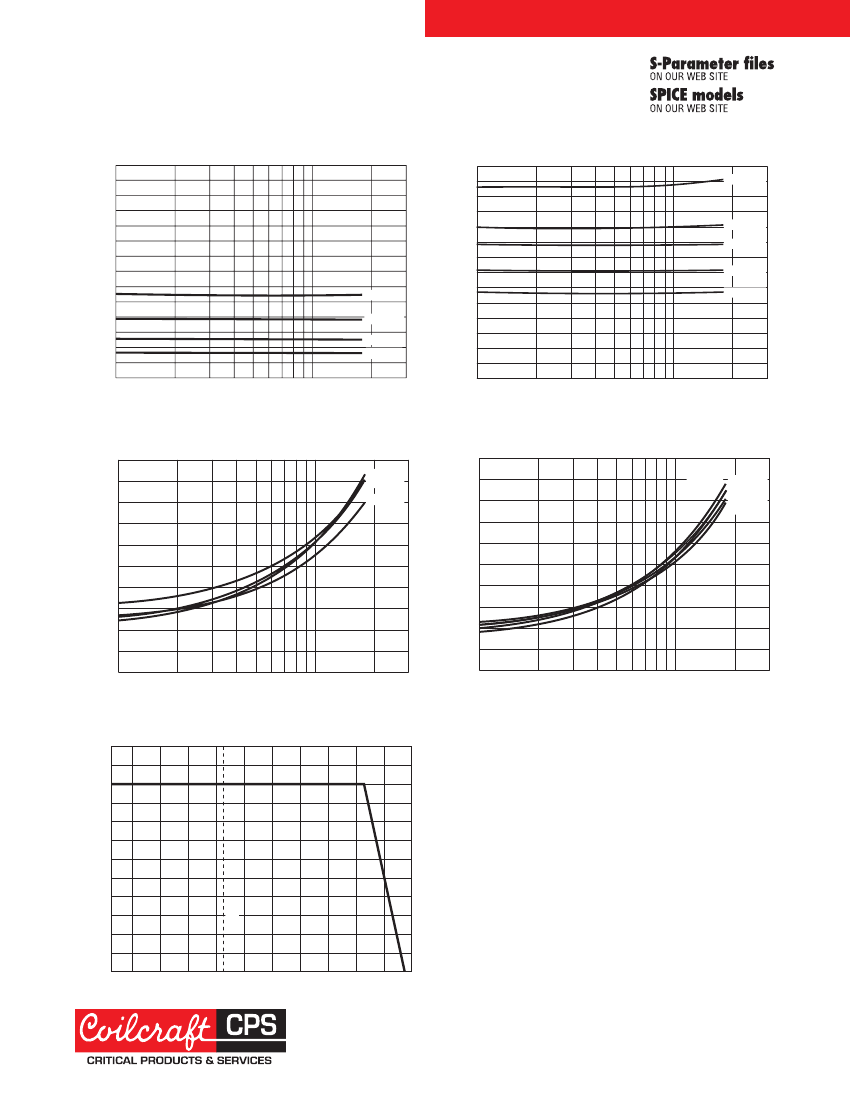

L vs Frequency – AE350RAT Series
14
12
L vs Frequency – AE394RAT Series
14
12
12.55 nH
Inductance (nH)
Inductance (nH)
10
8
6
4
2
0
100
1000
5.40 nH
3.85 nH
2.55 nH
1.65 nH
10
8
9.85 nH
8.80 nH
7.15 nH
6
4
2
0
100
1000
5.60 nH
Frequency (MHz)
Frequency (MHz)
Q vs Frequency – AE350RAT Series
250
2.55 nH 1.65 nH
3.85 nH
5.40 nH
Q vs Frequency – AE394RAT Series
250
200
7.15 nH 8.80 nH
5.60 nH
12.55 nH
9.85 nH
200
Q factor
Q factor
150
150
100
100
50
0
50
0
100
Frequency (MHz)
1000
100
Frequency (MHz)
1000
Typical Current Derating
120
110
100
Percent of rated
I
rms
90
80
70
60
50
30
20
10
0
-55 -40
-20
0
20
25°C
40
40
60
80
100
120
140 160
Ambient temperature (°C)
®
Document AE163-2 Revised 06/10/13
1102 Silver Lake Road
Cary, IL 60013
Phone 800-981-0363
Fax 847-639-1508
Email cps@coilcraft.com
www.coilcraft-cps.com
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specifications subject to change without notice.
Please check our web site for latest information.
© Coilcraft, Inc. 2013
