Surface Mount Multilayer Ceramic Chip Capacitors (SMD MLCCs)
KPS HV, Large Case, SM Series, X7R Dielectric,
500 – 10,000 VDC (Industrial Grade)
Overview

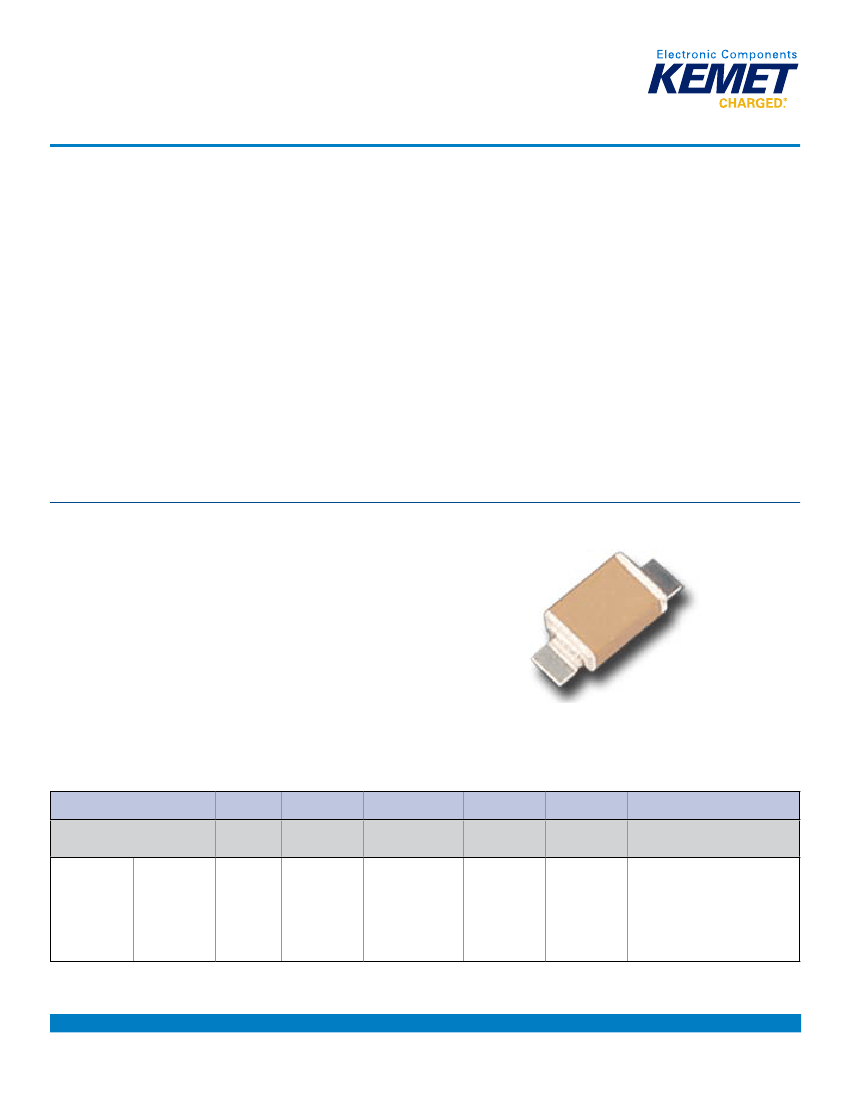

KPS HV (KEMET Power Solutions, High Voltage), Large Case
(≥ 1515), SM Series capacitors in X7R dielectric are designed to
meet robust performance standards required in higher reliability
industrial applications. Utilizing lead-frame technology, SM
Series devices isolate the multilayer ceramic chip component
from the printed circuit board providing advanced mechanical
and thermal stress performance. Isolation of the chip
component also addresses concerns for audible, microphonic
noise that may occur when a bias voltage is applied. Although
this technology does not eliminate the potential for mechanical
damage that may propagate during extreme environmental and
handling conditions, it does demonstrate superior performance
over non-isolating systems. Available in both formed "L" and
"J" lead configurations, SM Series devices offer up to 10 mm
of board flex capability and exhibit lower ESR, ESL and higher
current discharge capability when compared to other dielectric
solutions.
Combined with the stability of an X7R dielectric, KEMET’s High
Voltage SM Series devices exhibit a predictable change in
capacitance with respect to time and voltage and boast a minimal
change in capacitance with reference to ambient temperature.
Capacitance change is limited to ±15% from -55°C to +125°C.
KEMET's Industrial grade products offer additional screening
options for higher reliability applications. Both Group A and Group
B testing/inspection options per MIL–PRF–49467 are available for
the SM Series.
Benefits
•
•
•
•
•
•
-55°C to +125°C operating temperature range
Large Case Sizes (≥ 1515)
Formed “L” or “J” leadframe configurations
Group A and B screening per MIL–PRF–49467 available
Reliable and robust leadframe termination system
DC voltage ratings of 500 V, 1 KV, 2 KV, 3 KV, 4 KV, 5 KV,
7.5 KV, and 10 KV
• Capacitance offerings ranging from 150 pF up to 5.6 μF
Ordering Information
SM20
Style/Size
SM20
SM21
SM22
SM23
SM24
SM25
SM26
1
2
B
Dielectric
SM30
SM31
SM33
SM34
SM35
SM36
B = X7R
153
Capacitance
Code (pF)
2 Significant
Digits +
Number of
Zeros
K
Capacitance
Tolerance
K = ±10%
M = ±20%
501
Voltage
501 = 500 V
102 = 1,000 V
202 = 2,000 V
302 = 3,000 V
402 = 4,000 V
502 = 5,000 V
B
Lead
Configuration
1
A = Formed "L"
B = Formed "J"
M
Testing/
Inspection Option
2
Blank = None
M = Group A per MIL–PRF–49467
Standard lead configuration is formed "J". If the appropriate character is excluded from the ordering code, the assumed lead configuration will be formed "J".
Group B testing/inspection option per MIL–PRF–49467 is available upon request. Please contact KEMET for ordering details.
One world. One KEMET
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com C1033_X7R_KPS_HIVOLT_SMD • 5/30/2013
1
Surface Mount Multilayer Ceramic Chip Capacitors (SMD MLCCs)
KPS HV, Large Case, SM Series, X7R Dielectric, 500 – 10,000 VDC (Industrial Grade)
Dimensions – Inches (Millimeters)
Style/
Size
SM20
SM21
SM22
SM23
SM24
SM25
SM26
SM30
SM31
SM33
SM34
SM35
SM36
L
Length
0.150 ± 0.015 (3.81 ± 0.38)
0.200 ± 0.020 (5.08 ± 0.51)
0.250 ± 0.020 (6.35 ± 0.51)
0.350 ± 0.030 (8.89 ± 0.76)
0.450 ± 0.030 (11.43 ± 0.76)
0.550 ± 0.030 (14.00 ± 0.76)
0.650 ± 0.030 (16.50 ± 0.76)
0.300 ± 0.030 (7.62 ± 0.76)
0.400 ± 0.030 (10.20 ± 0.76)
0.700 ± 0.030 (17.08 ± 0.76)
0.900 ± 0.030 (22.90 ± 0.76)
1.100 ± 0.030 (27.90 ± 0.76)
1.350 ± 0.030 (33.00 ± 0.76)
W
Width
0.150 ± 0.015 (3.81 ± 0.38)
0.200 ± 0.020 (5.08 ± 0.51)
0.200 ± 0.020 (5.08 ± 0.51)
0.300 ± 0.030 (7.62 ± 0.76)
0.400 ± 0.030 (10.20 ± 0.76)
0.500 ± 0.030 (12.70 ± 0.76)
0.600 ± 0.030 (15.20 ± 0.76)
0.150 ± 0.015 (3.81 ± 0.38)
0.200 ± 0.020 (5.08 ± 0.51)
0.300 ± 0.030 (7.62 ± 0.76)
0.400 ± 0.030 (10.20 ± 0.76)
0.500 ± 0.030 (12.70 ± 0.76)
0.600 ± 0.030 (15.20 ± 0.76)
T
Thickness
Max.
0.130 (3.30)
0.180 (4.57)
A
Lead Width
Max.
0.100 (2.54)
0.200 (5.08)
0.300 (7.62)
0.400 (10.20)
0.500 (12.70)
0.100 (2.54)
0.200 (5.08)
0.300 (7.62)
0.400 (10.2)
0.500 (12.7)
LL
Lead Length
(Formed "L")
LL
Lead Length
(Formed "J")
0.040 ± 0.010
(1.02 ± 0.25)
0.220 (5.59)
0.140 (3.55)
0.130 (3.30)
0.180 (4.57)
0.220 (5.59)
0.100 ± 0.020
(2.54 ± 0.51)
0.100 ± 0.020
(2.54 ± 0.51)
Benefits cont'd
• Advanced protection against thermal and mechanical stress
• Provides up to 10 mm of board flex capability
• Reduces audible, microphonic noise
• Low ESR and ESL
• Non-polar device, minimizing installation concerns
• Silver plated copper alloy leadframe termination system
Applications
Typical applications include switch mode power supplies (input filters, resonators, tank circuits, snubber circuits, output filters), high
voltage coupling and DC blocking, voltage multiplier circuits, DC/DC converters and coupling capacitors in Ćuk converters, noise
reduction (piezoelectric/mechanical), circuits with a direct battery or power source connection, critical and safety relevant circuits
without (integrated) current limitation and any application that is subject to high levels of board flexure or temperature cycling. Markets
include power supply, LCD fluorescent backlight ballasts, HID lighting, telecom equipment, industrial and medical equipment/control
and Military.
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com C1033_X7R_KPS_HIVOLT_SMD • 5/30/2013
2
Surface Mount Multilayer Ceramic Chip Capacitors (SMD MLCCs)
KPS HV, Large Case, SM Series, X7R Dielectric, 500 – 10,000 VDC (Industrial Grade)
Qualification/Certification
Industrial Grade products are subject to internal qualification. Details regarding test methods and conditions are referenced in
Table 3, Performance & Reliability.
Environmental Compliance
RoHS compliant with Exemption(s)
Electrical Parameters/Characteristics
Item
Operating Temperature Range
Capacitance Change with Reference to +25°C and 0 VDC Applied
(TCC)
Aging Rate (Maximum % Capacitance Loss/Decade Hour)
Dielectric Withstanding Voltage (DWV)
Dissipation Factor (DF) Maximum Limit @ 25ºC
Insulation Resistance (IR) Limit @ 25°C
-55°C to +125°C
±15%
3.0%
150% of rated voltage for voltage rating of ≤ 1,250 VDC
120% of rated voltage for voltage rating of > 1,250 VDC
(5 ±1 seconds and charge/discharge not exceeding 50 mA)
2.5%
1,000 megohm microfarads or 100 GΩ
(Rated voltage DC applied for 120 ±5 seconds @ 25°C for voltage rating of ≤ 500 VDC)
(500 VDC applied for 120 ±5 seconds @ 25°C for voltage rating of > 500 VDC)
Parameters/Characteristics
Regarding aging rate: Capacitance measurements (including tolerance) are indexed to a referee time of 1,000 hours.
To obtain IR limit, divide MΩ-µF value by the capacitance and compare to GΩ limit. Select the lower of the two limits.
Capacitance and dissipation factor (DF) measured under the following conditions:
1 kHz ±50 Hz and 1.0 Vrms ±0.2 V if capacitance > 100 pF
Note: When measuring capacitance it is important to ensure the set voltage level is held constant. The HP4284 and Agilent E4980 have a feature known as
Automatic Level Control (ALC). The ALC feature should be switched to "ON."
Post Environmental Limits
High Temperature Life, Biased Humidity, Moisture Resistance
Dielectric
X7R
Rated DC Voltage
All
Capacitance Value
All
Dissipation Factor
(Maximum %)
3.0
Capacitance
Shift
±20%
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com C1033_X7R_KPS_HIVOLT_SMD • 5/30/2013
3
Surface Mount Multilayer Ceramic Chip Capacitors (SMD MLCCs)
KPS HV, Large Case, SM Series, X7R Dielectric, 500 – 10,000 VDC (Industrial Grade)
Table 1A – Capacitance Range/Selection Waterfall SM20 – SM24 Style/Size
Style/Size
Length
Width
Thickness
Maximum
Lead Width
Maximum
Lead Length
"L"
Lead Length
"J"
Voltage Code
Voltage DC
SM20
0.150 ± 0.015
(3.81 ± 0.38)
0.150 ± 0.015
(3.81 ± 0.38)
0.130
(3.30)
0.100
(2.54)
0.100 ± 0.020
(2.54 ± 0.51)
0.040 ± 0.010
(1.02 ± 0.25)
SM21
0.200 ± 0.020
(5.08 ± 0.51)
0.200 ± 0.020
(5.08 ± 0.51)
0.180
(4.57)
0.100
(2.54)
0.100 ± 0.020
(2.54 ± 0.51)
0.040 ± 0.010
(1.02 ± 0.25)
SM22
Dimensions – inches (mm)
0.250 ± 0.020
(6.35 ± 0.51)
0.200 ± 0.020
(5.08 ± 0.51)
0.180
(4.57)
0.100
(2.54)
0.100 ± 0.020
(2.54 ± 0.51)
0.040 ± 0.010
(1.02 ± 0.25)
SM23
0.350 ± 0.030
(8.89 ± 0.76)
0.300 ± 0.030
(7.62 ± 0.76)
0.220
(5.59)
0.200
(5.08)
0.100 ± 0.020
(2.54 ± 0.51)
0.100 ± 0.020
(2.54 ± 0.51)
SM24
0.450 ± 0.030
(11.43 ± 0.76)
0.400 ± 0.030
(10.20 ± 0.76)
0.220
(5.59)
0.300
(7.62)
0.100 ± 0.020
(2.54 ± 0.51)
0.100 ± 0.020
(2.54 ± 0.51)
X7R Dielectric
500 1 K 2 K 500 1 K 2 K 3 K 500 1 K 2 K 3 K 500 1 K 2 K 3 K 4 K 500 1 K 2 K 3 K 4 K 5 K Capacitance
Tolerance
501 102 202 501 102 202 302 501 102 202 302 501 102 202 302 402 501 102 202 302 402 502
Capacitance
330 pF
390 pF
470 pF
560 pF
680 pF
820 pF
1,000 pF
1,200 pF
1,500 pF
1,800 pF
2,200 pF
2,700 pF
3,300 pF
3,900 pF
4,700 pF
5,600 pF
6,800 pF
8,200 pF
0.01 µF
0.012 µF
0.015 µF
0.018 µF
0.022 µF
0.027 µF
0.033 µF
0.039 µF
0.047 µF
0.056 µF
0.068 µF
0.082 µF
0.1 µF
0.12 µF
0.15 µF
0.18 µF
0.22 µF
0.27 µF
0.33 µF
0.39 µF
0.47 µF
0.56 µF
0.68 µF
0.82 µF
1.0 µF
1.2 µF
Capacitance Code
331
391
471
561
681
821
102
122
152
182
222
272
332
392
472
562
682
822
103
123
153
183
223
273
333
393
473
563
683
823
331
391
471
561
681
821
102
122
152
182
222
272
332
392
472
562
682
822
103
123
153
183
223
331
391
471
561
681
821
102
122
152
182
222
272
332
392
821
102
122
152
182
222
272
332
392
472
562
682
822
103
123
153
183
223
273
333
393
473
563
683
823
104
124
154
184
821
102
122
152
182
222
272
332
392
472
562
682
822
103
123
153
183
223
273
333
393
473
563
683
821
102
122
152
182
222
272
332
392
472
562
682
822
103
123
821
102
122
152
182
222
272
332
392
472
681
821
102
122
152
182
222
272
332
392
472
562
682
822
103
123
153
183
223
273
333
393
473
563
683
823
104
124
154
184
224
274
681
821
102
122
152
182
222
272
332
392
472
562
682
822
103
123
153
183
223
273
333
393
473
563
683
823
104
681
821
102
122
152
182
222
272
332
392
472
562
682
822
103
123
153
681
821
102
122
152
182
222
272
332
392
472
562
102
122
152
182
222
272
332
392
472
562
682
822
103
123
153
183
223
273
333
393
473
563
683
823
104
124
154
184
224
274
334
394
474
564
102
122
152
182
222
272
332
392
472
562
682
822
103
123
153
183
223
273
333
393
473
563
683
823
104
124
154
184
224
274
102
122
152
182
222
272
332
392
472
562
682
822
103
123
153
183
223
273
333
102
122
152
182
222
272
332
392
472
562
682
822
103
123
153
102
122
152
182
222
272
332
392
472
562
682
102
122
152
182
222
272
332
392
472
562
682
822
103
123
153
183
223
273
333
393
473
563
683
823
104
124
154
184
224
274
334
394
474
564
684
824
105
125
102
122
152
182
222
272
332
392
472
562
682
822
103
123
153
183
223
273
333
393
473
563
683
823
104
124
154
184
224
274
334
394
474
102
122
152
182
222
272
332
392
472
562
682
822
103
123
153
183
223
273
333
393
473
563
683
823
104
102
122
152
182
222
272
332
392
472
562
682
822
103
123
153
183
223
273
333
102
122
152
182
222
272
332
392
472
562
682
822
103
123
102
122
152
182
222
272
332
392
472
562
682
K, M
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com C1033_X7R_KPS_HIVOLT_SMD • 5/30/2013
4
Roll Over for
Order Info.
Surface Mount Multilayer Ceramic Chip Capacitors (SMD MLCCs)
KPS HV, Large Case, SM Series, X7R Dielectric, 500 – 10,000 VDC (Industrial Grade)
Table 1B – Capacitance Range/Selection Waterfall SM25 – SM31 Style/Size
Style/Size
Length
Width
Thickness
Maximum
Lead Width
Maximum
Lead Length
"L"
Lead Length
"J"
Voltage Code
Voltage DC
SM25
0.550 ± 0.030
(14.00 ± 0.76)
0.500 ± 0.030
(12.70 ± 0.76)
0.220
(5.59)
0.400
(10.20)
0.100 ± 0.020
(2.54 ± 0.51)
0.100 ± 0.020
(2.54 ± 0.51)
SM26
Dimensions – inches (mm)
0.650 ± 0.030
(16.50 ± 0.76)
0.600 ± 0.030
(15.20 ± 0.76)
0.220
(5.59)
0.500
(12.70)
0.100 ± 0.020
(2.54 ± 0.51)
0.100 ± 0.020
(2.54 ± 0.51)
SM30
0.300 ± 0.030
(7.62 ± 0.76)
0.150 ± 0.015
(3.81 ± 0.38)
0.140
(3.55)
0.100
(2.54)
0.100 ± 0.020
(2.54 ± 0.51)
0.100 ± 0.020
(2.54 ± 0.51)
SM31
0.400 ± 0.030
(10.20 ± 0.76)
0.200 ± 0.020
(5.08 ± 0.51)
0.130
(3.30)
0.100
(2.54)
0.100 ± 0.020
(2.54 ± 0.51)
0.100 ± 0.020
(2.54 ± 0.51)
X7R Dielectric
500 1 K 2 K 3 K 4 K 5 K 500 1 K 2 K 3 K 4 K 5 K 500 1 K 2 K 3 K 4 K 500 1 K 2 K 3 K 4 K 5 K Capacitance
Tolerance
501 102 202 302 402 502 501 102 202 302 402 502 501 102 202 302 402 501 102 202 302 402 502
Capacitance
150 pF
180 pF
220 pF
270 pF
330 pF
390 pF
470 pF
560 pF
680 pF
820 pF
1,000 pF
1,200 pF
1,500 pF
1,800 pF
2,200 pF
2,700 pF
3,300 pF
3,900 pF
4,700 pF
5,600 pF
6,800 pF
8,200 pF
0.01 µF
0.012 µF
0.015 µF
0.018 µF
0.022 µF
0.027 µF
0.033 µF
0.039 µF
0.047 µF
0.056 µF
0.068 µF
0.082 µF
0.1 µF
0.12 µF
0.15 µF
0.18 µF
0.22 µF
0.27 µF
0.33 µF
0.39 µF
0.47 µF
0.56 µF
0.68 µF
0.82 µF
Capacitance Code
151
181
221
271
331
391
471
561
681
821
102
122
152
182
222
272
332
392
472
562
682
822
103
123
153
183
223
273
333
393
473
563
683
823
104
124
154
184
222
272
332
392
472
562
682
822
103
123
153
183
223
273
333
393
473
563
683
823
104
124
154
184
224
274
334
394
474
564
684
824
222
272
332
392
472
562
682
822
103
123
153
183
223
273
333
393
473
563
683
823
104
124
154
184
224
274
334
394
474
222
272
332
392
472
562
682
822
103
123
153
183
223
273
333
393
473
563
683
823
104
124
222
272
332
392
472
562
682
822
103
123
153
183
223
273
333
393
473
222
272
332
392
472
562
682
822
103
123
153
222
272
332
392
472
562
682
822
103
222
272
332
392
472
562
682
822
103
123
153
183
223
273
333
393
473
563
683
823
104
124
154
184
224
274
334
394
474
564
684
824
222
272
332
392
472
562
682
822
103
123
153
183
223
273
333
393
473
563
683
823
104
124
154
184
224
274
334
394
474
564
684
824
222
272
332
392
472
562
682
822
103
123
153
183
223
273
333
393
473
563
683
823
104
124
154
184
222
272
332
392
472
562
682
822
103
123
153
183
223
273
333
393
473
563
683
823
104
392
472
562
682
822
103
123
153
183
223
273
333
392
472
562
682
822
103
123
153
151
181
221
271
331
391
471
561
681
821
102
122
152
182
222
272
332
392
472
562
682
822
103
123
153
183
223
273
333
393
473
563
151
181
221
271
331
391
471
561
681
821
102
122
152
182
222
272
332
392
472
562
682
822
103
151
181
221
271
331
391
471
561
681
821
102
122
152
182
222
272
332
151
181
221
271
331
391
471
561
681
821
102
122
152
681
821
102
122
152
182
222
272
332
392
472
562
682
822
103
123
153
183
223
273
333
393
473
563
683
823
104
124
154
184
224
274
334
394
681
821
102
122
152
182
222
272
332
392
472
562
682
822
103
123
153
183
223
273
333
393
473
563
683
823
104
681
821
102
122
152
182
222
272
332
392
472
562
682
822
103
123
153
183
223
681
821
102
122
152
182
222
272
332
392
472
562
682
822
681
821
102
122
152
182
222
272
332
392
681
821
102
122
152
K, M
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com C1033_X7R_KPS_HIVOLT_SMD • 5/30/2013
5
Roll Over for
Order Info.
京公网安备 11010802033920号
EEWORLD
