Data sheet
RS VERT
RS LPK3/144 VERT
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com

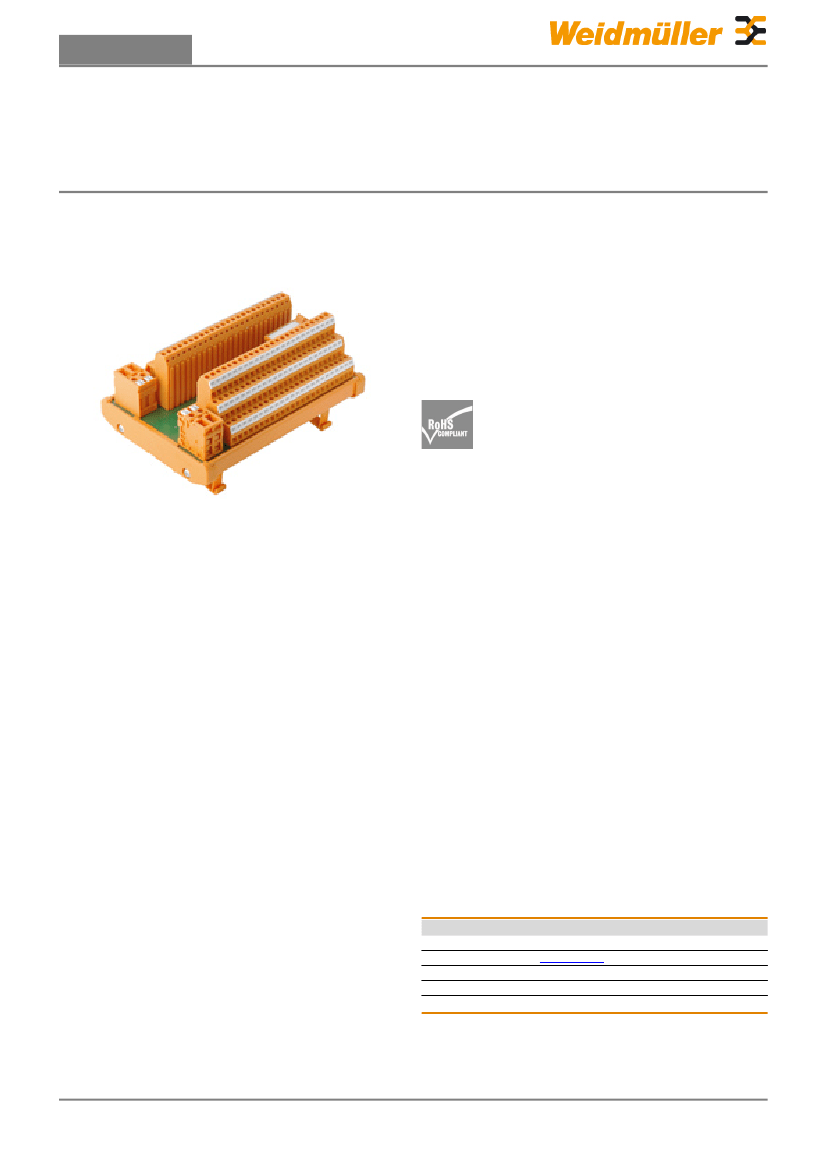

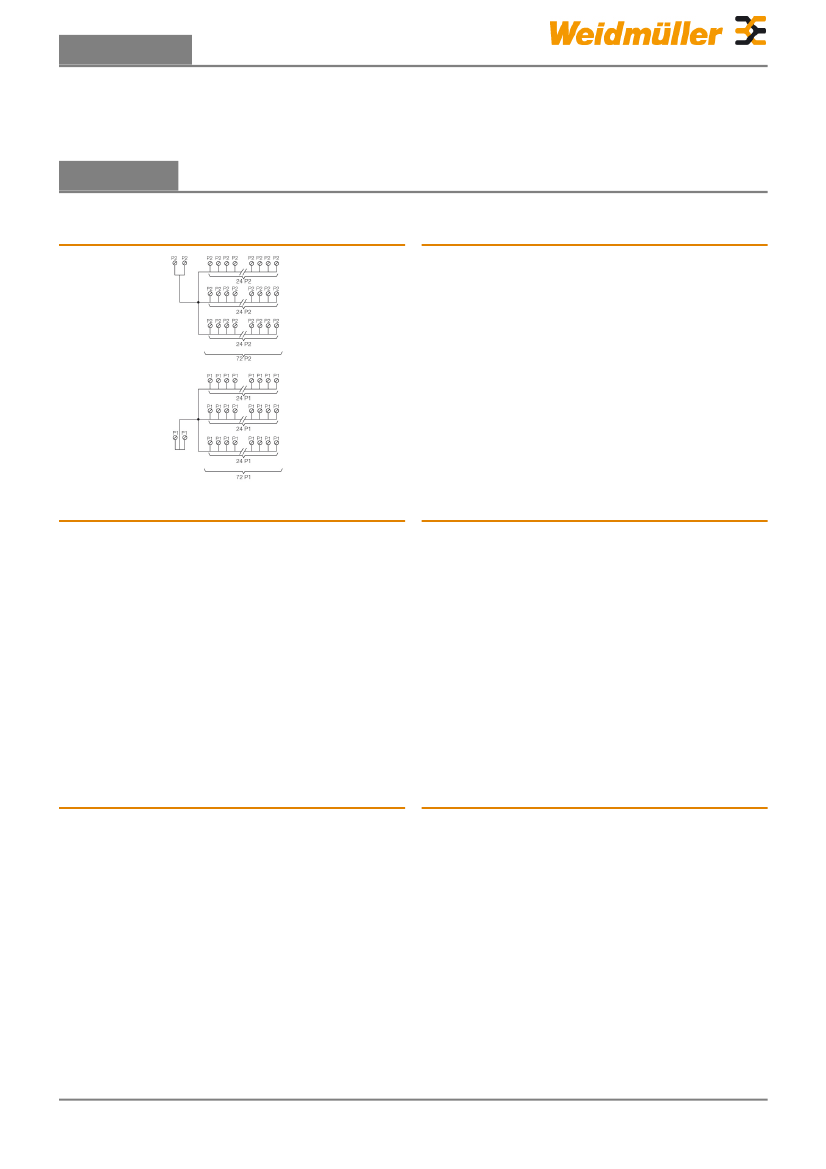

Distributor module with 2 each of 8-, 16- or 72-pole
voltage potentials (P1, P2).
General ordering data
Type
Order No.
Version
GTIN (EAN)
Qty.
RS LPK3/144 VERT
8199510000
Interface, RS VERT, 2 P, Screw connection
4008190854041
1 pc(s).
Creation date December 20, 2013 10:35:00 PM CET
Catalogue status / We reserve the right to make technical changes.
1
Data sheet
RS VERT
RS LPK3/144 VERT
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com
Technical data
160 mm
68 mm
Width
Net weight
Dimensions and weights
Length
Height
109 mm
570 g
Temperatures
Operating temperature
0...+55°C
Storage temperature
-40...+60 °C
Connection data
Number of potentials
Supply plug-in connectors
2
TOP 1.5GS2/180
Distribution PCB connectors
LPK 3 5.08mm
Rating data
Rated voltage (text)
Maximum current per distributor
connection
≤ 250 Vdc ≤ 250 Vac
10 A
Maximum current per potential
connection
Total operating current
10 A
20 A
Insulation coordination (EN50178)
According to
Surge voltage category
Pulse voltage test (1,2/50μs)
DIN EN 50178
III
4 kV
Rated insulation voltage
Pollution severity level
< 300 V AC
2
Connection field
Type of connection
Clamping range, max.
Solid, max. H05(07) V-U
Flexible, max. H05(07) V-K
Flexible with sleeve, min.
Min. wire cross-section, AWG [field]
Tightening torque, min.
Stripping length
Screw connection
1.5 mm²
6 mm²
4 mm²
0.5 mm²
AWG 26
0.5 Nm
6 mm
Clamping range, min.
Solid, min. H05(07) V-U
Flexible, min. H05(07) V-K
Flexible with sleeve, max.
Sleeve with plastic collar, max.
Max. wire cross-section, AWG [field]
Tightening torque, max.
0.15 mm²
0.5 mm²
0.5 mm²
2.5 mm²
2.5 mm²
AWG 12
0.6 Nm
Supply connection
Type of connection
Clamping range, max.
Solid, max. H05(07) V-U
Flexible, max. H05(07) V-K
Flexible with sleeve, min.
Wire cross-section, min. AWG
Tightening torque, min.
Stripping length
Screw connection
6 mm²
6 mm²
4 mm²
0.5 mm²
AWG 26
0.5 Nm
13 mm
Clamping range, min.
Solid, min. H05(07) V-U
Flexible, min. H05(07) V-K
Flexible with sleeve, max.
Ferrule with plastic collar, max.
Wire cross-section, max. AWG
Tightening torque, max.
0.15 mm²
0.5 mm²
0.5 mm²
4 mm²
4 mm²
AWG 10
0.6 Nm
Classifications
ETIM 3.0
eClass 5.1
eClass 7.1
EC001419
27-24-22-04
27-24-22-04
UNSPSC
eClass 6.2
30-21-18-01
27-24-22-04
Creation date December 20, 2013 10:35:00 PM CET
Catalogue status / We reserve the right to make technical changes.
2
