10 MΩ min. (at 500 VDC) between external terminal and case
2,000 VAC min. for 1 min between external terminal and case
±200
V on power supply terminals in normal mode
±500
V on power supply terminals in common mode
Malfunction: 10 to 55 Hz, 0.5-mm single amplitude for 10 min each in X, Y, and Z directions
Destruction: 10 to 55 Hz, 0.75-mm single amplitude for 2 hrs each in X, Y, and Z directions
Malfunction: 98 m/s
2
for 3 times each in 6 directions
Destruction: 294 m/s
2
for 3 times each in 6 directions
Operating:
−10°
to 55°C (with no icing)
Storage:
−20°
to 65°C (with no icing)
Operating: 35% to 85% (with no condensation)
No corrosive gas
EN61326+A1
Industry
CISPR 11 Group 1 class A: CISRP16-1/-2
CISPR 11 Group 1 class A: CISRP16-1/-2
EN61326+A1
Industry
EN61000-4-2:
4 kV contact discharge (level 2)
8 kV air discharge (level 3)
Immunity RF-interference:
EN61000-4-3:
10 V/m (amplitude-modulated, 80 MHz to
1 GHz) (level 3)
Immunity Fast Transient Noise: EN61000-4-4:
2 kV (power line) (level 3)
Immunity Burst Noise:
1 kV line to line (I/O signal line)
Immunity Surge:
EN61000-4-5:
1 kV line to line
2 kV line to ground (power line)
Immunity Conducted Disturbance EN61000-4-6:
3 V (0.15 to 80 MHz) (level 2)
Immunity Voltage Dip/Interrupting EN61000-4-11:
0.5 cycles, 0, 180°, 100% (rated voltage)
(EMI)
Emission Enclosure:
Emission AC Mains:
(EMS)
Immunity ESD:
■
Characteristics
Input signal
A/D conversion method
Sampling period
Display refresh period
Max. displayed digits
Display
Decimal point display position
Sign display
Overflow/underflow display
Zero suppression
External control
Degree of protection
DC voltage
Double integral method
2.5 times/s
2.5 times/s
3 1/2 digits (+1999)
7-segment red LED
By short-circuiting terminals
“−” is displayed automatically with a negative input signal.
Overflow:
1@@@
Underflow:
−1@@@
Not supported.
Process value hold (terminals on rear panel short-circuited)
Front panel: IEC IP51 (see note)
Case:
IEC IP20
Terminals: IEC IP00
Note:
IP51 is maintained when the water-resistive soft cover and bracket are used. IP50 will be, however, maintained without these water-resistive
accessories.
■
Measuring Ranges
Input range
DC voltage
Measuring range
±199.9
mV
±1.999
V
±19.99
V
±199.9
V
Max. resolution
100
µV
1 mV
10 mV
100 mV
Input impedance
100 MΩ
100 MΩ
10 MΩ
10 MΩ
Accuracy
±0.1%rdg ±1
digit
±0.1%rdg ±1
digit
±0.1%rdg ±1
digit
±0.1%rdg ±1
digit
Max. permissible load
±250
V
±250
V
±250
V
±350
V
Note:
The above accuracy is at an ambient temperature of 23±5°C.
2
K3TG

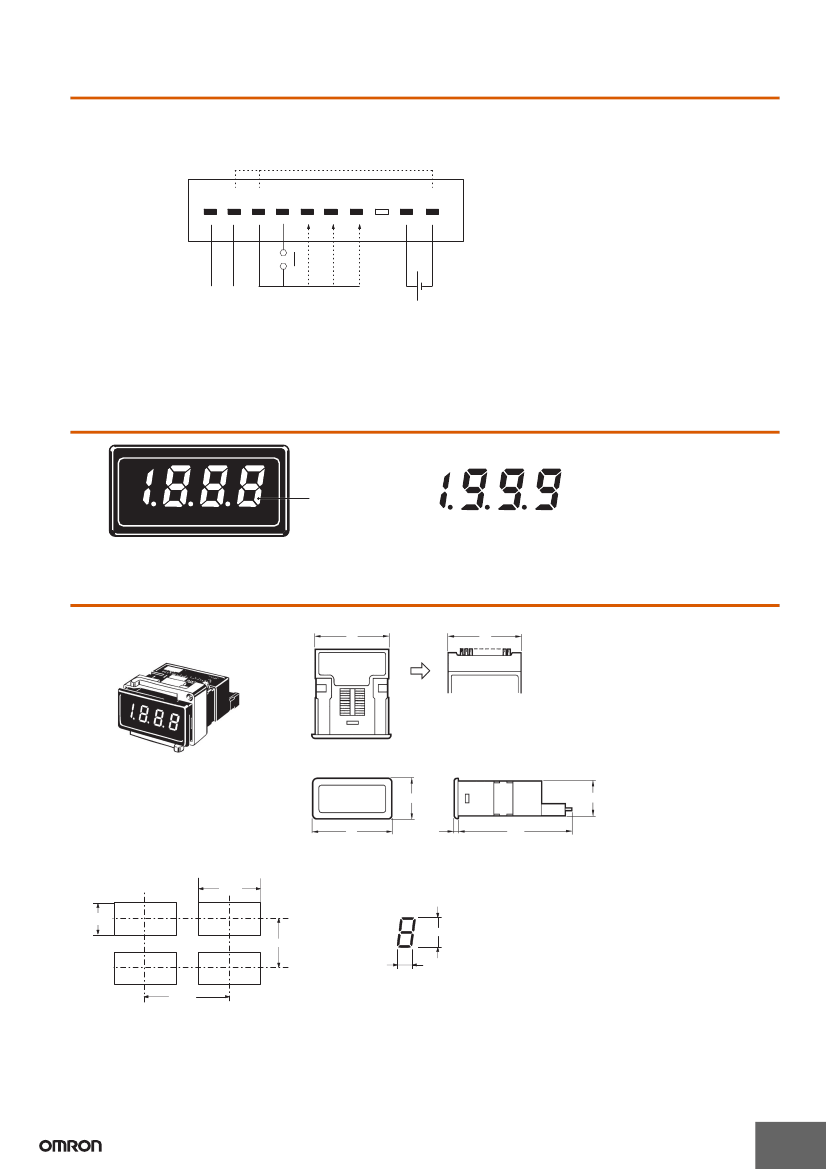

Connections
■
External Connections
External Connection (Connector and connector screws are provided with the model.)
1
2
3
4
5
6
7
8
9
10
Conformance to EN/IEC Standards
To ensure conformance to EN/IEC
standards in machinery that incorporates
the K3TG, ensure that input signal lines
are less than 30 m.
Unused
+
−
COM HOLD 10
3
10
2
10
1
DC power supply
Signal input
Decimal position
Note: 1.
Terminals 2 and 3 and 10 are not internally insulated. Connect a relay with high contact reliability and insulation (with a minimum
load current of 0.3 mA) or a photocoupler with high insulation (with a residual voltage of 1 V max. and a current leakage of 0.1 mA
max.) to these terminals for external control. The use of an independent power supply is recommended for the Digital Panel Meter.
2.
Terminal 8 is not used. Do not use this terminal for transmission of signals.
Nomenclature
Select the decimal position with terminal 5, 6, or 7 on the rear panel.
PV display
10
3
10
2
10
1
Dimensions
Note:
All units are in millimeters unless otherwise indicated.
43
43
24
21
48
2
70
Panel Cutouts
45
+0.6
−0
22.2
+0.3
−0
10.2 mm
38 min.
LED Indicator Size
5.6 mm
60 min.
Note:
The values above are recommended
values. Do not group-mount the meters
at intervals less than the
recommended ones.
3
K3TG
Application Examples
High DC Voltage Measurement
When voltage exceeding the maximum voltage in the standard range is measured
(for example: more than 200 V), a divider is connected externally.
Divider
R
1
Input
E
1
R
2
Hi
Digital
panel
meter
DC (V)
E
2
E
2
= R
2
E
1
R
1
+ R
2
Lo
Lo
Safety Precautions
■
Precautions for Correct Use
Refer to
Safety Precautions for All Digital Panel Meters.
Accessories (Order Separately)
Water-resistive Soft Front Cover
Before mounting the Digital Panel Meter to a panel, attach the water-
resistive soft front cover and mounting bracket to the Digital Panel
Meter properly so that the Digital Panel Meter will maintain IP51
water-resistive standards.
Mounting
Recommended panel thickness is 1 to 3.2 mm.
Mount the Digital Panel Meter by attaching the mounting bracket sup-
plied as an accessory from the rear of the Digital Panel Meter and
hooking the mounting bracket to the Digital Panel Meter securely.
Tighten the mounting screws by turning them clockwise with a tight-
ening torque of 4 kgf·cm (0.39 N·m).
To dismount the Digital Panel Meter, loosen the screws and widen
the hooks.
Mount the Digital Panel Meter as horizontally as possible.
Mounting
Adapter
Soft Cover
Calibration
Calibrate the Digital Panel Meter regularly so that the Digital Panel
Meter can maintain processing accuracy.
Use a standard signal generator with an accuracy of 99.99% min. for
calibration.
For the precise calibration methods, refer to the Instruction Sheet for
the Digital Panel Meter.
Note:
Be sure to use the Water-resistive Soft Front Cover and
mounting bracket together.
Control Power Supply
Use a control power supply with a ripple rate of 10% max.
ALL DIMENSIONS SHOWN ARE IN MILLIMETERS.
To convert millimeters into inches, multiply by 0.03937. To convert grams into ounces, multiply by 0.03527.
In the interest of product improvement, specifications are subject to change without notice.
4
