GCTJ-08-2-C1LY-6-BK-P1-S-PG6 datasheet, PDF

Datasheet> All Categories > The connector> The connector> GCTJ-08-2-C1LY-6-BK-P1-S-PG6

GCTJ-08-2-C1LY-6-BK-P1-S-PG6: DescriptionTelecom and Datacom Connector, 16 Contact(s), Male, Right Angle, Solder Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size159KB，1 Pages; ManufacturerCentral Semiconductor; Environmental Compliance

Download Datasheet Parametric View All

GCTJ-08-2-C1LY-6-BK-P1-S-PG6 Overview

Telecom and Datacom Connector, 16 Contact(s), Male, Right Angle, Solder Terminal, Locking, Receptacle

GCTJ-08-2-C1LY-6-BK-P1-S-PG6 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	304482321
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
Board mount options	SPLIT BOARD LOCK
body width	0.53 inch
subject depth	0.62 inch
body length	1.27 inch
Body/casing type	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	TELCOM, MODULAR
Dielectric withstand voltage	1000VAC V
Durability	1000 Cycles
empty shell	NO
Filter function	NO
Insulation resistance	500000000 Ω
Insulator color	BLACK
insulator material	POLYETHYLENE
JESD-609 code	e3
Installation option 1	LOCKING
Installation option 2	MOUNTING FLANGE
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of ports	2
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
PCB contact pattern	STAGGERED
Plating thickness	15u inch
Rated current (signal)	2 A
Guideline	UL
Shell surface	NICKEL
Shell material	BRASS
Terminal length	0.103 inch
Terminal pitch	2.032 mm
Termination type	SOLDER
Total number of contacts	16

Preview

Download Datasheet

View All

(A)

(B)

(C)

(D)

SPECIFICATIONS

Contact material:

Contact plating:

Housing material:

Shield material:

Shield plating:

Phosphor bronze

Gold over nickel in contact area

Tin over nickel in solder area

Engineering thermoplastic, UL94V-0

Nickel alloy

Brass

Code

[LXX omitted]

LED (XX=left-right)

No LEDs

Red

Green

Yellow

Orange

Amber

Red/Green

Yellow/Green

Orange/Green

No LED

(B)

No. of

Dimensions

ports

16.50

12.70

32.26 15.75 28.45

63.76 47.25 59.94

95.26 78.75 91.46

126.76 110.25 122.94

Series

Positions

Ports

Body Style

LED

Contacts

Color

GCTJ

LXX

Modular 06=6 pos. 1, 2, 4, 6, 8 Side entry See LED table 4, 6, 8

ganged 08=8 pos. (see port with LEDs

jack

list)

Approved

Drawing

Name

Approved Howard

Checked Lizzy

Drawn Tina

0.0 ± 0.35

Date

08/10/99

08/10/99 Part No.:

2.54 16.26

2.67 32.00

2.67 63.50

2.67 95.01

2.67 126.51

Plating

(C)

(E)

PCB Layout/Top View

RoHS compliant

Rev.

Description

Date

Panel

Grounds

PGX

BK=Black P1=15µ” gold [blank]=None [omitted]=None

P2=30µ” gold S=Full shield 2=Top

P3=50µ” gold

4=Sides

6=Top & sides

Options

440 Lincoln Blvd., Middlesex, New Jersey 08846

Phone 732 469-5720 888 288-5152 Fax 732 469-1919

Central Components Manufacturing

GCTJ-08-2-C1LXX-X-BK-PX-S-PG6

0.00 ± 0.20 Angles ± 3’

UNIT: mm

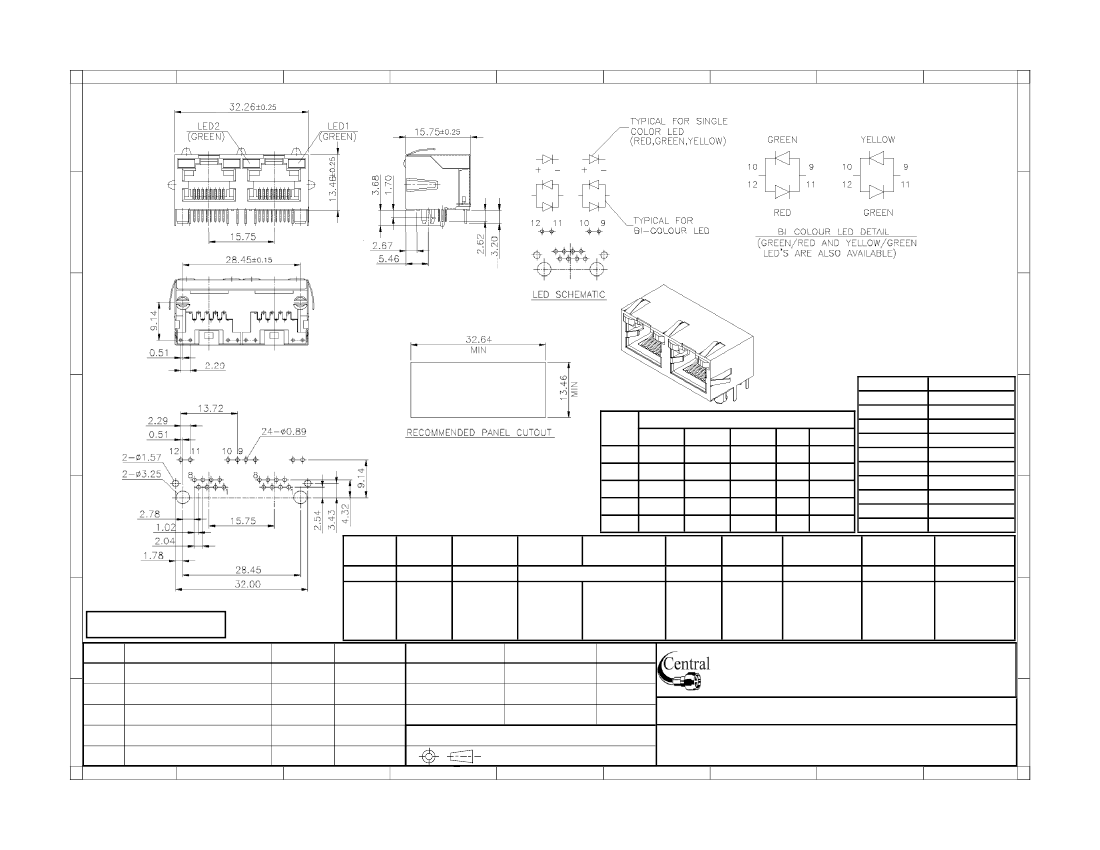

Description: Multiport modular jack with LED, type C1, shielded
