UC23 Type
Chip Mica Capacitor 3.2x2.5Size
Superior RF characteristics with high withstanding voltage
High accuracy with less aging deterioration
(Contact us if you need non-standard capacitance tolerance)
Applications
For telecommunication devices
Specifications
Ordering Cord:UC232A1500J (-T)
UC Chip Mica Capacitor:UC Series
23 Size(mm) L:3.2 W:2.5 T:2(max)
2A Rated Voltage 2A:100WVDC 2H:500WVDC 3A:1000WVDC
Nominal Capaciance (pF) Exa.:1500-->150pF 0150-->15pF
Capacitance Range 2A:43.5-430pF 2H:0.5-150pF 3A:0.5-50pF
1500 0.5pF up to 10pF/0.1pF Step
10.5pF up to 100pF/0.5pF Step
101pF up to 1000pF/1pF Step
Tolerance
Capacitance (pF)
C
D
F
G
0.5-5.0
+⁄-0.25pF
+⁄-0.5pF
5.1-10.0
+⁄-0.25pF
+⁄-0.5pF
+⁄-1pF
J
10.5-12.5
+⁄-0.25pF
13.0-25.0
+⁄-0.25pF
+⁄-2%
25.5-50.0
+⁄-0.25pF
+⁄-1%
+⁄-2%
50.5-100
+⁄-0.25pF
+⁄-0.5%
+⁄-1%
+⁄-2%
101-430
+⁄-1%
+⁄-2%
(-T) Taping UC23 : 3000pcs/Reel
Temperature Coefficient 1-10pF : 0-200ppm/Deg.C10.5-30pF : 0-100ppm/Deg.C 30.5pFmin : 0-
50ppm/Deg.C
Operating Temperature Range -55 up to +125Deg.C
Insuration Resistance 10x10
4
M ohm min
J
+⁄-5%
+⁄-5%
+⁄-5%
+⁄-5%
+⁄-5%

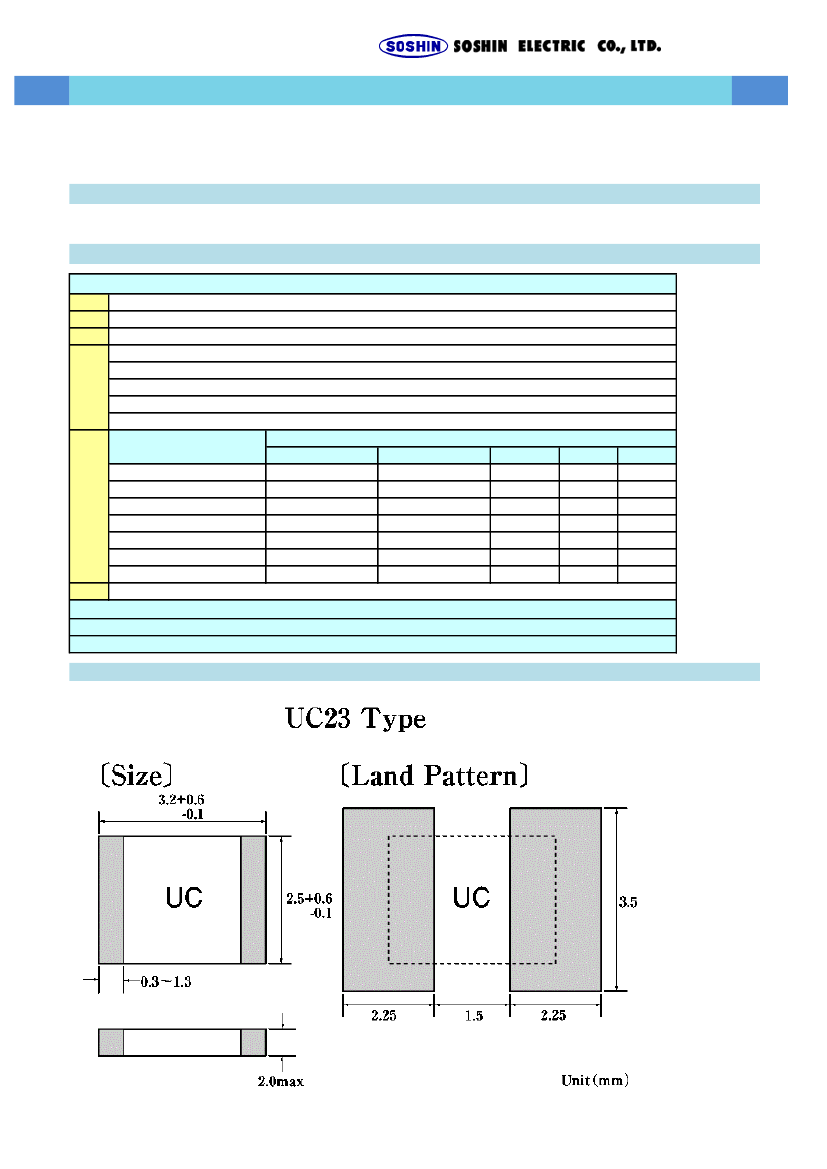

Land Pattern & Dimensions

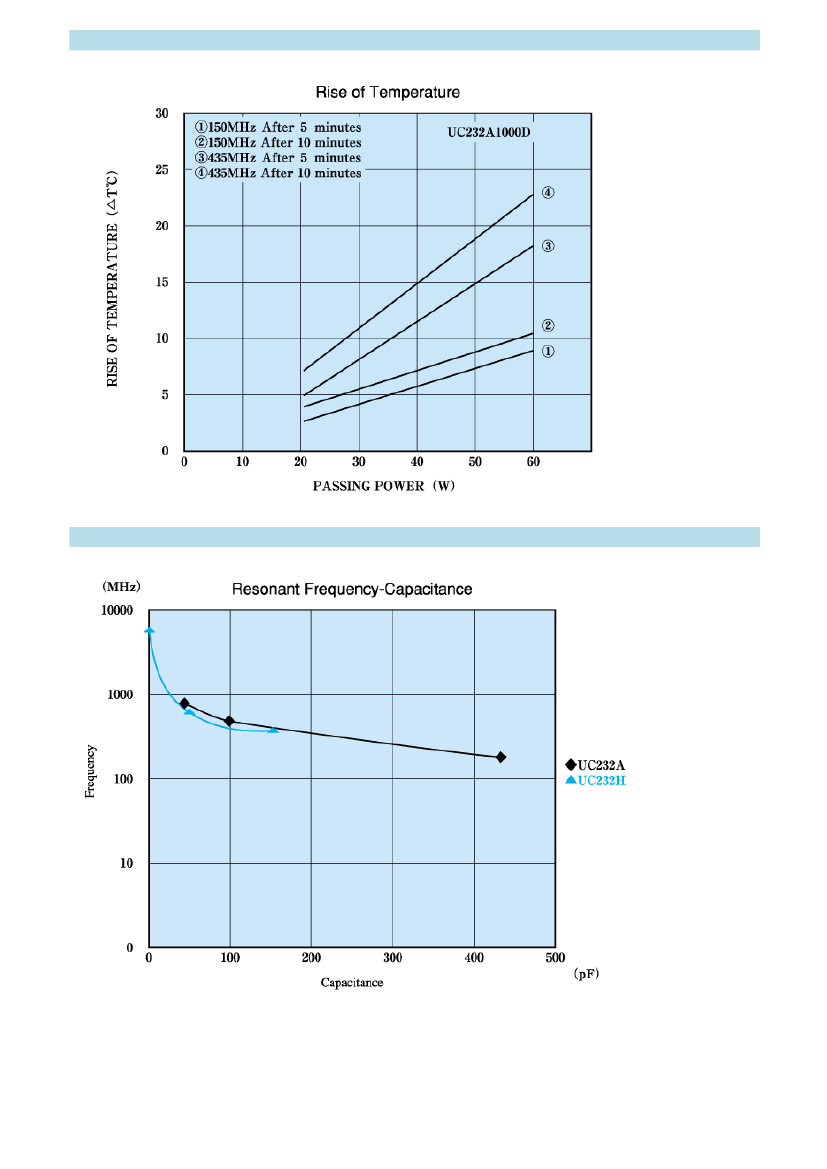

Characteristics 1 Temperature vs. Passing power
Characteristics 2 Resonant Frequency

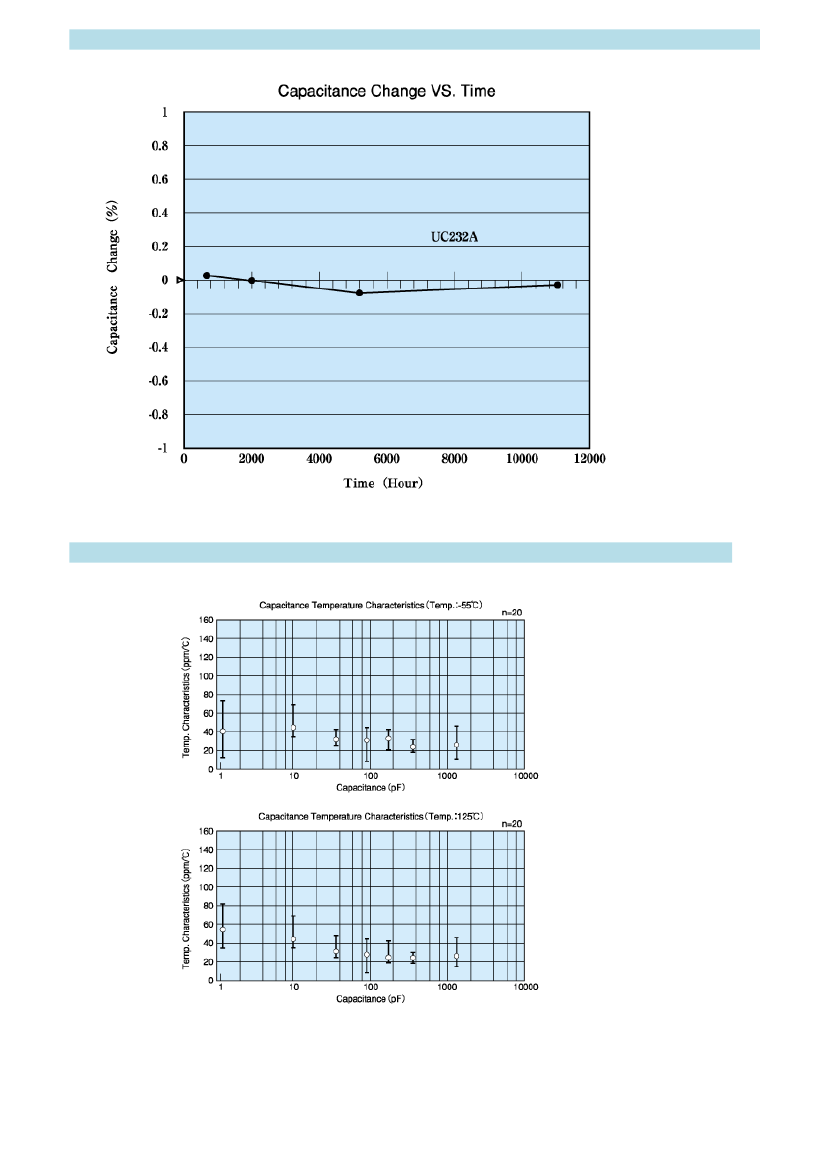

Characteristics 3 Capacitance change vs. Time
Characteristics (Common) 1 Capacitance vs. Temperature（-55℃-125℃）

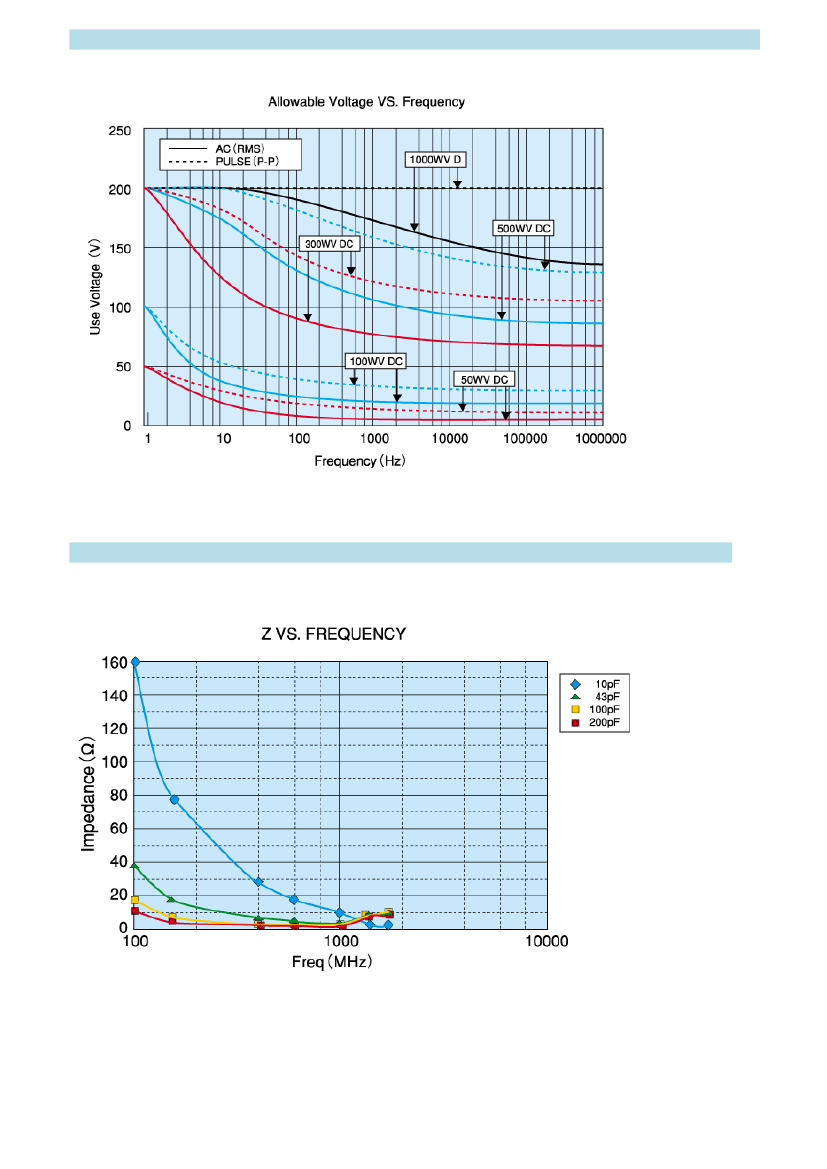

Characteristics (Common) 3 Allowable Voltage vs. Frequency
Characteristics (Common) 4 Frequency vs. Impedance

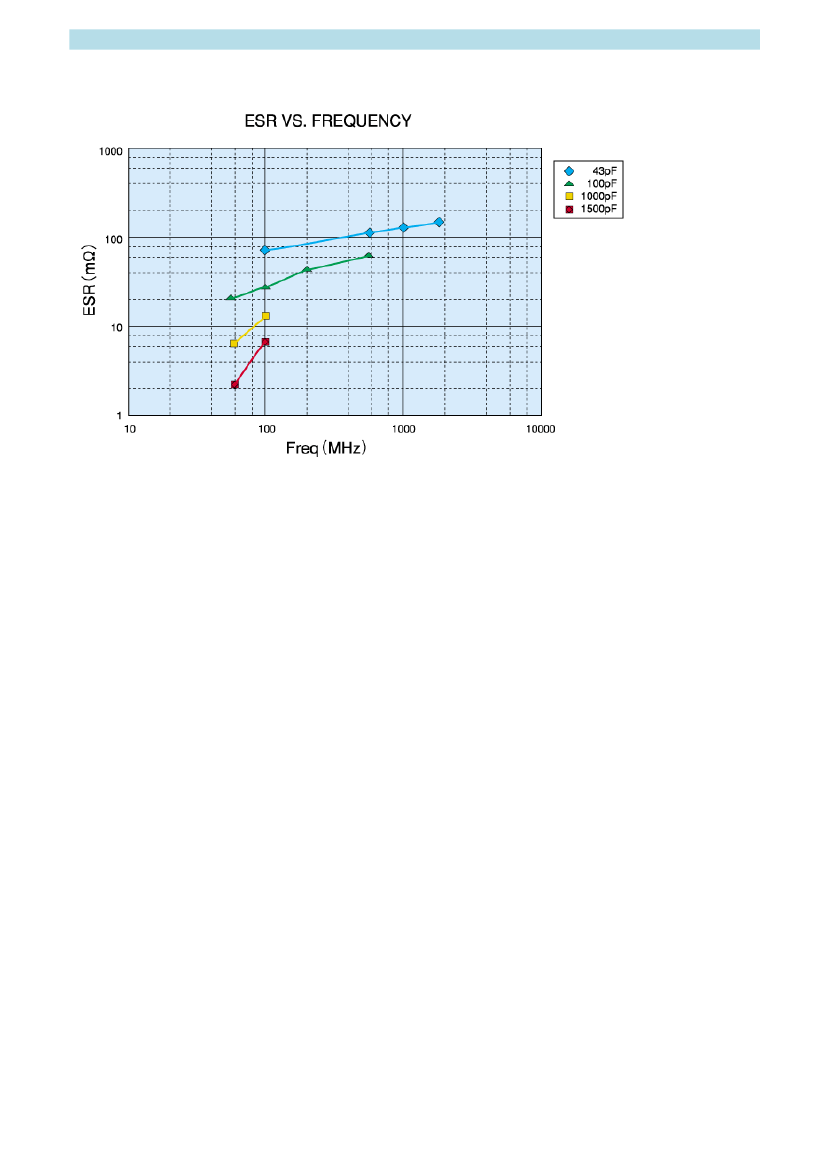

Characteristics (Common) 5 ESR vs. Frequency
