D14T25-0.500-3.3V datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> oscillator> D14T25-0.500-3.3V

Preview

D14T25-0.500-3.3V: DescriptionHCMOS/TTL Output Clock Oscillator, 0.5MHz Nom; CategoryPassive components oscillator; File Size78KB，1 Pages; ManufacturerITTI Company Limited; Websitehttp://www.itti-co.com; Environmental Compliance

Download Datasheet Parametric View All

D14T25-0.500-3.3V Overview

HCMOS/TTL Output Clock Oscillator, 0.5MHz Nom

D14T25-0.500-3.3V Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1290108881
Reach Compliance Code	unknown
Other features	TRI-STATE; ENABLE/DISABLE FUNCTION; 0 TO 70 TEMP ALSO AVAILABLE
maximum descent time	8 ns
Frequency Adjustment - Mechanical	NO
frequency stability	25%
Installation features	THROUGH HOLE MOUNT
Nominal operating frequency	0.5 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	HCMOS/TTL
Output load	5 TTL, 30 pF
physical size	20.4mm x 12.9mm x 5.88mm
longest rise time	8 ns
Maximum supply voltage	3.63 V
Minimum supply voltage	2.97 V
Nominal supply voltage	3.3 V
surface mount	NO
maximum symmetry	40/60 %

Preview

Download Datasheet

View All

Halogen

Free

PRODUCTS

Typical Applications:

Video Decoding

VoIP

Wireless Base Station

Set-top Box

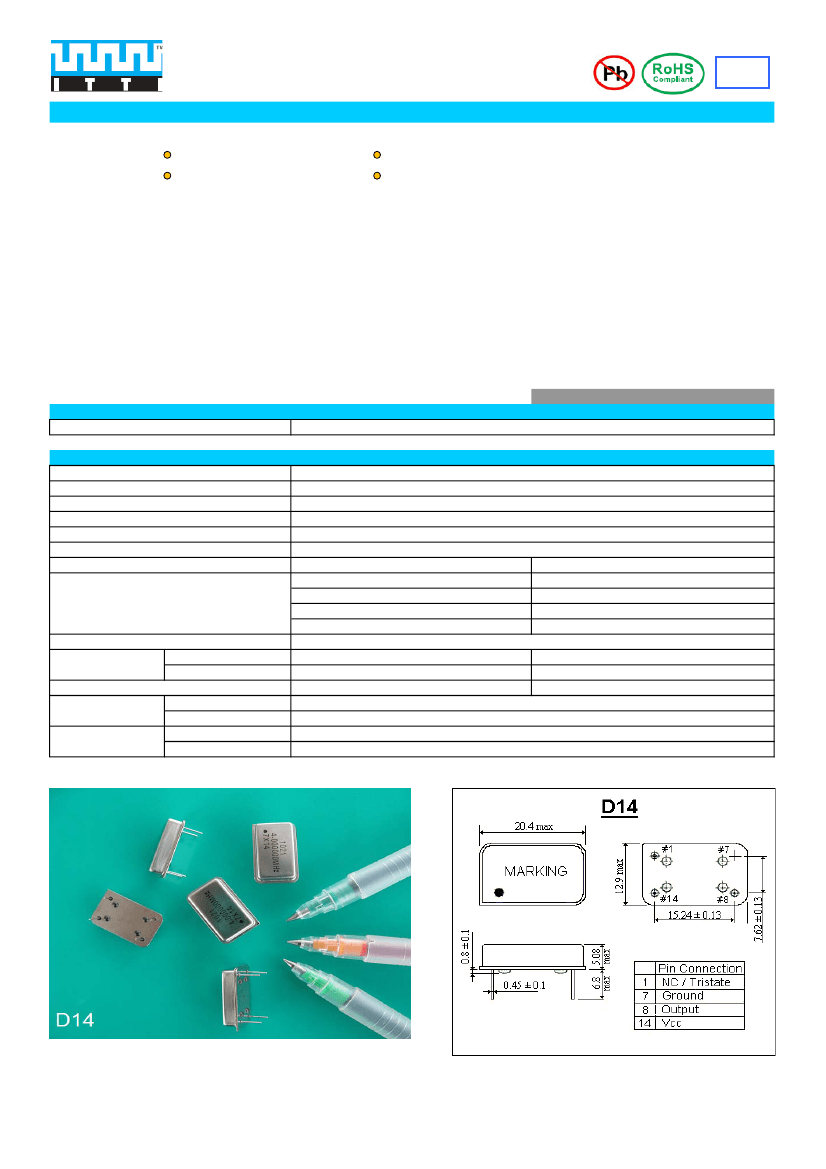

Clock Oscillator (Through Hole)

D14

(Through Hole Oscillator Series)

Part Number: D14 (Waveform) (ppm) - Freq - Vcc

Example: D14T25-20.000-3.3V

■

Specification

Part No.

D14 (waveform) (ppm) - Freq - Vcc

Specification

Output Waveform

Frequency Range

Temperature Stability

Operating Temperature Range

Storage Temperature Range

Aging

Supply Voltage (Vcc)

Example

D14T25-20.000-3.3V

D14

TTL / HCMOS Compatible

0.5 -150.0MHz

±25 to ±100ppm

0°C to +70°C / -40°C to +85°C

-55°C to +125°C

±5ppm/year Max.

+5.0VDC ±10%

15mA Max (0.5 to 24.0 MHz)

30mA Max (24.0 to 50.0 MHz)

40mA Max (50.0 to 70.0 MHz)

60mA Max (70.0 to 150.0 MHz)

40/60% or 45/55%

TTL Load

HCMOS Load

VOL

VOH

Enable

Disable

1~10 TTL

1~5 TTL

~50.0M :50pF / ~70.0M :30pF / ~150.0M:15pF

~50.0M :30pF / ~150.0M :15pF

10/10nS Max

8/8nS Max

10% Vcc Max

90% Vcc Min

Pin 1 = Hi or Open , Pin 8 active

Pin 1 = Lo , Pin 8 High Z

+3.3VDC ±10%

15mA Max (0.5 to 24.0 MHz)

20mA Max (24.0 to 50.0 MHz)

30mA Max (50.0 to 70.0 MHz)

45mA Max (70.0 to 150.0 MHz)

D14

Supply Current

Symmetry

Output Load

Rise and Fall Time

Output Voltage

Tristate Option

■

Dimension

(Unit:mm)
