AF1D-127-06-G-CMS-H3-1D-B/A datasheet, PDF

Datasheet> All Categories > The connector> The connector> AF1D-127-06-G-CMS-H3-1D-B/A

AF1D-127-06-G-CMS-H3-1D-B/A: DescriptionBoard Stacking Connector, 6 Contact(s), 1 Row(s), Female, Straight, Surface Mount Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size112KB，1 Pages; ManufacturerAntelec; Websitehttp://www.antelec.fr; Environmental Compliance

Download Datasheet Parametric View All

AF1D-127-06-G-CMS-H3-1D-B/A Overview

Board Stacking Connector, 6 Contact(s), 1 Row(s), Female, Straight, Surface Mount Terminal, ROHS COMPLIANT

AF1D-127-06-G-CMS-H3-1D-B/A Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	8035809301
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	GOLD FLASH
Contact completed and terminated	GOLD FLASH
Contact point gender	FEMALE
Contact material	COPPER ALLOY
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	1.27 mm
Termination type	SURFACE MOUNT
Total number of contacts	6
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

Female header SMT type for pin

0.40 mm

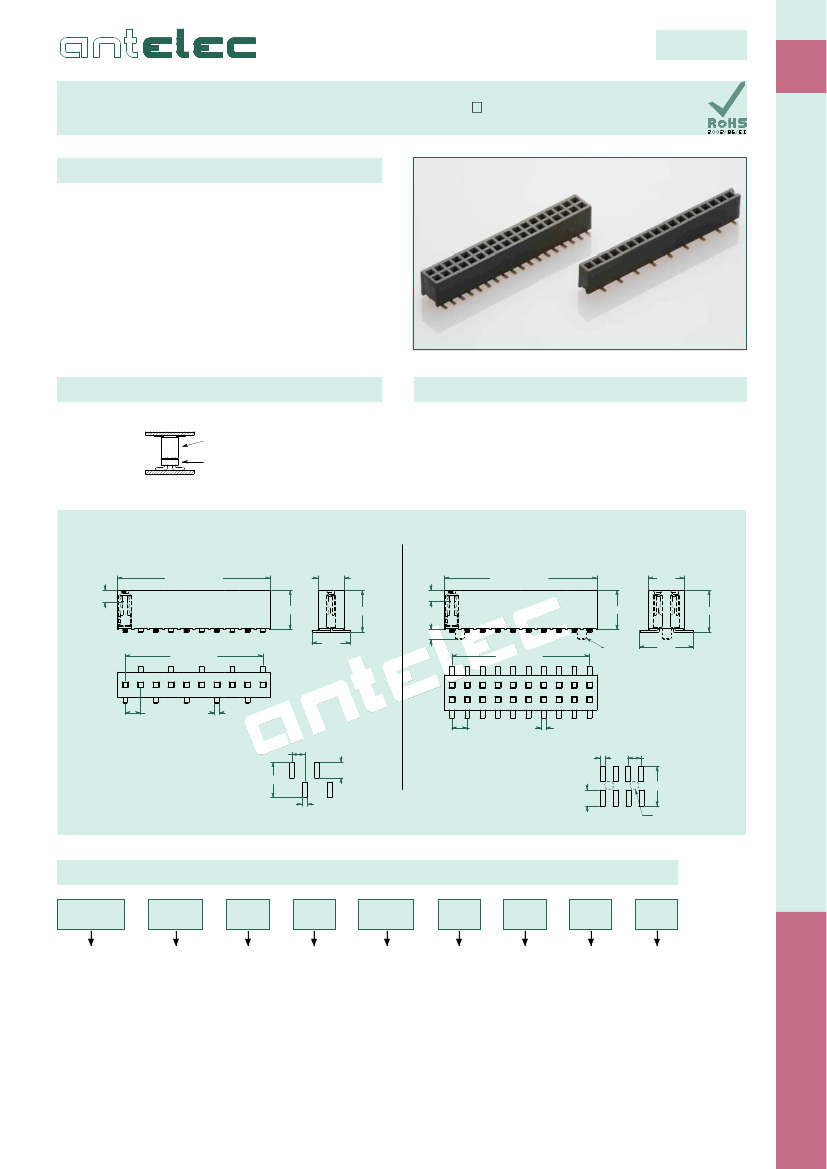

Product specifications

Current rating : 1.0 A

Dielectric withstanding voltage : 500 Volts AC during 1 mn

Insulation resistance : > 5000 MΩ

Contact resistance : < 20 mΩ

Operating temperature : -55°C to +125°C

Max processing temperature : 260°C during 5 sec

Contact : copper alloy

Plating : gold flash

Insulator : nylon-6T, UL94V-0

Number of pins :

1 row : 4 to 40 pins

2 rows : 6 to 100 pins

Mounting example(s)

Mates with

Pin headers

0.40 mm

AF2D-127-XX-G-CMS

AM2D-127-XX-G-CMS

1 Row

N x 1.27 + 0.35

1.1

H (4.4)

H + 0.2

2.2

1.1

N x 1.27 + 0.45

2 Rows

3.0

H (4.4)

H + 0.2

3.2

(N-1) x 1.27

1.0

Ø 0.7

(N-1) x 1.27

4.5

1.27

0.4 x 0.15

1.27

0.4 x 0.15

1.27

0.76

2.05

1.27

PCB layout

(tolerance ± 0.05 mm)

4.20

0.76

PCB layout

(tolerance ± 0.05 mm)

5.60

2.05

Ø 0.79

Create your part number

AF1D

Antelec

socket

1 row

straight

or AF2D for

socket

2 rows

straight

127

Pitch

1.27 mm

Total

number

of contacts

Gold

CMS

SMT

version

Insulator

Height

H = 4.4 mm

(standard)

or H3 for

H = 3.4 mm

or H2 for

H = 2.1 mm

BOARD TO BOARD 1.27

Pin N°1

on left

or 1D for

Pin N°1

on right

(only for

1 row,

number

of pins

even)

Without

Pegs

or P for

with Pegs

(2 Rows

only)

In Bulk or

B/A for Reel

with pad or

T/A for Tub

with pad

info@antelec.fr

tel: +33 (0)1 49 80 14 14

fax: +33 (0)1 49 80 14 15

BTB

www.antelec.fr

1.27 mm
