AM1D-200-38-37-G

Description
Board Connector, 38 Contact(s), 1 Row(s), Male, Straight, Solder Terminal
CategoryThe connector    The connector
File Size281KB,2 Pages
ManufacturerAntelec
Websitehttp://www.antelec.fr
Download Datasheet Parametric View All

AM1D-200-38-37-G Overview

Board Connector, 38 Contact(s), 1 Row(s), Male, Straight, Solder Terminal

AM1D-200-38-37-G Parametric

Parameter NameAttribute value
Objectid1303147113
Reach Compliance Codeunknown
Connector typeBOARD CONNECTOR
Contact to complete cooperationGOLD FLASH
Contact completed and terminatedGOLD FLASH
Contact point genderMALE
DIN complianceNO
Filter functionNO
IEC complianceNO
JESD-609 codee4
MIL complianceNO
Mixed contactsNO
Installation methodSTRAIGHT
Installation typeBOARD
Number of rows loaded1
OptionsGENERAL PURPOSE
Terminal pitch2 mm
Termination typeSOLDER
Total number of contacts38
UL Flammability Code94V-0
13/11/2013

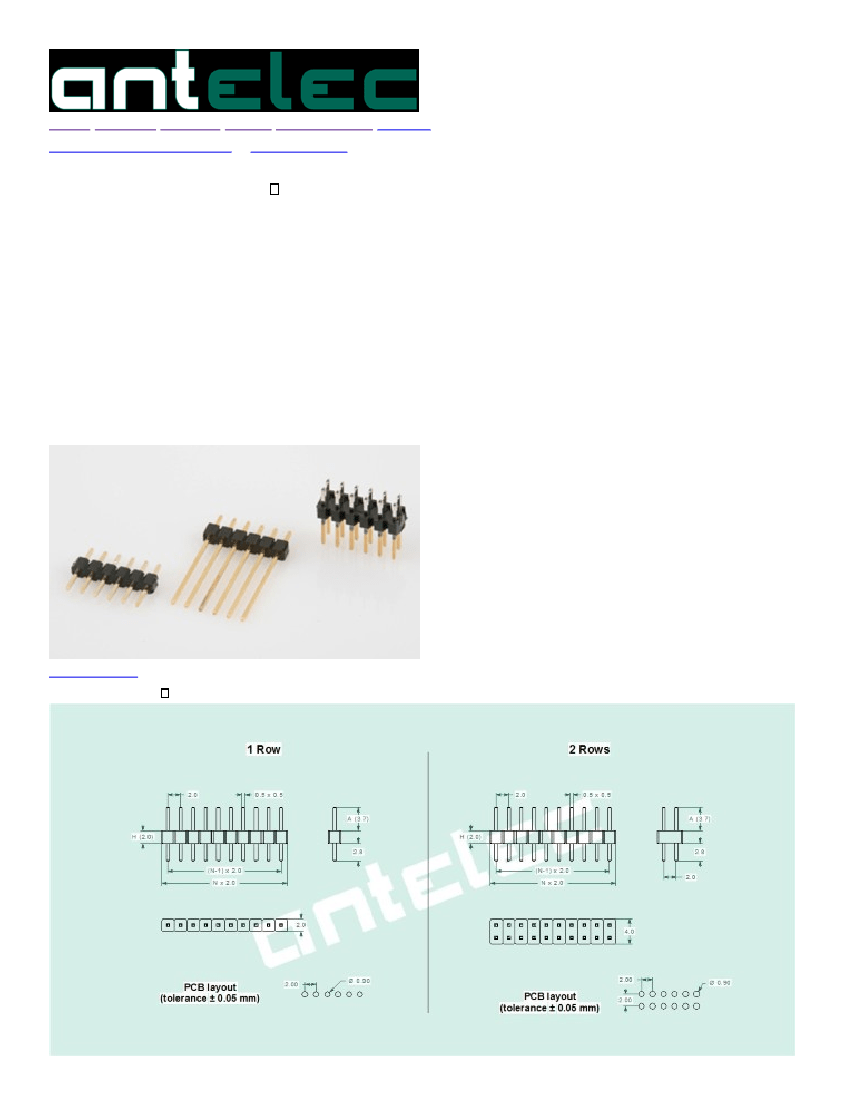

Antelec • Product specification • AM1D-200-XX-37-G (page 65)
Home About us Products Search New products
Contact
Board to board connectors
>
pitch 2.00 mm
2.00 mm
Pin header straight DIP type pin 0.50 mm
Product specifications
Current rating : 1.5 A
Dielectric withstanding voltage : 500 Volts AC during 1 mn
Insulation resistance : > 5000 MΩ
Contact resistance : < 20 mΩ
Operating temperature : -55°C to +125°C
Max processing temperature : 260°C during 5 sec
Contact : brass
Plating : gold flash
Insulator : nylon-6T, UL94V-0
Connect with
Female headers
0.50 mm
www.antelec.fr/en/product.php?id=239&t=0
