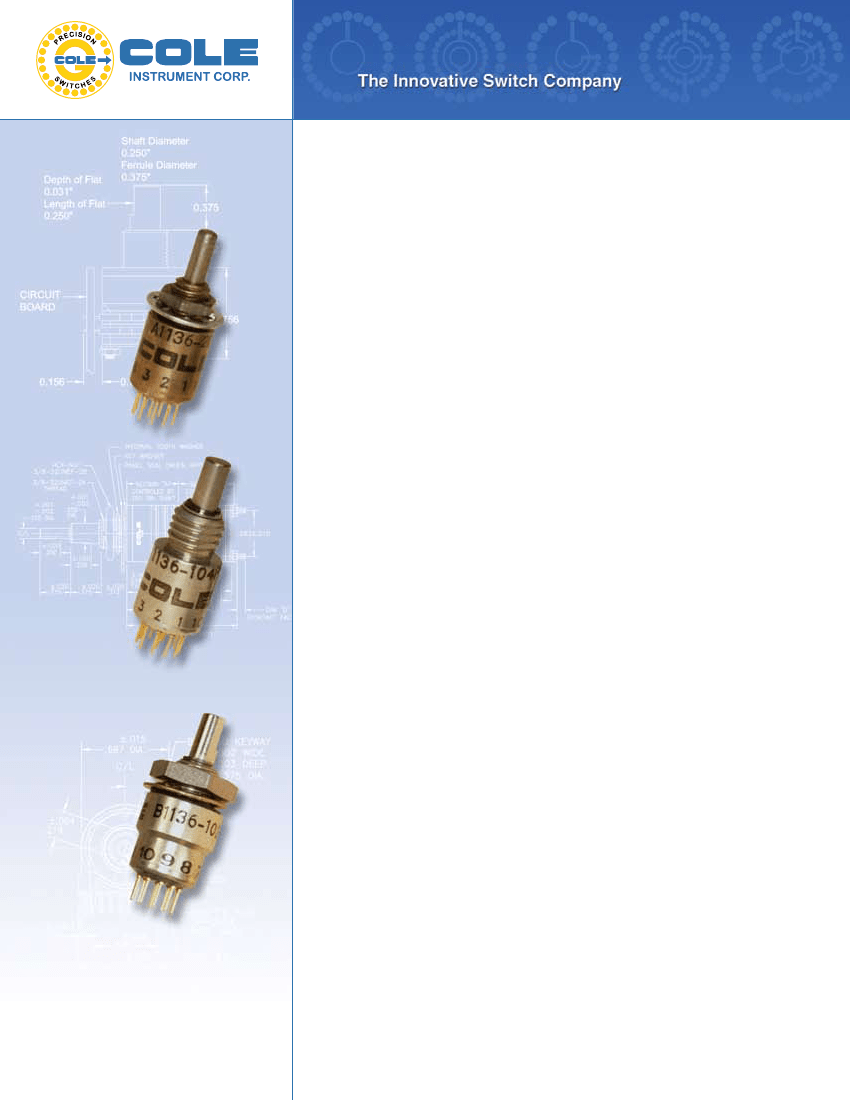

1150 series
Subminiature Enclosed Precision Rotary Switch
T
he ultimate in a 30 degree rotation, single deck rotary switch,
A subminiature precision rotary selector switch, the Series 1150
is 0.320 inches in diameter and rated at 25,000 operational cycles.
It has been engineered to meet all applicable requirements of
MIL-S-3786.
The basic series 1150 is available as a 1 pole, 2-10 position or a
2 pole, 2-5 position switch. It is a non-shorting switch with 36 degree
indexing. It has PC terminals and shaft seals for contaminant free
operation.
The Series 1150 is well suited for avionics, communications, test
equipment and command and control applications where space is
at a premium and tough environmental reliability requirements are
necessary.
Quality construction, including materials that meet the strictest
standards, allows these subminiature switches to combine superior
current switching capabilities with constant low contact resistance.
Exceedingly stringent manufacturing processes, inspection and
testing requirements ensure long life and high reliability.
The A1150 and B1150 are designed for the addition of a panel seal.
These switches are perfect for miniature switch applications where
contamination control is a must and harsh environments are
expected. They are ideal when long life and precision in extreme
conditions are necessary.
The A1150 uses the same body as the standard 1150 but with a
smaller shaft and ferrule to allow a panel seal. The B1150 uses the
standard 1150 shaft and ferrule sizes with a larger body diameter to
allow a panel seal.
SPEC SHEET REVISION: 002 - 123014
1150 series
Subminiature Enclosed Precision Rotary Switch
1150 Series/Page 2

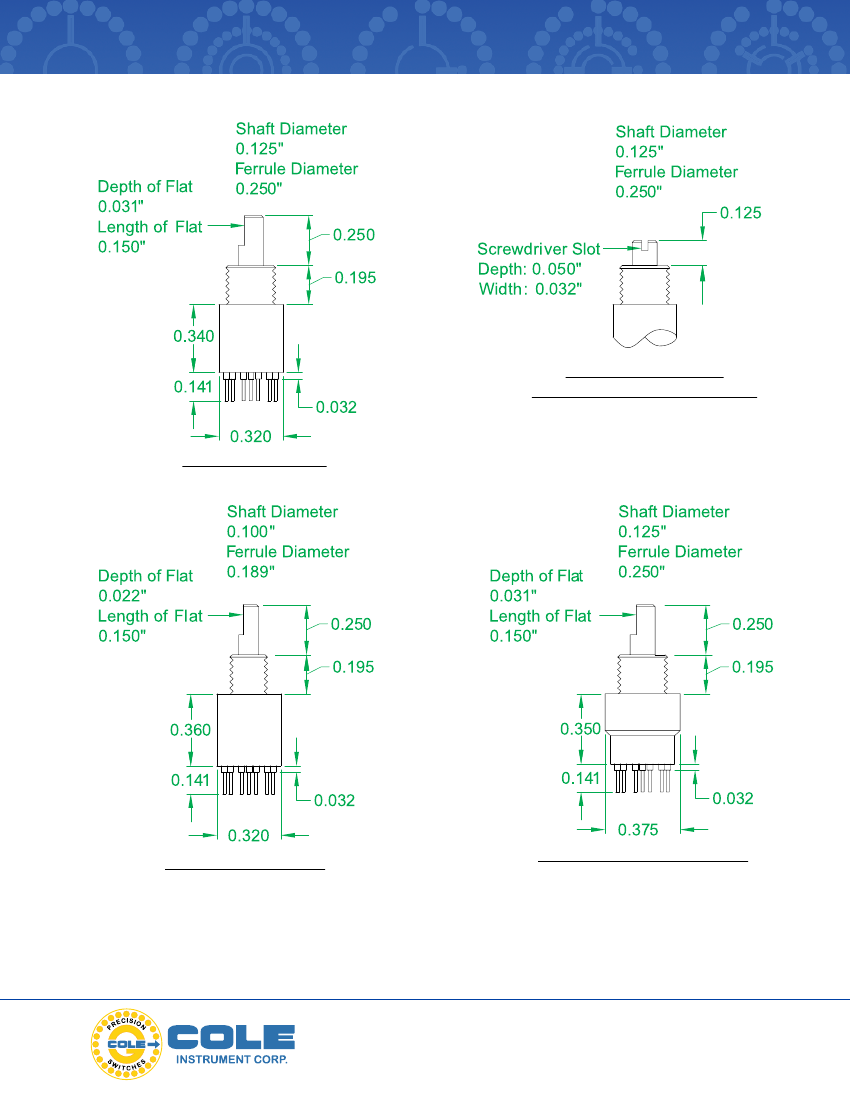

1150 Screwdriver For
No Panel Seal, A & B Versions
1150 No Panel seal
(See Page 3)
A1150 Smaller ferrule
(See Page 4)
B1150 Larger body diameter
(See Page 5)
NOTES:
1150 - .125 Shaft Dia., .250 Ferrule Dia., .320 Body Dia., No Panel Seal, (See Page 3)
A1150 - .100 Shaft Dia., 10-32 Ferrule Dia. (.189 Ferrule Dia.), .320 Body Dia., Panel Seal, (See Page 4).
B1150 - .125 Shaft Dia., .250 Ferrule Dia., .375 Body Dia., Panel Seal, (See Page 5).
2650 south Croddy Way
PHONe 714.556.3100
P
.O. Box 25063 santa Ana, California 92799-5063 UsA
sALes FAX 714.241.9061
www.cole-switches.com
1150 series
Subminiature Enclosed Precision Rotary Switch
1150 Series/Page 3

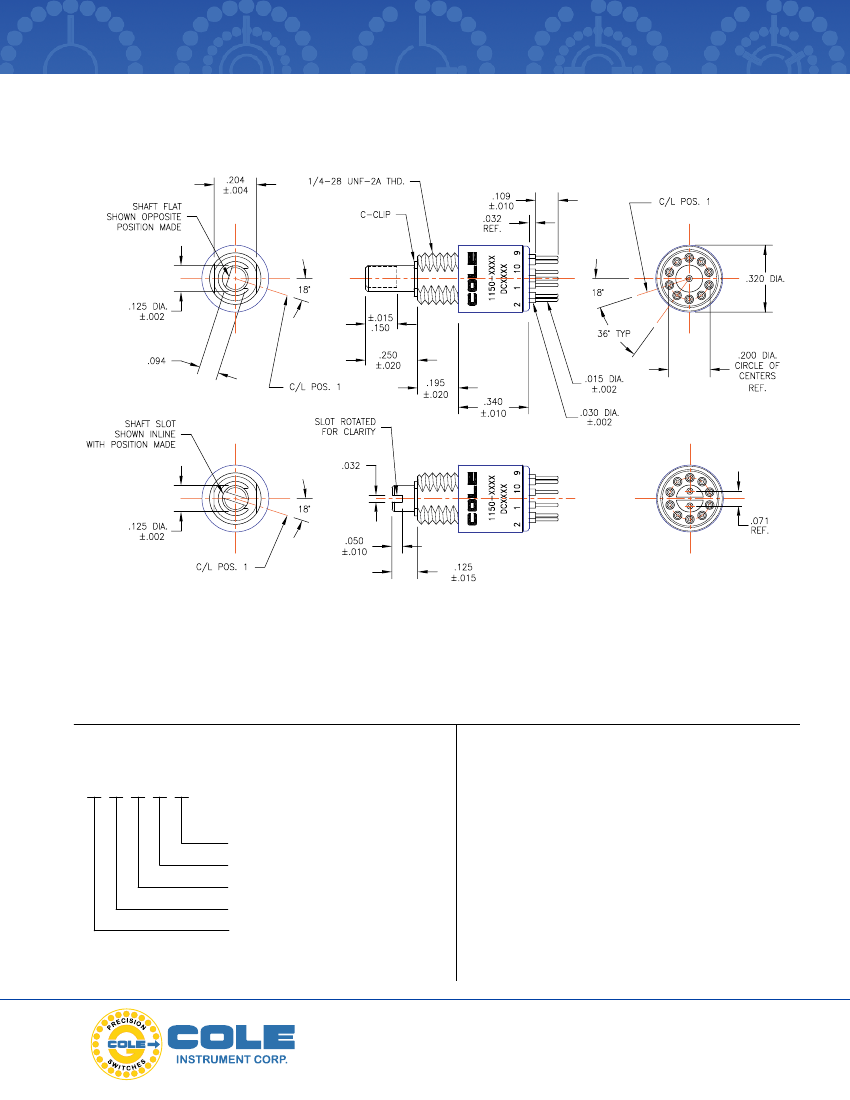

1150 - NO PANEL SEAL
See Page 6
For Detail
Two Pole
Notes:
1. Dimensions are in inches.
2. Unless otherwise specified, tolerances are ±.005 and ±3° on angles (non-accumulative).
4. The screw-driver slotted shaft dimensions are indicated; all other remains the same.
The slot in the shaft lines up with the point of contact of pole number one.
5. Switch is available with non-shorting contact only.
6. See page 6 for circuit diagram and all typical features.
ORDERING INFORMATION
Sample code
11 36- 1 04 ****
OPTIONS
The following options can be added to the
standard switch. When ordering, simply add
the letter after the basic part number.
F =Fixed stop between the first and last position
on the 10 position switch
P = Seal (shaft only)
SD = Screwdriver Slot
S = Shorting (not available)
Alphabetical
Designation for options
Number of Positions
Number of Poles
Degrees Between Positions
Cole Basic Switch Number
2650 south Croddy Way
PHONe 714.556.3100
P
.O. Box 25063 santa Ana, California 92799-5063 UsA
sALes FAX 714.241.9061
www.cole-switches.com
1150 series
Subminiature Enclosed Precision Rotary Switch
1150 Series/Page 4

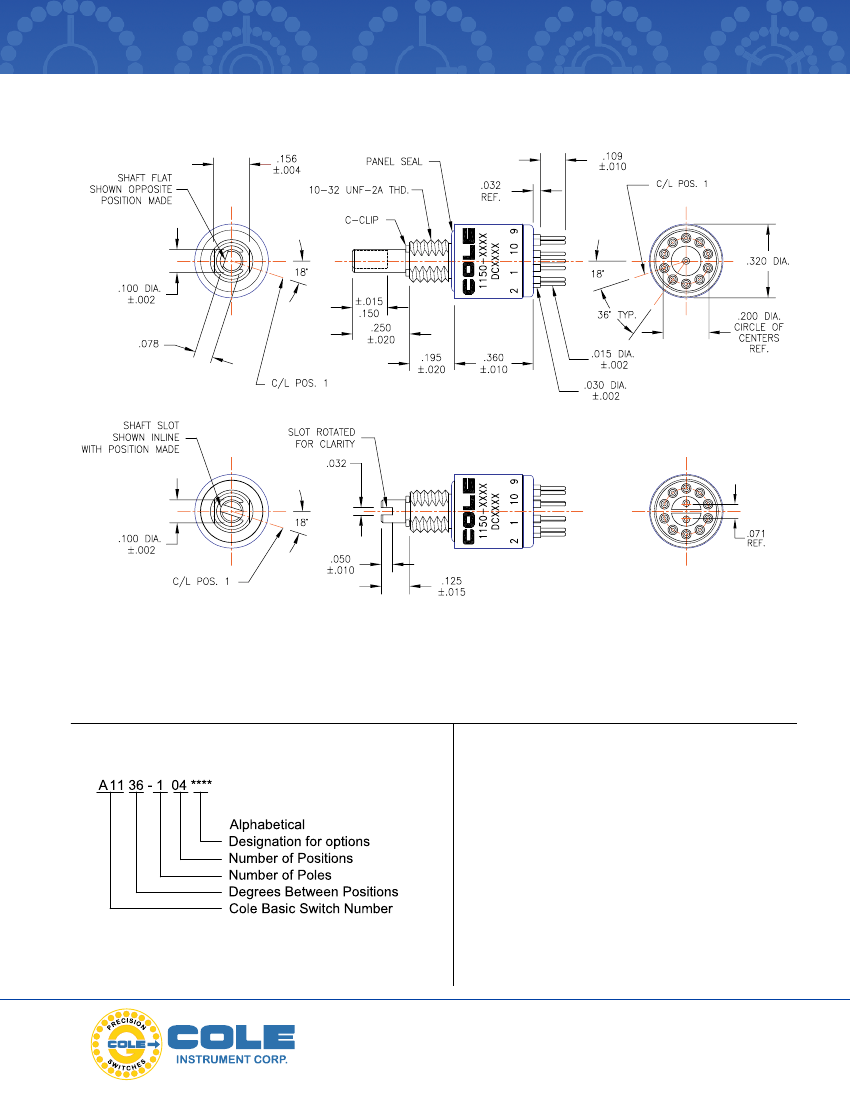

A1150 - SMALLER FERRULE
See Page 6
For Detail
Notes:
1. Dimensions are in inches.
2. Unless otherwise specified, tolerances are ±.005 and ±3° on angles (non-accumulative).
4. The screw-driver slotted shaft dimensions are indicated; all other remains the same.
The slot in the shaft lines up with the point of contact of pole number one.
5. Switch is available with non-shorting contact only.
6. See page 6 for circuit diagram and all typical features.
ORDERING INFORMATION
Sample code
OPTIONS
Two Pole
The following options can be added to the
standard switch. When ordering, simply add
the letter after the basic part number.
F = Fixed stop between the first and last position
on the 10 position switch
P = Seal (shaft and panel)
The 1150 series without options if furnished with
PC termination, non-shorting and without shaft and
panel seals. The standard 10 positions switch is
continuous rotation.
2650 south Croddy Way
PHONe 714.556.3100
SD = Screwdriver Slot
S = Shorting (not available)
P
.O. Box 25063 santa Ana, California 92799-5063 UsA
sALes FAX 714.241.9061
www.cole-switches.com
1150 series
Subminiature Enclosed Precision Rotary Switch
1150 Series/Page 5

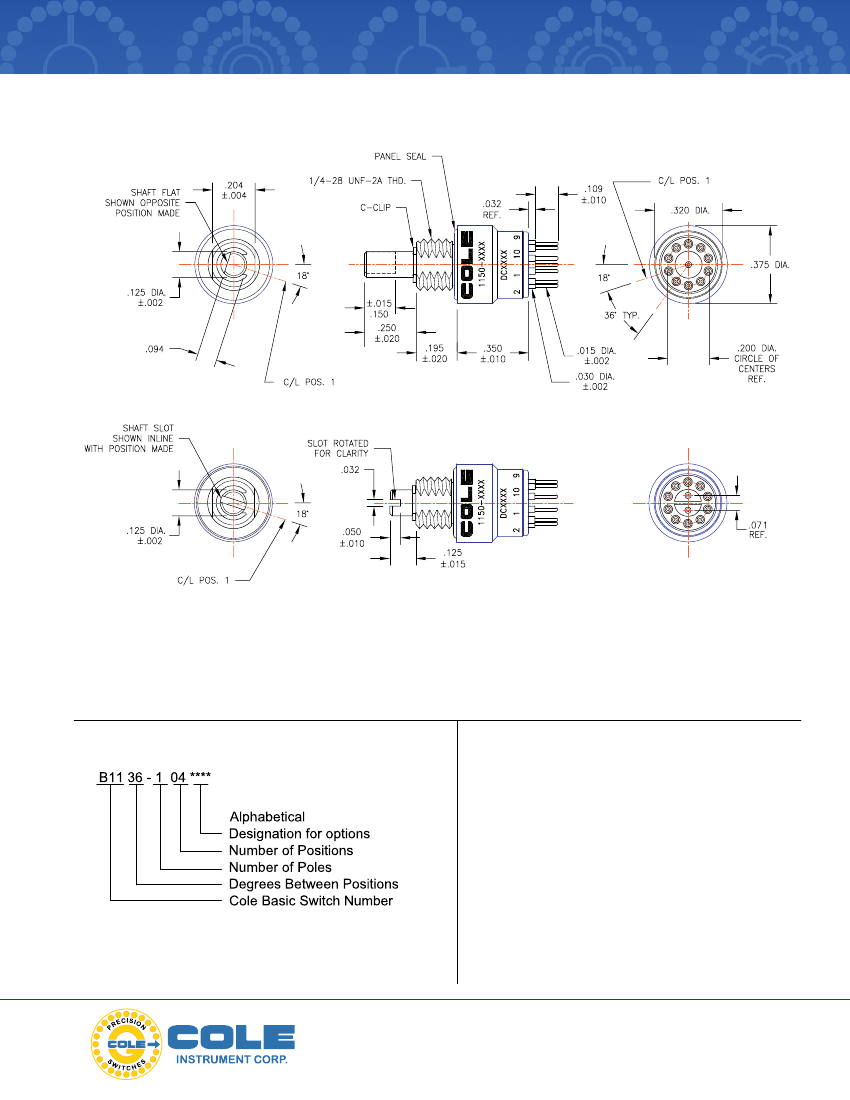

B1150 - LARGER BODY DIAMETER
Notes:
1. Dimensions are in inches.
2. Unless otherwise specified, tolerances are ±.005 and ±3° on angles (non-accumulative).
4. The screw-driver slotted shaft dimensions are indicated; all other remains the same.
The slot in the shaft lines up with the point of contact of pole number one.
5. Switch is available with non-shorting contact only.
6. See page 6 for circuit diagram and all typical features.
ORDERING INFORMATION
Sample code
OPTIONS
The following options can be added to the
standard switch. When ordering, simply add
the letter after the basic part number.
F = Fixed stop between the first and last position
on the 10 position switch
P = Seal (shaft and panel)
The 1150 series without options if furnished with
PC termination, non-shorting and without shaft and
panel seals. The standard 10 positions switch is
continuous rotation.
SD = Screwdriver Slot
S = Shorting (not available)
2650 south Croddy Way
PHONe 714.556.3100
P
.O. Box 25063 santa Ana, California 92799-5063 UsA
sALes FAX 714.241.9061
www.cole-switches.com
