24ICR1-0505-T datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> 24ICR1-0505-T

24ICR1-0505-T: DescriptionDC-DC Regulated Power Supply Module, 2 Output, 1W, Hybrid, PLASTIC PACKAGE-12; CategoryPower/power management The power supply circuit; File Size161KB，1 Pages; ManufacturerIBEK Electronic Ag

Download Datasheet Parametric View All

24ICR1-0505-T Overview

DC-DC Regulated Power Supply Module, 2 Output, 1W, Hybrid, PLASTIC PACKAGE-12

24ICR1-0505-T Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Objectid	1053833164
Parts packaging code	MODULE
package instruction	,
Contacts	12
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	0
Other features	-5V ADDITIONAL OUTPUT IS AVAILABLE
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	26.4 V
Minimum input voltage	21.6 V
Nominal input voltage	24 V
JESD-30 code	R-PDMA-T12
length	32 mm
Number of functions	1
Output times	2
Number of terminals	12
Maximum operating temperature	71 °C
Minimum operating temperature	-25 °C
Maximum output voltage	5.25 V
Minimum output voltage	4.75 V
Nominal output voltage	5 V
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
surface mount	NO
technology	HYBRID
Temperature level	COMMERCIAL EXTENDED
Terminal form	THROUGH-HOLE
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum total power output	1 W
Fine-tuning/adjustable output	NO
width	20 mm

Preview

Download Datasheet

View All

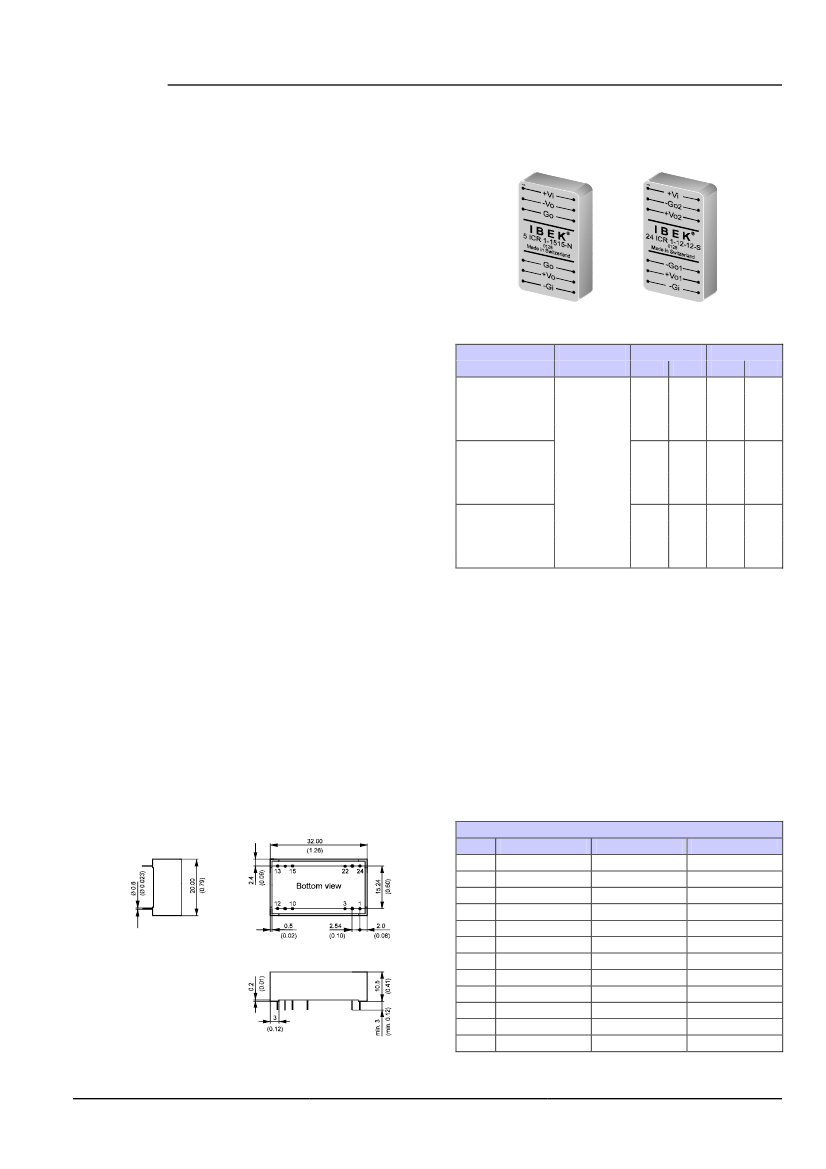

IBEK

€

www.ibek.ch

1 Watt

DC-DC-Converter

Family ICR1

Single, double & dual outputs

Input to output isolated

Dual outputs: Output to output isolated

•

Input voltage tolerance • 10% (• 5%)

Pi-input filter

I/O Electric strength test voltage 700 VDC

High reliability

Linear regulated output voltages

Extended ambient temperature range -40…+85ƒC

No derating

Made in Switzerland, accordingly ISO 9001:2000

2 years warranty

Standard Types

Input voltage

VDC

Single output

xx ICR1-05-N

4.75…5.25

xx ICR1-12-N

(nominal 5)

xx ICR1-15-N

Double output

10.8…13.2

xx ICR1-0505-N

(nominal 12)

xx ICR1-1212-N

xx ICR1-1515-N

13.5…16.5

Dual output

(nominal 15)

xx ICR1-05-05-N

xx ICR1-12-12-N

21.6…26.4

xx ICR1-15-15-N

(nominal 24)

Electromagnetic emission EN 55022 < B

Conducted and radiated emissions

5 ICR

12 ICR

15 ICR

24 ICR

mA typ.

mVpp typ.

Output 1

VDC

• 5

• 12

• 15

200

• 50

• 40

• 33

100

Output 2

VDC mA

100

No load input current

Output voltage noise

(20 MHz BW)

Switching frequency

Output voltage accuracy

Static line regulation

Static load regulation FL to NL

Efficiency

I/O Electric strength test voltage

O/O Electric strength test voltage

I/O Clearance and creepage distances

Coupling capacitance

Ambient temperature range

- Extended

Case temperature range

- Extended

Storage temperature range

Case material

MTBF, GB @ 40‚C case

(MIL-HDBK-217F, Notice 2)

25 kHz typ.

• 5%; 5 VDC outputs • 3% max.

• 0.2%; 5 VDC outputs • 0.3% typ.

• 0.1%; 5 VDC outputs • 0.8% typ.

58% (• 5 VDC outputs 40%) typ.

700 VDC



0.6 mm

15 pF

-N: 0…+71‚C

-T: -25…+71‚C; -S: -40…+85‚C

-N: 0…+91‚C

-T: -25…+91‚C; -S: -40…+105‚C

All: -55…+105‚C

Non-conductive plastic, UL94 V-0 rated



5.700.000 hours

To complete type number replace "xx" by the required nominal input

voltage, e.g. 5 ICR1-1515-N.

Extended temperature ranges -T and -S are available for all types.

Replace -N by -T or -S on type number, e.g. 24 ICR1-12-12-S.

Modifications and customs are available upon request.

Max. admissible capacitive load

10F; 5 VDC outputs 22F

Dimensions in mm (inches)

Pin Configuration

Single output

Double output

+Vi

No Pin

-Vo

No Pin

-Go

+Vo

-Gi

+Vo

-Go

No Pin

-Vo

+Vi

Dual output

+Vi

-Go2

+Vo2

-Go1

+Vo1

-Gi

+Vo1

-Go1

+Vo2

-Go2

+Vi

Specifications subject to change without notice

09.04.2005

More power with IBEK

€

Page 27.1
