88048-05071 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 88048-05071

88048-05071: DescriptionBoard Connector, 50 Contact(s), 2 Row(s), Female, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Plug; CategoryThe connector The connector; File Size128KB，1 Pages; ManufacturerAces Electronics Co., Ltd.; Environmental Compliance

Download Datasheet Parametric View All

88048-05071 Overview

Board Connector, 50 Contact(s), 2 Row(s), Female, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Plug

88048-05071 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	305588585
Reach Compliance Code	unknown
ECCN code	EAR99
Board mount options	PEG
body width	0.189 inch
subject depth	0.118 inch
body length	0.614 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	40 mΩ
Dielectric withstand voltage	250VAC V
Durability	30 Cycles
maximum insertion force	.973 N
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	POLYETHYLENE
JESD-609 code	e4
Plug contact pitch	0.02 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.588 mm
Plating thickness	FLASH inch
Rated current (signal)	0.5 A
Guideline	UL
Terminal pitch	0.508 mm
Termination type	SURFACE MOUNT
Total number of contacts	50
Evacuation force-minimum value	.0973 N

Preview

Download Datasheet

View All

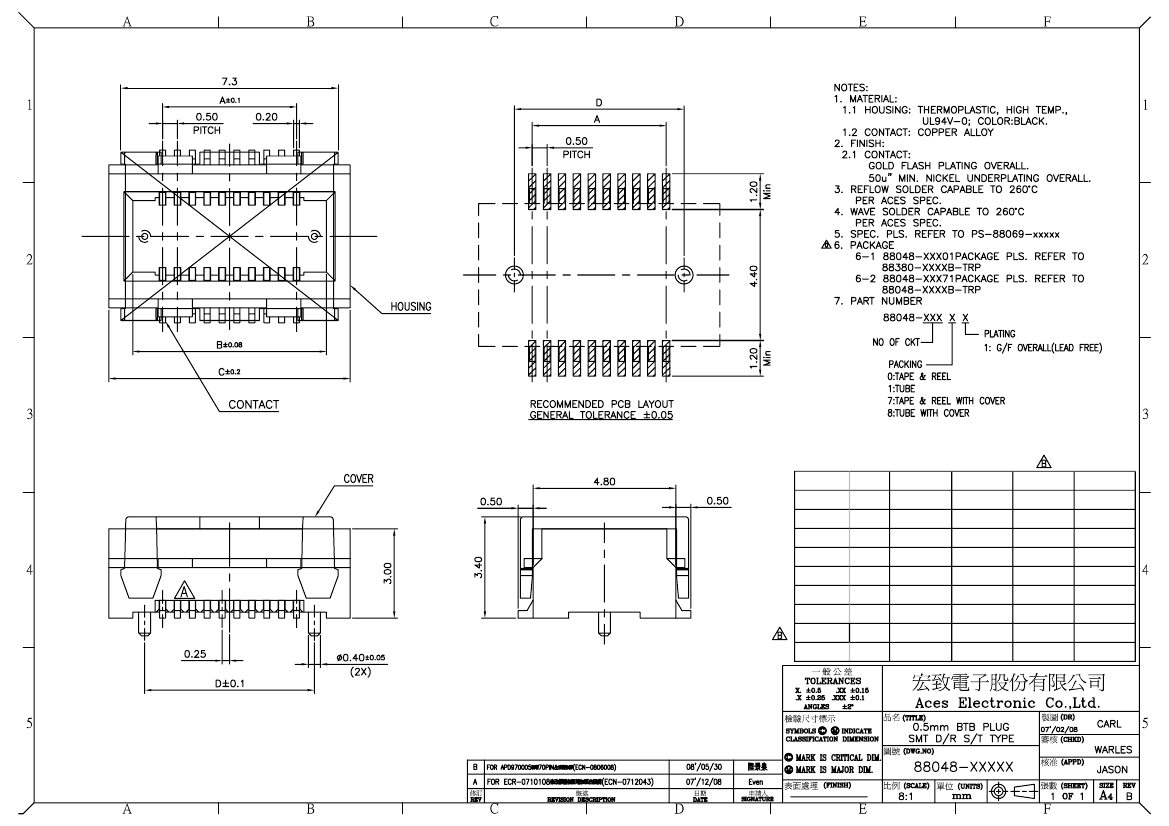

CKT

Dim A

2.0

4.5

7.0

9.5

12.0

14.5

17.0

19.5

Dim B

6.5

9.0

11.5

14.0

16.5

19.0

21.5

Dim C

5.6

8.1

9.6

10.6

13.1

15.6

18.1

20.6

23.1

Dim D

3.2

5.7

7.2

8.2

10.7

13.2

15.7

18.2

20.7
