ECS-260-8-47QDN-TR datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> ECS-260-8-47QDN-TR

ECS-260-8-47QDN-TR: DescriptionParallel - Fundamental Quartz Crystal,; CategoryPassive components Crystal/resonator; File Size497KB，2 Pages; ManufacturerECS; Websitehttp://www.ecsxtal.com/; Environmental Compliance

Download Datasheet Parametric View All

ECS-260-8-47QDN-TR Overview

Parallel - Fundamental Quartz Crystal,

ECS-260-8-47QDN-TR Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	7169873656
package instruction	SMD, 4 PIN
Reach Compliance Code	compliant
YTEOL	7.22
Other features	AEC-Q200; TR, 7 INCH
Ageing	5 PPM/YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	10 µW
frequency stability	0.01%
frequency tolerance	30 ppm
JESD-609 code	e4
load capacitance	8 pF
Installation features	SURFACE MOUNT
Nominal operating frequency	26 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
physical size	L1.6XB1.2XH0.3 (mm)/L0.063XB0.047XH0.012 (inch)
Series resistance	100 Ω
surface mount	YES
Terminal surface	Gold (Au) - with Nickel (Ni) barrier

Preview

Download Datasheet

View All

ECX-1247Q

SMD CRYSTAL

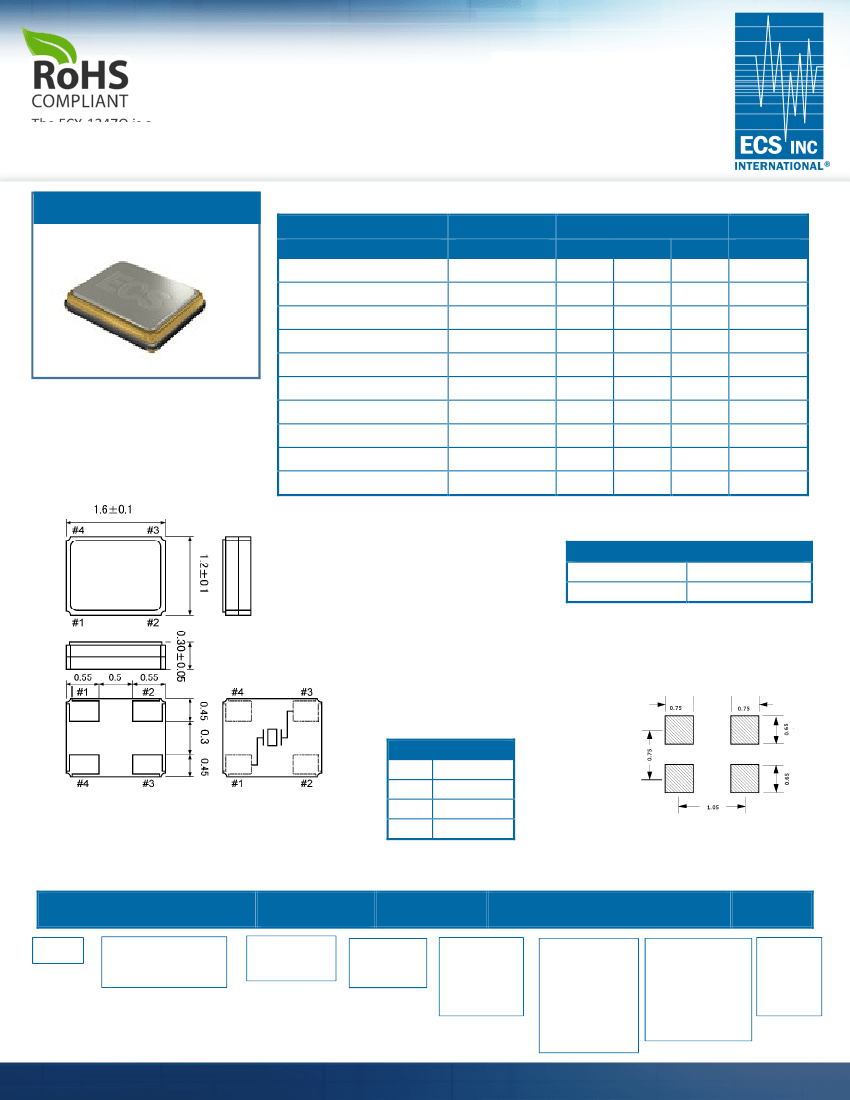

The ECX-1247Q is a very compact SMD Crystal with a

1.6 x 1.2 mm footprint. AEC-Q200 Qualified.

ECX-1247Q SMD CRYSTAL

OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS

PARAMETERS

Frequency

Mode of Oscillation

Frequency Tolerance*

Frequency Stability*

Shunt Capacitance

Load Capacitance

Fundamental

@ +25°C

-40 ~ +85°C

CONDITIONS

MIN

ECX-1247Q

TYP

MAX

UNITS

40.000

± 30

± 50

MHz

ppm

100

+85

+125

±5

μW

°C

ppm

26.000

Specify in P/N

opr

stg

@ +25°C ±3°C

-40

•

Low Profile

1.6 x 1.2 mm Footprint

RoHS Compliant

AEC-Q200 Qualified

Drive Level

Operating Temperature*

Storage Temperature

Aging (Per Year)

DIMENSIONS (mm)

Frequency (MHz)

26.000 ~ 29.999

30.000 ~ 40.000

ESR Ω Max.

100

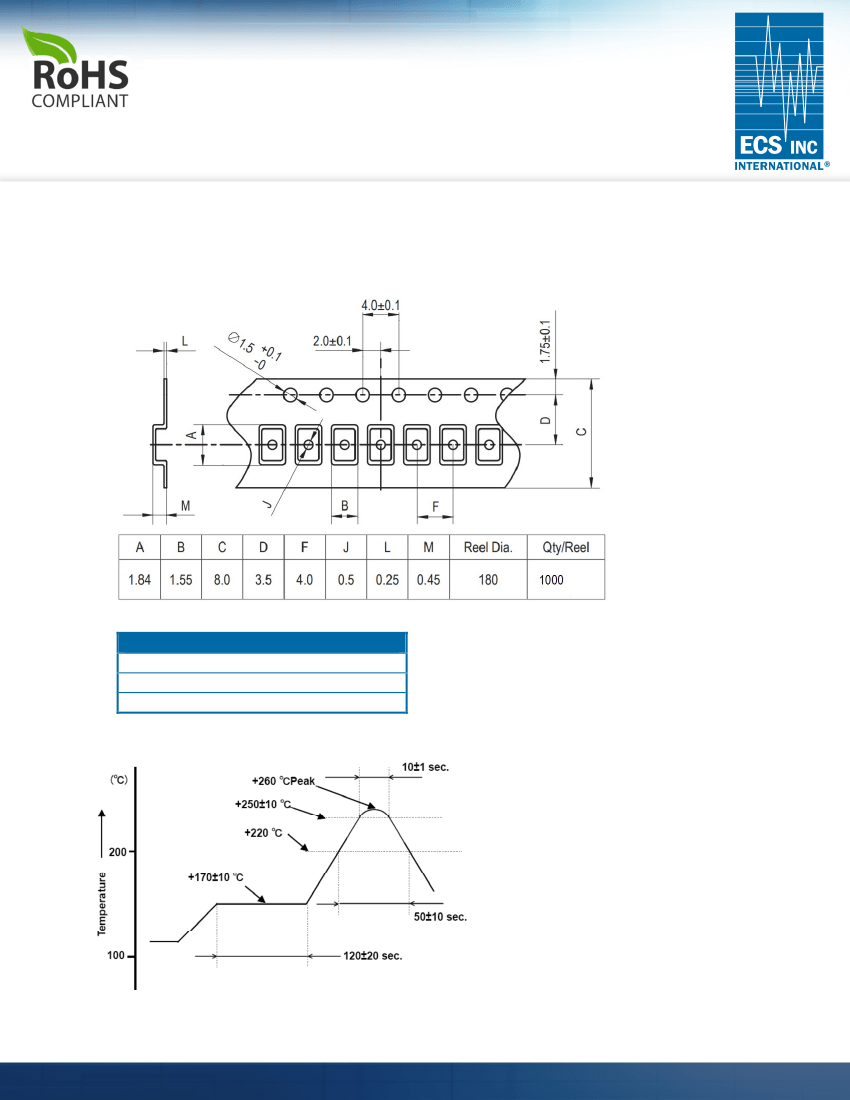

Figure 1)

Top, Side, and Bottom

Crystal is symmetrical, pad 1 & 3 are interchangeable.

Chamfer on the bottom pad has no electrical

significance.

Pad Connections

In/Out

Gnd

Out/In

Gnd

Figure 2)

Suggested land

pattern

PACKAGE

Tolerance

47Q =

ECX-1247Q

Blank = Std

A = ± 25

ppm

J = ± 20

ppm

R = ± 15

ppm

C = ± 10

ppm

PART NUMBERING GUIDE: Example ECS-260-8-47Q-TR

ECS - FREQUENCY ABBREVIATION

LOAD

CAPACITANCE

8 = 8 pF

S=Series

AVAILABLE OPTIONS

Stability

Blank= Std

D= ±100 ppm

E = ± 50 ppm

G = ± 30 ppm

H = ± 25 ppm

T = ± 20 ppm †

W = ±15 ppm †

K = ± 10 ppm †

PACKAGING

Temp Range

Blank= Std

L = -10 ~ +70°C

M = -20 ~ +70°C

Y = -30 ~ +85°C

N = -40 ~ +85°C

P = -40 ~ +105°C

S = -40 ~ +125°C

TR =

Tape

& Reel

1K/Reel

ECS

260 = 26.000 MHz

See P/N Guide

* Specify available options in P/N.

† Contact ECS for availability over extended temp range.

Rev.2017

1105 South Ridgeview Road

Olathe, KS 66062

Phone: 913.782.7787

Fax: 913.782.6991

www.ecsxtal.com
