Series 22 Geo-Marine
Connectors
220-00 and 220-10

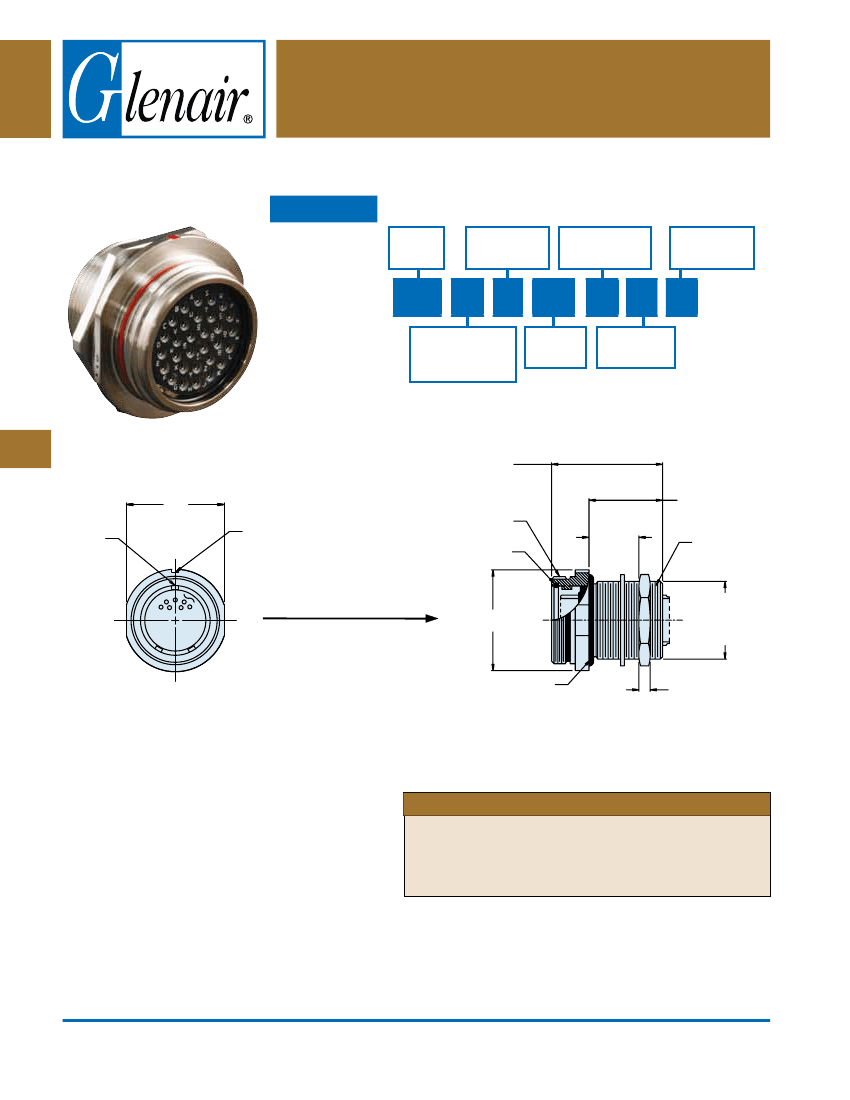

Front Mounted Bulkhead Receptacle Connector
How to order
series
No.
Class
H
= Hermetic
Insert
Arrangement
Polarization
(N, 1, 2, 3, 4)
220
-
00 H
shell style
00
= Standard
10
= Scoop Proof
24
-
61 P
shell
size
P
= Pins
S
= Sockets
N
H
E
Flats
Master
Key
Master Key Indicator
Red Slot
220-00:
1.32 (33.5) Max
220-10:
1.57 (39.9) Max
.75 (19.1) Ref.
B Thread
Piston O-Ring
.50
(12.7)
Max
Panel
A Thread
Direction of Pressure
Capability - Class H
C
D
Recommended
Mtg Hole Dia
Flange O-Ring
.16 (4.1) Ref
APPLICAtIoN NotEs
1.
2.
3.
Prior to use, lubricate O-rings with high grade silicone lubricant
(Moly-kote M55 or equivalent).
Hermeticity rating: less than 1x10
-6
cc helium per second.
Open face pressure rating: 1000 to 5000 psi
Metric dimensions (mm) are indicated in parentheses
© 2013 Glenair, Inc.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
H-6
E-Mail: sales@glenair.com
220-00 and 220-10
Front Mounted Bulkhead Receptacle Connector
Dimensions
Shell Size
10
12
14
16
18
20
22
24
A Thread
Class 2A
5/8 - 24 UNEF
3/4 - 20 UNEF
7/8 - 20 UNEF
1 - 20 UNEF
1 1/18 - 16 UN
1 1/4 - 16 UN
1 3/8 - 16 UN
1 1/2 - 16 UN
B Thread
Class 2A
.750 - .1P - .1L
.875 - .1P - .1L
1.000 - .1P - .1L
1.125 - .1P - .1L
1.250 - .1P - .1L
1.375 - .1P - .1L
1.500 - .1P - .1L
1.625 - .1P - .1L
1.03
1.16
1.28
1.41
1.66
1.78
1.91
2.03
Ø C Max
(26.2)
(29.5)
(32.5)
(35.8)
(42.2)
(45.2)
(48.5)
(51.6)
D
±.005
.635
.760
.885
1.010
1.135
1.260
1.385
1.510
±(0.1)
(16.1)
(19.3)
(22.5)
(25.7)
(28.8)
(32.0)
(35.2)
(38.4)
E
Flats
.875 (22.2)
1.000 (25.4)
1.125 (28.6)
1.250 (31.8)
1.500 (38.1)
1.625 (41.3)
1.750 (44.5)
1.875 (47.6)
Recommended Jam Nut Installation Torque Values
Torque ± 5%
Shell Size
Inch - Lbs.
Newton - Meters
10
95
10.73
12
14
16
18
20
22
24
110
140
170
195
215
235
260
12.43
15.82
19.21
22.03
24.29
26.55
29.38
Replacement O-Ring Part Numbers*
Shell Size
10
12
14
16
18
20
22
24
Piston O-Ring
2-014
2-016
2-018
2-020
2-022
2-024
2-026
2-028
Flange O-Ring
2-017
2-019
2-021
2-023
2-025
2-027
2-029
2-030
*Parker O-Ring Part Numbers. Compound N674-70 Or Equivalent
Metric dimensions (mm) are indicated in parentheses
© 2013 Glenair, Inc.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
H-7
E-Mail: sales@glenair.com
