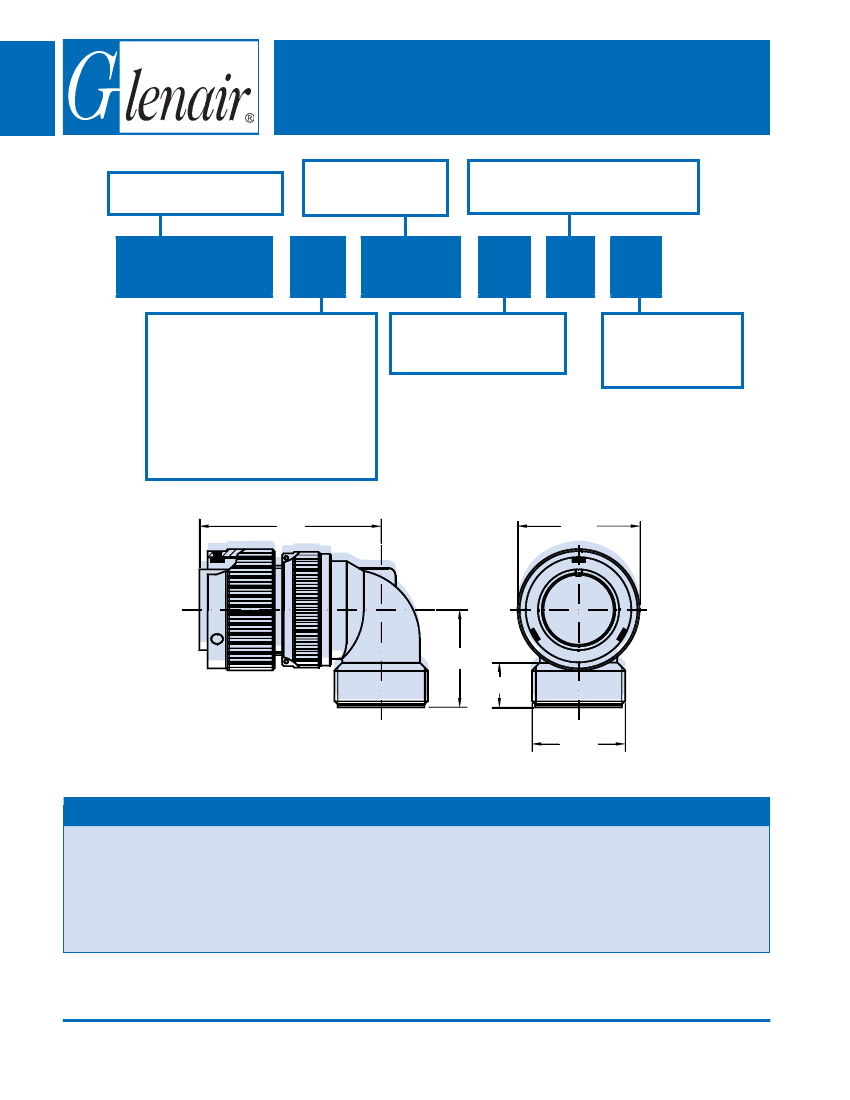

VG95234
Connectors
VG95234 E1 and VG95234 K
90° Plug with Conduit Adapter (E1)
and Grounding Fingers (K)
Basic Part Number
Contact
Arrangement
1
- Standard AWG Contacts
(Omit for Metric)
VG95234
E1
32-6
P
1
N
Alternate Insert
Positions
N-X-Y
E1
- 90° Plug
without Grounding
Fingers, Cable Clamp and
Bushing.
K
- 90° Plug with
Grounding
Fingers without Cable
Clamp and Bushing.
P
- Pin contacts
S
- Socket contacts
L1
D1
L2
L5
D3
APPLICATION NOTES
1.
2.
90° Plug connector without cable clamp and bushing.
Standard crimp contact material consists of copper alloy with
silver plating. Please see pages 16-17 for additional contact
information.
Insert arrangements IAW VG95234. Please see pages 10-15.
4.
5.
6.
Standard insert is synthetic rubber, oil and low temperature
resistant (-55°C to +125°C) IAW MIL-R-3065.
Stainless steel and marine bronze shells are available in Series
ITS products. Please consult factory.
All dimensions are metric unless otherwise noted.
3.
© 2008 Glenair, Inc.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
30
VG95234 E1 and VG95234 K
90° Plug with Conduit Adapter (E1)
and Grounding Fingers (K)
DIMENSIONS
Shell
Size
10 SL
14 S
16 S
16
18
20
22
24
28
32
36
D1
Max
22.8
29.2
32.0
32.0
36.5
39.9
43.1
46.6
53.4
60.1
66.3
D3
0.6250 - 24UNEF
0.7500 - 20UNEF
0.8750 - 20UNEF
0.8750 - 20UNEF
1.0000 - 20UNEF
1.1875 - 18NEF
1.1875 - 18NEF
1.4375 - 18NEF
1.4375 - 18NEF
1.7500 - 18NS
2.0000 - 18NS
L1
Max
45
47
48
57
58
61
61
66
66
72
75
L2
Max
30
30
30
35
35
35
40
40
40
45
50
L5
Min
9.4
9.4
9.4
9.4
9.4
9.4
9.4
9.4
9.4
11.0
12.6
Weight
gr.
Max
27
43
48
58
58
74
78
104
126
160
190
MATERIALS
SHELLS
Aluminum Alloy
IAW QQ-A-591 Shells
Stainless Steel
Coupling Pins
Stainless Steel Spring
Copper Alloy Grounding Finger
INSERTS (Temperature Range)
High Insulation Synthetic Rubber
-55°C/+125°C
STANDARD FINISH
(For QQ-A-591 Aluminum Shells)
Requirements
Thermal Shock
Salt Spray After
Thermal Shock
Electrical Conductivity
Abrasion Resistance
Cadmium with Olive
Drab Passivation
IAW QQ-P-416
-55°C + 125°C
500 hour
Very Good
Very Good
CRIMP CONTACTS
Copper Alloy with Silver Plating Over Nickel
© 2008 Glenair, Inc.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
31
VG95234
Connectors
