Q22.0-JXG75P2-12-50/50-FU-HMR-LF datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> Q22.0-JXG75P2-12-50/50-FU-HMR-LF

Q22.0-JXG75P2-12-50/50-FU-HMR-LF: DescriptionParallel - Fundamental Quartz Crystal, 22MHz Nom, ROHS COMPLIANT, CERAMIC, SMD, 2 PIN; CategoryPassive components Crystal/resonator; File Size2MB，2 Pages; ManufacturerJauch; Websitehttp://www.jauchusa.com/; Environmental Compliance

Download Datasheet Parametric View All

Q22.0-JXG75P2-12-50/50-FU-HMR-LF Overview

Parallel - Fundamental Quartz Crystal, 22MHz Nom, ROHS COMPLIANT, CERAMIC, SMD, 2 PIN

Q22.0-JXG75P2-12-50/50-FU-HMR-LF Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1474040126
package instruction	ROHS COMPLIANT, CERAMIC, SMD, 2 PIN
Reach Compliance Code	compliant
Country Of Origin	Taiwan
YTEOL	0

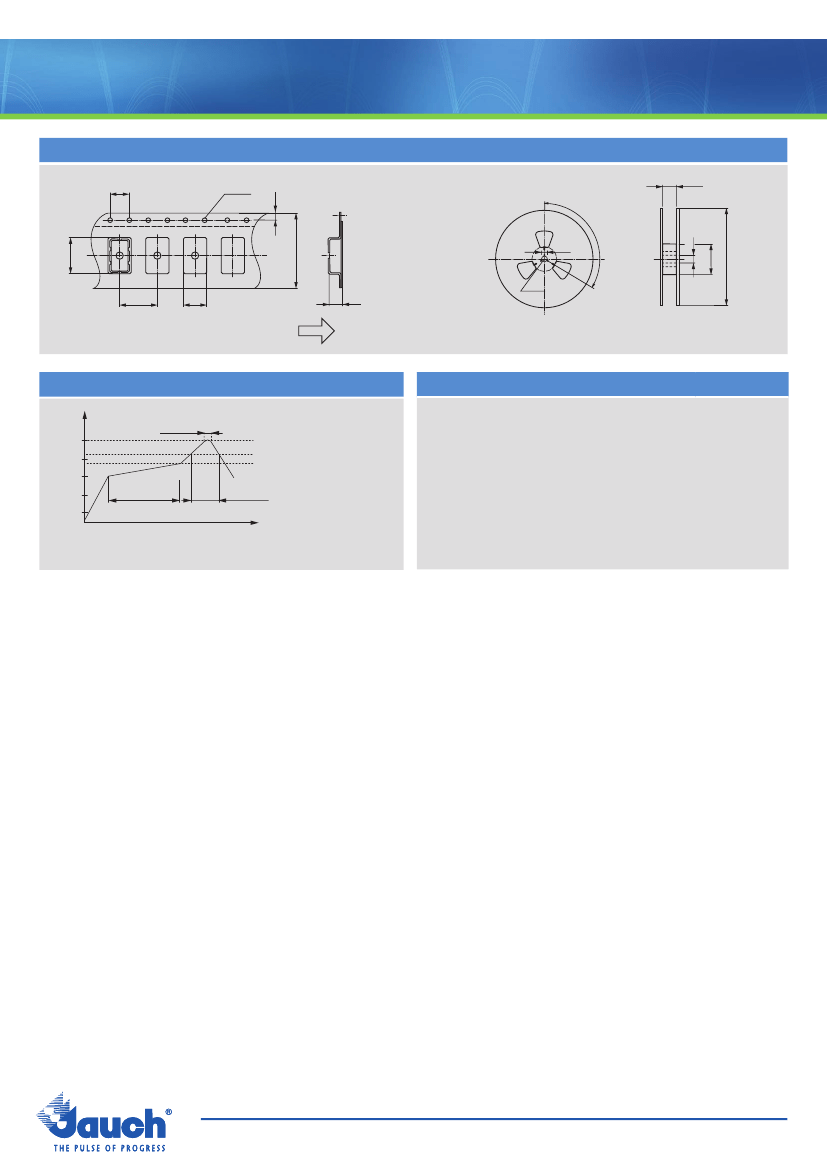

Other features	AT CUT; TAPE AND REEL
Ageing	3 PPM/FIRST YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	10 µW
frequency stability	0.005%
frequency tolerance	50 ppm
JESD-609 code	e4
load capacitance	12 pF
Installation features	SURFACE MOUNT
Nominal operating frequency	22 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
physical size	L7.0XB5.0XH1.8 (mm)/L0.276XB0.197XH0.071 (inch)
Series resistance	15 Ω
surface mount	YES
Terminal surface	Gold (Au) - with Nickel (Ni) barrier

Preview

Download Datasheet

View All

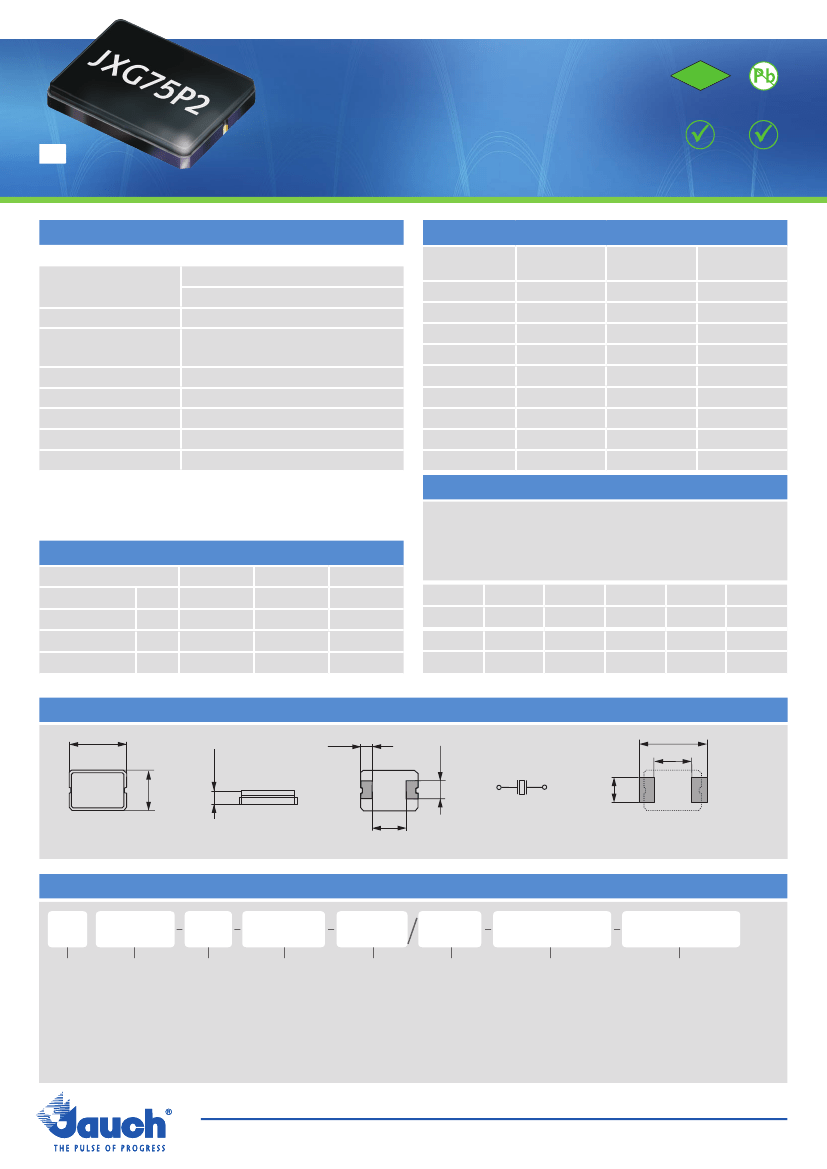

Automotive SMD Crystal · JXG75P2

- 2 Pad Version, 7.0 x 5.0 mm

- glass sealed ceramic package

- all versions are AEC-Q200 qualified

- HMR version with extended shock & vibration immunity

- RKE version withstands 100x drop test from 150 cm

2011/65/EC

RoHS

RoHS compliant

Pb free

actual size

REACH

compliant

Conflict

mineral free

GENERAL DATA

TYPE

frequency range

frequency tolerance at 25 °C

load capacitance C

shunt capacitance C

storage temperature

shock resistance

drive level max.

aging

JXG75P2

5.0 ~ 50.0 MHz

30.0 ~ 70.0 MHz

±30 ppm, ±50 ppm

12 pF standard

(option: 10 pF ~ 30.0 pF / series)

< 7 pF

-40 °C ~ +125 °C

> 100 g

100 µW

(half sine pulse, 6.0 ms)*

(10 µW recommended)

(fund. AT-cut)

(3rd OT AT-cut)

ESR (SERIES RESISTANCE RS)

frequency

in MHz

5.0 ~ 5.999

6.0 ~ 6.999

7.0 ~ 9.999

10.0 ~ 15.999

16.0 ~ 21.999

22.0 ~ 24.999

25.0 ~ 50.000

30.0 ~ 44.999

45.0 ~ 70.000

MARKING

vibration

mode

fund. - AT

3rd OT-AT

ESR max.

in ½

200

100

ESR typ.

in ½

130

< ±3 ppm first year

* optional HMR version: 3000G / half sine pulse / 0.3 ms

frequency with load capacitance code

company code / date code / internal code

TABLE 1: FREQUENCY STABILITY VS. TEMPERATURE

±30 ppm

±50 ppm



±100 ppm



date code: year/month; A ~ M: Jan. - Dec.; example 9A = 2019 January

9: 2019

0: 2020

1: 2021

2: 2022

3: 2023

4: 2024

Jan.

July

Febr.

Aug.

Mar.

Sept.

Apr.

Oct.

May

Nov.

June

Dec.

-20 °C ~ +70 °C

-40 °C ~ +85 °C

-40 °C ~ +105 °C

-40 °C ~ +125 °C



available

STD.



DIMENSIONS

7.0

±0.15

1.8 max.

1.25

±0.1

8.0

±0.1

2.0

±0.1

3.5

±0.1

3.0

±0.1

4.5

±0.1

5.0

±0.15

top view

ORDER INFORMATION

side view

bottom view

crystal connection

pad layout

in mm

Quartz

frequency

5.0 ~ 70.0 MHz

type

JXG75P2

load capacitance

12 pF standard

10 pF ~ 30 pF

S for series

tolerance

at 25 °C

30 = ±30 ppm

50 = ±50 ppm

stability vs.

temp. range

30 = ±30 ppm

50 = ±50 ppm

100 = ±100 ppm

option 1

option 2

blank = -20 °C ~ +70 °C

AEC = AEC-Q200 qualified

T1 = -40 °C ~ +85 °C

HMR = high mechanical reliability

T2 = -40 °C ~ +105 °C

(3000g/half sine wave/0.3ms)

T3 = -40 °C ~ +125 °C

RKE = for remote keyless entry

FU =for fundamental

(drop 100x / 150 cm)

frequencies ≥ 20 MHz

3OT =3rd overtone

Example: Q 28.0-JXG75P2-12-30/30-T1-FU-AEC-LF

(Suffix LF = RoHS compliant / Pb free)

27032019

Jauch Quartz GmbH • e-mail: info@jauch.de • full data can bedata can be found under:

info@jauch.com

full found under: www.jauch.com

All specifications are subject to change without notice

www.jauch.de | www.jauch.co.uk | www.jauch.fr | www.jauchusa.com
