128Mb: x4, x8, x16 DDR SDRAM
Features
Double Data Rate (DDR) SDRAM
MT46V32M4 – 8 Meg x 4 x 4 Banks
MT46V16M8 – 4 Meg x 8 x 4 Banks
MT46V8M16 – 2 Meg x 16 x 4 Banks
Features
• V
DD
= +2.5V ±0.2V, V
DD
Q = +2.5V ±0.2V
• V
DD
= +2.6V ±0.1V, V
DD
Q = +2.6V ±0.1V (DDR400)
• Bidirectional data strobe (DQS) transmitted/
received with data, i.e., source-synchronous data
capture (x16 has two – one per byte)
• Internal, pipelined double-data-rate (DDR)
architecture; two data accesses per clock cycle
• Differential clock inputs (CK and CK#)
• Commands entered on each positive CK edge
• DQS edge-aligned with data for READs; center-
aligned with data for WRITEs
• DLL to align DQ and DQS transitions with CK
• Four internal banks for concurrent operation
• Data mask (DM) for masking write data
(x16 has two – one per byte)
• Programmable burst lengths: 2, 4, or 8
• Auto refresh and self refresh modes
• Longer lead TSOP for improved reliability (OCPL)
• 2.5V I/O (SSTL_2 compatible)
• Concurrent auto precharge option is supported
•
t
RAS lockout supported (
t
RAP =
t
RCD)
Options
• Configuration
–
32 Meg x 4 (8 Meg x 4 x 4 banks)
–
16 Meg x 8 (4 Meg x 8 x 4 banks)
–
8 Meg x 16 (2 Meg x 16 x 4 banks)
• Plastic package – OCPL
–
66-pin TSOP
–
66-pin TSOP (Pb-free)
• Timing – cycle time
–
5ns @ CL = 3 (DDR400)
–
6ns @ CL = 2.5 (DDR333)
(TSOP only)
–
7.5ns @ CL = 2 (DDR266)
1
–
7.5ns @ CL = 2 (DDR266A)
–
7.5ns @ CL = 2.5 (DDR266B)
• Self refresh
–
Standard
–
Low-power self refresh
• Temperature rating
–
Commercial (0°C to 70°C)
–
Industrial (–40°C to +85°C)
• Revision
Marking
32M4
16M8
8M16
TG
P
-5B
-6T
-75E
-75Z
-75
None
L
None
IT
:D
Notes: 1. Not recommended for new designs
Table 1:
Key Timing Parameters
CL = CAS (READ) latency; MIN clock rate with 50% duty cycle at CL = 2 (-75E, -75Z), CL = 2.5 (-6, -6T, -75), and
CL = 3 (-5B)
Clock Rate (MHz)
Speed Grade
-5B
-6T
-75E/-75Z
-75
CL = 2
133
133
133
100
CL = 2.5
167
167
133
133
CL = 3
200
n/a
n/a
n/a
Data Out
Window
1.6ns
2.0ns
2.5ns
2.5ns
Access
Window
±0.70ns
±0.70ns
±0.75ns
±0.75ns
DQS–DQ
Skew
+0.40ns
+0.45ns
+0.50ns
+0.50ns
PDF: 09005aef816fd013/Source: 09005aef82a95a3a
128Mb_DDR_x4x8x16_D1.fm - 128Mb DDR: Rev. F; Core DDR: Rev. A 4/07 EN
1
Micron Technology, Inc., reserves the right to change products or specifications without notice.
©2004 Micron Technology, Inc. All rights reserved.
128Mb: x4, x8, x16 DDR SDRAM
Features
Table 2:
Parameter
Configuration
Refresh count
Row address
Bank address
Column address
Addressing
32 Meg x 4
8 Meg x 4 x 4 banks
4K
4K (A0–A11)
4 (BA0, BA1)
2K (A0–A9, A11)
16 Meg x 8
4 Meg x 8 x 4 banks
4K
4K (A0–A11)
4 (BA0, BA1)
1K (A0–A9)
8 Meg x 16
2 Meg x 16 x 4 banks
4K
4K (A0–A11)
4 (BA0, BA1)
512 (A0–A8)
Table 3:
Marking
-5B
-6T
-75E
-75Z
-75
Speed Grade Compatibility
PC3200 (3-3-3) PC2700 (2.5-3-3) PC2100 (2-2-2) PC2100 (2-3-3) PC2100 (2.5-3-3) PC1600 (2-2-2)
Yes
–
–
–
–
-5B
Yes
Yes
–
–
–
-6T
Yes
Yes
Yes
–
–
-75E
Yes
Yes
Yes
Yes
–
-75Z
Yes
Yes
Yes
Yes
Yes
-75
Yes
Yes
Yes
Yes
Yes
-75
Figure 1:
128Mb DDR SDRAM Part Numbers
Example Part Number: MT46V8M16P-6T:D
MT46V
Configuration
Package
Speed
Special
Options
Temperature
Revision
Configuration
32 Meg x 4
16 Meg x 8
8 Meg x 16
Package
400-mil TSOP
400-mil TSOP (Pb-free)
TG
P
IT
32M4
16M8
8M16
Operating Temp
Commercial
Industrial
Special Options
Standard
L
Low power
:D
Revision
x4, x8, x16
Speed Grade
-5B
-6T
-75E
-75Z
-75
Note:
tCK = 5ns, CL = 3
tCK = 6ns, CL = 2.5
tCK = 7.5ns, CL = 2
tCK = 7.5ns, CL = 2
tCK = 7.5ns, CL = 2.5
Not all speeds and configurations are available in all packages.
PDF: 09005aef816fd013/Source: 09005aef82a95a3a
128Mb_DDR_x4x8x16_D1.fm - 128Mb DDR: Rev. F; Core DDR: Rev. A 4/07 EN
2
Micron Technology, Inc., reserves the right to change products or specifications without notice.
©2004 Micron Technology, Inc. All rights reserved.
128Mb: x4, x8, x16 DDR SDRAM
Table of Contents
Table of Contents
State Diagram. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Functional Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
General Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Functional Block Diagrams. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Pin Assignments and Descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Package Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Electrical Specifications – I
DD
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Electrical Specifications – DC and AC. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
DESELECT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38
NO OPERATION (NOP). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38
LOAD MODE REGISTER (LMR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38
ACTIVE (ACT) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39
READ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39
WRITE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40
PRECHARGE (PRE) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41
BURST TERMINATE (BST) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41
AUTO REFRESH (AR). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41
SELF REFRESH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41
Operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42
INITIALIZATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42
REGISTER DEFINITION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45
ACTIVE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49
READ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50
WRITE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62
PRECHARGE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .75
AUTO REFRESH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .77
SELF REFRESH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .78
POWER-DOWN (CKE Not Active). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .80
PDF: 09005aef816fd013/Source: 09005aef82a95a3a
128Mb_DDRTOC.fm - 128Mb DDR: Rev. F; Core DDR: Rev. A 4/07 EN
3
Micron Technology, Inc., reserves the right to change products or specifications without notice.
©2004 Micron Technology, Inc. All rights reserved.
128Mb: x4, x8, x16 DDR SDRAM
State Diagram
State Diagram

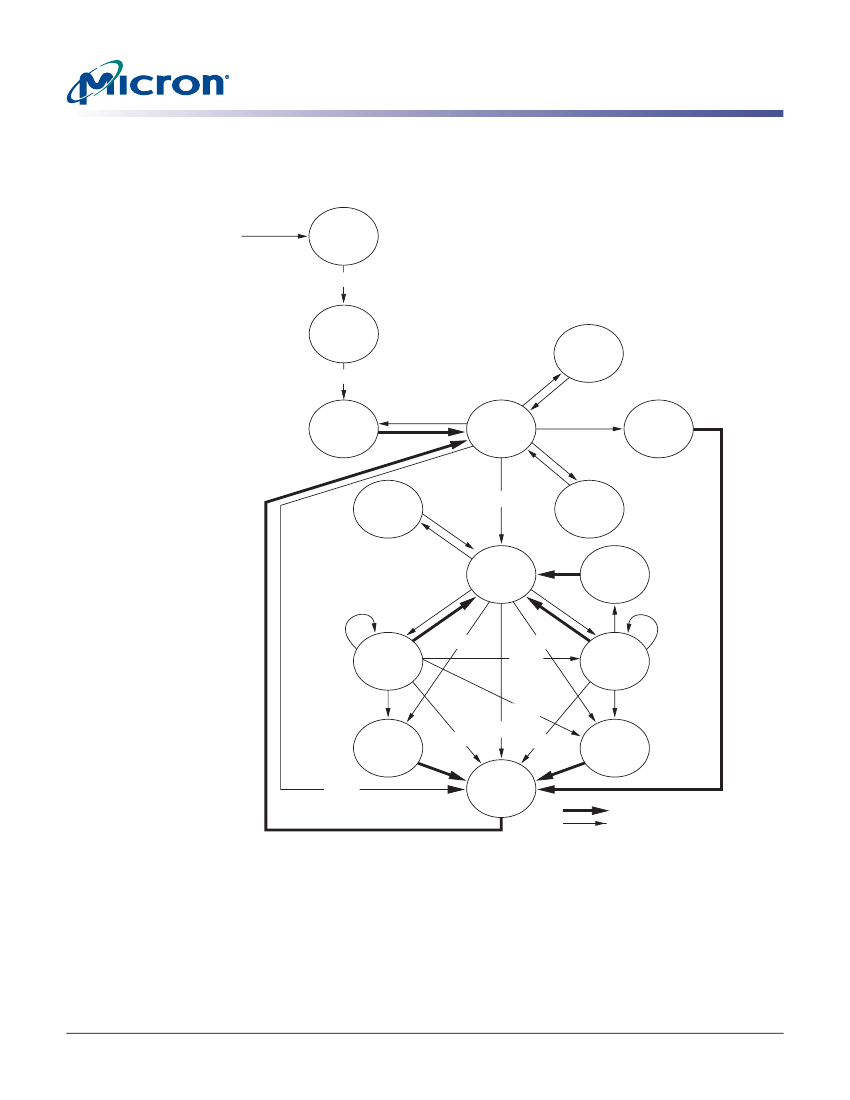

Figure 2:
Simplified State Diagram
Power
applied
Power
on
PRE
Precharge
all
banks
LMR
Self
refresh
REFS
LMR
REFSX
Idle
REFA
all
banks
precharged
CKEL
CKEH
MR
EMR
Auto
refresh
Active
power-
down
ACT
CKE
HIGH
Precharge
power-
down
CKE
LOW
Row
active
WRITE
WRITE
WRITE A
Write
READ A
READ
READ
BST
READ
Burst
stop
Read
WRITE A
PRE
READ A
PRE
PRE
READ A
Write A
Read A
PRE
Precharge
PREALL
Automatic sequence
Command
sequence
ACT = ACTIVE
BST = BURST TERMINATE
CKEH
= Exit power
down
CKEL
= Enter power
down
EMR = Extended mode register
LMR = LOAD MODE REGISTER
MR = Mode register
PRE = PRECHARGE
PREALL = PRECHARGE all
banks
READ A = READ with auto precharge
REFA = AUTO REFRESH
REFS = Enter self refresh
REFSX = Exit self refresh
WRITE A = WRITE with auto precharge
Note:
This diagram represents operations within a single bank only and does not capture concur-
rent operations in other banks.
PDF: 09005aef816fd013/Source: 09005aef82a95a3a
DDR_x4x8x16_Core1.fm - 128Mb DDR: Rev. F; Core DDR: Rev. A 4/07 EN
4
Micron Technology, Inc., reserves the right to change products or specifications without notice.
©2004 Micron Technology, Inc. All rights reserved.
128Mb: x4, x8, x16 DDR SDRAM
Functional Description
Functional Description
The DDR SDRAM uses a double data rate architecture to achieve high-speed operation.
The double data rate architecture is essentially a 2n-prefetch architecture with an inter-
face designed to transfer two data words per clock cycle at the I/O pins. A single read or
write access for the DDR SDRAM effectively consists of a single 2n-bit wide, one-clock-
cycle data transfer at the internal DRAM core and two corresponding
n-bit
wide, one-
half-clock-cycle data transfers at the I/O pins.
A bidirectional data strobe (DQS) is transmitted externally, along with data, for use in
data capture at the receiver. DQS is a strobe transmitted by the DDR SDRAM during
READs and by the memory controller during WRITEs. DQS is edge-aligned with data for
READs and center-aligned with data for WRITEs. The x16 offering has two data strobes,
one for the lower byte and one for the upper byte.
The DDR SDRAM operates from a differential clock (CK and CK#); the crossing of CK
going HIGH and CK# going LOW will be referred to as the positive edge of CK.
Commands (address and control signals) are registered at every positive edge of CK.
Input data is registered on both edges of DQS, and output data is referenced to both
edges of DQS, as well as to both edges of CK.
Read and write accesses to the DDR SDRAM are burst oriented; accesses start at a
selected location and continue for a programmed number of locations in a programmed
sequence. Accesses begin with the registration of an ACTIVE command, which may then
be followed by a READ or WRITE command. The address bits registered coincident with
the ACTIVE command are used to select the bank and row to be accessed. The address
bits registered coincident with the READ or WRITE command are used to select the bank
and the starting column location for the burst access.
The DDR SDRAM provides for programmable READ or WRITE burst lengths of 2, 4, or 8
locations. An AUTO PRECHARGE function may be enabled to provide a self-timed row
precharge that is initiated at the end of the burst access.
As with standard SDR SDRAMs, the pipelined, multibank architecture of DDR SDRAMs
allows for concurrent operation, thereby providing high effective bandwidth by hiding
row precharge and activation time.
An auto refresh mode is provided, along with a power-saving power-down mode. All
inputs are compatible with the JEDEC standard for SSTL_2. All full-drive option outputs
are SSTL_2, Class II compatible.
General Notes
• The functionality and the timing specifications discussed in this data sheet are for the
DLL-enabled mode of operation.
• Throughout the data sheet, the various figures and text refer to DQs as “DQ.” The DQ
term is to be interpreted as any and all DQ collectively, unless specifically stated
otherwise. Additionally, the x16 is divided into two bytes, the lower byte and upper
byte. For the lower byte (DQ0–DQ7) DM refers to LDM and DQS refers to LDQS. For
the upper byte (DQ8–DQ15) DM refers to UDM and DQS refers to UDQS.
• Complete functionality is described throughout the document and any page or
diagram may have been simplified to convey a topic and may not be inclusive of all
requirements.
• Any specific requirement takes precedence over a general statement.
PDF: 09005aef816fd013/Source: 09005aef82a95a3a
DDR_x4x8x16_Core1.fm - 128Mb DDR: Rev. F; Core DDR: Rev. A 4/07 EN
5
Micron Technology, Inc., reserves the right to change products or specifications without notice.
©2004 Micron Technology, Inc. All rights reserved.
Microcontroller MCU
京公网安备 11010802033920号
EEWORLD
