Surge protection
SPD II 1 280V/50KA
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com

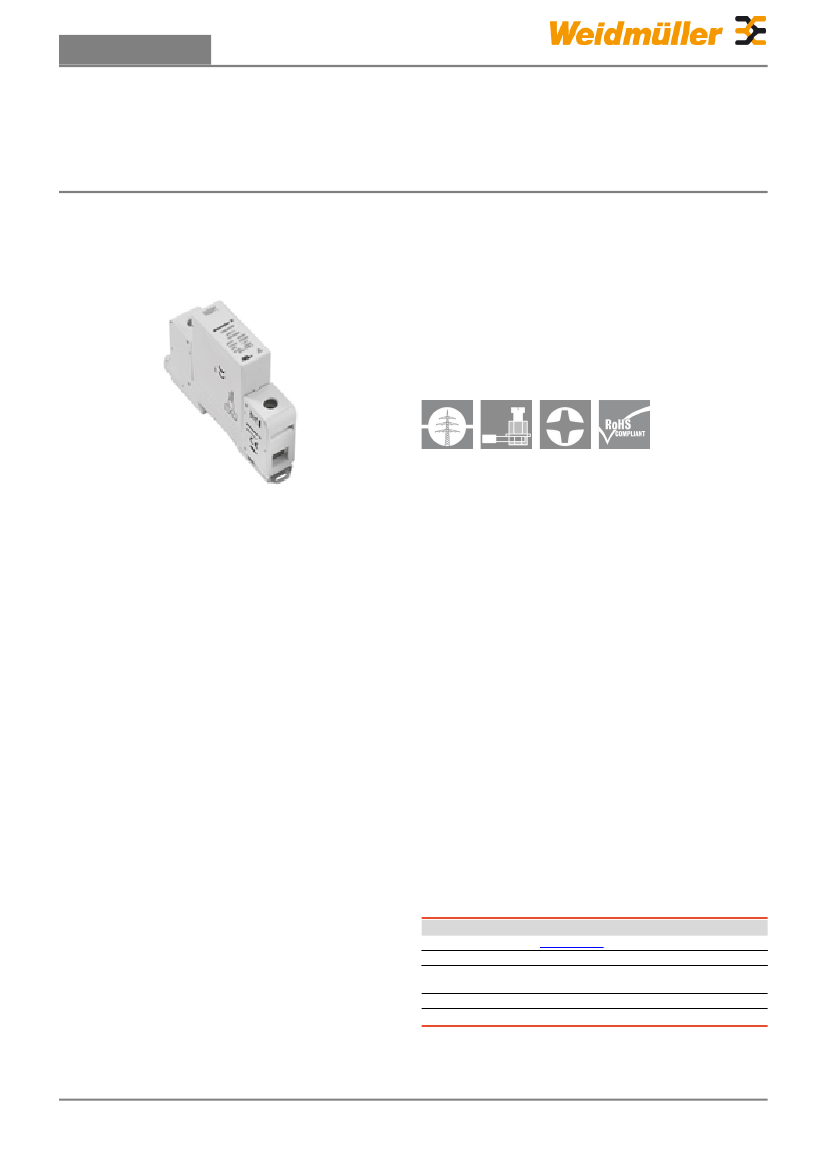

Surge protection for use in low-voltage supplies. The
SPD II series is tested according to UL 1449 ed. 3 (file
E354261) as type 4 for use in type 2 applications. These
arresters are used in mains voltages up to 277 V L-PEN,
installed according to the mains system specifications
and are able to discharge a rated current of up to 50
kA (8/20 µs) per path. The SPD II has a compact and
modular structure and a standard module width of 17.8
mm; it allows rapid and simple exchange of the arrester.
This spare arrester allows re-activation of the SPD II 277
V protection after failure.
General ordering data
Order No.
Type
Version
GTIN (EAN)
Qty.
1348380000
SPD II 1 280V/50KA
Surge protection, Low voltage, without telecomm.
contact
4050118152760
1 pc(s).
Creation date April 29, 2013 5:48:36 PM CEST
Catalogue status 12.03.2013 / We reserve the right to make technical changes.
1
Data sheet...
Surge protection
SPD II 1 280V/50KA
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com
Technical data
18 mm
73.5 mm
Height
Net weight
Dimensions and weights
Width
Depth
90 mm
140 g
Temperatures
Operating temperature
-40 °C...+70 °C
Storage temperature
-40 °C...+85 °C
General data
Colour
Height with TS 35
Mounting rail
Protection degree
Light Grey
74 mm
TS 35, TS 35 x 15, TS 35
x 7.5
IP 20
Design
Lightning arrester
Optical function display
UL 94 flammability rating
Installation housing; 1TE
No
green = OK; red = arrester
is defective - replace
V-0
Insulation coordination acc. to EN 50178
Pollution severity
2
Surge voltage category
III
technical data
Rated voltage (AC)
Short-circuit current rating I
SCCR
Discharge current, max. (8/20 µs)
Colour
Response time
230 V
200 kA
50 kA
Light Grey
≤ 100 ns
Highest continuous voltage (AC)
Total discharge current I
total
Protection level U
P
(typ.)
AC/DC/UC
277 V
50 kA
≤ 1600 V
AC
Connection data
Clamping range, rated connection
25 mm²
Clamping range, rated connection, max.
35 mm²
Wire connection cross section, stranded,
rated connection, max.
25 mm²
Tightening torque, max.
3.5 Nm
Clamping range, rated connection, min. 4 mm²
Wire connection cross section, stranded,
rated connection, min.
2.5 mm²
Tightening torque, min.
2.5 Nm
Stripping length, rated connection
15 mm
Rated data UL
Category
I
n
SCCR
UL certificate
Typ 2
20 kA
200 kA
E-File 354261 Type 2 by
UL1449 Ed.3
I
max
MCOV
Test Voltage 39.1 (UL 1449)
VPR
50 kA
277 Vac
480 V
1.6 kV
Classifications
ETIM 3.0
eClass 5.1
eClass 7.1
EC000941
27-13-08-01
27-14-02-01
UNSPSC
eClass 6.2
30-21-19-21
27-13-08-02
Creation date April 29, 2013 5:48:36 PM CEST
Catalogue status 12.03.2013 / We reserve the right to make technical changes.
2
Data sheet...
Surge protection
SPD II 1 280V/50KA
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com
Technical data
Approvals
Approvals
ROHS
Conform
Downloads
Declaration of Conformity
EPLAN
K481_05_12.pdf
1348380000.ema
Creation date April 29, 2013 5:48:36 PM CEST
Catalogue status 12.03.2013 / We reserve the right to make technical changes.
3
Data sheet...
Surge protection
SPD II 1 280V/50KA
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com
Drawings

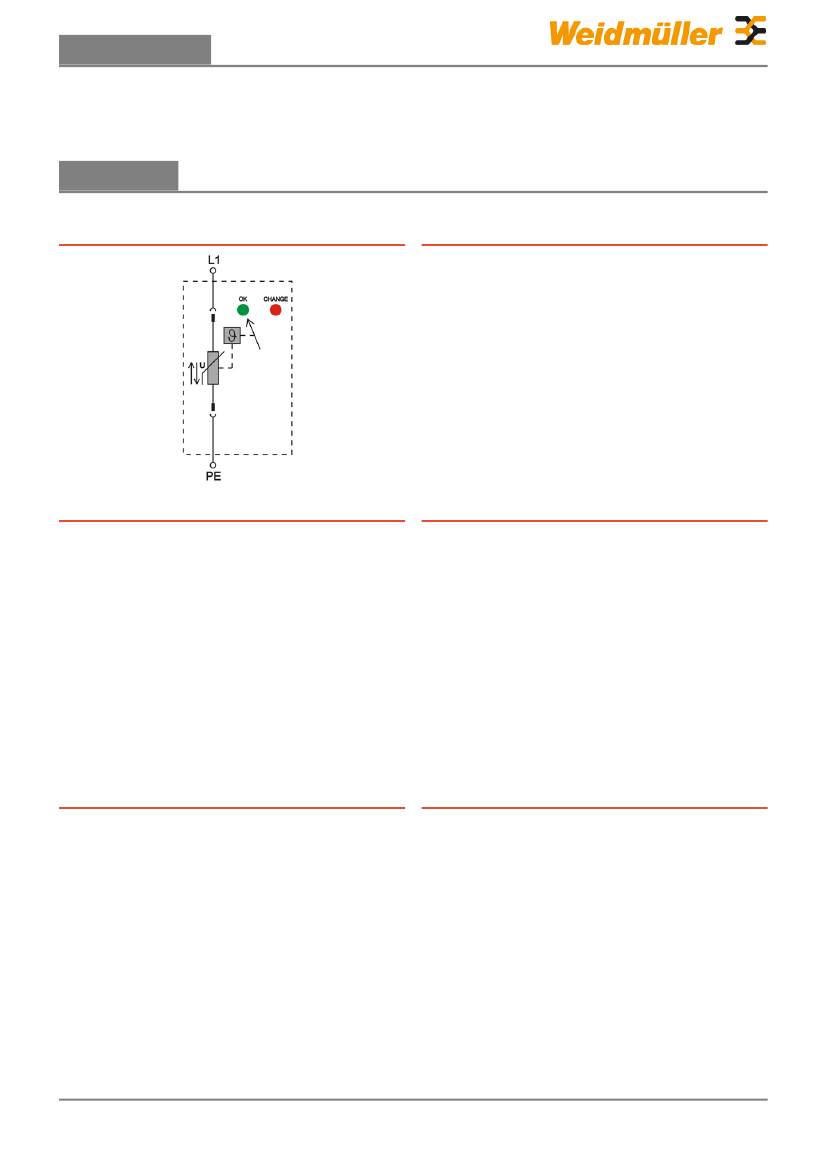

Electric symbol
