dual port, Extended temperature (IE),
100 mbps Ethernet snmp-manageable
media converter
IE-iMcV-2xLIM
product FEaturEs
• Functions as two independent copper to fiber media converters,
doubling port density in the iMediaChassis and MediaChassis product
lines Interchangeable SFP modules allow for multiple fiber type
conversion options (single-mode, multi-mode, long haul, short haul, etc.)
• 100 Mbps SFPs and 2xLIM modules are hot-swappable; no need to
power-down chassis when upgrading or troubleshooting
• Link Fault Pass-Through (LFPT)
• Config Control
The IE-iMcV-2xLIM, TX/SFP is a Fast Ethernet module which provides
two conversions of 100Base-TX twisted pair to 100Base-FX/SX single-
mode or multi-mode fiber. There are two sets of ports, RJ-45 (copper)
and SFP (fiber). The SFP port supports all MSA and Cisco compliant, SC,
LC and single-strand fiber (SSF), 155 Mbps SFPs. Designed as a Layer
1 device, the IE-iMcV-2xLIM is entirely transparent to both Layer 2 and
Layer 3 protocols. The IE-iMcV-2xLIM is SNMP-manageable and can
be installed into the modular, SNMP-manageable iMediaChassis or the
MediaChassis series.
Easily configure and manage converters with the GUI-based iView².
As an SNMP management application, iView² gives network managers
the ability to monitor and control products. iView² runs standalone on
Windows 2000/XP/Vista/Win7 or as a Web Server running under IIS.
ordErIng InFormatIon
Model
FiBer range
FiBer
nuMBer
Ports
ie-iMcv-2xliM *
850-18610 SFP
2
Various
* SFP Fiber sold separately
ethernet
Ports
2
ethernet
ConneCtor
RJ45
iView: Windows 2000/XP/Vista/Win7
www
.
bb
-
elec
.
com
|
IE-iMcV-2xLIM_3713ds
dual port, Extended temperature (IE),
100 mbps Ethernet snmp-manageable
media converter
IE-iMcV-2xLIM
SpecificationS
Technical
2 x RJ-45 and 2 x SFP ports (SFPs sold separately)
IEEE 802.3u 100Base-T over twisted pair
IEEE 802.3u 100Base-FX or SX over twisted pair
AutoCross for MDI/MDIX
LinkLoss, Far End Fault & Auto Negotiation
Link Fault Pass-Through (LFPT)
Supports Config Control
MDI/MDIX switch
DIP Switch selectable Auto Negotiation on copper port
Features low latency
Supports Half- and Full-Duplex operation
Supports Jumbo packets (No size limit)
Install in any iMediaChassis or MediaChassis
Supports GUI-Based iView²
Includes diagnostic LEDs
Hot-swappable architecture
STandard compliance
SFP-MSA SFP standard (September 14, 2000)
SFF-8472 DDMI standard (Revision 1.0)
IEEE 802.3
Mechanical
Dimensions
Shipping Weight
input voltage
100 to 240 VAC 50/60Hz (External Power Supply) 5 VDC ± 5%
power
Max Current: 0.80A
environMental
Operating Temperature:
-40° F to +176° F (-40° C to +80° C)
Storage Temperature:
-40° F to +176° F (-40° C to +80° C)
5% to 95% (non-condensing),
Operating Humidity
0 – 10,000 ft. altitude
regulatory approvals
FCC Class B
UL, CSA, CE
TUV
4.19”H x 0.78”W x 2.75”D
(10.74 x 2 x 7.05 cm)
0.30 lbs (.11 kg)

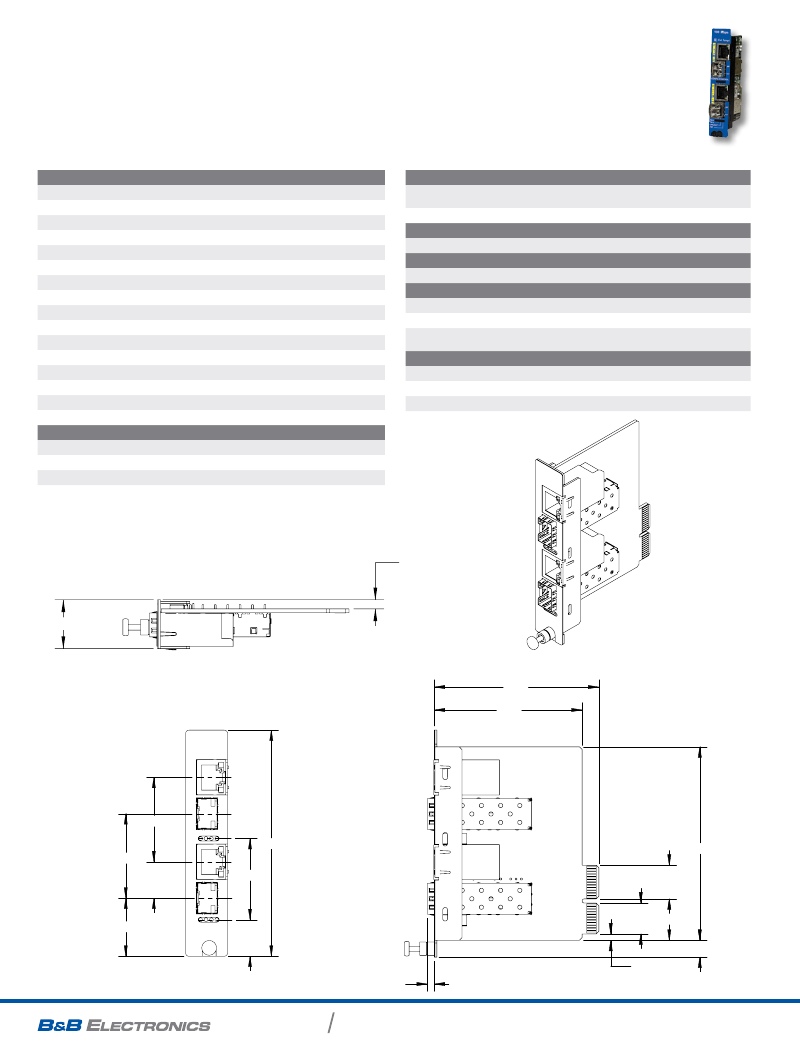

mEchanIcal dIagram
(dimensions in inches & millimeters)
.14
.78
3.04
2.73
1.57
4.19
1.56
.67
1.51
3.57
.62
1.08
.57
.68
.76
.31
.12
.13
