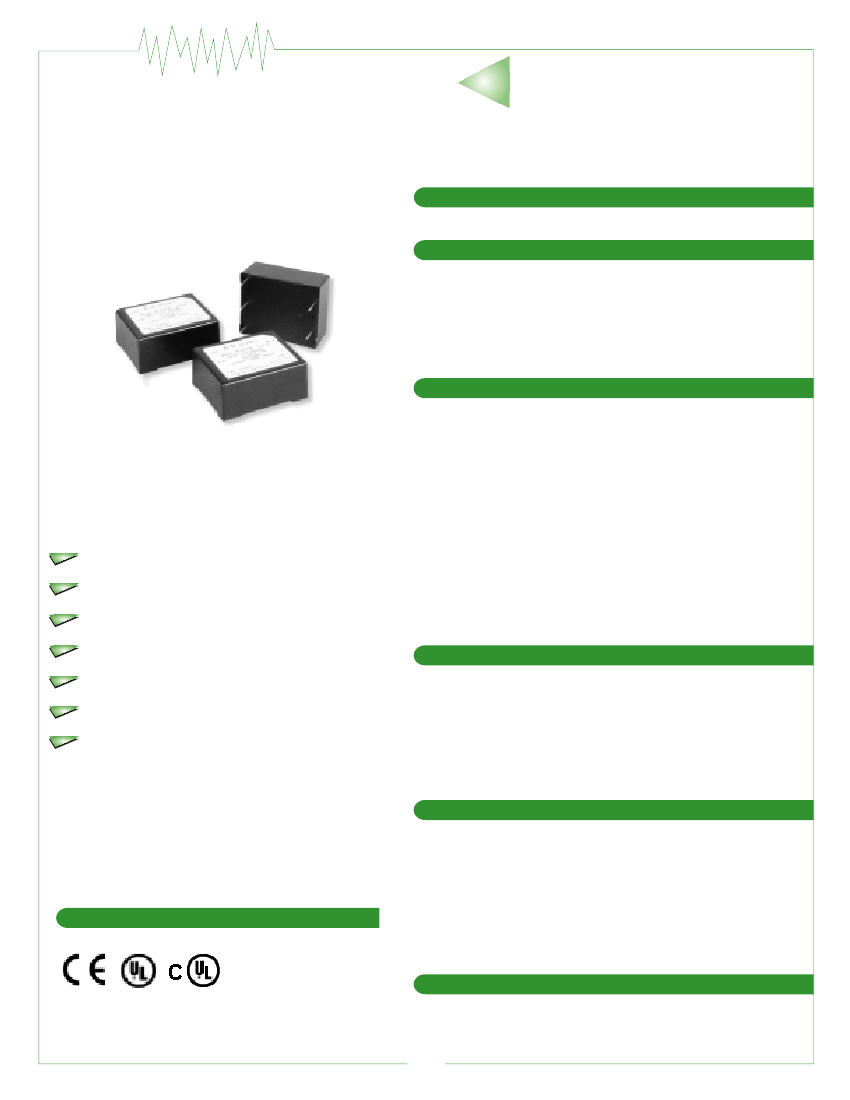

KB6
6 W att Single and Dual Output,
PCB Mountable AC/DC Switching Power Supply
ELECTRICAL SPECIFICATIONS
All specifications are typical at nominal input, full load.
INPUT SPECIFICATIONS
Input Voltage.............................................. AC 85V-264V
Input Frequency.......................................... 47-63 Hz
Input Current............................................... Vin= 115v 0.11A
Vin= 230v 0.07A
Inrush Current............................................. Vin= 100v 7A
Vin= 230v 16A
OUTPUT SPECIFICATIONS
Output Voltage............................................ See Chart
Output Adjustment...................................... No Adjustment
Efficiency..................................................... 70~75%
Over-Voltage Protection.............................. N/A
Over-Current Protection.............................. Automatic Recovery (105% min)
Ripple and Noise......................................... 80 mVp-p (typ.)
Hold-Up Time.............................................. Vin= 100v 14mSec
Vin= 230v 130mSec
Line/Load Regulation.................................. lo=0~100% @ 1%
Rise Time.................................................... Vin= 100v 170mSec
Vin= 230v 170mSec
Leakage Current......................................... Vin= 100v 0.03 m RMS
Vin= 230v 0.05 m RMS
FEATURES
PCB MOUNTABLE
SUPER SMALL SIZE
HIGH POWER DENSITY
UNIVERSAL INPUT / “CE-MARK”
HIGH RELIABILITY
OVERCURRENT PROTECTION
TWO YEAR WARRANTY
GENERAL SPECIFICATIONS
Switching Frequency................................... 100 KHz Typ
MTBF.......................................................... >200,000 Hours Typ
Isolation Voltage
Primary to Secondary............... 3000 VAC
Primary to Case........................ 1500 VAC
Secondary to Case.................... 500 VAC
Isolation Resistance.................................... 100 MΩ
ENVIRONMENTAL SPECIFICATIONS
Operating Temperature .............................. 0˚C ~ +60˚C
Derates linearly 2.5%/˚C after 50˚C
Cooling........................................................ Convection
Temperature Coefficient.............................. 0.02% / ˚C
Humidity...................................................... 20~85% Rh
Storage Temperature.................................. -20˚ ~ +85˚C
Shock/Vibration........................................... Shock: 20G
(3 Directions each 3 times)
Vibration: 1~55Hz
SAFETIES / EMI
FCC Part 15-B
EN 55022-B

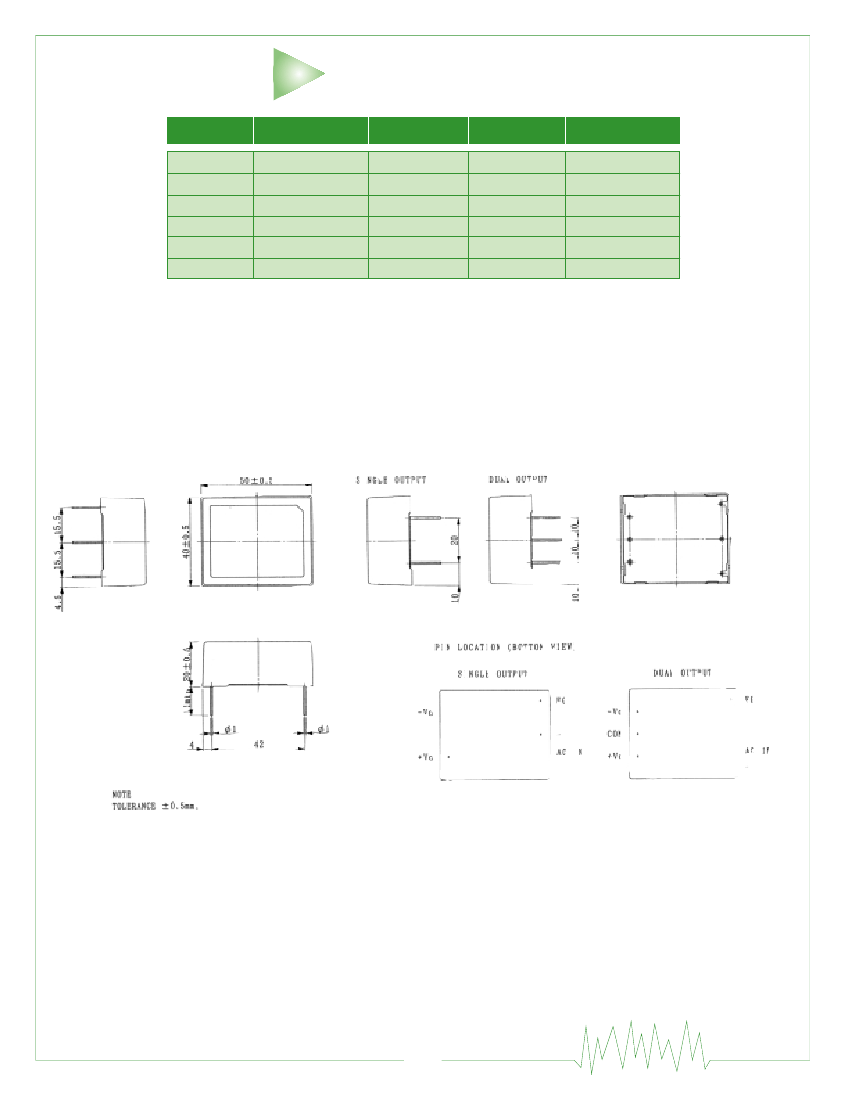

PHYSICAL SPECIFICATIONS
Board Level Encapsulated
Thru-hole Pins
