L0603KR442FG datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> L0603KR442FG

L0603KR442FG: DescriptionRESISTOR, THIN FILM, 0.125 W, 1 %, 100 ppm, 0.442 ohm, SURFACE MOUNT, 0603, CHIP; CategoryPassive components The resistor; File Size147KB，4 Pages; ManufacturerVishay; Websitehttp://www.vishay.com; Environmental Compliance

Download Datasheet Parametric View All

L0603KR442FG Overview

RESISTOR, THIN FILM, 0.125 W, 1 %, 100 ppm, 0.442 ohm, SURFACE MOUNT, 0603, CHIP

L0603KR442FG Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1735836187
package instruction	, 0603
Reach Compliance Code	unknown
ECCN code	EAR99
YTEOL	7.65
JESD-609 code	e4
Manufacturer's serial number	L-NE
Installation features	SURFACE MOUNT
Number of terminals	2
Maximum operating temperature	155 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Rated power dissipation(P)	0.125 W
Rated temperature	70 °C
resistance	0.442 Ω
Resistor type	FIXED RESISTOR
size code	0603
surface mount	YES
technology	THIN FILM
Temperature Coefficient	100 ppm/°C
Terminal surface	Gold (Au)
Terminal shape	WRAPAROUND
Tolerance	1%
Operating Voltage	50 V

Preview

Download Datasheet

View All

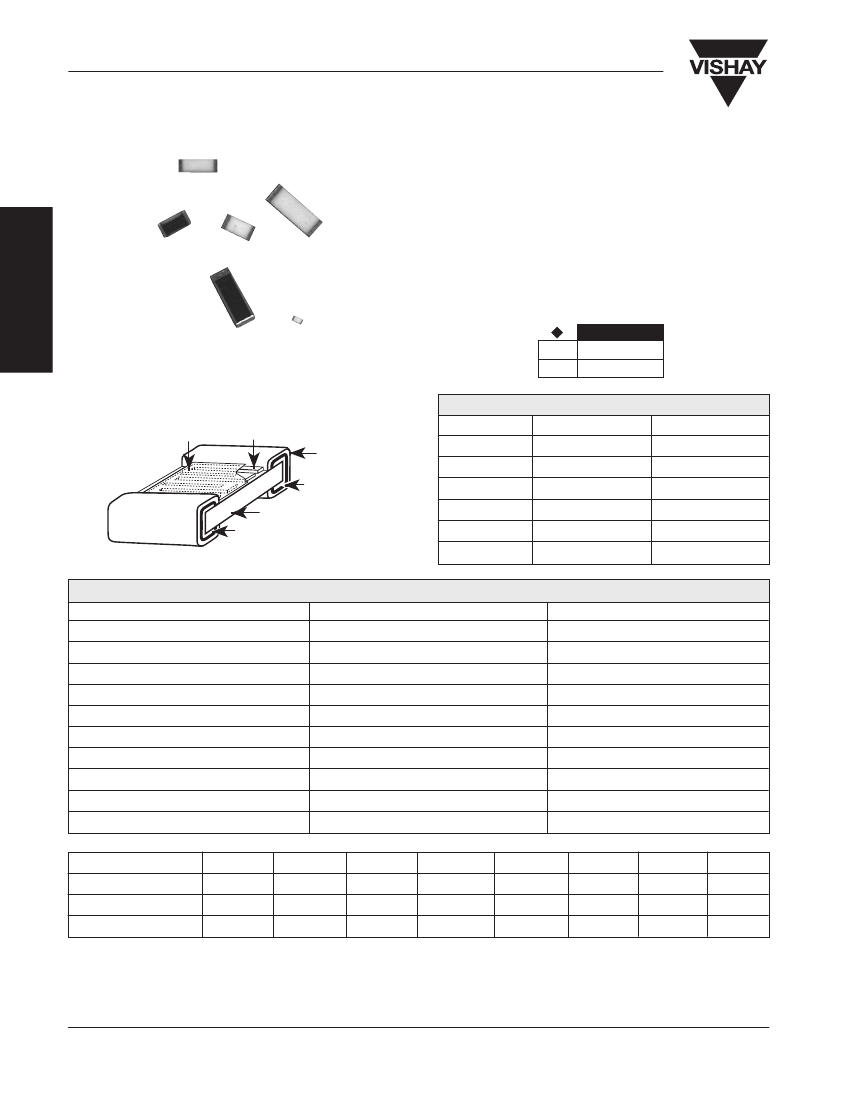

L-NE

Vishay Thin Film

Low Value Thin Film Chip Resistors

FEATURES

• NiCr + Ta

resistive layer

SURFACE MOUNT

CHIPS

• Pre-soldered or gold terminations

• No inductance for high frequency applications

• Alumina substrates for high power handling capacity

TYPICAL PERFORMANCE

Actual Size 1005

With extremely low resistance and high power capabilities,

these ultra low value resistors are available with solderable

or weldable terminations.

ABS

TCR

TOL

1.0

CONSTRUCTION

Passivation

Passivated NiCr or Ta

resistance film

Solder

coating

Nickel barrier

High purity

alumina substrate

Adhesion layer

TOLERANCE AND TCR VERSUS OHMIC VALUE

VALUE

0.1 ohms

0.25 ohms

0.5 ohms

1 ohms

2 ohms

10 ohms

MIN. TOLERANCE

20%

10%

BEST TCR

300ppm/°C

100ppm/°C

50 ppm/°C

STANDARD ELECTRICAL SPECIFICATIONS

TEST

MATERIAL

Resistance Range

TCR:

Tolerance:

Power Rating

Voltage Coefficient

Operating Temperature Range

Storage Temperature Range

Noise

Thermal EMF

SPECIFICATIONS

NiCr + Ta

0.1 ohm to 10 ohms

Down to

50ppm/°C

1% to

20%

Up to 1W

0.1ppm/Volt

- 55°C to + 155°C

- 35dB typical

0.1µV/°C

@ + 70°C

CONDITIONS

CASE SIZE

Power Rating - mW

Working Voltage - V

Resistance Range - (Ω)

0402

0.1 to 10

0505

125

0.1 to 10

0603

125

0.1 to 10

0705/0805

200

0.1 to 10

1005

250

0.1 to 10

1206

330

0.1 to 10

1505

500

0.1 to 10

2010

1000

0.1 to 10

VISHAY THIN FILM • FRANCE +33.4.93.37.28.24 FAX: +33.4.93.37.27.31 • GERMANY +49.9287.710 FAX: +49 9287.70435 • ISRAEL +972.3.557.0945 FAX: +972.3.558.9121

• ITALY + 39.2.300.11919 FAX: +39.2.300.11999 • JAPAN +81.3.5464.6411 FAX: +81.3.5464.6433 • SINGAPORE +65.788.6668 FAX: +65.788.0988

• SWEDEN +46.8.594.70590 FAX: +46.8.594.70581 • UK +44 191 514 8237 FAX: +44 1953 457 722 • USA: (610) 407-4800 FAX: (610) 640-9081

www.vishay.com

Document Number: 60028

Revision 01-Mar-04
