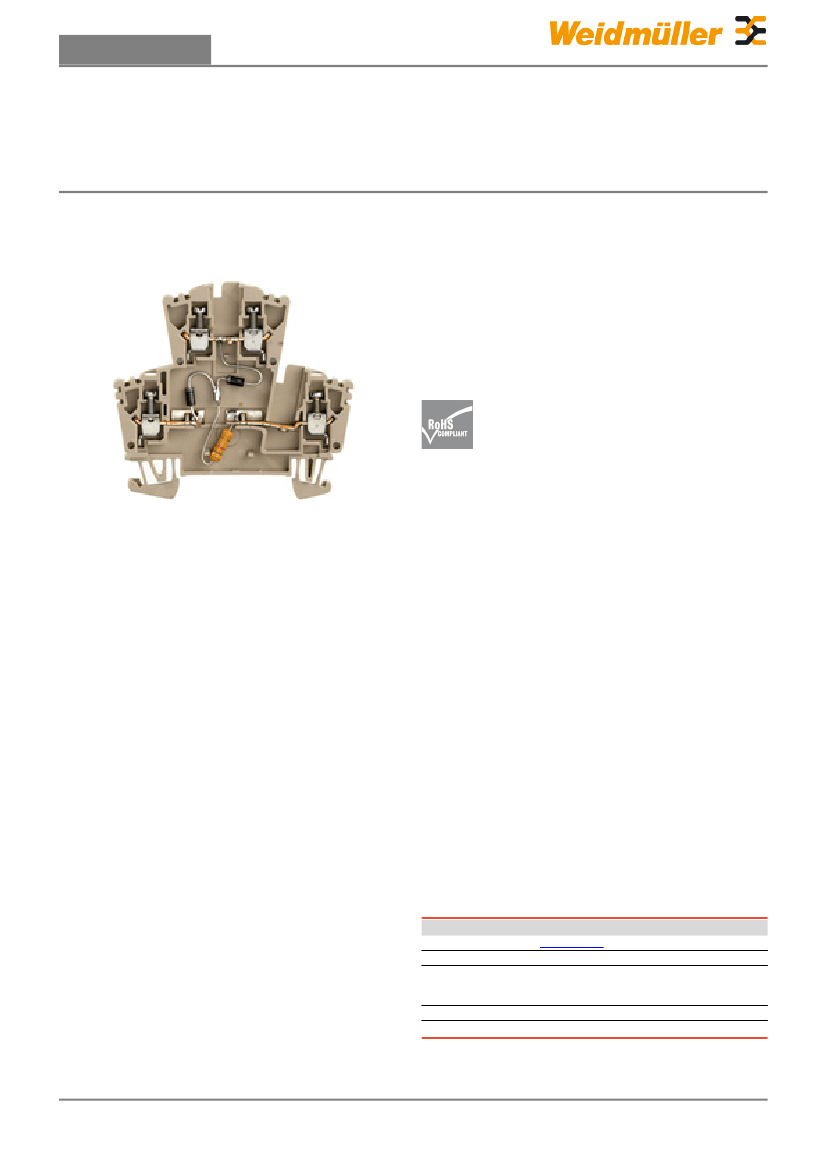

Data sheet...
W-Series
WDK 2.5 2D 1R 1K5/0.5W
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com
The versatile and extensive range of products - from 0.05
mm² to 300 mm² - means that you have diverse options
for your applications at your disposal.
Hardened steel for mechanical strength and high-quality
tinned copper for optimum conductivity. All materials
comply with RoHS requirements and have been tested to
current environment guidelines.
General ordering data
Order No.
Type
Version
GTIN (EAN)
Qty.
8012260000
WDK 2.5 2D 1R 1K5/0.5W
W-Series, Component terminal, Rated cross-
section: 2.5 mm², Screw connection, Direct
mounting
4008190117511
25 pc(s).
Creation date May 7, 2013 4:37:31 PM CEST
Catalogue status 12.03.2013 / We reserve the right to make technical changes.
1
Data sheet...
W-Series
WDK 2.5 2D 1R 1K5/0.5W
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com
Technical data
69 mm
62.5 mm
14 g
Width
Height of lowest version
Dimensions and weights
Length
Height
Net weight
5.1 mm
63 mm
Temperatures
Operating temperature
Continuous operating temp., min.
-50 °C
Storage temperature
Continuous operating temp., max.
120 °C
Additional technical data
Explosion-tested version
Number of similar terminals
Type of mounting
No
1
Installation advice
Open sides
Version
Direct mounting
right
Screw connection, with
diode, for screwable cross-
connection, One end
without connector
Snap-on
Clampable wires (rated connection)
Type of connection
Number of connections
Wire connection cross section, solid
core, max. rated connection
Wire connection cross section, finely
stranded, max.
Wire connection cross section, finely
stranded with wire-end ferrules DIN
46228/1, rated connection, min.
Wire connection cross section AWG,
min.
Screw connection
4
0.5 mm²
4 mm²
0.5 mm²
AWG 26
Connection direction
Clamping range, rated connection, min.
Wire connection cross section, solid
core max. rated connection
Wire connection cross-section, finely
stranded, min.
Wire connection cross section, finely
stranded with wire-end ferrules DIN
46228/1, rated connection, max.
Wire connection cross section AWG,
max.
on side
0.05 mm²
4 mm²
0.5 mm²
2.5 mm²
AWG 12
Dimensions
TS 35 offset
35.5 mm
Rated data
Rated cross-section
Rated current
2.5 mm²
10 A
Rated voltage
400 V
Material data
Material
UL 94 flammability rating
Wemid
V-0
Colour
Dark Beige
System specifications
Product family
Connection direction
Number of connections
Levels cross-connected internally
W-Series
on side
4
Yes
Type of connection
Number of levels
No. of clamping points per level
End cover plate required
Screw connection
2
2
Yes
Creation date May 7, 2013 4:37:31 PM CEST
Catalogue status 12.03.2013 / We reserve the right to make technical changes.
2
Data sheet...
W-Series
WDK 2.5 2D 1R 1K5/0.5W
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com
Technical data
EC000903
30-21-18-11
27-14-11-27
27-14-11-27
ETIM 3.0
eClass 4.1
eClass 6.2
Classifications
ETIM 2.0
UNSPSC
eClass 5.1
eClass 7.1
EC000903
27-14-11-27
27-14-11-27
Product information
Descriptive text ordering data
2.5 mm² conductor with wire end ferrule plus plastic collar only with collar optimised for diameter (order No.
1333100000, 500 pcs)
Approvals
Approvals
ROHS
Conform
Creation date May 7, 2013 4:37:31 PM CEST
Catalogue status 12.03.2013 / We reserve the right to make technical changes.
