1206GA391JA12A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> 1206GA391JA12A

1206GA391JA12A: DescriptionCeramic Capacitor, Multilayer, Ceramic, 2000V, 5% +Tol, 5% -Tol, C0G, 30ppm/Cel TC, 0.00039uF, Surface Mount, 1206, CHIP; CategoryPassive components capacitor; File Size457KB，5 Pages; ManufacturerAVX; Environmental Compliance

Download Datasheet Parametric View All

1206GA391JA12A Overview

Ceramic Capacitor, Multilayer, Ceramic, 2000V, 5% +Tol, 5% -Tol, C0G, 30ppm/Cel TC, 0.00039uF, Surface Mount, 1206, CHIP

1206GA391JA12A Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	7101912406
package instruction	, 1206
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	8.1
capacitance	0.00039 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	1.8034 mm
JESD-609 code	e4
length	3.3 mm
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	5%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package form	SMT
method of packing	TR, 7 Inch
positive tolerance	5%
Rated (DC) voltage (URdc)	2000 V
size code	1206
surface mount	YES
Temperature characteristic code	C0G
Temperature Coefficient	30ppm/Cel ppm/°C
Terminal surface	Silver/Palladium (Ag/Pd)
Terminal shape	WRAPAROUND
width	1.6 mm

Preview

Download Datasheet

View All

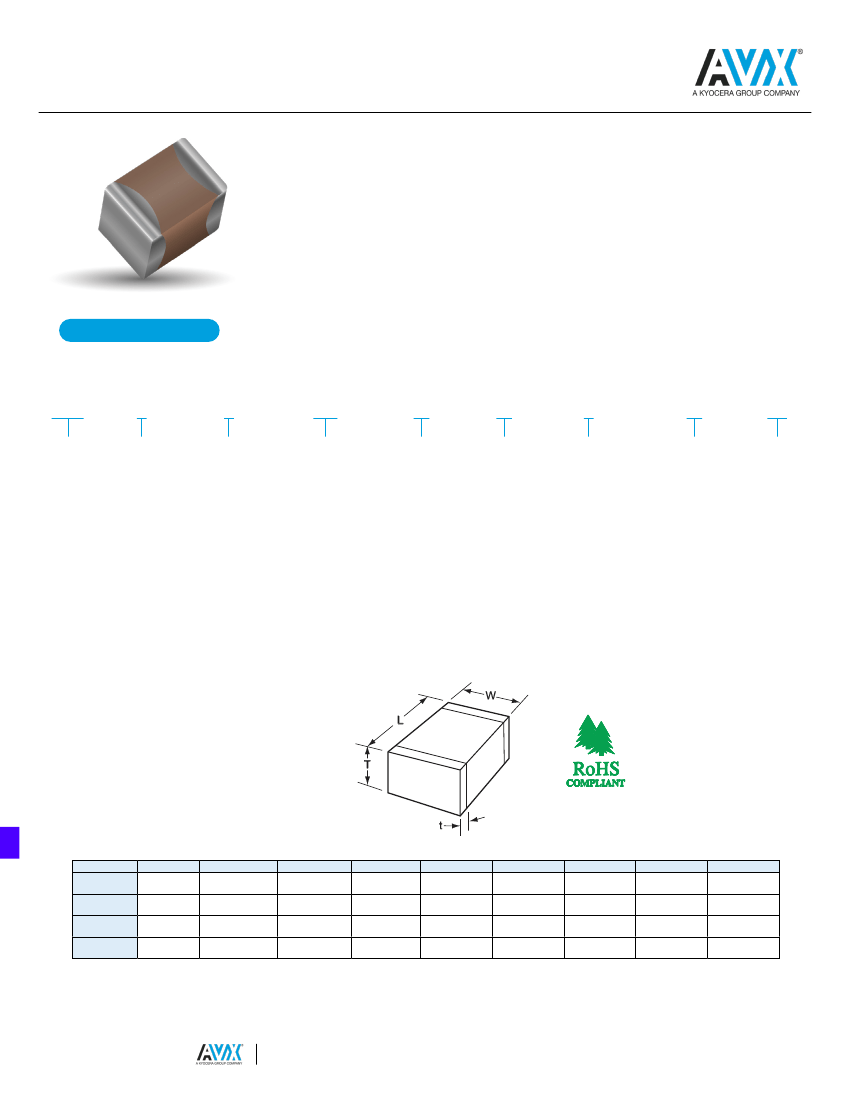

High Voltage MLC Chips

For 600V to 5000V Applications

High value, low leakage and small size are difficult parameters to obtain in capacitors for high voltage systems.

AVX special high voltage MLC chip capacitors meet these performance characteristics and are designed for

applications such as snubbers in high frequency power converters, resonators in SMPS, and high voltage

coupling/dc blocking. These high voltage chip designs exhibit low ESRs at high frequencies.

Larger physical sizes than normally encountered chips are used to make high voltage MLC chip products. Special

precautions must be taken in applying these chips in surface mount assemblies. The temperature gradient during

heating or cooling cycles should not exceed 4ºC per second. The preheat temperature must be within 50ºC of

the peak temperature reached by the ceramic bodies through the soldering process. Chip sizes 1210 and larger

should be reflow soldered only. Capacitors may require protective surface coating to prevent external arcing.

For 1825, 2225 and 3640 sizes, AVX offers leaded version in either thru-hole or SMT configurations (for details

see section on high voltage leaded MLC chips)

NEW 630V RANGE

HOW TO ORDER

1808

AVX

Style

0805

1206

1210

1808

1812

1825

2220

2225

3640

***

Notes:

Voltage

600V/630V = C

1000V = A

1500V = S

2000V = G

2500V = W

3000V = H

4000V = J

5000V = K

271

Test Level

A = Standard

Termination*

1 = Pd/Ag

T = Plated

Packaging

1 or 2 = 7” Reel

3 or 4 = 13” Reel

Special

Code

A = Standard

Temperature

Capacitance Code Capacitance

Tolerance

Coefficient

(2 significant digits

C0G: J = ±5%

NPO (C0G) = A

+ no. of zeros)

K = ±10%

X7R = C

Examples:

M = ±20%

10 pF = 100

X7R: K = ±10%

100 pF = 101

M = ±20%

1,000 pF = 102

Z = +80%,

22,000 pF = 223

-20%

220,000 pF = 224

1 μF =105

Ni and Sn

(RoHS Compliant)

1. Capacitors with X7R dielectrics are not intended for applications across AC supply mains or AC line filtering with polarity reversal. Contact plant for recommendations. Contact

factory for availability of Termination and Tolerance options for Specific Part Numbers.

2. *Terminations with 5% minimum lead (Pb) is available, see pages 100 and 101 for LD style.

Leaded terminations are available, see pages 102-106.

**The 3640 Style is not available on 7” Reels.

*** AVX offers nonstandard chip sizes. Contact factory for details.

DIMENSIONS

SIZE

0805

1206

3.30 ± 0.30

(0.130 ± 0.012)

1.60 ± 0.20

(0.063 ± 0.008)

1.80

(0.071)

0.60 ± 0.20

(0.024 ± 0.008)

millimeters (inches)

1210*

3.30 ± 0.40

(0.130 ± 0.016)

2.50 ± 0.30

(0.098 ± 0.012)

2.80

(0.110)

0.75 ± 0.35

(0.030 ± 0.014)

1808*

4.60 ± 0.50

(0.181 ± 0.020)

2.00 ± 0.20

(0.079 ± 0.008)

2.20

(0.087)

0.75 ± 0.35

(0.030 ± 0.014)

1812*

4.60 ± 0.50

(0.181 ± 0.020)

3.20 ± 0.30

(0.126 ± 0.012)

2.80

(0.110)

0.75 ± 0.35

(0.030 ± 0.014)

1825*

4.60 ± 0.50

(0.181 ± 0.020)

6.30 ± 0.40

(0.248 ± 0.016)

3.40

(0.134)

0.75 ± 0.35

(0.030 ± 0.014)

2220*

5.70 ± 0.50

(0.224 ± 0.020)

5.00 ± 0.40

(0.197 ± 0.016)

3.40

(0.134)

0.85 ± 0.35

(0.033 ± 0.014)

2225*

5.72 ± 0.25

(0.225 ± 0.010)

6.35 ± 0.25

(0.250 ± 0.010)

2.54

(0.100)

0.85 ± 0.35

(0.033 ± 0.014)

3640*

9.14 ± 0.25

(0.360 ± 0.010)

10.2 ± 0.25

(0.400 ± 0.010)

2.54

(0.100)

0.76 (0.030)

1.52 (0.060)

2.10 ± 0.20

(L) Length

(0.083 ± 0.008)

1.25 ± 0.20

(W) Width

(0.049 ±0.008)

(T) Thickness

1.35

Max.

(0.053)

min.

0.50 ± 0.20

(t) terminal

max. (0.020 ± 0.008)

*Reflow Soldering Only

The Important Information/Disclaimer is incorporated in the catalog where these specifications came from or

available online at www.avx.com/disclaimer/ by reference and should be reviewed in full before placing any order.

010419
