ILCX07-HH3F12-30.000MHZ Overview

Parallel - Fundamental Quartz Crystal, 30MHz Nom, SMD, 4 PIN

ILCX07-HH3F12-30.000MHZ Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	4035533223
package instruction	SMD, 4 PIN
Reach Compliance Code	compliant
YTEOL	7.2
Other features	AT CUT
Ageing	5 PPM/YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	100 µW
frequency stability	0.002%
frequency tolerance	20 ppm
load capacitance	12 pF
Installation features	SURFACE MOUNT
Nominal operating frequency	30 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
physical size	5.0mm x 3.2mm x 1.0mm
Series resistance	30 Ω
surface mount	YES

Preview

Download Datasheet

View All

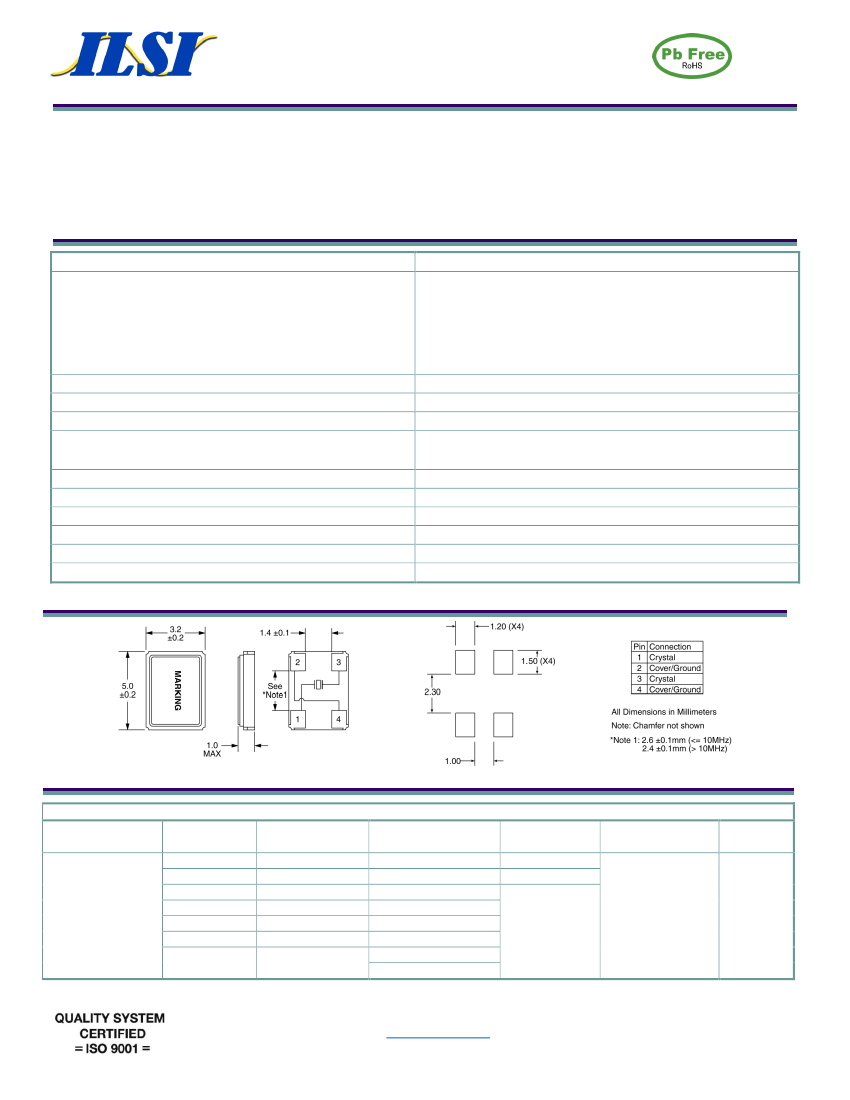

4 Pad Ceramic Package Quartz Crystal, 5.0mm x 3.2mm

Product Features:

Low Cost SMD Package

Low ESR

Compatible with Leadfree Processing

ILCX07 Series

Applications:

Fibre Channel

Server & Storage

Sonet / SDH

802.11 / WiFi

T1/E1, T3/E3

Electrical Specifications

Frequency

Equivalent Series Resistance

8MHz – 9.999999MHz

10MHz – 11.999999MHz

12MHz – 15.999999MHz

16MHz – 19.999999MHz

20MHz – 23.999999MHz

24MHz – 50MHz

30MHz – 150MHz (Third Overtone)

Shunt Capacitance (C0)

Frequency Tolerance (at 25°C)

Frequency Stability (over Temperature)

Mode of Operation

8MHz – 50MHz

30MHz – 150MHz

Crystal Cut

Load Capacitance

Drive Level

Aging

Operating Temperature Range

Storage Temperature Range

8MHz to 150MHz

100 Ohms Maximum

80 Ohms Maximum

60 Ohms Maximum

50 Ohms Maximum

40 Ohms Maximum

30 Ohms Maximum

80 Ohms Maximum

5pF Maximum

±50ppm, ±30ppm, ±25ppm, ±20ppm, ±15ppm, or ±10ppm

Fundamental

Third Overtone

AT Cut

8pF to 32pF or Specify

100µW Maximum

5ppm/Year

Maximum

See Part Number Guide

-40°C to +85°C

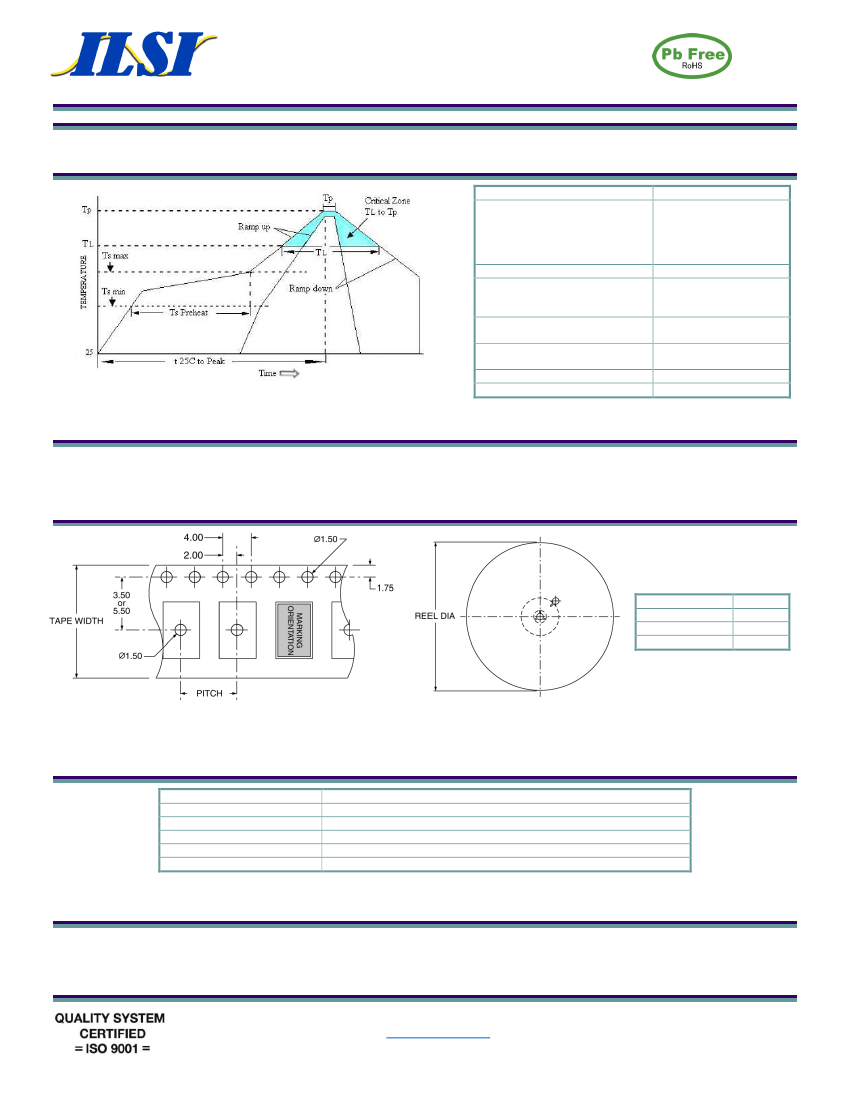

Mechanical and Solder Pad Dimensions

Part Number Guide

Sample Part Number: ILCX07 – FB1F18 – 20.000 MHz

Package

Frequency

Tolerance

B = ±50ppm

F = ±30ppm

G = ±25ppm

ILCX07 -

H = ±20ppm

I = ±15ppm

J = ±10ppm*

Frequency

Stability

B = ±50ppm

F = ±30ppm

G = ±25ppm

H = ±20ppm

I = ±15ppm*, **

J = ±10ppm*, **

Operating

Temperature Range

0 = 0°C to +50°C

1 = 0°C to +70°C

2 = -10°C to +60°C

3 = -20°C to +70°C

5 = -40°C to +85°C

9 = -10°C to +50°C

D = -10°C to +105°C*

E = -40°C to +105°C*

Mode of

Operations

F = Fundamental

3 = Third Overtone

Load Capacitance

Frequency

8pF to 32pF or Specify

20.000 MHz

* Not available at all frequencies. ** Not available for all temperature ranges.
