Z710-0200-003-Z datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> Z710-0200-003-Z

Preview

Z710-0200-003-Z: DescriptionBoard Connector, 20 Contact(s), 2 Row(s), Female, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking, Plug; CategoryThe connector The connector; File Size288KB，1 Pages; ManufacturerSMP Technology Inc.

Download Datasheet Parametric View All

Z710-0200-003-Z Overview

Board Connector, 20 Contact(s), 2 Row(s), Female, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking, Plug

Z710-0200-003-Z Parametric

Parameter Name	Attribute value
Objectid	304397615
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
Board mount options	PEG
body width	0.248 inch
subject depth	0.094 inch
body length	0.378 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	40 mΩ
Contact style	BELLOWED TYPE
Dielectric withstand voltage	500VAC V
Insulation resistance	100000000 Ω
Plug contact pitch	0.02 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-20 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.7912 mm
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	0.5 A
Guideline	UL
Terminal pitch	0.508 mm
Termination type	SURFACE MOUNT
Total number of contacts	20

Preview

Download Datasheet

View All

Male

Z710-XXX0-0XX-Z

Female

Z720-XXX0-0XX-Z

HOW TO ORDER:

Z

7

1

Stacking Height

3.45mm

ELECTRICAL:

VOLTAGE: 50V

CURRENT RATING: 0.5A

CONTACT RESISTANCE: < 40m

Ω

INSULATION RESISTANCE: 100M

Ω

DIELECTRIC WITHSTANDING VOLTAGE: 500VAC For 1 Min.

OPERATING TEMPERATURE: -20ºC to +105ºC

0

-

X

0

-

0

X

-

Z

RoHS

COMPLIANT

CONNECTOR TYPE:

1 - Plug

NUMBER OF CONTACTS:

10 thru 140

MATERIAL:

STACKING HEIGHT:

0 - 3.45

CONTACT: Phosphor Bronze

INSULATOR: HTN / Nylon 6T (UL94V-0)

Rev

0

Issued

Drawn Checked

B.S.

S.M.

Approved Date

S.M.

3/8/07

PACKAGING:

0 - Tube (No Cap)

1 - Tube (With Cap)

2 - Tape & Reel Without Cap

3 - Tape & Reel With Cap

PLATING:

0 - Full Tin

1 - Gold Flash

2 - 15 Aµ

3 - 30 Aµ

SMP TECHNOLOGY, INC.

SCALE: N/A

TOL. DEC.

.X +/- 0.30

.XX +/- 0.20

.XXX +/- 0.15

ANGLE +/-

UNIT: mm

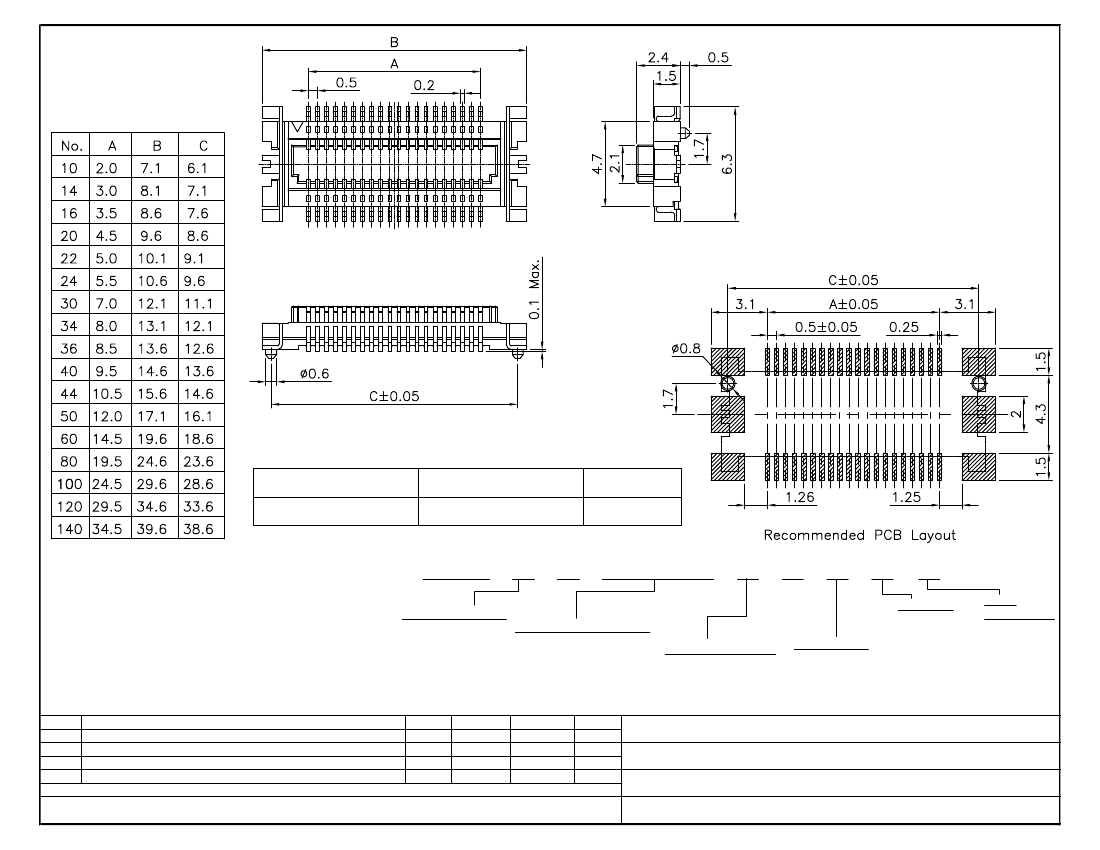

Board To Board Plug, .5mm Pitch, 3.45mm Stacking Height (Panasonic Type)

SERIES: Z710-XXX0-0XX-Z

Pg: 1
