2PH2-34-U-SMT-.197-P datasheet, PDF

2PH2-34-U-SMT-.197-P: DescriptionBoard Connector, 34 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle; CategoryThe connector The connector; File Size79KB，1 Pages; ManufacturerAdam Tech; Environmental Compliance

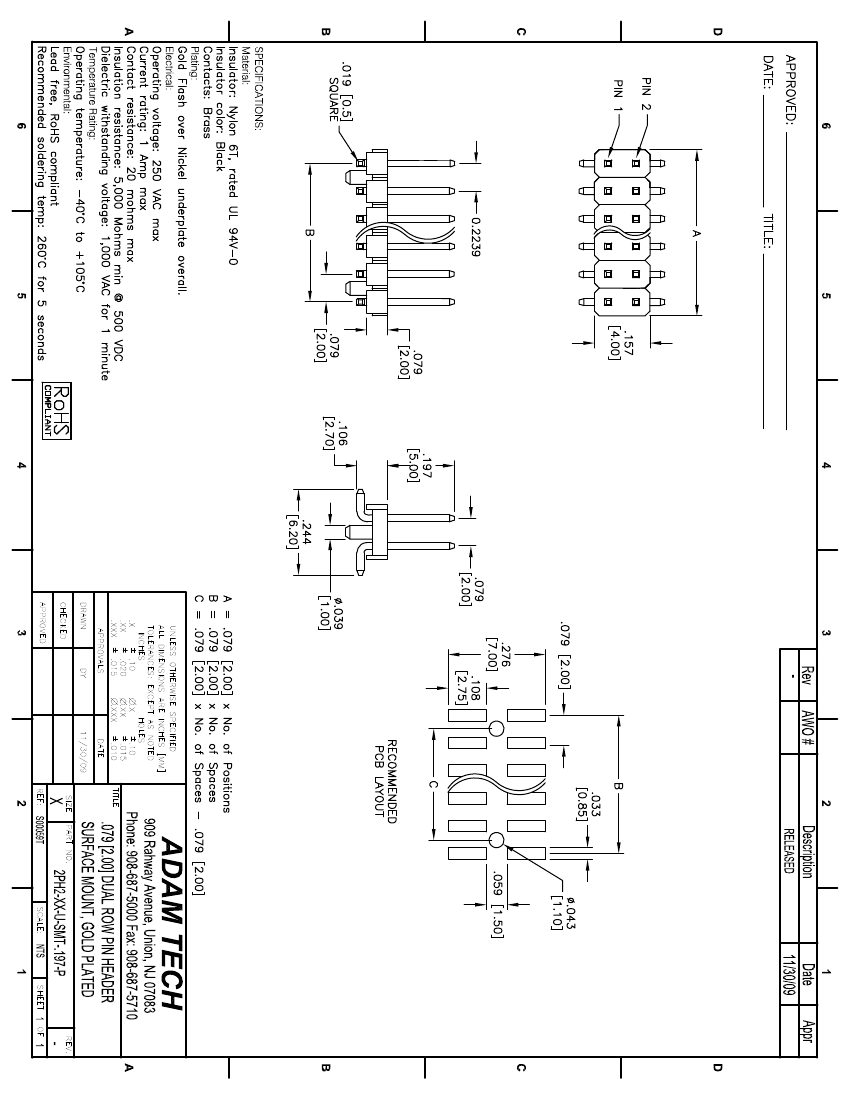

Download Datasheet Parametric View All

2PH2-34-U-SMT-.197-P Overview

Board Connector, 34 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1159630864
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	2
Other features	ROHS COMPLIANT
Board mount options	PEG
body width	0.157 inch
subject depth	0.106 inch
body length	1.343 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1000VAC V
Durability	1000 Cycles
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	POLYAMIDE
JESD-609 code	e4
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	4.2418 mm
Plating thickness	FLASH inch
Rated current (signal)	1 A
Guideline	UL, CSA
Terminal pitch	2.0066 mm
Termination type	SURFACE MOUNT
Total number of contacts	34
