GRM31M2C1H473JA01K: DescriptionCeramic Capacitor, Multilayer, Ceramic, 50V, 5% +Tol, 5% -Tol, CH, 60ppm/Cel TC, 0.047uF, Surface Mount, 1206, CHIP, ROHS COMPLIANT; CategoryPassive components capacitor; File Size79KB，2 Pages; ManufacturerMurata; Websitehttps://www.murata.com; Environmental Compliance

Download Datasheet Parametric View All

GRM31M2C1H473JA01K Overview

Ceramic Capacitor, Multilayer, Ceramic, 50V, 5% +Tol, 5% -Tol, CH, 60ppm/Cel TC, 0.047uF, Surface Mount, 1206, CHIP, ROHS COMPLIANT

GRM31M2C1H473JA01K Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Murata
package instruction	, 1206
Reach Compliance Code	compliant
ECCN code	EAR99
Samacsys Description	Chip Multilayer Ceramic Capacitors for General Purpose
capacitance	0.047 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	1.15 mm
JESD-609 code	e3
length	3.2 mm
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	5%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Package form	SMT
method of packing	TR, EMBOSSED, 13 INCH
positive tolerance	5%
Rated (DC) voltage (URdc)	50 V
size code	1206
surface mount	YES
Temperature characteristic code	CH
Temperature Coefficient	60ppm/Cel ppm/°C
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND
width	1.6 mm
Base Number Matches	1

Preview

Download Datasheet

View All

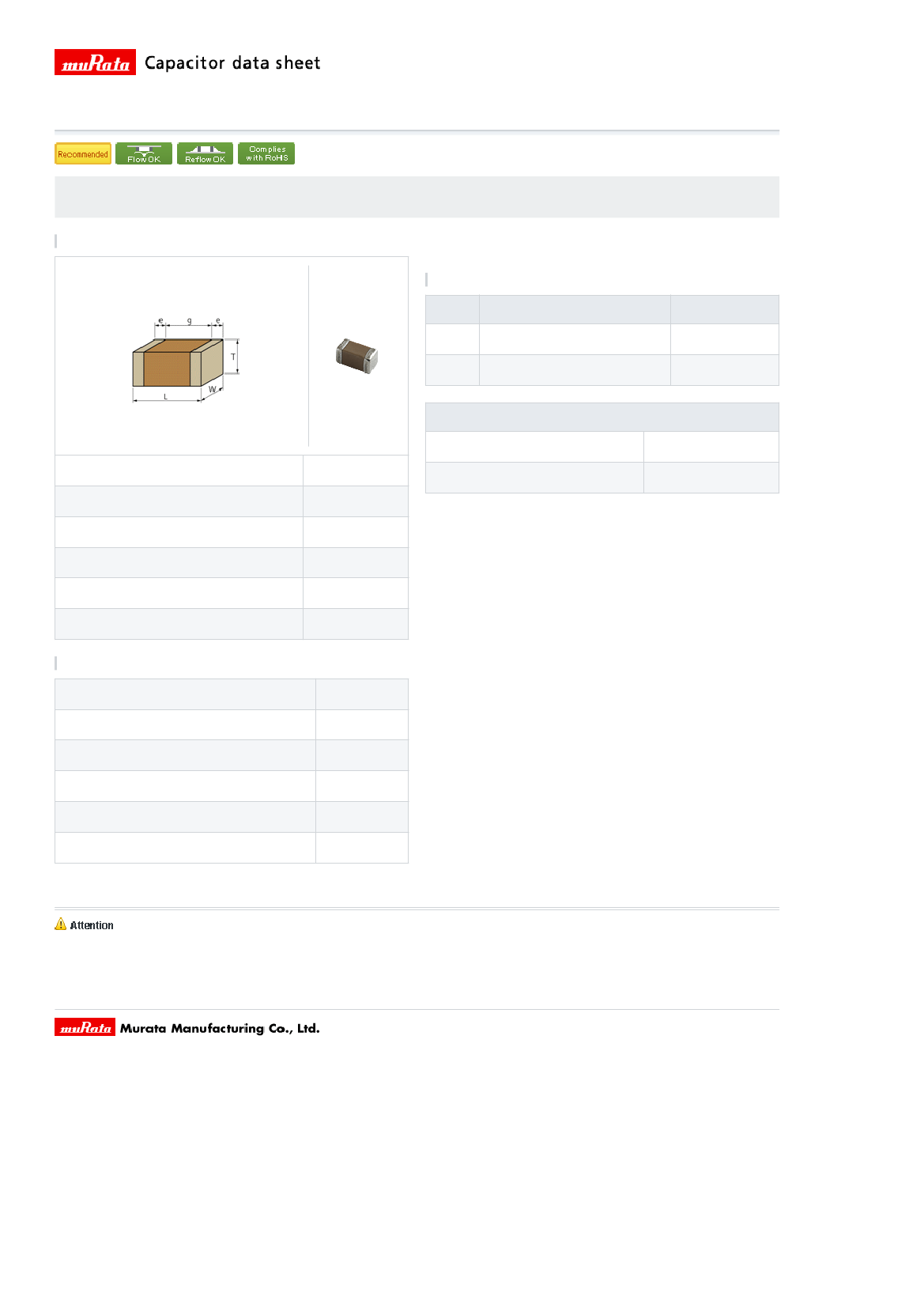

GRM31M2C1H473JA01#

# indicates a package specification code.

< List of part numbers with package codes >

GRM31M2C1H473JA01L , GRM31M2C1H473JA01K

Shape

References

Packaging

L

K

Specifications

φ180mm Embossed taping

φ330mm Embossed taping

Minimum quantity

3000

10000

Mass (typ.)

1 piece

L size

W size

T size

External terminal width e

Distance between external terminals g

Size code in inch(mm)

3.2 ±0.15mm

1.6 ±0.15mm

1.15 ±0.1mm

0.3 to 0.8mm

1.5mm min.

1206 (3216)

φ180mm Reel

27mg

125g

Specifications

Capacitance

Rated voltage

Temperature characteristics (complied standard)

Temperature coefficient

Temperature range of temperature characteristics

Operating temperature range

47000pF ±5%

50Vdc

CH(JIS)

0±60ppm/℃

20 to 125℃

-55 to 125℃

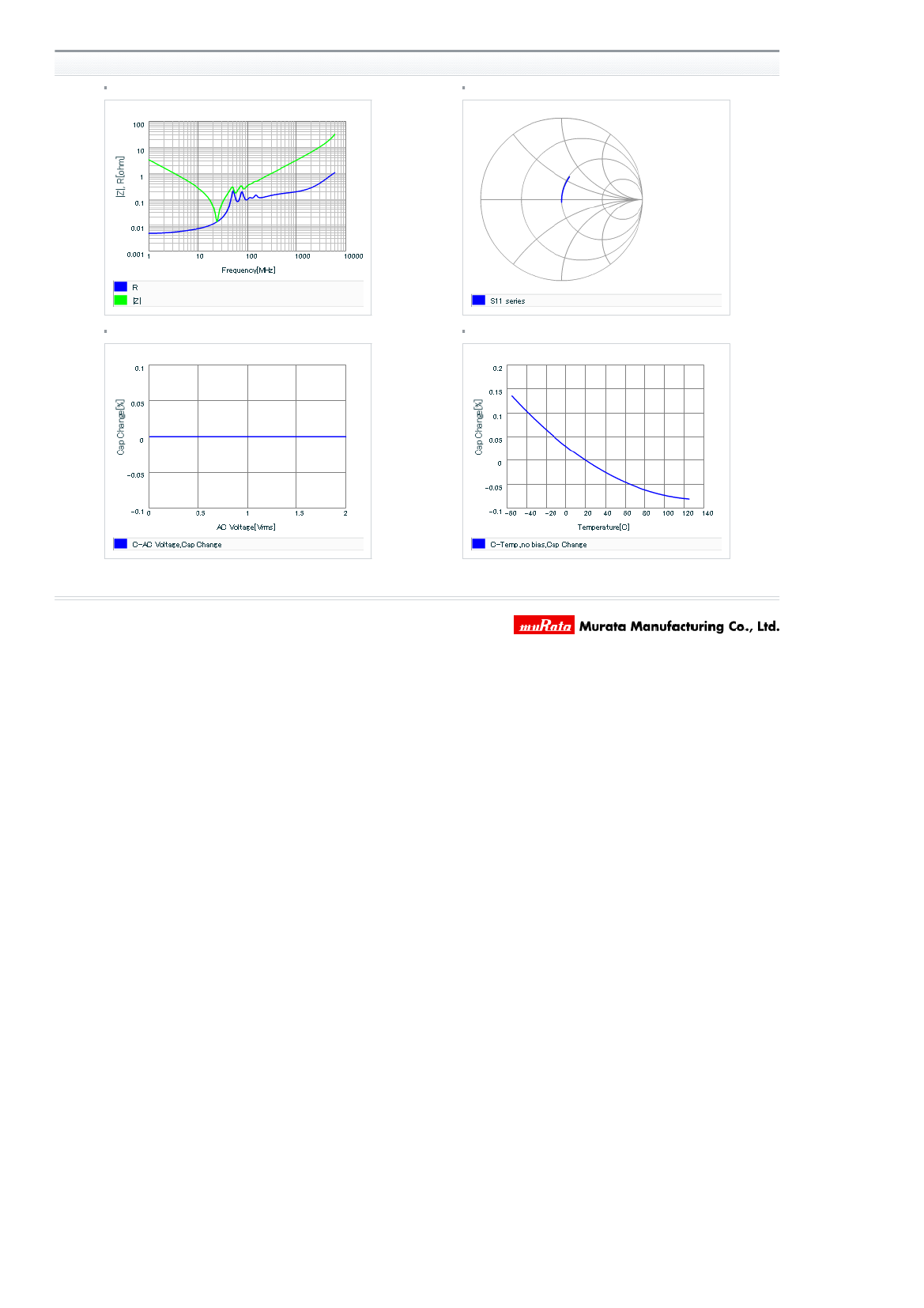

1 of 2

1.This datasheet is downloaded from the website of Murata Manufacturing Co., Ltd. Therefore, it s specifications are subject to change or our products in it may be discontinued

without advance notice. Please check with our sales representatives or product engineers before ordering.

2.This datasheet has only typical specifications because there is no space for detailed specifications.

Therefore, please review our product specifications or consult the approval sheet for product specifications before ordering.

URL : http://www.murata.co.jp/

Last updated: 2013/11/20
