5-535677-6 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 5-535677-6

5-535677-6: Description3 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER, RECEPTACLE, ROHS COMPLIANT; CategoryThe connector The connector; File Size126KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

5-535677-6 Overview

3 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER, RECEPTACLE, ROHS COMPLIANT

5-535677-6 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	TE Connectivity
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	AMPMODU
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	5535677
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	3
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

My Account

Tyco Electronics

(C hange)

Se arch by Ke yword or Part #

Products

Documentation

Resources

My Account

Customer Support

Home

Products

By Type

PC B C onnectors

Product Feature Selector

> Product Details

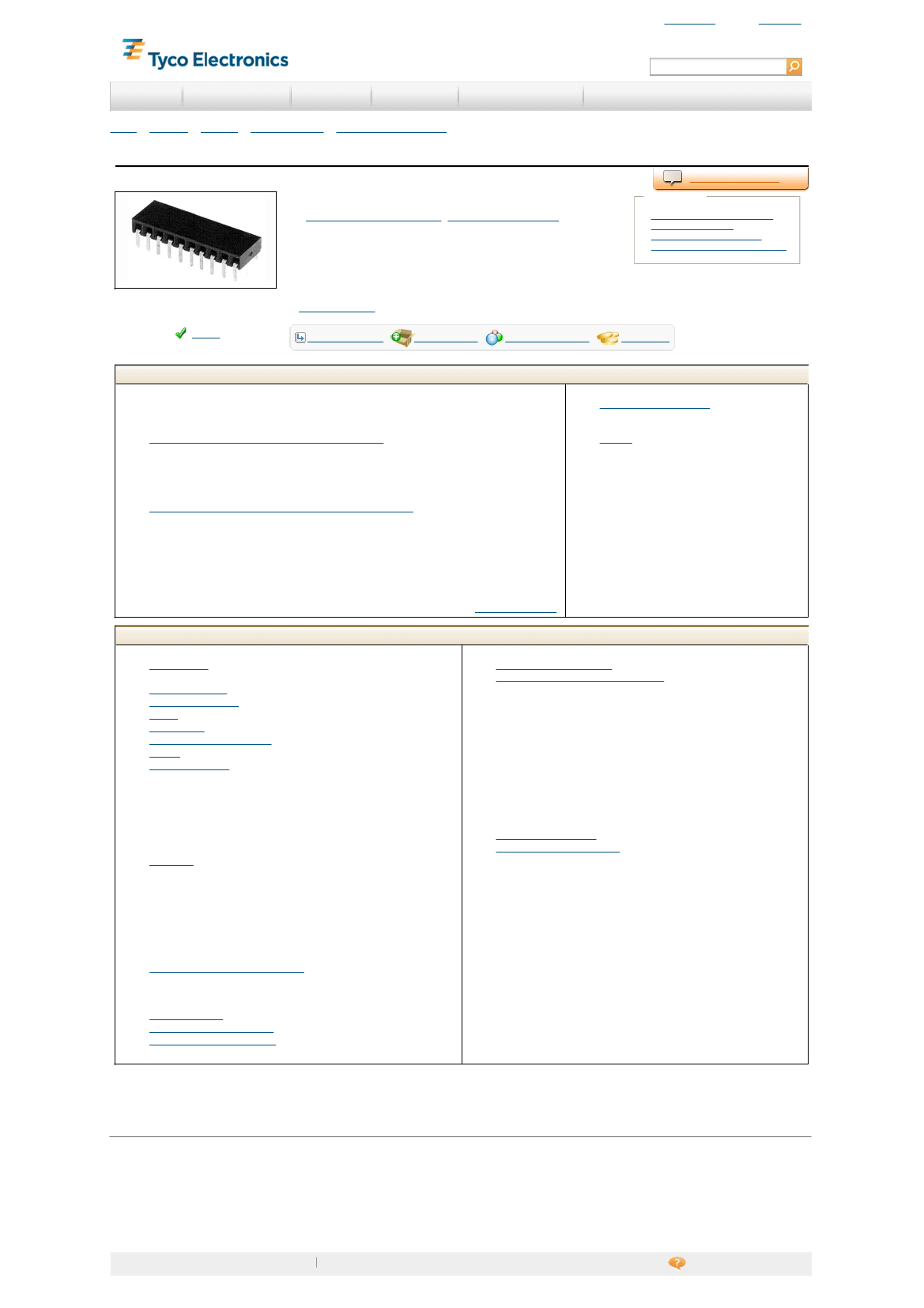

5535677-6 Product Details

Live Product Chat

.100 inch AMPMODU Receptacles

Always EU R oHS/ELV C om pliant

(

Sta te m e nt of C om pliance

)

Quick Links

C heck Pricing & Availability

Search for Tooling

Product Feature Selector

C ontact Us About This Product

5535677-6

T E I nternal N umber: 5 5 3 5 6 7 7 - 6

Product Highlights:

C onnector

C onnector Type = C onnector - Receptacle

Mod II

3 Positions

Number of Rows = Single

View all Features

Active

A dd to M y P art L is t

Reques t Sample

Find Similar P roduc ts

Buy P roduc t

Documentation & Additional Information

Product Drawings:

None Available

Catalog Pages/Data Sheets:

AMPMODU_INTERC ONNEC TION_SYSTEM_SEC TION5

(PDF, English)

Product Specifications:

None Available

Application Specifications:

AMPMODU Mod II and Mod IV Printed C ircuit Board C onn...

(PDF, English)

Instruction Sheets:

None Available

CAD Files:

None Available

List all Documents

Product Features

(Please use the Product Drawing for all design activity)

Product Type Features:

Product Type

= C onnector

C onnector Type = C onnector - Receptacle

C onnector Series

= Mod II

Number of Positions

= 3

Profile

= Standard

Mount Angle

= Right Angle

Mounting Pattern (mm [in])

= 2.54 x 7.87 [.100 x .310]

Sealed

= No

Holddown Feature

= Without

PC B Retention Feature = No

C losed Entry = With

Board Standoff = With

C omment = Tyco Electronics recommends mating gold or duplex

plated headers with duplex plated receptacle assemblies.

Mechanical Attachment:

Stackable

= Yes

Electrical Characteristics:

C ontact C urrent Rating (Amps.) = 2

C ontact Resistance (m?) = 12

Insulation Resistance (M?) = 5,000

Dielectric Withstanding Voltage (V) = 750

Termination Related Features:

Termination Post Length (mm [in])

= 2.92 [0.115]

Solder Tail C ontact Plating = Tin over Nickel

Body Related Features:

Number of Rows

= Single

C onnector Height (mm [in])

= 3.48 [0.137]

C enterline, Matrix (mm [in])

= 2.54 [.100]

Contact Related Features:

C ontact Termination Type

= Through Hole

C ontact Plating, Mating Area, Material

= Tin

C ontact Base Material = Phosphor Bronze

Approved Standards = UL E28476, C SA LR7189

C ontact Type = Short Point

Housing Related Features:

Housing Entry Style = Side

Housing Material = Polyester PC T

Housing Flammability Rating = UL 94V-0

Housing C olor = Black

Industry Standards:

Government/Industry Qualification = No

RoHS/ELV C ompliance

= RoHS compliant, ELV compliant

Lead Free Solder Processes

= Reflow solder capable to 245?C ,

Reflow solder capable to 260?C

RoHS/ELV C ompliance History = Always was RoHS compliant

Conditions for Usage:

Operating Temperature (?C ) = -55 – +125

High Temperature C ompatible = Yes

Other:

Brand = AMP

Additional Information:

Product Line Information
