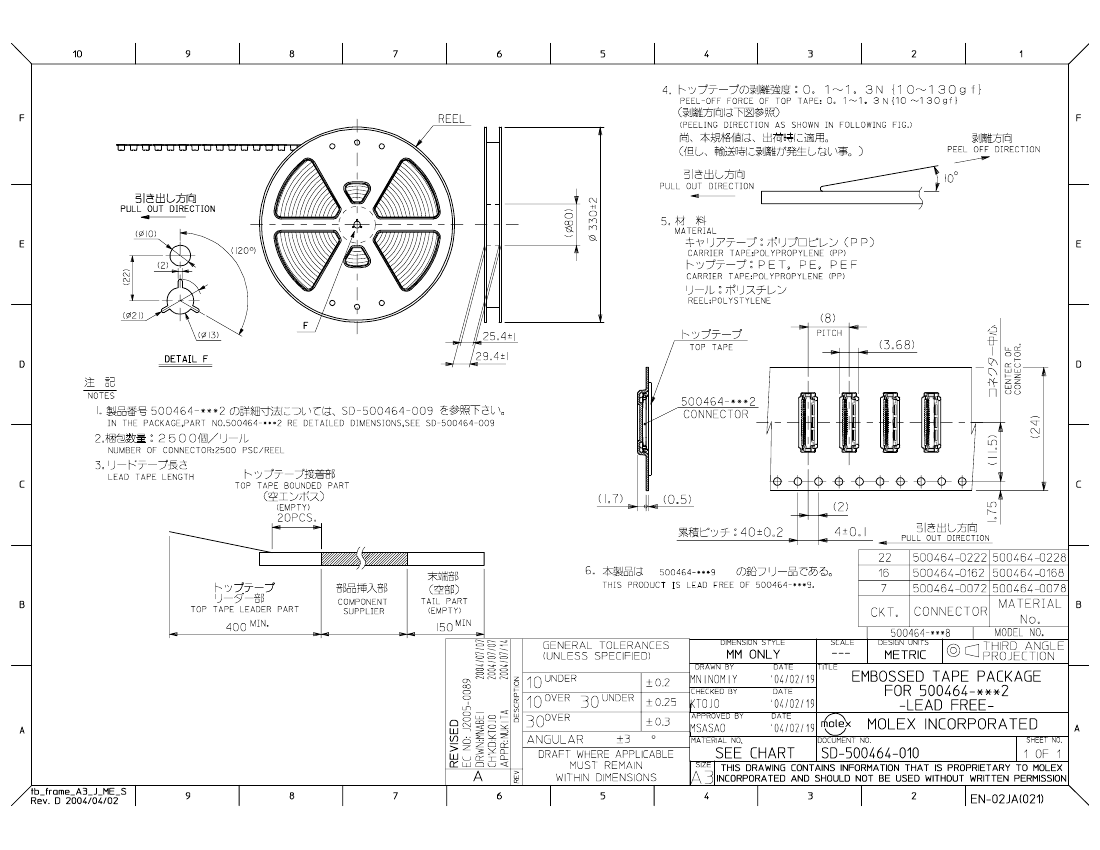

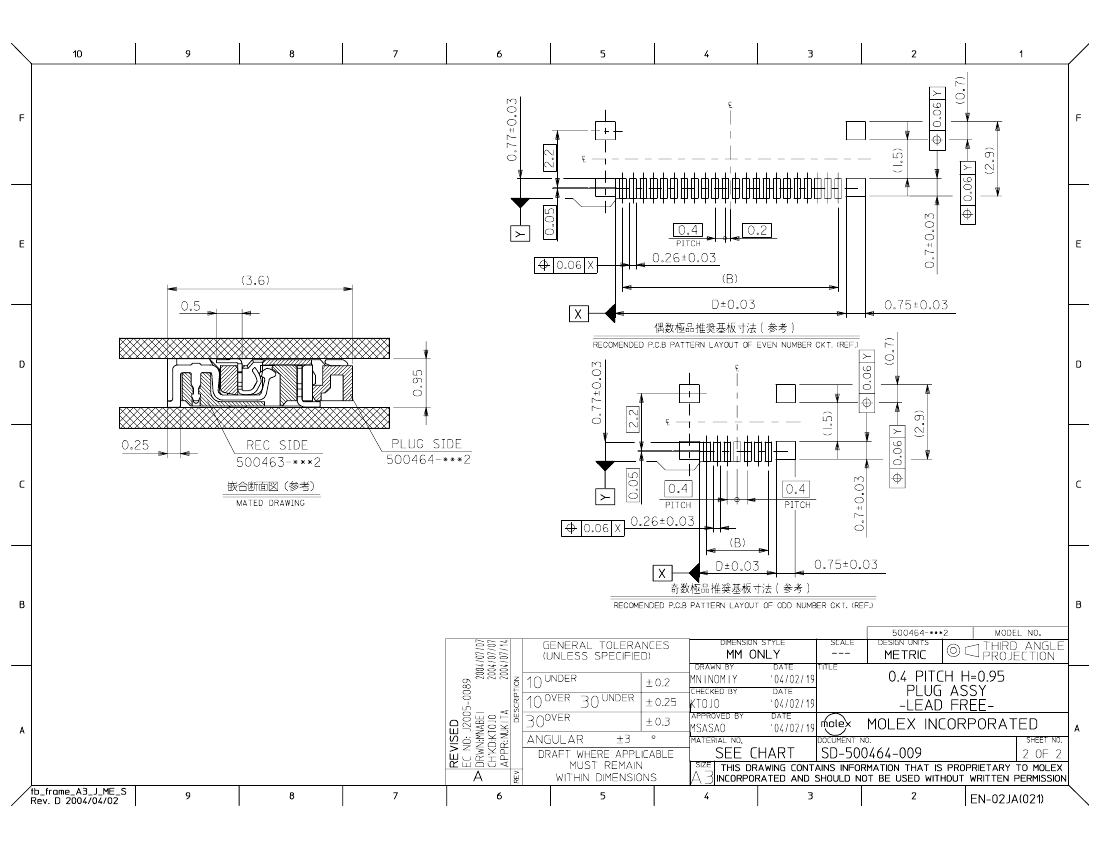

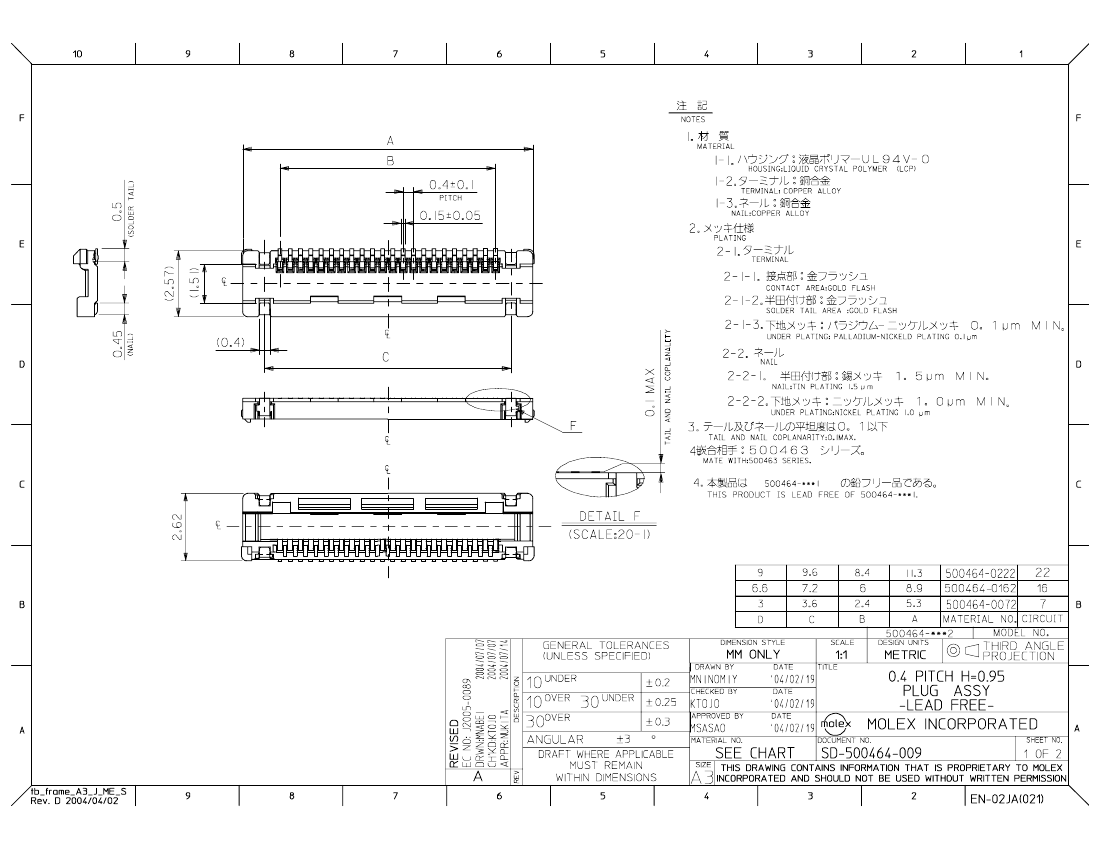

500464-0072 Overview

Board Stacking Connector, 7 Contact(s), 1 Row(s), Male, Straight, Surface Mount Terminal, Plug, LEAD FREE

Parameter Name	Attribute value
package instruction	LEAD FREE
Reach Compliance Code	unknown
Body/casing type	PLUG
Connector type	BOARD STACKING CONNECTOR
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	0.4 mm
Termination type	SURFACE MOUNT
Total number of contacts	7
UL Flammability Code	94V-0
Base Number Matches	1

	500464-0072	500464-0222	SLRN3264001ADDBS
Description	Board Stacking Connector, 7 Contact(s), 1 Row(s), Male, Straight, Surface Mount Terminal, Plug, LEAD FREE	Board Stacking Connector, 22 Contact(s), 1 Row(s), Male, Straight, Surface Mount Terminal, Plug, LEAD FREE	Array/Network Resistor, Isolated, Thin Film, 0.1W, 264000ohm, 0.05% +/-Tol, -50,50ppm/Cel, 1515,
Reach Compliance Code	unknown	unknown	unknown
package instruction	LEAD FREE	LEAD FREE	-
Body/casing type	PLUG	PLUG	-
Connector type	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	-
Contact point gender	MALE	MALE	-
DIN compliance	NO	NO	-
Filter function	NO	NO	-
IEC compliance	NO	NO	-
MIL compliance	NO	NO	-
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	-
Mixed contacts	NO	NO	-
Installation method	STRAIGHT	STRAIGHT	-
Installation type	BOARD	BOARD	-
Number of rows loaded	1	1	-
Options	GENERAL PURPOSE	GENERAL PURPOSE	-
Terminal pitch	0.4 mm	0.4 mm	-
Termination type	SURFACE MOUNT	SURFACE MOUNT	-
Total number of contacts	7	22	-
UL Flammability Code	94V-0	94V-0	-
Base Number Matches	1	1	-
