ISM95-2856BH-1.000 datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> ISM95-2856BH-1.000

ISM95-2856BH-1.000: DescriptionHCMOS/TTL Output Clock Oscillator, 1MHz Nom, SMD, 4 PIN; CategoryPassive components oscillator; File Size114KB，2 Pages; ManufacturerILSI; Websitehttp://www.ilsiamerica.com; Environmental Compliance

Download Datasheet Parametric View All

ISM95-2856BH-1.000 Overview

HCMOS/TTL Output Clock Oscillator, 1MHz Nom, SMD, 4 PIN

ISM95-2856BH-1.000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1313035066
Reach Compliance Code	compliant
Other features	ENABLE/DISABLE FUNCTION; TR, 7 INCH
Frequency Adjustment - Mechanical	NO
frequency stability	50%
JESD-609 code	e4
Installation features	SURFACE MOUNT
Nominal operating frequency	1 MHz
Maximum operating temperature	60 °C
Minimum operating temperature	-10 °C
Oscillator type	HCMOS/TTL
Output load	30 pF
physical size	2.5mm x 2.0mm x 0.8mm
Maximum supply voltage	2.835 V
Minimum supply voltage	2.565 V
Nominal supply voltage	2.7 V
surface mount	YES
maximum symmetry	45/55 %
Terminal surface	Gold (Au) - with Nickel (Ni) barrier

Preview

Download Datasheet

View All

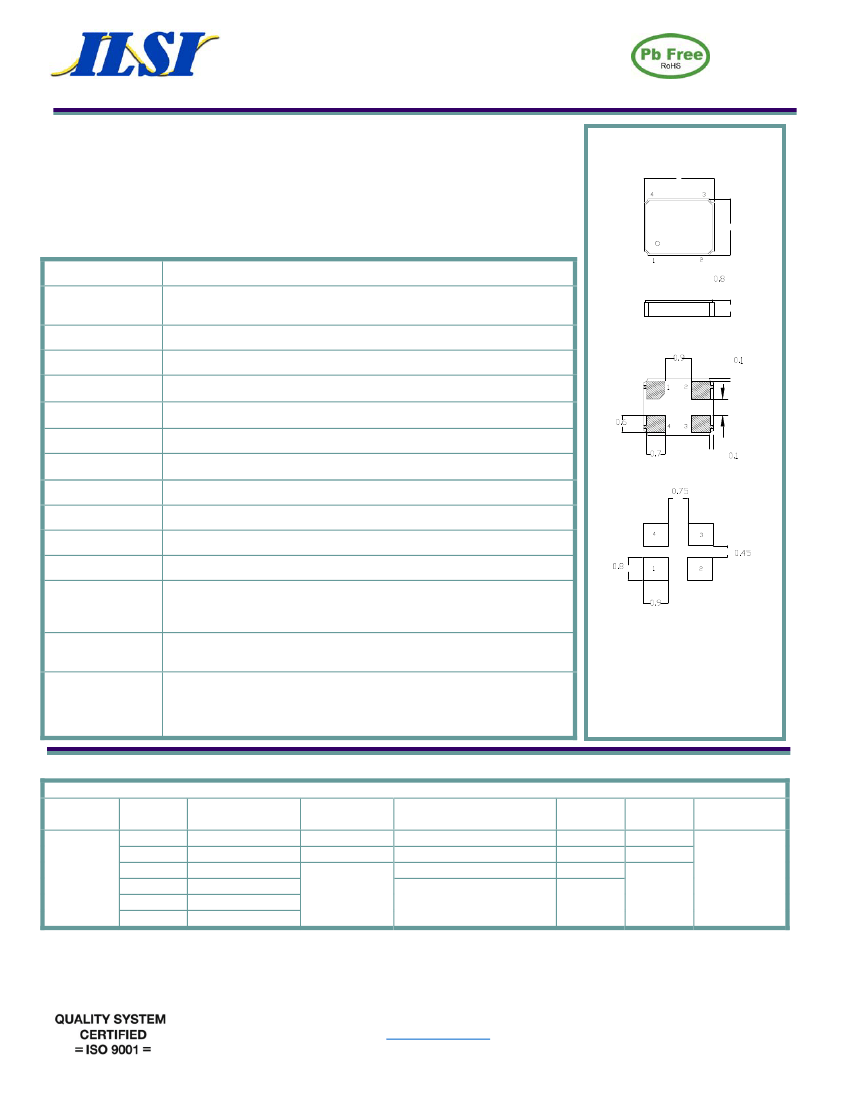

2.0 mm x 2.5 mm Ceramic Package SMD Oscillator, TTL / HC-MOS

ISM95 Series

Product Features:

Low Jitter, Non-PLL Based Output

CMOS/TTL Compatible Logic Levels

Compatible with Leadfree Processing

Applications:

Fibre Channel

Server & Storage

Sonet /SDH

802.11 / Wifi

T1/E1, T3/E3

System Clock

2.5

2.0

Frequency

Output Level

HC-MOS

TTL

Duty Cycle

Rise / Fall Time

Output Load

Frequency Stability

Start-up Time

Enable / Disable

Time

Supply Voltage

Current

Operating

Storage

Jitter:

RMS(1sigma)

1 MHz-60 MHz

Max Integrated

1 MHz-60 MHz

Max Total Jitter

1 MHz-60 MHz

1.000 MHz to 60.000 MHz

‘0’ = 0.1 Vcc Max., ‘1’ = 0.9 Vcc Min.

‘0’ = 0.4 VDC Max., ‘1’ = 2.4 VDC Min.

Specify 50% ±10% or ±5% See Table in Part Number Guide

5 nS Max. @ Vcc = +3.3 VDC, 10 nS Max. @ Vcc = +5 VDC ***

Fo < 50 MHz = 10 TTL, Fo > 50 MHz = 5 LSTTL See Table in Part Number

Guide

See Frequency Stability Table (Includes room temperature tolerance and

stability over operating temperature)

10 mS Max.

100 nS Max. N.C. or

≥

70% Vdd = Enable.

≤

30% Vdd = Disable.

Recommended Pad Layout

0.6

See Input Voltage Table, tolerance ±5 %

25 mA Max. ***

See Operating Temperature Table in Part Number Guide

-55



C to +125



5 pS RMS (1 sigma) Max. accumulated jitter (20K adjacent periods)

1.5 pS RMS (1 sigma -12KHz to 20MHz)

50 pS p-p (100K adjacent periods)

Connection

Enable

GND

Output

Vcc

Dimension Units: mm

Part Number Guide

Package

SM95 -

Input

Voltage

5 = 5.0 V

3 = 3.3 V

7 = 3.0 V

2 = 2.7 V

6 = 2.5 V

1 = 1.8 V*

Sample Part Number:

Operating

Temperature

1 = 0 C to +70 C

8 = -10 C to +60 C

6 = -10 C to +70 C

3 = -20 C to +70 C

4 = -30 C to +75 C

2 = -40 C to +85 C

ISM95 - 3251BH - 20.000

Output

1 = 10TTL / 15 pF HC-MOS

6 = 30 pF

5 = 50 pF HC-MOS (<40 MHz)

Symmetry

(Duty Cycle)

5 = 45 / 55 Max.

6 = 40 / 60 Max.

Stability

(in ppm)

**A =

25

B =

50

C =

100

Enable /

Disable

H = Enable

O = N/C

Frequency

- 20.000 MHz

NOTE: A 0.01 µF bypass capacitor is recommended between Vcc (pin 4) and GND (pin 2) to minimize power supply noise.

* Not available at all frequencies. ** Not available for all temperature ranges. *** Frequency, supply, and load related parameters.

ILSI America Phone 775-851-8880

●

Fax 775-851-8882

●email:

e-mail@ilsiamerica.com

●

www.ilsiamerica.com

Specifications subject to change without notice

Rev: 08/12/15_B

Page 1 of 2
