475I2820401M datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> 475I2820401M

475I2820401M: DescriptionFilm Capacitor; CategoryPassive components capacitor; File Size683KB，13 Pages; ManufacturerKEMET; Websitehttp://www.kemet.com

Download Datasheet Parametric View All

475I2820401M Overview

Film Capacitor

475I2820401M Parametric

Parameter Name	Attribute value
Objectid	1296473224
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
Capacitor type	FILM CAPACITOR
JESD-609 code	e3
Manufacturer's serial number	R47
Number of terminals	2
Terminal surface	TIN

Preview

Download Datasheet

View All

AC Line EMI Suppression and RC Networks

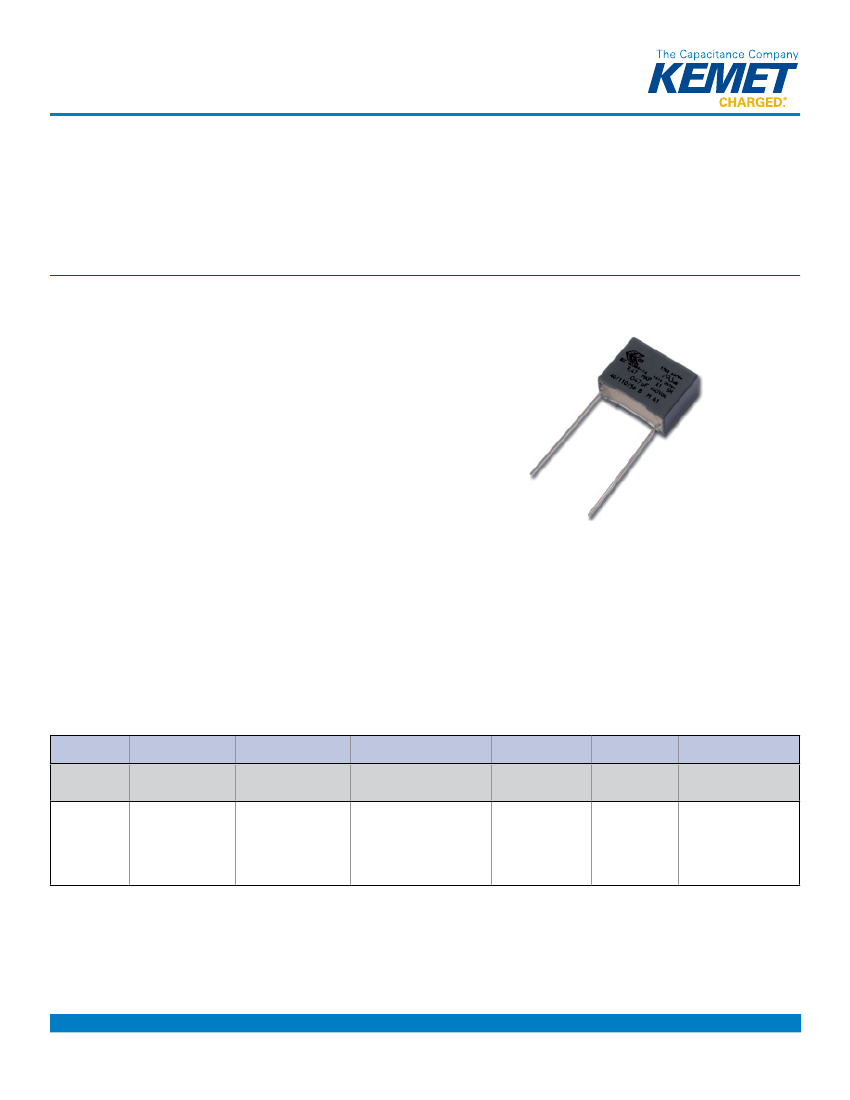

R47 Series Metallized Polypropylene Film, Class X2, 520 VAC

Overview

The R47 Series is constructed of metallized polypropylene film

encapsulated with self-extinguishing resin in a box of material

meeting the requirements of UL 94 V–0.

Applications

Typical applications include worldwide use in electromagnetic

interference suppression in all X2 and across-the-line

applications.

Benefits

•

Approvals: ENEC, UL, cUL

Rated voltage: 520 VAC 50/60 Hz

Capacitance range: 0.0047 – 2.2 µF

Lead spacing: 10.0 – 37.5 mm

Capacitance tolerance: ±20%, ±10%, ±5% on request

Climatic category: 40/85/56, IEC 60068–1

Tape and reel in accordance with IEC 60286–2

RoHS Compliant and lead-free terminations

Operating temperature range of -40˚C to +85˚C

100% screening factory test at 2,700 VDC/1,700 VAC

Part Number System

R47

Series

X2, Metallized

Polypropylene

Rated Voltage (VAC)

5 = 520

Lead Spacing (mm)

F = 10.0

I = 15.0

N = 22.5

R = 27.5

W = 37.5

1470

Capacitance Code (pF)

Digits 2 – 4 indicate the

first three digits of the

capacitance value.

First digit indicates the

number of zeros to be added.

Lead and

Packaging Code

See Ordering

Options Table

Internal Use

01, 02

(Standard)

Capacitance

Tolerance

J = ±5%

K = ±10%

M = ±20%

One world. One KEMET

F3008_R47_X2_520 • 7/19/2012
