Description
Film Capacitor,
CategoryPassive components    capacitor
File Size516KB，14 Pages
ManufacturerKEMET
Websitehttp://www.kemet.com
Download Datasheet Parametric View All

79IC22704045K Overview

Film Capacitor,

79IC22704045K Parametric

Parameter NameAttribute value
Objectid2066723510
package instruction,
Reach Compliance Codecompliant
ECCN codeEAR99
Capacitor typeFILM CAPACITOR
Number of terminals2

79IC22704045K Preview

Polypropylene Pulse/High Frequency Capacitors
R79 Series Single Metallized Polypropylene Film, Radial,
5 mm Lead Spacing, Multipurpose Applications
Overview
The R79 Series is constructed of metallized polypropylene film
with radial leads of tinned wire. The radial leads are electrically
welded to the metal layer on the ends of the capacitor winding.
The capacitor is encapsulated in a self-extinguishing solvent
resistant plastic case with thermosetting resin material meeting
the UL 94V–0 requirements.
Applications
Typical applications include timing, oscillator circuits, high
frequency coupling and decoupling applications. Not suitable for
across-the-line application (see Suppressor Capacitors).
Benefits
•
•
•
•
•
•
•
•
•
Voltage range: 160 – 630 VDC
Capacitance range: 0.001 – 0.22 µF
Lead Spacing: 5 mm
Capacitance tolerance: ±5%, ±10%, ±20%
Climatic category: 55/105/56 IEC 60068-1
Operating temperature range of -55˚C to +105˚C
RoHS compliance and lead-free terminations
Tape and reel packaging in accordance with IEC 60286–2
Self-healing
Part Number System
R79
Series
Metallized
Polypropylene
G = 160
I = 250
M = 400
P = 630
G
Rated Voltage (VDC)
C
Lead Spacing (mm)
C=5
2390
Capacitance Code (pF)
Digits 2 – 4 indicate the
first three digits of the
capacitance value.
First digit indicates the
number of zeros to be
added.
AA
Lead and
Packaging Code
See Ordering
Options Table
40
45
40
Internal Use
K
Capacitance
Tolerance
H = 2.5%
J = ±5%
K = ±10%
One world. One KEMET
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
F3107_R79 • 5/20/2014
1
Film Capacitors – Polypropylene Pulse/High Frequency Capacitors
R79 Series Single Metallized Polypropylene Film, Radial, 5 mm Lead Spacing, Multipurpose Applications
Ordering Options Table
Lead Spacing
Nominal (mm)
Type of Leads and Packaging
Standard Lead and Packaging Options
Bulk (Bag)–Short Leads
Ammo Pack
Other Lead and Packaging Options
Tape &Reel (Standard Reel)
Bulk (Bag)–Short Leads
Bulk (Bag)–Short Leads
Bulk (Bag)–Short Leads
Bulk (Bag)–Long Leads
Bulk (Bag)–Long Leads
Bulk (Bag)–Long Leads
4 +1.5/-0
H
0
=18.5 +/- 0.5
H
0
=18.5 +/- 0.5
10 +/- 1
4.0 +0.5/-0
3.2 +0.3/-0.2
21 +/- 1
17 +1/-2
30 +5/-0
AA
DQ
CK
JC
JE
JH
JG
Z3
40
Lead Length
(mm)
Lead and
Packaging
Code
5

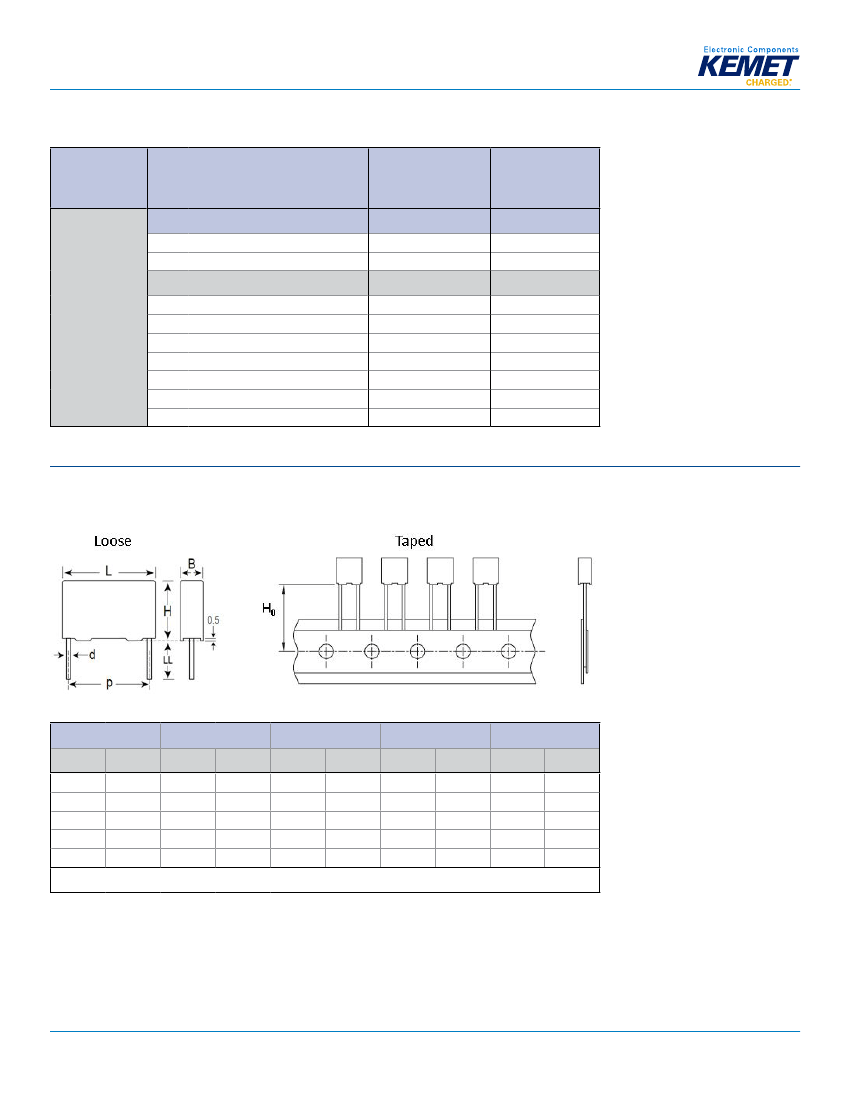

Dimensions – Millimeters
p
Nominal
5.0
5.0
5.0
5.0
5.0
Tolerance
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
Nominal
3.5
4.5
5.0
6.0
7.2
B
Tolerance
+0.1
+0.1
+0.1
+0.1
+0.1
Nominal
7.5
9.5
10.0
11.0
13.0
H
Tolerance
+0.1
+0.1
+0.1
+0.1
+0.1
Nominal
7.2
7.2
7.2
7.2
7.2
L
Tolerance
+0.2
+0.3
+0.3
+0.3
+0.3
Nominal
0.6
0.6
0.6
0.6
0.6
d
Tolerance
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
Note: See Ordering Options Table for lead length (LL/Ho) options.
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
F3107_R79 • 5/20/2014
2
Film Capacitors – Polypropylene Pulse/High Frequency Capacitors
R79 Series Single Metallized Polypropylene Film, Radial, 5 mm Lead Spacing, Multipurpose Applications
Performance Characteristics
Dielectric
Plates
Winding
Leads
Protection
Related Documents
Rated Voltage V
R
(VDC)
Rated Voltage V
R
(VAC)
Capacitance Range (µF)
Capacitance Values
Capacitance Tolerance
Operating Temperature Range
Rated Temperature T
R
Voltage Derating
Polypropylene film
Metal layer deposited by evaporation under vacuum
Non-inductive type
Tinned wire
Plastic case, thermosetting resin filled. Box material is solvent resistant and flame retardant according to UL94.
IEC 60384-16
160
70
0.039 – 0.22
250
160
0.012 – 0.15
400
200
0.0039 – 0.047
630
220
0.001 – 0.018
E12 series (IEC 60063) measured @ 1 kHz and +20 ±1°C
±2.5%, ±5%, ±10%
-55°C to +105°C
+85°C
Above +85°C DC and AC voltage derating is 1.25%/°C
55/105/56 IEC 60068-1
Climatic Category
Average relative humidity ≤ 75%
RH = 95% for 30 days per year
RH = 85% for further days limited by average value per year
Test Voltage
Capacitance Drift
Maximum Pulse Steepness
Temperature Coefficient
Self Inductance
1.6 x V
R
VDC for 2 seconds (between terminations) @ +25°C ±5°C
Maximum 0.5% after a 2 year storage period at a temperature of +10°C to +40°C and a relative humidity of 40% to 60%
dV/dt according to Table 1. For peak to peak voltages lower than rated voltage (Vpp <V
R
), the specified dv/dt
can be multiplied by the factor V
R
/Vpp
-(200 ±100) ppm/°C at 1 kHz
Approximately 6 nH. Max 1 nH per 1 mm lead and capacitor length.
Maximum Values @ 25°C ±5°C
Frequency
C ≤ 0.1 μF
0.06%
0.10%
0.30%
Measured @ +25°C ±5°C, 100 VDC 60 seconds
C > 1 µF
0.06%
0.10%
-
Dissipation Factor tanδ
1 kHz
10 kHz
100 kHz
Insulation Resistance
Minimum Values Between Terminals
All Capacitance Values
≥ 100,000 MΩ
( ≥ 500,000 MΩ ) *
* typical value
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
F3107_R79 • 5/20/2014
3
Film Capacitors – Polypropylene Pulse/High Frequency Capacitors
R79 Series Single Metallized Polypropylene Film, Radial, 5 mm Lead Spacing, Multipurpose Applications

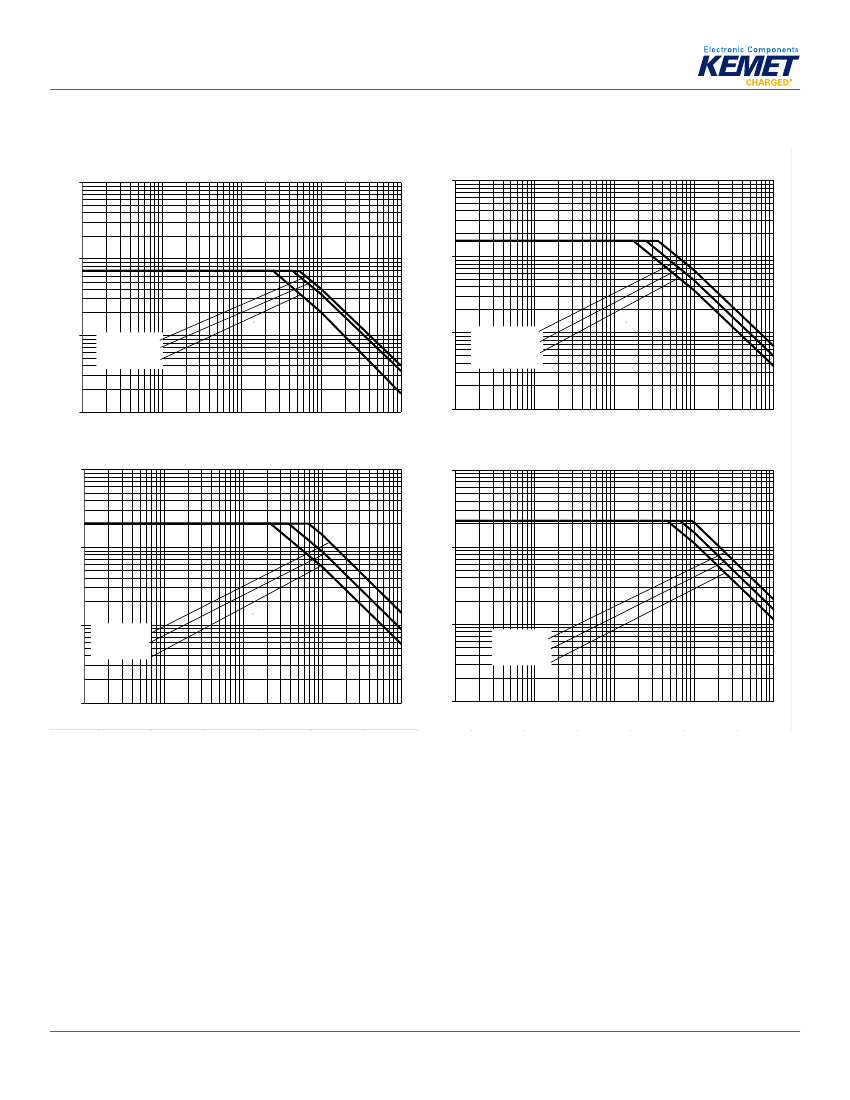

Maximum Voltage (V
rms
) vs. Frequency (Sinusoidal Waveform/Th ≤ 40ºC)
Vrms [V]
1000
160Vdc / 70Vac
Vrms [V]
1000
250Vdc / 160Vac
100
100
10
0.068 µF p=5
0.1 µF p=5
0.22 µF p=5
10
0.022 µF p=5
0.047 µF p=5
0.1 µF p=5
1
1
0.1
1
f [kHz] 10
100
1000
0.1
1
f [kHz]
10
100
1000
Vrms [V]
1000
400Vdc / 200Vac
Vrms [V]
1000
630Vdc / 220Vac
100
100
10
4700 pF p=5
0.015µF p=5
0.047µF p=5
10
2200 pF p=5
4700 pF p=5
0.01 µF p=5
1
0.1
1
f [kHz] 10
100
1000
1
0.1
1
f [kHz] 10
100
1000
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
F3107_R79 • 5/20/2014
4
Film Capacitors – Polypropylene Pulse/High Frequency Capacitors
R79 Series Single Metallized Polypropylene Film, Radial, 5 mm Lead Spacing, Multipurpose Applications

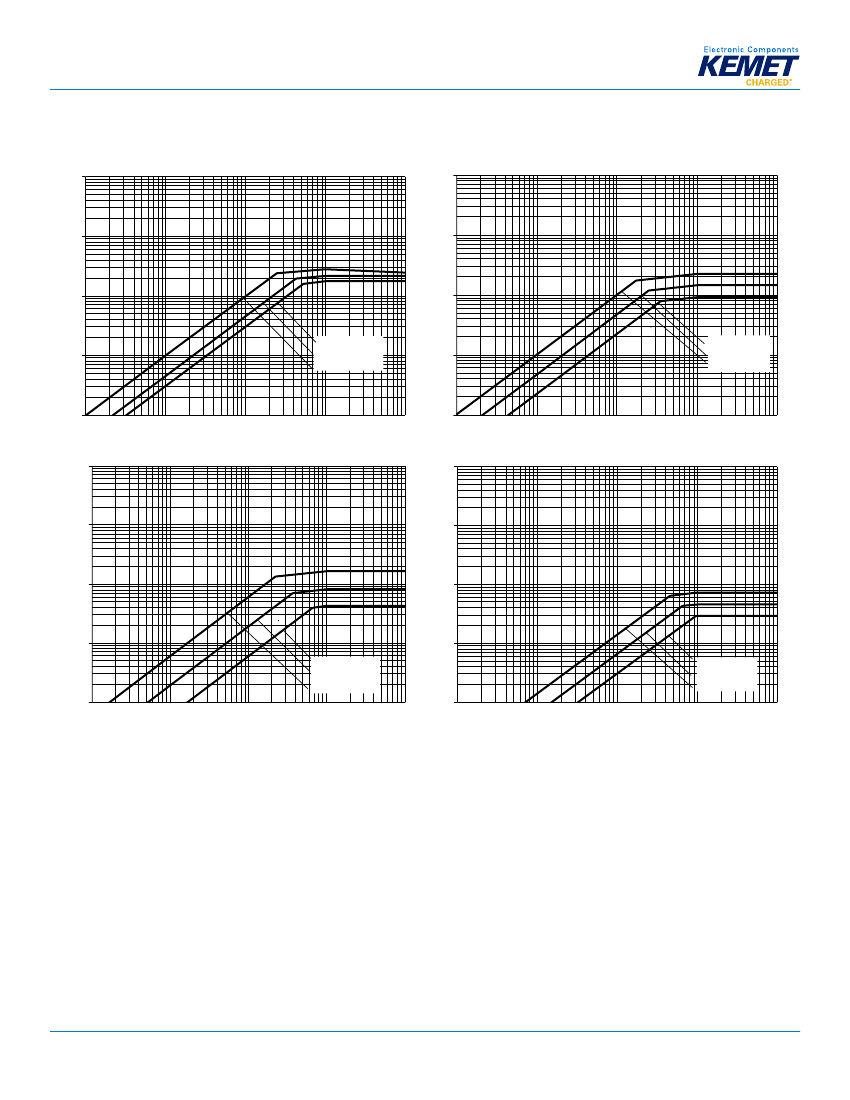

Maximum Current (I
rms
) vs. Frequency (Sinusoidal Waveform/Th ≤ 40ºC)
Irms [A]
100
160Vdc / 70Vac
Irms [A]
100
250Vdc / 160Vac
10
10
1
1
0.1
0.068 µF p=5
0.1 µF p=5
0.22 µF p=5
0.1
0.022 µF p=5
0.047 µF p=5
0.1 µF p=5
0.01
0.1
1
f [kHz]
10
100
1000
0.01
0.1
1
f [kHz]
10
100
1000
Irms [A]
100
400Vdc / 200Vac
Irms [A]
100
630Vdc / 220Vac
10
10
1
1
0.1
4700 pF p=5
0.015 µF p=5
0.047 µF p=5
0.1
2200 pF p=5
4700 pF p=5
0.01 µF p=5
0.01
0.1
1
f [kHz]
10
100
1000
0.01
0.1
1
f [kHz]
10
100
1000
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
F3107_R79 • 5/20/2014
5
