35K202-301E3

Description
RF SSMB Connector, Female, Cable Mount, Crimp Terminal, Jack,
CategoryThe connector    The connector
File Size112KB,2 Pages
ManufacturerRosenberger
Websitehttps://www.rosenberger.com/
Environmental Compliance
Download Datasheet Parametric View All

35K202-301E3 Overview

RF SSMB Connector, Female, Cable Mount, Crimp Terminal, Jack,

35K202-301E3 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Reach Compliance Codecompliant
Other featuresAPPLICABLE CABLES: RG 196A/U; RG 178B/U, CAPTIVE CENTER CONTACT
Body/casing typeJACK
Characteristic impedance50 Ω
Connector typeRF SSMB CONNECTOR
Contact to complete cooperationGOLD (50) OVER NICKEL
Contact completed and terminatedGOLD (50) OVER NICKEL
Contact point genderFEMALE
Coupling typeSNAP
DIN complianceNO
Filter functionNO
IEC complianceNO
Insertion loss0.17 dB
insulator materialPOLYTETRAFLUORO ETHYLENE
JESD-609 codee4
MIL complianceNO
Manufacturer's serial number35K202-301E3
Installation methodRIGHT ANGLE
Installation typeCABLE
Maximum operating frequency3 GHz
OptionsGENERAL PURPOSE
Panel mountingNO
Termination typeCRIMP
voltage standing wave ratio1.64
Base Number Matches1

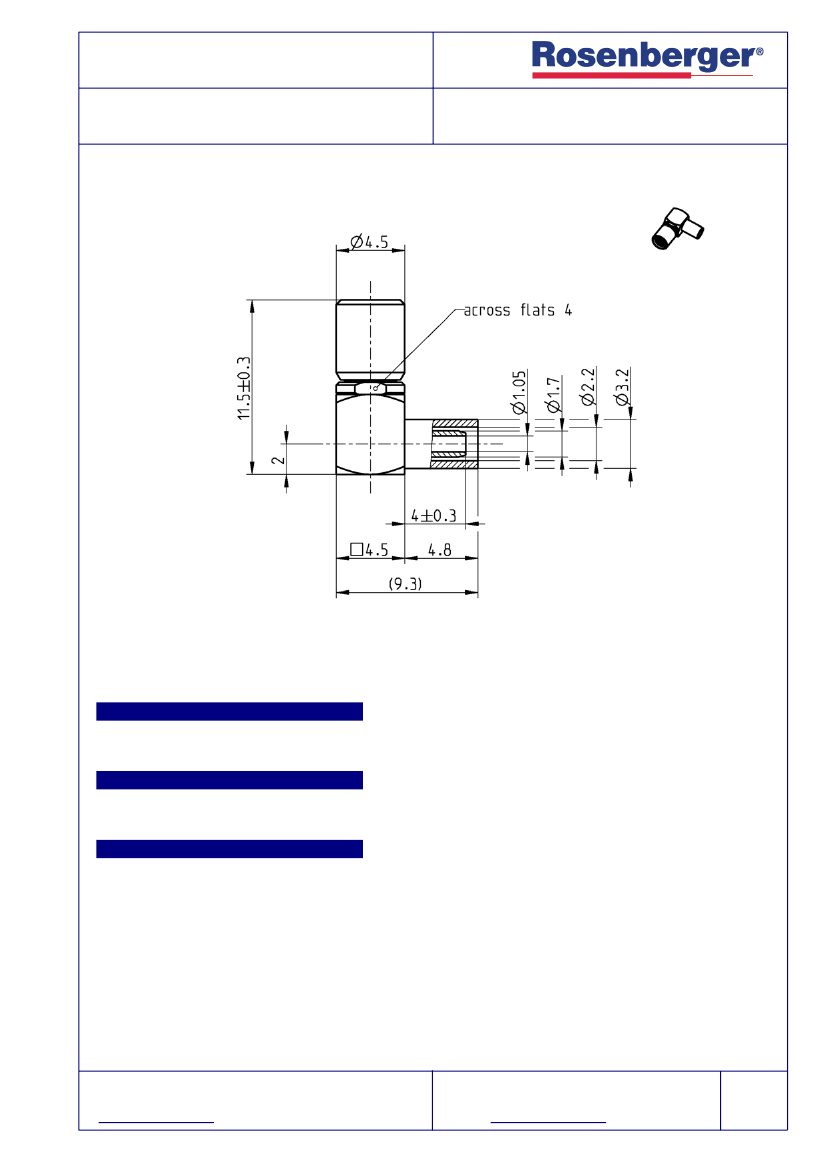

TECHNICAL DATA SHEET
SSMB
RIGHT ANGLE JACK
35K202-301E3
All dimensions are in mm; tolerances according to ISO 2768 m-H
Interface
According to
EN 122 170, IEC 60169-19
Documents
Assembly instruction
35 C
Material and plating
Connector parts
Center contact
Outer contact
Body
Dielectric
Crimping ferrule
Material
Beryllium copper
Beryllium copper
Brass
PTFE
Copper
Plating
Gold, min. 1.27 µm, over nickel
Gold, min. 0.8 µm, over nickel
Gold, 0.1 µm min.
Gold, 0.1 µm min.
RF_35/12.04/3.0
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel.: +49 8684 18-0
Fax: +49 8684 18-499
email: info@rosenberger.de
Page
1/2
