54S138/BEA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 54S138/BEA

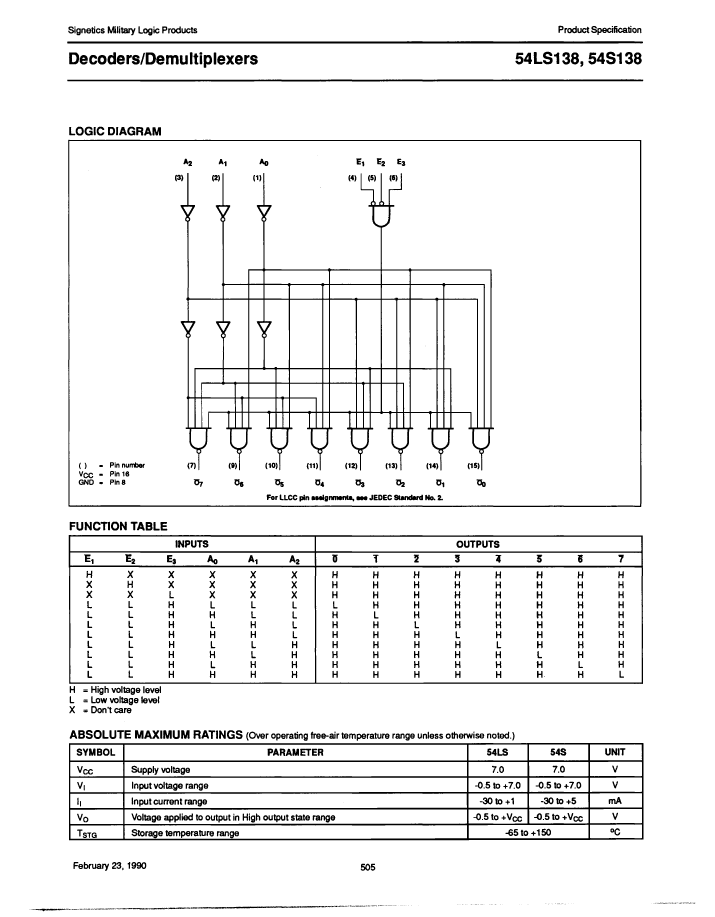

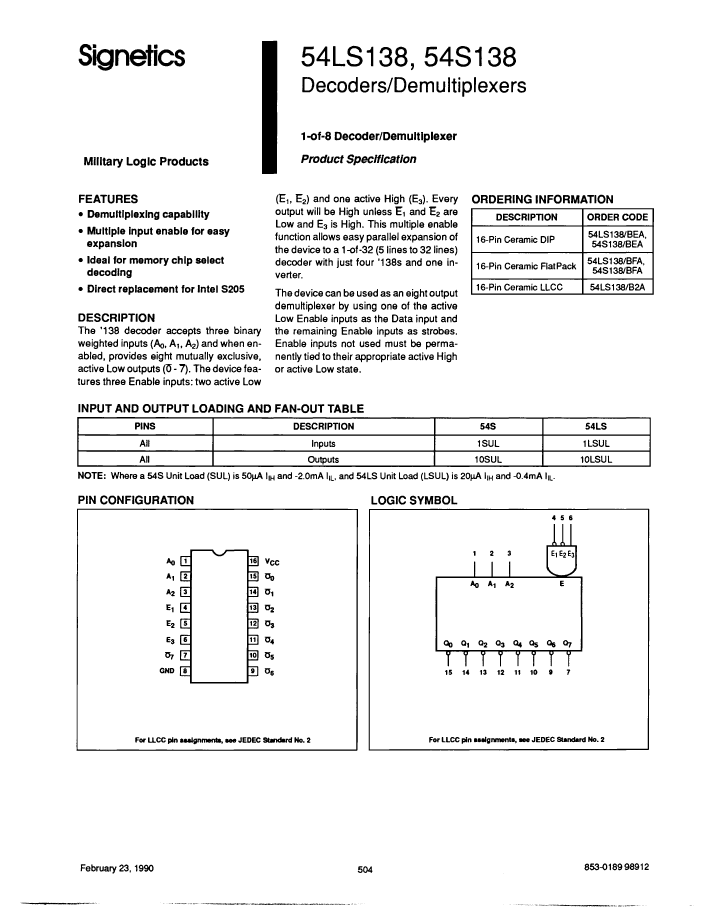

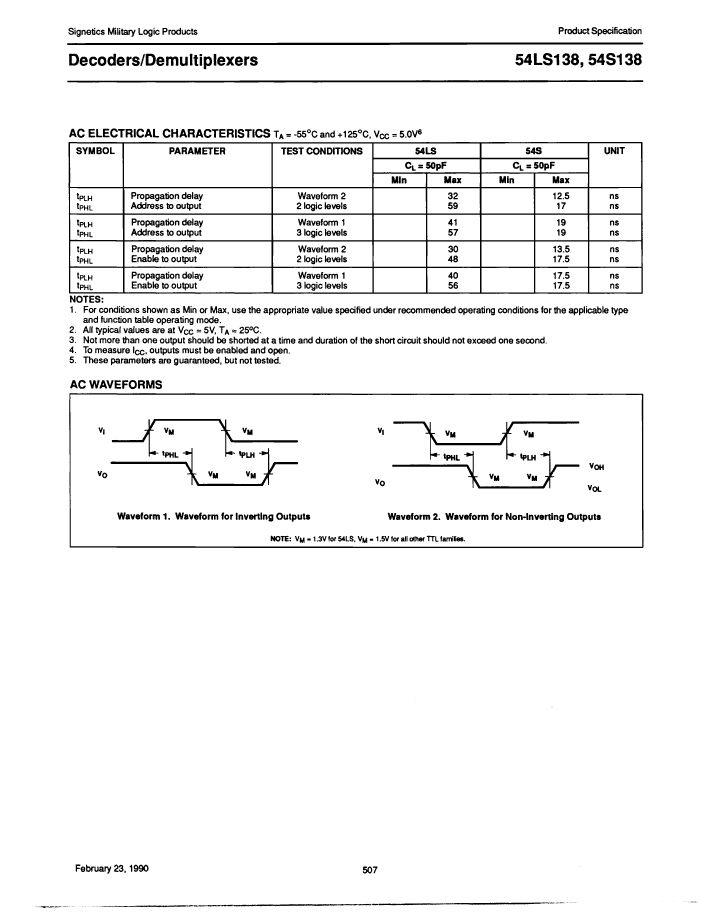

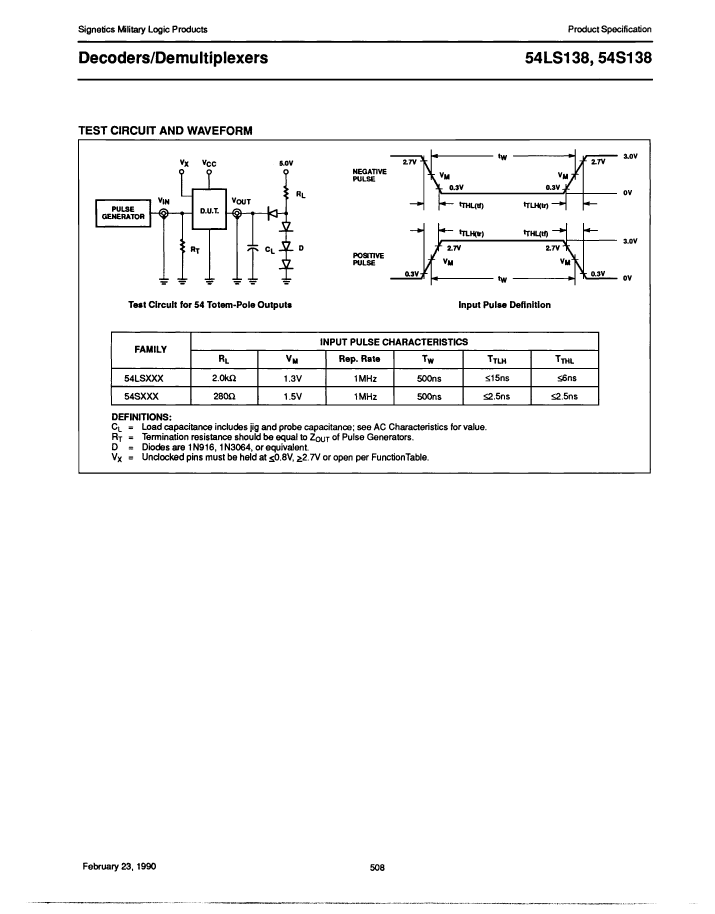

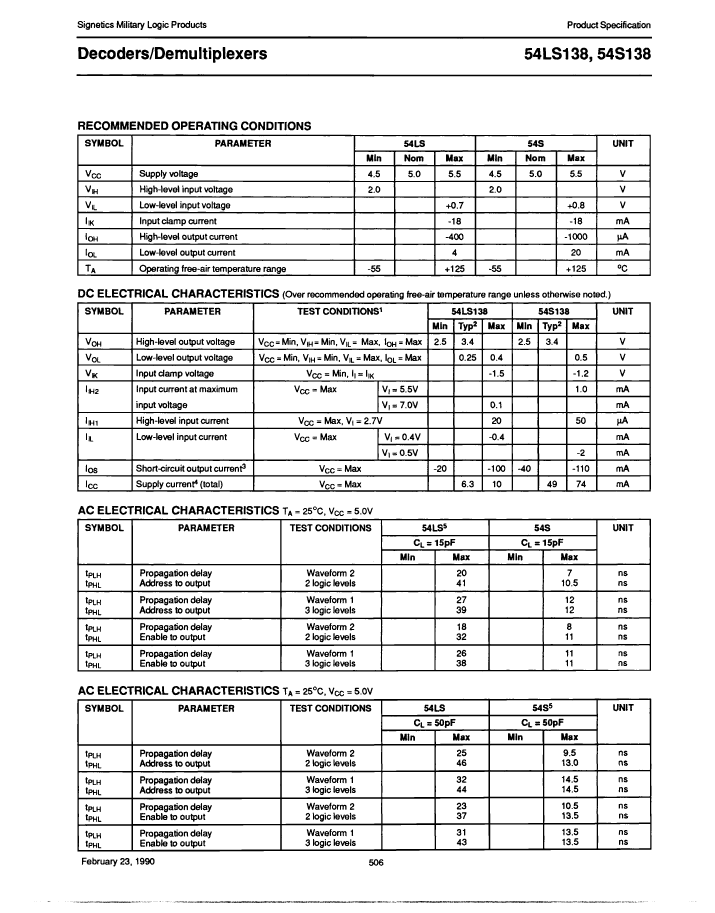

54S138/BEA: DescriptionDecoder/Driver, S Series, Inverted Output, TTL, CDIP16; Categorylogic logic; File Size172KB，5 Pages; ManufacturerYAGEO; Websitehttp://www.yageo.com/

Download Datasheet Parametric Compare View All

54S138/BEA Overview

Decoder/Driver, S Series, Inverted Output, TTL, CDIP16

54S138/BEA Parametric

Parameter Name	Attribute value
Maker	YAGEO
Reach Compliance Code	unknown
ECCN code	EAR99
series	S
JESD-30 code	R-CDIP-T16
Load capacitance (CL)	50 pF
Number of functions	1
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output polarity	INVERTED
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR
Package form	IN-LINE
Maximum supply current (ICC)	74 mA
propagation delay (tpd)	19 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal location	DUAL
Base Number Matches	1

Preview

Download Datasheet

View All

54S138/BEA Related Products

	54S138/BEA	54LS138/B2A	54LS138/BFA	54S138/BFA	54LS138/BEA
Description	Decoder/Driver, S Series, Inverted Output, TTL, CDIP16	Decoder/Driver, LS Series, Inverted Output, TTL, CQCC20	Decoder/Driver, LS Series, Inverted Output, TTL, CDFP16	Decoder/Driver, S Series, Inverted Output, TTL, CDFP16	Decoder/Driver, LS Series, Inverted Output, TTL, CDIP16
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
series	S	LS	LS	S	LS
JESD-30 code	R-CDIP-T16	S-CQCC-N20	R-CDFP-F16	R-CDFP-F16	R-CDIP-T16
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF	50 pF
Number of functions	1	1	1	1	1
Number of terminals	16	20	16	16	16
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Output polarity	INVERTED	INVERTED	INVERTED	INVERTED	INVERTED
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	CHIP CARRIER	FLATPACK	FLATPACK	IN-LINE
Maximum supply current (ICC)	74 mA	10 mA	10 mA	74 mA	10 mA
propagation delay (tpd)	19 ns	57 ns	57 ns	19 ns	57 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V
surface mount	NO	YES	YES	YES	NO
technology	TTL	TTL	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	THROUGH-HOLE	NO LEAD	FLAT	FLAT	THROUGH-HOLE
Terminal location	DUAL	QUAD	DUAL	DUAL	DUAL
Maker	YAGEO	-	-	YAGEO	YAGEO
Base Number Matches	1	1	1	-	-
