REVISION CG
DO NOT
SCALE FROM
THIS PRINT
NOTES:
1.
C
REPRESENTS A CRITICAL DIMENSION.
2. MEASURED AT BEND RADIUS, NOT AT END OF PIN.
3. TUBE ONLY -05 THROUGH -50 POSITIONS.
4. GOLD PLATING TO BE ON POST, TIN PLATING ON TAIL.
5. PARTS MAY BE CUT TO POSITION.
6. MINIMUM PUSHOUT FORCE: 1.0 LB.
7. SURFACE MOUNT TAILS TO BE SHEARED TO
DIMENSION ON STYLE -05 ONLY.
8. DUE TO THE HIGH AMOUNT OF INSERTION FORCE
NEEDED, THE -LC OPTION IS NOT COMPATIBLE WITH
AUTO PLACEMENT. SAMTEC RECOMMENDS MANUAL
PLACEMENT FOR ALL ASSEMBLIES WITH THE -LC,
-EC, -EBC AND -EPC OPTIONS.
TMMH-1XX-XX-XX-DV-XXX-XX
No OF POS
-02 THRU -50
(PER ROW)
LEAD STYLE
-01: .126 [3.20]
(USE T-1S13-07-XX-2)
-04: .075 [1.91]
(USE T-1S13-04-XX-2)
-05: .065 [1.65] MIN
(USE T-1S13-20-XX-2)
OPTION
-TR: TAPE & REEL PACKAGING
(36 POS MAX CONTACT SAMTEC FOR LARGER POSITIONS)
OPTIONS
**
-M: PICK & PLACE PAD (USE PPP-10)
(SEE FIG 3; 5 POS MIN)
-ES: END SHROUDS (SEE FIG 4, SHT 2, 9 POS MIN)
-EC: LOCKING CLIP (SEE FIG 6, SHT 3, 9 POS MIN, DO NOT USE WITH
-A OR -LC, SEE NOTE 8)
-EP: GUIDE POST (SEE FIG 9, SHT 4, 9 POS MIN)
-EL: BOARD LOCK (SEE FIG 5, SHT 3, 9 POS MIN)
-LC: FLEX MOLD LOCKING CLIP (USE LC-09-TM, SEE FIG 2, SHEET 2,
5 POS MIN, SEE NOTE 8)
-A: ALIGNMENT PIN (USE TMMH-50-D-A-XX, SEE FIG 2, SHEET 2
3 POS MIN)
-EBC: BOARD LOCK WITH LOCKING CLIP (SEE FIG 8 SHT 4, 9 POS MIN
NOT AVAILABLE WITH -A OR -LC, SEE NOTE 8)
-EPC: GUIDE POST WITH LOCKING CLIP (SEE FIG 7, SHT 3, 9 POS MIN
NOT AVAILABLE WITH -A OR -LC, SEE NOTE 8)
-XXX: POLARIZATION (SPECIFY POS -XXX TO BE OMITTED
PLATING
-L: 15µ" LIGHT SELECTIVE GOLD IN CONTACT AREA, MATTE TIN ON TAIL
-F: 3µ" FLASH GOLD IN CONTACT AREA, MATTE TIN ON TAIL
-S: 30µ" SELECTIVE GOLD IN CONTACT AREA, MATTE TIN ON TAIL
-G: 20µ" GOLD IN CONTACT AREA, 3µ" MIN GOLD ON TAIL
-T: MATTE TIN ON CONTACT AND TAIL
-H: 30µ" HEAVY GOLD IN CONTACT AREA, 3µ" MIN GOLD ON TAIL
-TM: MATTE TIN CONTACT AND TAIL
-LM: 15µ" LIGHT SECLECTIVE GOLD IN CONTACT AREA, MATTE TIN ON TAIL
-SM: 30µ" SELECTIVE GOLD IN CONTACT AREA, MATTE TIN ON TAIL
-FM: 3µ" FLASH SELECTIVE GOLD IN CONTACT AREA, MATTE TIN ON TAIL
+.005
[.13]
(No OF POS x .07874 [2.000])
- .015
[.38]
.03937 1.000
REF
02
(No OF POS x .07874[2.000]) - .07874[2.000]
REF
100
ROW OPTION
-DV: DOUBLE VERTICAL
(USE TMMX-50-D-X-XX)
** ALL OPTIONS EXCEPT THE -EX / -A / -LC OPTIONS
USE THE TMMC-50-D-X-XX
-EX / -A / -LC OPTIONS USE THE TMMH-50-D-XX-XX
.157 3.99
REF
.07874±.0040 2.00±0.10
C
01
2 MAX SWAY
(EITHER DIRECTION)
.020 0.50 SQ
REF
CONTACT AREA
(SEE NOTE 4)
99
2 MAX SWAY
(EITHER DIRECTION)
TMMX-XX-D-X
T-1S13-XX-XX-2
90°±3°
2 MAX SWAY
(EITHER DIRECTION)
"A" C
.0790 2.007 REF
.004[0.10]
.277 7.04 REF
(SEE NOTE 7)
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS
ANGLES
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
.099
+.005
2.51
+0.13
- .002
- 0.05
(SEE NOTE 2)
(TMMH-150-XX-XX-DV SHOWN)

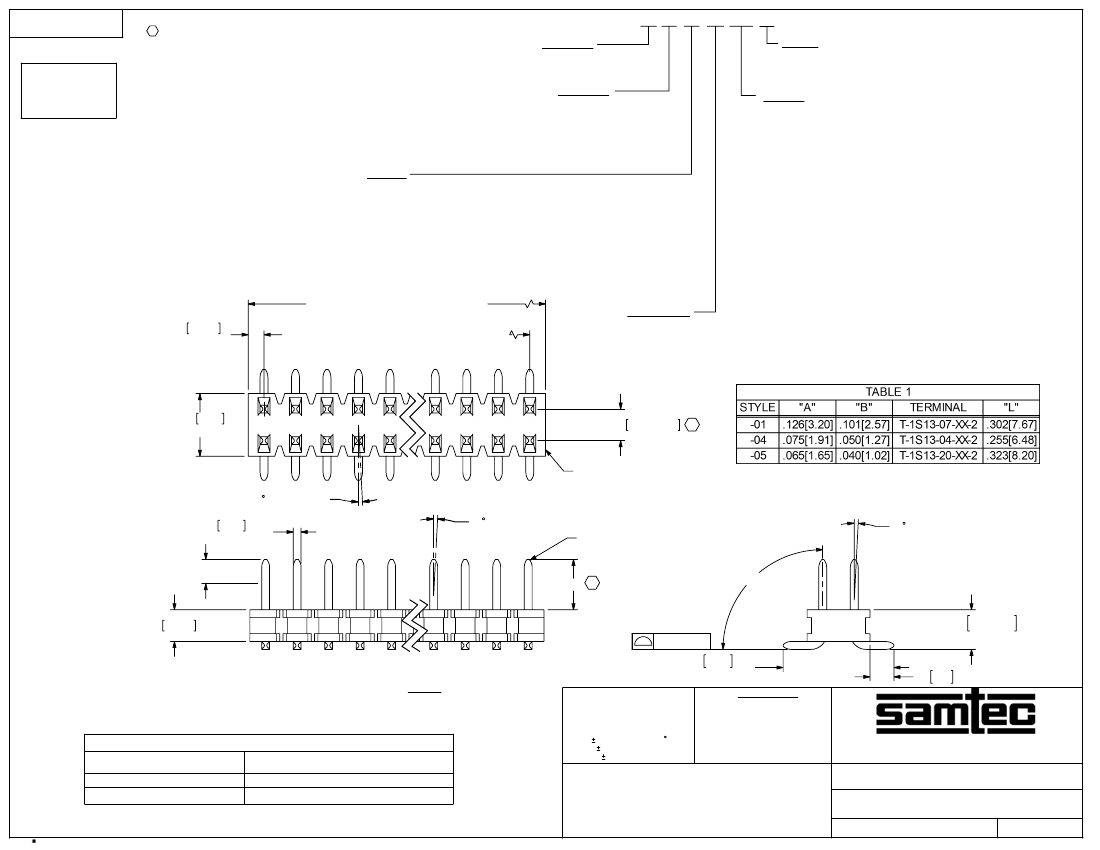

FIG 1
.06 1.5 REF
*
*
PROPRIETARY NOTE
CRITICAL DIMENSION INSPECTION INSTRUCTION TABLE
ASSEMBLY OPERATION
FILL
REPRESS
IN-PROCESS INSPECTION
C1
C2
MATERIAL:
DO NOT SCALE DRAWING
BODIES:
LCP, UL 94 VO
COLOR: BLACK
TERMINAL:
PHOSPHOR BRONZE, ALLOY
MAX. CUT FLASH: .020 [.51]
.XX: .01[0.3]
2
.XXX: .005[0.13]
.XXXX: .0020[0.051]
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
SHEET SCALE: 1:1
2MM X 2MM TERMINAL STRIP ASSEMBLY
10/08/1996
SHEET
1
OF
5
C:\EnterpriseVault\DWG\MISC\MKTG\TMMH-1XX-XX-XX-DV-XXX-XX-MKT.SLDDRW
BY:
PURVIS
TMMH-1XX-XX-XX-DV-XXX-XX-ASM
REVISION CG
"B"
"B"
"B"
.125±.010 3.18±0.25
(SEE NOTE 7)
"A"
.020 0.51
IN-PROCESS 1
IN-PROCESS
FOR STYLE -05
IN-PROCESS 3
IN-PROCESS 4
.060 1.52
(No OF POS x .07874[2.000])
- .15784[4.000]
.075 1.90
.056 1.42 REF
LC-09-TM
.400 10.16
REF
(NO OF POS x .07874[2.000]
-.4000[10.160])/2
.020[.51]
-LC
.043 1.09
-A
(DIFFERENT AS SHOWN,
OTHERWISE SAME AS FIG 1)
PPP-10
(No OF POS x .07874[2.000])
+ .115[2.92] .008

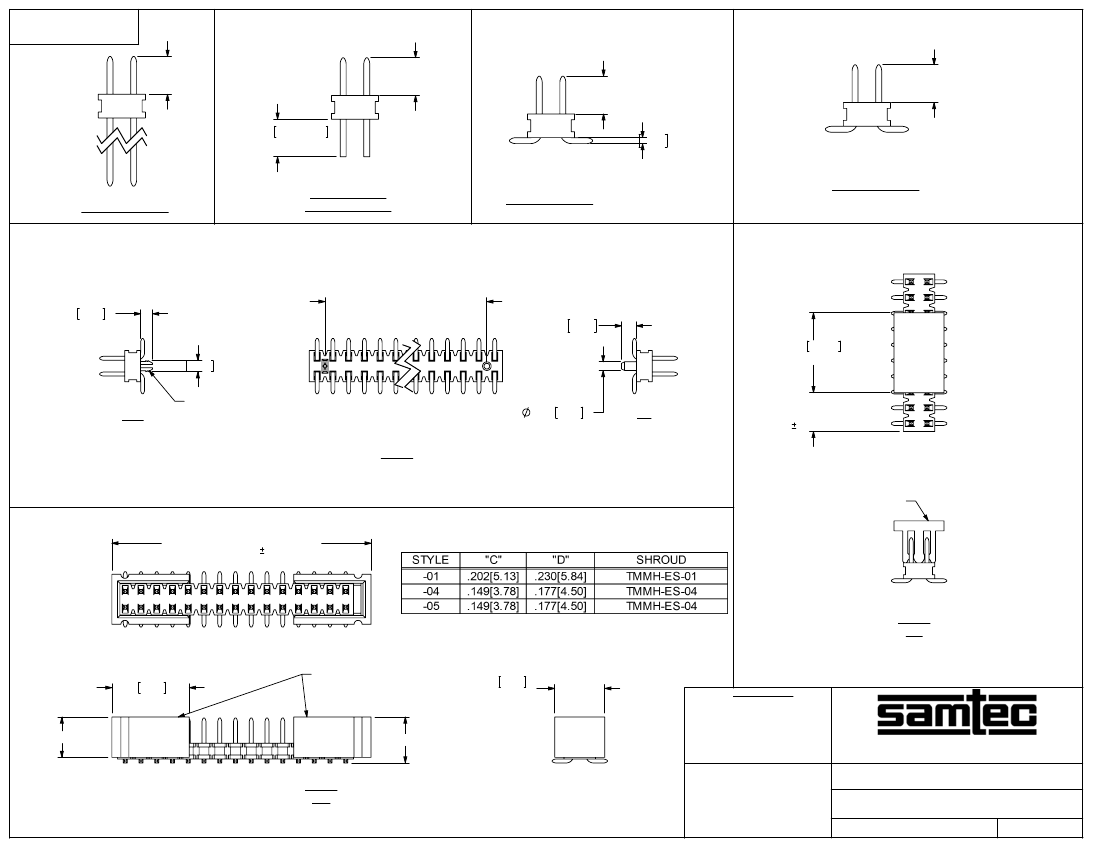

FIG 2
(DIFFERENT AS SHOWN,
OTHERWISE SAME AS FIG 1)
.387 9.83 REF
TMMH-ES-XX
.250 6.35
REF
*
PROPRIETARY NOTE
*
FIG 3
-M
"C" REF
"D"
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
(DIFFERENT AS SHOWN,
OTHERWISE SAME AS FIG 1)
FIG 4
-ES
DO NOT SCALE DRAWING
2MM X 2MM TERMINAL STRIP ASSEMBLY
TMMH-1XX-XX-XX-DV-XXX-XX-ASM
10/08/1996
SHEET
2
OF
5
C:\EnterpriseVault\DWG\MISC\MKTG\TMMH-1XX-XX-XX-DV-XXX-XX-MKT.SLDDRW
BY:
PURVIS
REVISION CG
No OF POS .07874[2.000] + .175 [4.45]
No OF POS x .07874[2.000]
+.185 [4.70] .008[0.20]
.250 6.35
REF
.250 6.35
REF
.417 10.59
REF
.112 2.84
REF
TMMH-EL-XX
TMMH-EC-XX
.157 4.00
.422 10.72 REF
"J" REF
"K"
.080 2.03
No OF POS x .07874[2.000]
+.110 [2.79] .008[0.20]
LC-05-TM
.052 1.32
.056 1.42
REF
.288 7.32
"E"
REF
REF
.134 3.40
REF
"F"
REF
No OF POS x .07874[2.000] +.161[4.09]
(DIFFERENT AS SHOWN,
OTHERWISE SAME AS FIG 1)
No OF POS x .07874 [2.000] +.160 [4.06] .008[0.20]
.250 6.35
REF

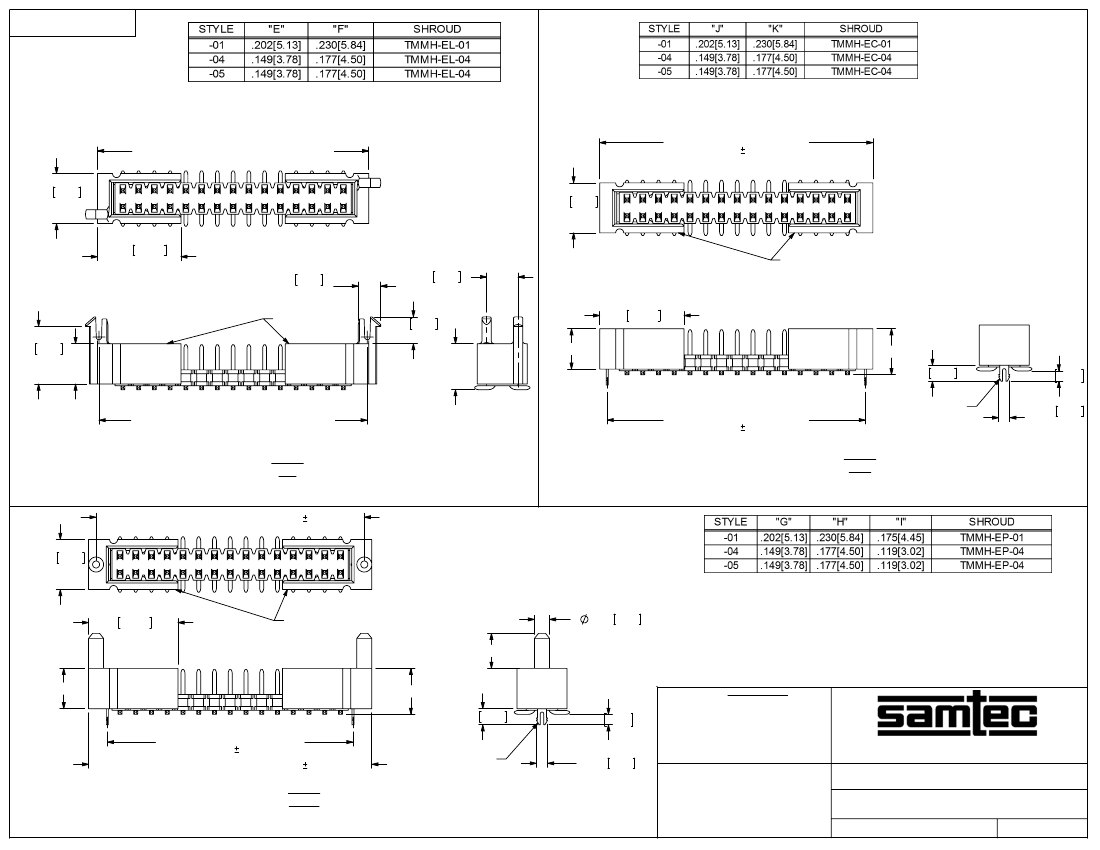

FIG 5
-EL
(DIFFERENT AS SHOWN,
OTHERWISE SAME AS FIG 1)
FIG 6
-EC
.447 11.35 REF
TMMH-EP-XX
"I" REF
.075 1.91 REF
"G" REF
"H"
.080 2.03
No OF POS x .07874[2.000]
+.110 [2.79] .008[0.20]
No OF POS x .07874 [2.000] +.235 [5.97] .008[0.20]
.052 1.32
LC-05-TM
.056 1.42 REF
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
*
PROPRIETARY NOTE
*
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
(DIFFERENT AS SHOWN,
OTHERWISE SAME AS FIG 1)
FIG 7
-EPC
SHEET SCALE: 2:1
2MM X 2MM TERMINAL STRIP ASSEMBLY
TMMH-1XX-XX-XX-DV-XXX-XX-ASM
10/08/1996
SHEET
3
OF
5
C:\EnterpriseVault\DWG\MISC\MKTG\TMMH-1XX-XX-XX-DV-XXX-XX-MKT.SLDDRW
BY:
PURVIS
REVISION CG
.250 6.35
REF
No OF POS x .07874[2.000] +.175[4.45]
.417 10.59 REF
TMMH-EL-XX
.112 2.84
REF
.134 3.40
REF
"E"
REF
.080 2.03
.157 4.00

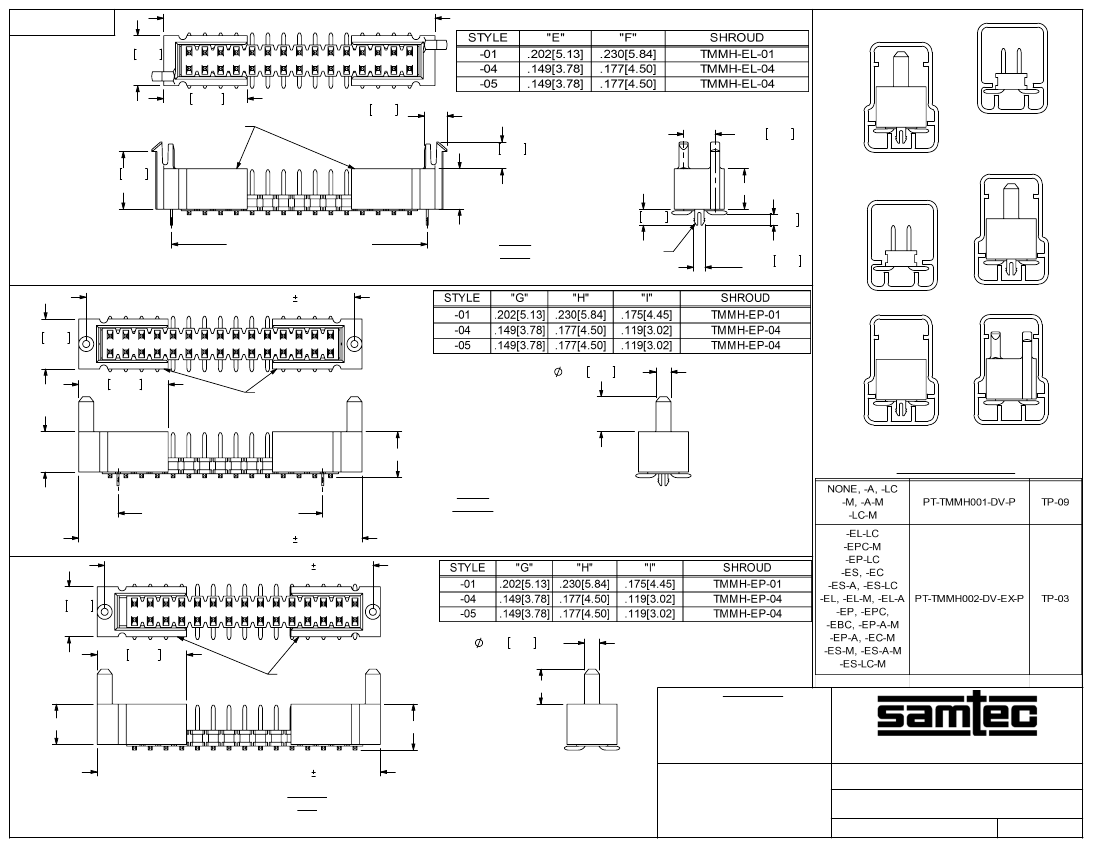

PT-TMMH002-DV-EX-P
"F" REF
.052 1.32
.056 1.42
REF
PT-TMMH001-DV-P
.288 7.32
REF
No OF POS x .07874[2.000]
+.110 [2.79] .008[0.20]
(DIFFERENT AS SHOWN,
OTHERWISE SAME AS FIG 1)
No OF POS x .07874 [2.000] +.160 [4.06] .008[0.20]
.250 6.35
REF
.447 11.35 REF
FIG 8
-EBC
LC-05-TM
PT-TMMH001-DV-P PT-TMMH002-DV-EX-P
.075 1.91 REF
TMMH-EP-XX
"I" REF
"G"
REF
"H"
PT-TMMH002-DV-EX-P PT-TMMH002-DV-EX-P
PACKAGING VIEW
FIG 9
-EP-LC
(No OF POS x .07874[2.000])
- .1575[4.000]
No OF POS x .07874 [2.000] +.235 [5.97] .008[0.20]
No OF POS x .07874 [2.000] +.160 [4.06] .008[0.20]
.250 6.35
REF
.447 11.35 REF
TMMH-EP-XX
(DIFFERENT AS SHOWN,
OTHERWISE SAME AS FIG 2)
.075 1.91 REF
"I" REF
'H"
"G" REF
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
*
PROPRIETARY NOTE
*
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
No OF POS x .07874 [2.000] +.235 [5.97] .008[0.20]
SHEET SCALE: 2:1
(DIFFERENT AS SHOWN,
OTHERWISE SAME AS FIG 1)
FIG 10
-EP
2MM X 2MM TERMINAL STRIP ASSEMBLY
TMMH-1XX-XX-XX-DV-XXX-XX-ASM
10/08/1996
SHEET
4
OF
5
C:\EnterpriseVault\DWG\MISC\MKTG\TMMH-1XX-XX-XX-DV-XXX-XX-MKT.SLDDRW
BY:
PURVIS
REVISION CG
No OF POS x .07874[2.000]
+.110 [2.79] .008[0.20]
FIG 11
-EL-LC
(DIFFERENT AS SHOWN,
OTHERWISE SAME AS FIG 8)
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
*
PROPRIETARY NOTE
*
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
SHEET SCALE: 2:1
2MM X 2MM TERMINAL STRIP ASSEMBLY
TMMH-1XX-XX-XX-DV-XXX-XX-ASM
10/08/1996
SHEET
5
OF
5
C:\EnterpriseVault\DWG\MISC\MKTG\TMMH-1XX-XX-XX-DV-XXX-XX-MKT.SLDDRW
BY:
PURVIS
