KDP-213LB datasheet, PDF - EEWORLD Datasheet

KDP-213LB: DescriptionDirectional Coupler, 25MHz Min, 50MHz Max, 0.25dB Insertion Loss-Max, 8 PIN; CategoryWireless rf/communication Radio frequency and microwave; File Size183KB，1 Pages; ManufacturerSYNERGY; Websitehttp://www.synergymwave.com/

Download Datasheet Parametric Compare View All

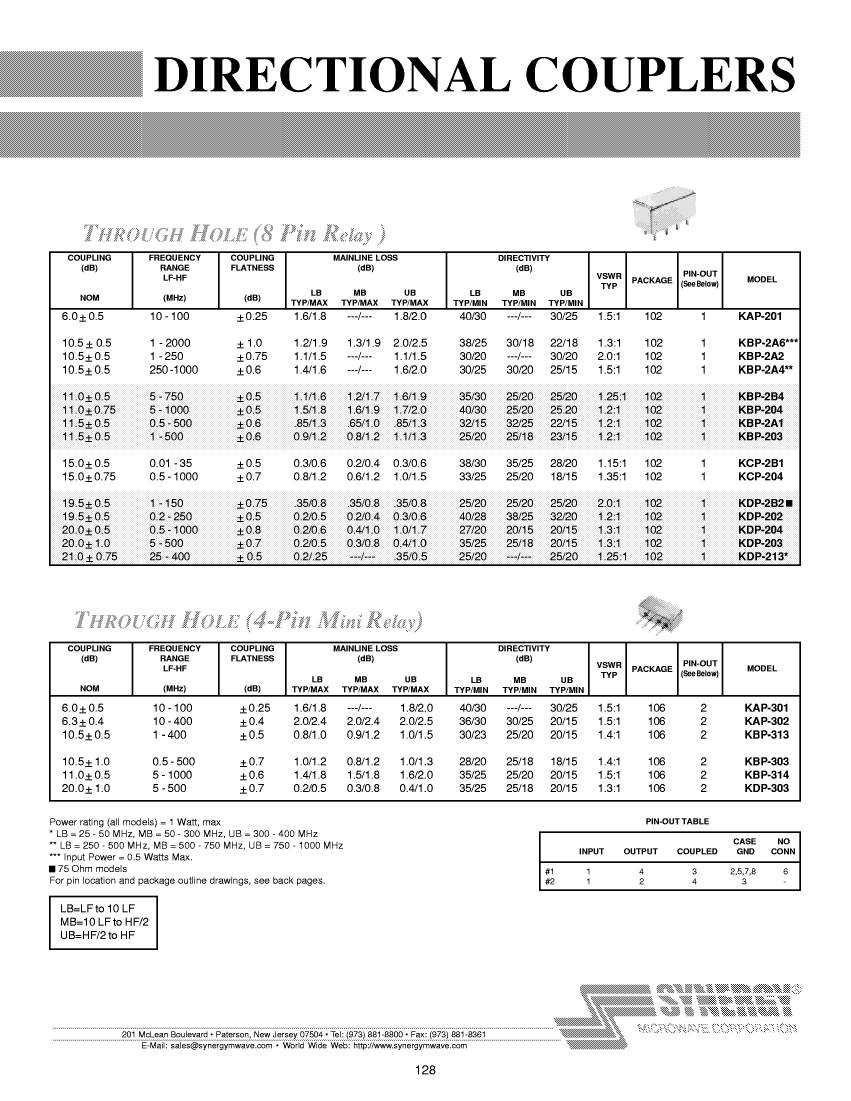

KDP-213LB Overview

Directional Coupler, 25MHz Min, 50MHz Max, 0.25dB Insertion Loss-Max, 8 PIN

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	SYNERGY
package instruction	8 PIN
Reach Compliance Code	unknown
Maximum input power (CW)	30 dBm
Maximum insertion loss	0.25 dB
Maximum operating frequency	50 MHz
Minimum operating frequency	25 MHz
RF/Microwave Device Types	DIRECTIONAL COUPLER
Maximum voltage standing wave ratio	1.25
Base Number Matches	1

KDP-213LB Related Products

	KDP-213LB	KBP-2A4LB	KDP-213MB	KDP-213UB	KBP-2A4MB	KBP-2A4UB
Description	Directional Coupler, 25MHz Min, 50MHz Max, 0.25dB Insertion Loss-Max, 8 PIN	Directional Coupler, 250MHz Min, 500MHz Max, 1.6dB Insertion Loss-Max, 8 PIN	Directional Coupler, 50MHz Min, 300MHz Max, 8 PIN	Directional Coupler, 300MHz Min, 400MHz Max, 0.5dB Insertion Loss-Max, 8 PIN	Directional Coupler, 500MHz Min, 750MHz Max, 8 PIN	Directional Coupler, 750MHz Min, 1000MHz Max, 2dB Insertion Loss-Max, 8 PIN
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	SYNERGY	SYNERGY	SYNERGY	SYNERGY	SYNERGY	SYNERGY
package instruction	8 PIN	8 PIN	8 PIN	8 PIN	8 PIN	8 PIN
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Maximum input power (CW)	30 dBm	30 dBm	30 dBm	30 dBm	30 dBm	30 dBm
Maximum operating frequency	50 MHz	500 MHz	300 MHz	400 MHz	750 MHz	1000 MHz
Minimum operating frequency	25 MHz	250 MHz	50 MHz	300 MHz	500 MHz	750 MHz
RF/Microwave Device Types	DIRECTIONAL COUPLER	DIRECTIONAL COUPLER	DIRECTIONAL COUPLER	DIRECTIONAL COUPLER	DIRECTIONAL COUPLER	DIRECTIONAL COUPLER
Maximum voltage standing wave ratio	1.25	1.5	1.25	1.25	1.5	1.5
Base Number Matches	1	1	1	1	1	1
Maximum insertion loss	0.25 dB	1.6 dB	-	0.5 dB	-	2 dB
