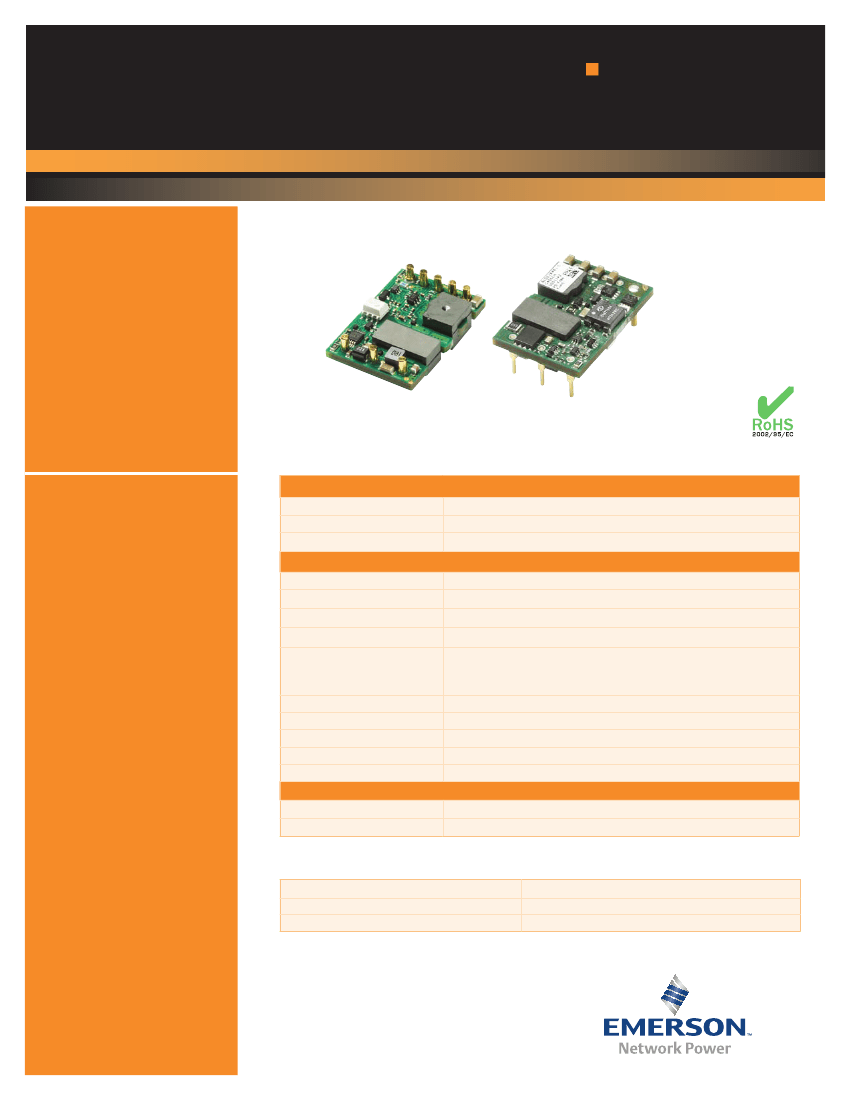

ALD15 Series
15 Amps
Total Power:
35 Watts
Input Voltage:
48V
# of Outputs:
Single
Rev. 08.04.11_19
ALD15 Series
1 of 3
Electrical Specifications
Input
Special Features
• High Efficiency
• -40 ºC
to + 85
ºC
ambient air
operation
• 1.30” x 0.90” x 0.35” TH or
SMT package
• High capacitive load limit on
start-up
• Industry standard feature
sets: UVLO, OVP, OCP, OTP,
on/off enable, remote sense,
output trim
• Basic insulation
• Regulation to zero load
• Fixed frequency switching
• EU directive 2002/95/EC
compliant for RoHS
Input ra nge:
Input surge:
Efficiency:
36 to 75 Vdc
100 V / 100 ms
90.5% @ 12 V
± 0.1% V
o (typical)
± 0.1% V
o (typical)
40 mVp-p (typical)
Up to 10% of Vo
Output
Line regulation:
Load regulation:
Noise/ripple
1
:
Remote sense:
Transient response:
3% V
o
(typical) deviation
50% to 75% load change
80 µs setting time (typical)
Overvoltage protection:
125% V
o
typical (autorecovery)
Overcurrent protection:
115% Io typical (autorecovery)
Overtemperature protection:
115
ºC average PCB temperature (autorecovery)
Switching frequency:
Fixed frequency
Isolation voltage:
1500 Vdc minimum (2000 Vdc ALD10F48N)
Control
Voltage adjust:
Enable:
90 to 110% Vo
TTL compatible
Environmental Specifications
Safety
• UL, cUL: 60950-1
• TUV:
EN60950-1
Ambient air operating temperature range:
Storage temperature:
MTBF:
-40 °C to +85 °C
-40 °C to +125 °C
1 million hours
Embedded Power for
Business-Critical Continuity
Ordering Information
Input Voltage
36 - 75 V
36 - 75 V
36 - 75 V
36 - 75 V
36 - 75 V
36 - 75 V
36 - 75 V
Output Voltage
12.0 V
5.0 V
3.3 V
2.5 V
1.8 V
1.5 V
1.2 V
Output Current
2.75 A
7.00 A
10.00 A
11.00 A
13.00 A
15.00 A
15.00 A
0.30 [7.62]
Efficiency
2
90.5%
91%
90%
89%
87%
85%
84%
TABLE2
Model Number
ALD03B48(N)-(L)/(6L)/(SL)
ALD07A48(N)-(L)/(6L)/(SL)
ALD10F48(N)-(L)/(6L)/(SL)
ALD11G48(N)-(L)/(6L)/(SL)
ALD13Y48(N)-(L)/(6L)/(SL)
ALD15M48(N)-(L)/(6L)/(SL)
ALD15K48(N)-(L)/(6L)/(SL)
Rev. 08.04.11_19
ALD15 Series
2 of 3
Notes:
Efficiency values taken at nominal imput full load condition, 25 ºC ambient temperature.
0.60 [15.24]
(0.15 [3.81]x4)
0.60 [15.31]
0.15 [3.81]
Options
MODEL
PIN"L" mm
5.0±0.3
ALDxxx48-L,ALDxxx48N-L
“N”
= Designates Negative Logic Enable (default is Positive Enable with no suffix “N” required)
“L”
“-6L”
“-SL”
= RoHS compliant
0.15 [3.81]
0.15 [3.81]
ALDxxx48-6L,ALDxxx48N-6L
3.7±0.3
ALDxxx48-8L,ALDxxx48N-8L
2.8±0.3
POINT
= 3.7 mm nominal pin length (default is 5 mm nominal pin length with no suffix “-6” required), RoHS compliant
SUGGESTED PICK UP

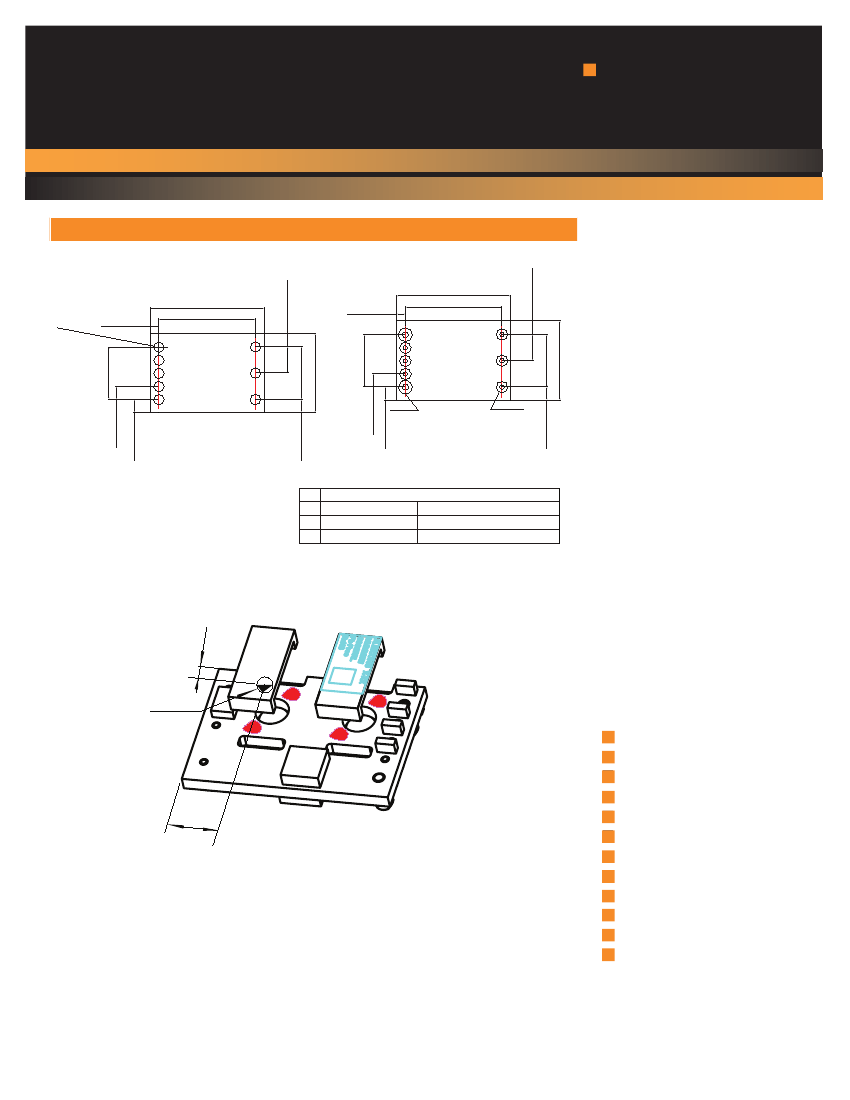

Mechanical Drawings
= Surface Mount Termination (default is thru hole termination with no suffix “-S” required) RoHS compliant. STRL
designates Taped and Reeled option for SMT
"L"(SEE TABLE 2 )
Ø0.04 [1.0] (6x)
Ø0.06 [1.60] 2X
12.19
Through-hole Termination
0.16 [4.0]
0.09 [2.2]
0.1 [2.54]
0.30 [7.62]
0.60 [15.24]
0.34 [8.6 ±0.5]
(0.15 [3.81]x4)
0.1 [2.5]max.
PIN 1
1.10 [27.94]
1.30 [33.02±0.5]
0.9 [22.86±0.5]
PIN"L" mm
5.0±0.3
3.7±0.3
2.8±0.3
0.60 [15.31]
0.15 [3.81]
MODEL
ALDxxx48-L,ALDxxx48N-L
ALDxxx48-6L,ALDxxx48N-6L
ALDxxx48-8L,ALDxxx48N-8L
SUGGESTED PICK UP
POINT
0.15 [3.81]
0.15 [3.81]
Ø0.06 [1.60] 2X
Ø0.04 [1.0] (6x)
"L"(SEE TABLE 2 )
12.19
Surface Mount Termination
10.5
0.34 [8.6 ±0.5]
0.1 [2.5]max.
PIN 1
0.30 [7.62]
0.09 [2.2]
1.10 [27.94]
1.30 [33.02±0.5]
0.16 [4.0]
0.1 [2.54]
0.9 [22.86±0.5]
0.60 [15.24]
(0.15 [3.81]x4)
0.60 [15.31]
0.15 [3.81]
0.15 [3.81]
0.15 [3.81]
SUGGESTED PICK UP
POINT
12.19
0.9 [22.86±0.5]
0.60 [15.24]
0.34 [8.6
(0.15 [3.81]x4) ±0.5]
]
0.1 [2.5]max.
0.09 [2.2]
0.1 [2.54]
0.16 [4.0]
1.10 [27.94]
1.30 [33.02±0.5]
0.30 [7.62]
c
0.15
4
0.60 [15.31]
0.15 [3.81]
SUGGESTED PICK UP
POINT
10.5
10.5
TABLE2
10.5
Pin Assignments
Single Output
1. +Vin
2. Enable
3. -Vin
4. -Vout
5. -Sense
6. Trim
7. +Sense
8. +Vout
Notes:
1. 20 mHz bandwidth. External 10 µF tant.
capacitor in parallel with 0.1uF ceramic
capacitor placed across + Vout and
-Vout; 33 µF e-cap or equivalent placed
across +Vin and -Vin.
2. Efficiency measurements taken at full
load, nominal line and T
A
= 25 °C
3. All specifications are typical at nominal
line, full load and T
A
= 25 °C unless oth-
erwise noted.
4. Mechanical drawings are for reference
only. Dimensions are in inches [mm].
Mechanical
tolerance ± 0.020 [± 0.50]
5. Technical Reference Notes should be
consulted for detailed information when
available.
6. All specifications subject to change with-
out notice.
7. Warranty 2 years.
8. The through-hole terminated modules
are intended for wave soldering process.
0.34 [8.6 ±0.5]
0.1 [2.5]max.
0.09 [2.2]
0.1 [2.54]
0.16 [4.0]
1.10 [27.94]
1.30 [33.02±0.5]
c
0.15
4
Embedded Power for
Business-Critical Continuity
FOR SMD VERSION
Mechanical Drawings
