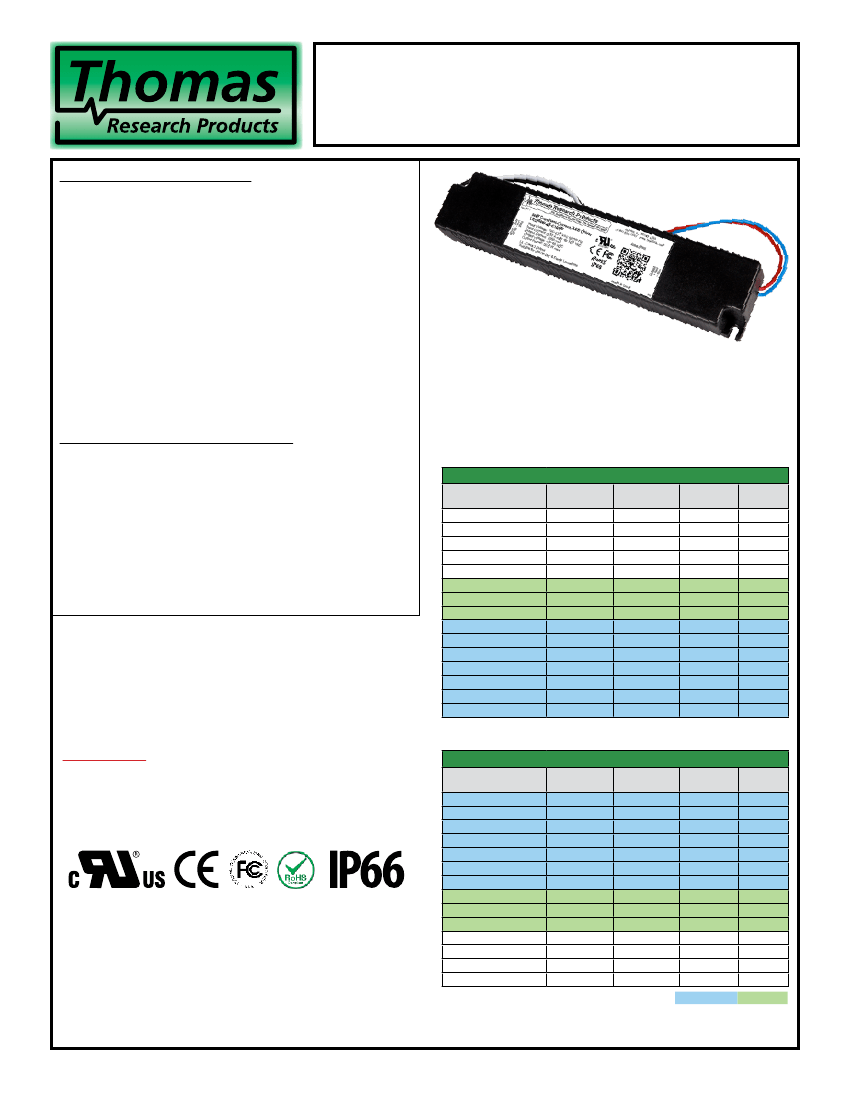

LED-50W Series– Fixed Output and Dimmable
Switch Mode LED Drivers
Constant Current & Constant Voltage with Isolation
Black Magic Thermal Advantage™ Plastic Housing
Electrical Specifications
Input Voltage Range:
Input Over-Voltage:
Frequency:
Power Factor:
Inrush Current:
Input Current:
Maximum Power:
Current Accuracy:
Load Regulation:
THD:
Leakage Current:
Hold Up Time:
Protection:
100-277 Vac Nom. (90-305 V Min/Max)
Can endure 320Vac for 48 Hrs, 350Vac for 2 Hrs
50/60 Hz Nom. (47-63 Hz Min/Max)
>0.90 @ full load, 100V through 277V
<20.0 Amps max @ 230 Vac, cold start 25ºC
0.52 Amps max
50W
± 1% Over input line variation
± 3%
< 20% @ Full Load
_
400 µA Typical
Half Cycle
Output Over-Voltage, Output Over-Current, and
Output Short Circuit Protection with Auto Recovery
Environmental Specifications
Minimum Starting Temp:
Maximum Case Temp.
Storage Temperature:
Humidity:
Cooling:
Vibration Frequency:
Sound Rating:
MTBF:
EMC:
-30ºC
90°C (3330mA and 15V, 88°C)
(4200mA and 12V, 78°C)
-40ºC to +85ºC
5% to 95%
Convection
5 to 55 Hz/2g, 30 minutes
Class A
474,000 Hours at full load and 40ºC ambient conditions
per MIL-217F Notice 2
FCC 47CFR Part 15 Class B compliant
• Total Power: 50 Watts
• Input Voltage: 100-277 Vac Nom.
• UL Dry & Damp Location Rated
• IP66
• High Power Factor
• UL8750
Constant Current - Product Specifications
Model Number
LED50W-142-C0350-XX
LED50W-111-C0450-XX
LED50W-072-C0530-XX
LED50W-072-C0700-XX
LED50W-060-C0830-XX
LED50W-048-C1050-XX
LED50W-042-C1190-XX
LED50W-040-C1250-XX
LED50W-036-C1400-XX
LED50W-029-C1750-XX
LED50W-024-C2100-XX
LED50W-020-C2500-XX
LED50W-018-C2800-XX
LED50W-015-C3330-XX
LED50W-012-C4200-XX
Output Current Output Voltage
(mA ±3%)
Range
(Vdc)
350
450
530
700
830
1050
1190
1250
1400
1750
2100
2500
2800
3330
4200
47-142
37-111
24-72
24-72
20-60
16-48
14-42
13-40
12-36
9-29
8-24
7-20
6-18
5-15
4-12
Max. Output
Power
(W)
49.7
49.9
38.1
50
49.8
50
50
50
50
50
50
50
50
49.9
50
Typical
Efficiency
89%
89%
88%
88%
88%
88%
87%
87%
87%
87%
87%
87%
86%
85%
84%
-XX indicates dimming options are available. See options at left. Blank = fixed current output
Ordering Options:
-D:
0-10V & Resistance dimmable version comes with an extra two wires +Purple/-Gray on
the output side. -D 0-10V Dimming is compatible with most quality 0-10V wall dimmers.
See page 3 for additional specifications.
PWM Dimmable version comes with an extra two wires +Purple/-Gray on the output
side. PD PWM version is PWM Dimmable via a positive 10% to 100% Duty Cycle,
200Hz to 1KHz, 0-10V Pulse. See page 4 for additional specifications.
Constant Voltage - Product Specifications
Model Number
LED50W-012
LED50W-015
LED50W-018
LED50W-020
LED50W-024
LED50W-029
LED50W-036
LED50W-040
LED50W-042
LED50W-048
LED50W-060
LED50W-072
LED50W-111
LED50W-142
Output Voltage Output Current
(Vdc ±5%)
Range
(mA)
12
15
18
20
24
29
36
40
42
48
60
72
111
142
1050-4200
833-3330
700-2800
625-2500
525-2100
438-1750
350-1400
313-1250
298-1190
263-1050
208-830
175-700
113-450
88-350
Class 2:
Max. Output
Power
(W)
50
49.9
50
50
50
50
50
50
50
50
49.8
50
49.9
49.7
US/Canada
Typical
Efficiency
84%
85%
86%
87%
87%
87%
87%
87%
87%
88%
88%
88%
89%
89%
US Only
-PD:
E332160
Note:
LED drivers are designed and intended to operate LED loads only.
Non-LED loading may be outside the specified design limits of our
LED drivers, and therefore cannot be covered by any warranty.
If you desire to use our LED drivers to operate non-LED loads
please contact us to discuss compatibility.
Specifications subject to change without notice.
Rev 9-19-14
Thomas Research Products • 1215 Bowes Rd • Elgin, IL 60123 • T 847-515-3057 • F 847-515-3047 • www.trpssl.com
LED50W Series
SSL Solutions Faster Than The Speed Of Light
®
Pg 2 of 4

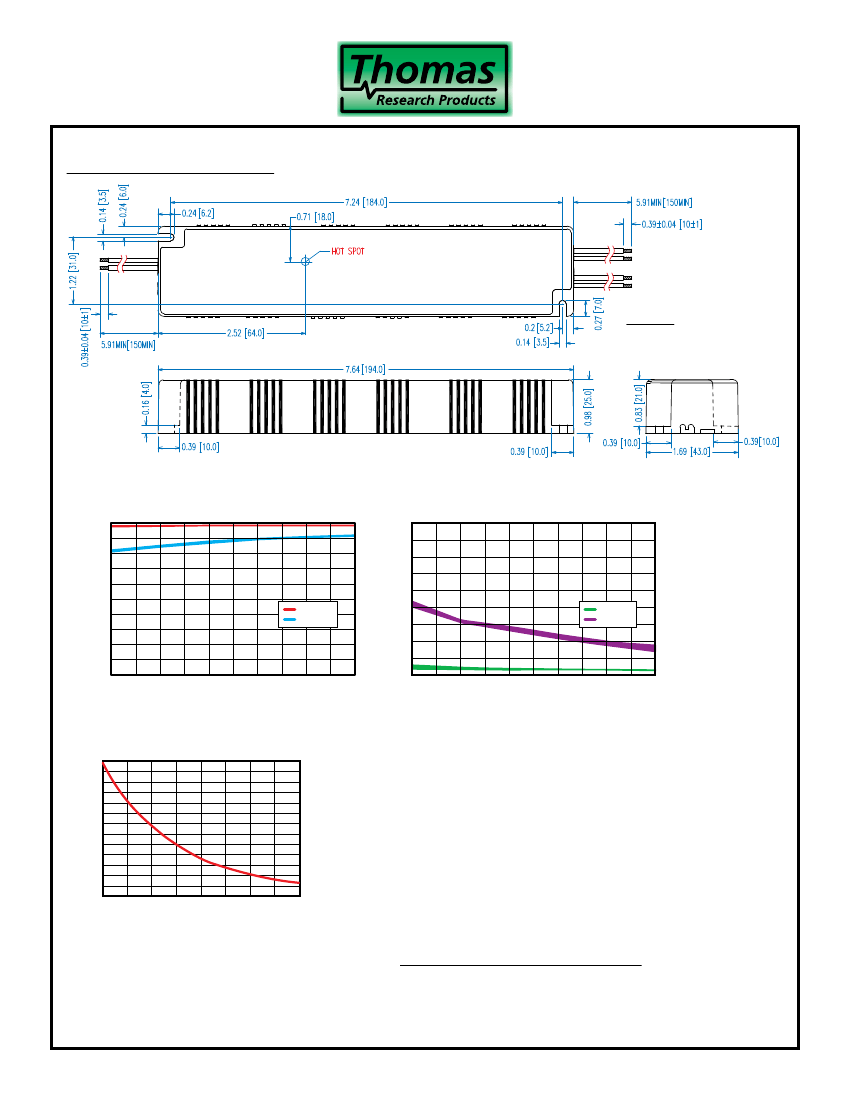

Dimensions - Inches (mm)
OUTPUT
Red (+)
Blue (-)
INPUT
White (N)
Black (L)
Dimming
Purple (+)
Gray (-)
WIRE SPECS:
AC Input:
UL1015 #18AWG
DC Output:
UL1569 #18AWG
Dimming Control:
UL1569 #22AWG
1.00
0.90
0.80
0.70
0.60
Power Factor / Load
50%
45%
40%
35%
120Vac
277Vac
THD / Load
0.50
0.40
0.30
0.20
0.10
0.00
50%
60%
70%
THD
PF
30%
25%
20%
15%
10%
0%
50%
120Vac
277Vac
Load
80%
90%
100%
60%
70%
Load
80%
90%
100%
Lifetime / Case Temperature
125
115
105
90
85
75
65
55
45
35
25
15
5
0
50
(Full Load @ 120Vac)
Lifetime
(kHrs)
55
Case Hotspot Temperature
(°C)
60
65
70
75
80
85
90
Note:
Life calculations are based on reliability with confidence using
a 90% confidence level and <5% failure rate. At a confidence
level of 90% it is expected that <5% of the parts will fail at
the rated life provided. (Failure is defined as a driver drifting
outside specification, rather than fail to operate)
UL Conditions of Acceptability
See website for additional information
Thomas Research Products • 1215 Bowes Rd • Elgin, IL 60123 • T 847-515-3057 • F 847-515-3047 • www.trpssl.com
LED50W Series
SSL Solutions Faster Than The Speed Of Light
®
Pg 3 of 4
“-D” Option: 0-10VDC and Resistance Dimming
Parameters
Source Current out of 0-10V Purple Wire
Absolute Voltage Range on 0-10V (+) Purple Wire
Minimum
0 mA
-2.0 V
Typical
—-
—-
Maximum
2 mA
+15 V
Typical Dimming Circuit
Dim (+) Purple
LED50W-XX-CXXXX-D
IP710 Wall Dimmer
Dim (-) Gray
(Dimmer must be current-sink type control)
100
90
80
70
60
50
40
30
20
10
0
Output Current / 0-10VDC Dimming Control Voltage
Output Current %
0V
1V
2V
3V
Purple-to-Gray Voltage
(Vdc)
4V
5V
6V
7V
8V
9V
10V
Notes:
1.
2.
3.
4.
0-10V dimmable version comes with an extra two wires +Purple/-Gray on the output side.
Compatible with most 0-10V dimmers. Recommended dimmer is Leviton IP710 or equivalent
0-10V dimmable version is not intended to dim below about 5% @ 0V or 10% @ 1.0V
0-10V dimmable version output will be 100% with Purple/Gray open and minimum with Purple/Gray Shorted.
Thomas Research Products • 1215 Bowes Rd • Elgin, IL 60123 • T 847-515-3057 • F 847-515-3047 • www.trpssl.com
LED50W Series
SSL Solutions Faster Than The Speed Of Light
®
Pg 4 of 4
“-PD” Option: PWM Dimming
Parameters
Absolute Maximum Voltage Range on PWM Input (Purple Wire)
Input LOW Level Voltage Range (Purple Wire)
Input HIGH Level Voltage Range (Purple Wire)
Sink Current into PWM Input (Purple Wire)
PWM Input Signal Frequency
PWM Input Signal Positive Duty Cycle
Minimum
-2.0V
-2.0
+9.0
0mA
200Hz
0%
Typical
10V
0V
10V
—-
—-
10-90%
Maximum
+28V
+7.5V
28V
1.2mA
1000Hz
100%
PWM Positive Dimming Typical Circuit
PWM (+) Purple
LED50W-XX-CXXXX-PD
PWM In
PWM (-) Gray
100
90
80
70
60
50
40
30
20
10
0
Output Current / Positive Duty Cycle
Output Current %
0%
10%
20%
30%
Positive Duty Cycle
40%
50%
60%
70%
80%
90%
100%
Notes:
1. PWM Dimmable version comes with an extra 2 wires +Purple/-Gray on the output side.
2. Below 10% Duty cycle proper dimming operation is not assured. Unit is not intended to turn off at <10% Duty Cycle.
3. PWM dimmable version output will be 100% with Purple/Gray open and minimum with Purple/Gray Shorted.
Thomas Research Products • 1215 Bowes Rd • Elgin, IL 60123 • T 847-515-3057 • F 847-515-3047 • www.trpssl.com
