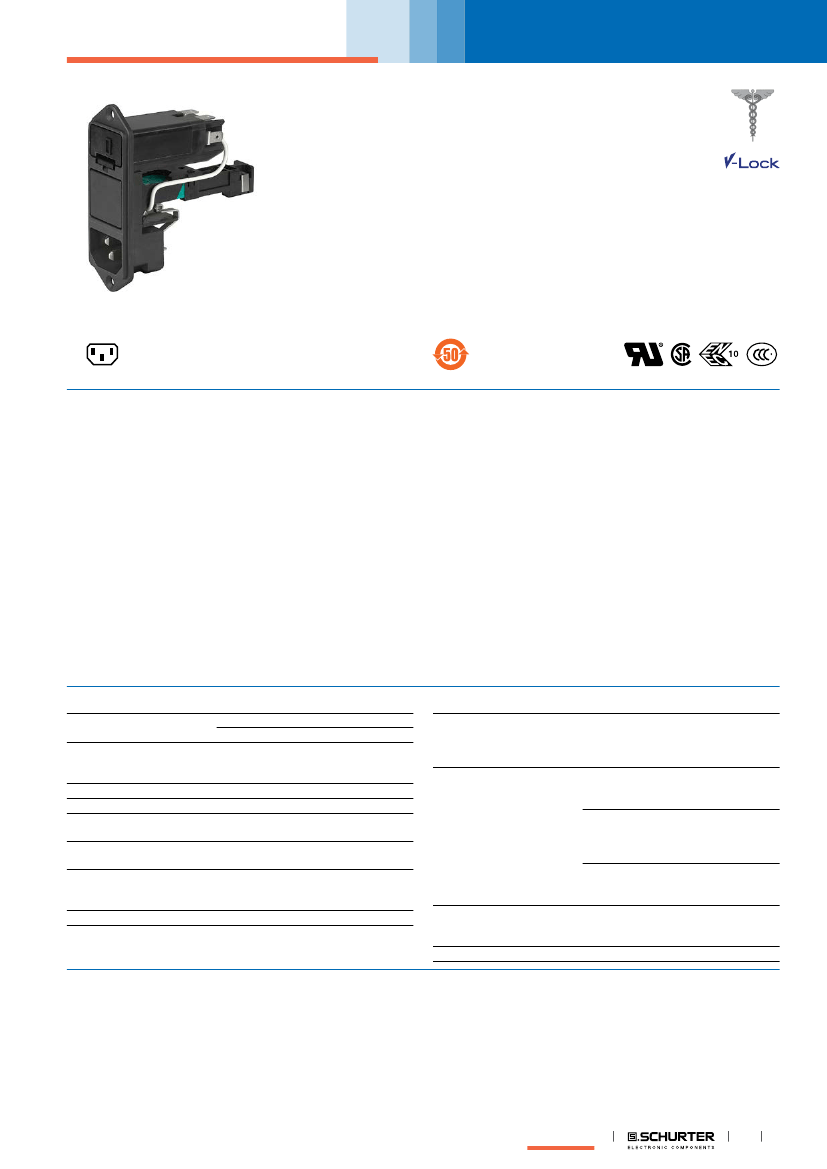

Power entry modules without line filter
www.schurter.com/PG05
KD-Bowdencable
Standard or Medical Fuse drawer
IEC Appliance Inlet C14 with Fuseholder 1- or 2-pole, Bowden-Line Switch 2-pole and Voltage Selector
C14
70° C
Description
- Panel Mount:
Screw-on version from front or rear side, snap-in version from front
side
- 4 Functions:
Appliance Inlet Protection class I, Line switch for bowdencable actua-
tion 2-pole, Fuseholder with interchangeable fuse drawer for Fuse-links
5x20 mm or 6.3x32 mm, with or without voltage selector (step)
- Quick connect terminals 4.8 x 0.8 mm
Characteristics
- All single elements are already wired
- The fuse drawer “Fingergrip” can be removed by hand
For added safety "Extra-Safe" fuse drawers are available
Fuse drawer meets requirements of medical standard IEC/EN 60601-1
The fuse drawer can only be opened with the aid of a tool
The fuseholder is accessible from the equipment front
- Suitable for use in equipment according to IEC/UL 60950
Other versions on request
- For protection class II
- Without voltage selector
Approvals
- VDE Certificate Number: 40029908
- UL File Number: E93617
- CSA File Number: 38456
References
Weblinks
Alternative: version with line filter
CD-Bowdencable
pdf-datasheet, html-datasheet, General Product Information, Approvals,
CE declaration of conformity, RoHS, CHINA-RoHS, Mating Connectors,
e-Shop, SCHURTER-Stock-Check, Distributor-Stock-Check, CAD-
Drawings, Accessories, Detailed request for product
Newly available variants corresponding to V-Lock mating cordset. The connector is equipped with a notch intended for use with the latching cordset.
The cord latching system prevents against accidental removal of the cordset.
Technical Data
Ratings IEC
Ratings UL/CSA
Dielectric Strength
6 A / 250 VAC; 50 Hz
8 A / 125 VAC; 60 Hz
> 3 kVAC between L-N
> 4 kVAC between L/N-PE
(1 min/50 Hz)
-25 °C to 70 °C
from front side IP 40 acc. to IEC 60529
Suitable for appliances with protection
class I acc. to IEC 61140
Quick connect terminals 4.8 x 0.8 mm
, tin-plated
Screw: max 8 mm
Mounting screw torque max 0.5 Nm
Snap-in: 1.5/2/2.5 mm
Thermoplastic, black, UL 94V-0
Appliance Inlet
C14 acc. to IEC 60320,
UL 498, CSA C22.2 no. 42 (for cold
conditions) pin-temperature 70 °C,
10 A, Protection Class I
1 or 2 pole, Shocksafe category PC2
acc. to IEC 60127-6,
for fuse-links 5 x 20 or 6.3 x 32 mm
5 x 20: 2.5 W (1 pole)/ 2 W (2-pole) per
pole
6.3 x 32: 3.15 W (1 pole)/ 2.5 W (2-pole)
per pole
Admissible power acceptance at hig-
her ambient temperature see derating
curves
Switch for bowdencable 2-pole, non-il-
luminated, acc. to IEC 61058-1
Technical Details
optional, step, 2-4 digits
Fuseholder
Allowable Operation Temp.
Degree of Protection
Protection Class
Terminal
Panel Thickness s
Rated Power Acceptance @
Ta 23 °C
Power Acceptance @ Ta >
23°C
Line Switch
Material: Housing
Voltage Selector
Connectors
1

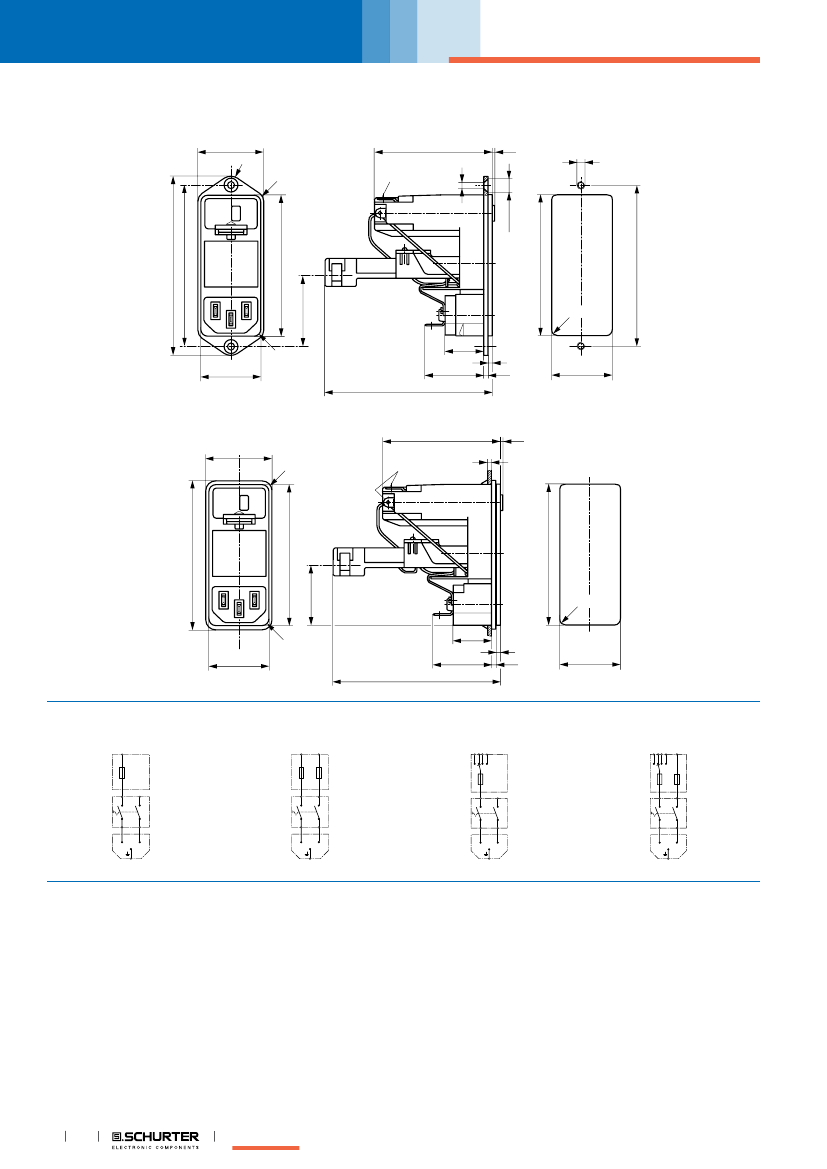

Power entry modules without line filter
www.schurter.com/PG05
KD-Bowdencable
Fuses
5 x 20 mm (2-pole, per pole)
Admissible power acceptance in Watt per
pole
2.0
Derating Curves
Fuses
5 x 20 mm (1-pole)
2.5
Admissible power acceptance in Watt
2.0
1.5
1.0
0.5
0.0
0
20
40
60
80
100
I = 1.0 I
n
I = 0.7 I
n
I = << I
n
1.5
I = 1.0 I
n
1.0
I = 0.7 I
n
I = < < I
n
0.5
0.0
0
20
40
60
80
100
Ambient air temperature Ta °C
Ambient air temperature Ta °C
Fuses
6.3 x 32 mm (1-pole)
3.15
Fuses
6.3 x 32 mm (2-pole, per pole)
Admissible power acceptance in Watt per
pole
2.5
2.0
1.5
1.0
0.5
0.0
0
20
40
60
80
100
I = 1.0 I
n
I = 0.7 I
n
I = < < I
n
Admissible power acceptance in Watt
2.5
2.0
1.5
1.0
0.5
0.0
0
20
40
60
80
100
I = 1.0 I
n
I = 0.7 I
n
I = < < I
n
Ambient air temperature Ta °C
Ambient air temperature Ta °C
Type
KD-Bowdenzug
KD-Bowdenzug
KD-Bowdenzug
KD-Bowdenzug
KD-Bowdenzug
KD-Bowdenzug
KD-Bowdenzug
Panel mounting
Screw
Screw
Snap-in
Snap-in
Snap-in
Snap-in
Snap-in
Panel Thickness
s [mm]
-
-
1.5
2
2.5
1.5
2.5
Fuseholder
1-pole
2-pole
1-pole
1-pole
1-pole
2-pole
2-pole
Line Switch
Switch for bowdencable
Switch for bowdencable
Switch for bowdencable
Switch for bowdencable
Switch for bowdencable
Switch for bowdencable
Switch for bowdencable
Voltage selector max.
4 pos*
-
-
-
-
-
-
-
Order Number
KD11.4199.151
KD14.4199.151
KD11.4199.105
KD11.4199.107
KD11.4199.109
KD14.4199.105
KD14.4199.109
Availability for all products can be searched real-time:http://www.schurter.com/en/Stock-Check/Stock-Check-SCHURTER
Suffix ".21" corresponds to the version with V-Lock mating cordset. The connector is equipped with a notch intended for use with the latching cordset. The
cord latching system prevents against accidental removal of the cordset.
Packaging unit
10 Pcs
Connectors
3
KD-Bowdencable

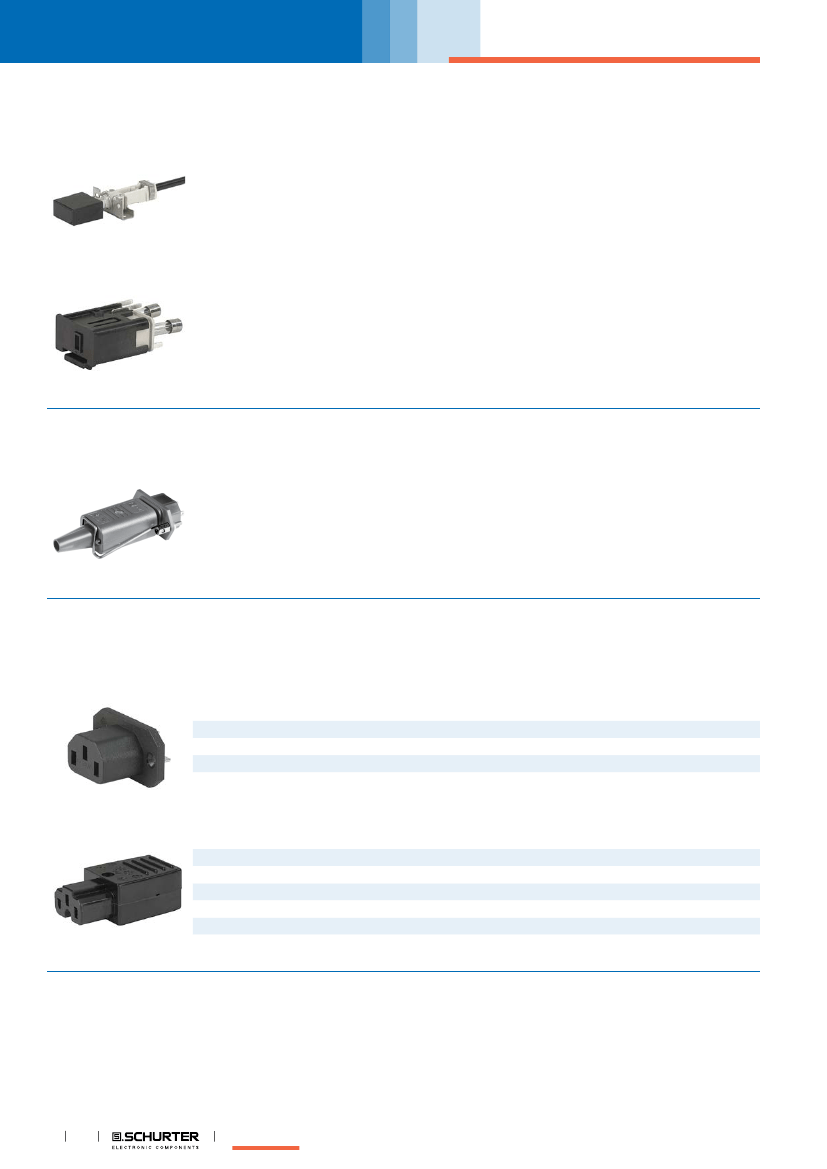

Required Accessory
Description
Power entry modules without line filter
www.schurter.com/PG05
Bowdencables incl. accessory
Bowden Cable for Power Entry Modules
Fusedrawer 3
Fusedrawer for Fuse Links 5x20 mm resp. 6.3x32 mm
Accessories
Cord retaining kits
Cord retaining strain relief
Mating Outlets/Connectors
Category / Description
Appliance Outlet Overview complete
IEC Appliance Outlet F, Screw-on Mounting, Front Side, Solder Terminal
IEC Appliance Outlet F, Snap-in Mounting, Front Side, Solder or Quick-connect Terminal
IEC Appliance Outlet F or H, Screw-on Mounting, Front Side, Solder, PCB or Quick-connect Terminal
Appliance Outlet further types to KD-Bowdencable
4787
4788
5091
Connector Overview complete
IEC Connector C15A, Rewireable, Straight
IEC Connector C15A, Rewireable, Straight
IEC Connector C15A, Rewireable, Angled
IEC Connector C13, Rewireable, Angled
IEC Connector C13, Rewireable, Straight
Connector further types to KD-Bowdencable
0102
0102-G
0112
4012
4022
...
4
Connectors
The specifications, descriptions and illustrations indicated in this document are based on
current information. All content is subject to modifications and amendments.
22.03.2014
