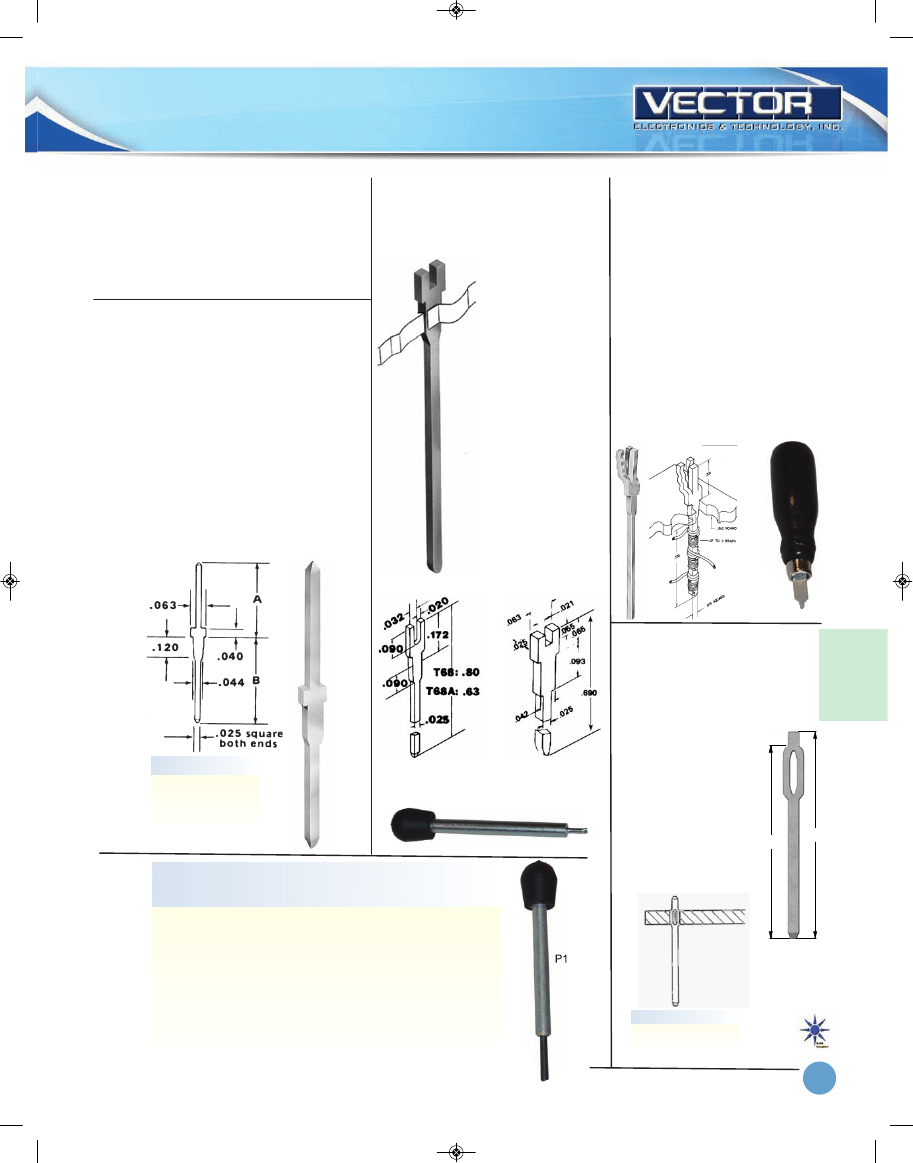

CATALOG 128_CATALOG 128.qxd 4/25/2014 7:13 AM Page 73

Pins and Terminals

Vector Wiring Terminals

are useful for breadboarding or prototyp-

ing using Vectorbord Plugbords

and

accessories. Individual stamped and/or

machine terminals are provided in con-

venient package quantities. Tools for

insertion and staking are also available.

Terminals:

T44, T68 Bifurcated

Miniwrap Terminals

for 0.042” holes

• Wire-Wrap tail with

two-pronged recep-

tacle for wires or leads

• 0.025” square posts

• Rectangular terminal

with stepped shank

presses securely into

plated or unplated

holes, requires no

staking or soldering

• Bifurcated end holds

soldered leads

securely

• T44: maximum 0.021”

diameter leads or 24

gage wires

• T68: maximum 0.032”

diameter leads or 20

gage wires

T49

- Trifurcated Klipwrap

Terminals for 0.042” diameter holes

• Wire-wrap tail with three-pronged

receptacle for wires or leads

• 0.025” square posts

• Wires or leads are crimped into

receptacle on component side,

secured for soldering

• Holds 0.018” - 0.025” diameter

leads or 22 gage wires in lower

slot, 0.032” - 0.040” diameter

leads or 17 gage wires in upper slot

• Overall length - 0.650”, 0.215”

above 0.062” thick board with

0.373” below the board

• Phosphur Bronze

T46 - Press-In Terminals

for 0.042” diameter holes

•

Single and double-tailed (accessible

from both sides) wire-wrap terminals

0.025” square posts

Provides secure contact without

soldering or staking

Rectangular base with stepped

shank presses into plain or plated-thru

holes and is retained without etching

or soldering

Pointed ends slide neatly into all

wrapping bits

260 Cartridge Brass

•

260 Cartridge Brass

P156

Pins &

Terminals

T125, T126 -Wire-Wrap

Terminals

for .042” diameter holes

• Pressfit wire-wrap

terminals, ideal for

connecting voltage

and ground holes in

Vectorbord plus

and

Pads & Planes

patterns

• 2-level terminals:

Part No. T125

• 3-level terminals:

Part No. T126

• Phosphur Bronze

Part No.

T46-2-9

T46-3-9

T46-4-9

T46-5-9

.36”

.46”

.04”

.28”

.42”

.60”

.42”

.60”

T68

T68A

T44

Insertion Tool: A13-1 Insertion Tool: A13

A13

Package Qty

Hand

Insertion

Tool

A13

P133A

P156

A13-1

P133A Insertion Tool

Terminal:

Tin Plate

Part No.

T44/C

T44/M

T46-2-9/M

T46-3-9/C

T46-3-9/M

T46-4-9/C

T46-4-9/M

T46-5-9/C

T46-5-9/M

T49/C

T49/M

T68/C

T68/M

T68A/M

Terminal:

Gold Plate

Part No.

T44-1/C

T44-1/M

T46-3A9/M

T46-4A9/M

T49A/C

T49A/M

T68-1/M

100

1000

100

1000

100

1000

100

1000

100

1000

100

1000

P133A

Part No. A

T125/C

T126/C

.560” .529”

.700” .669”

Packages of 100 each

800-423-5659

www.vectorelect.com
