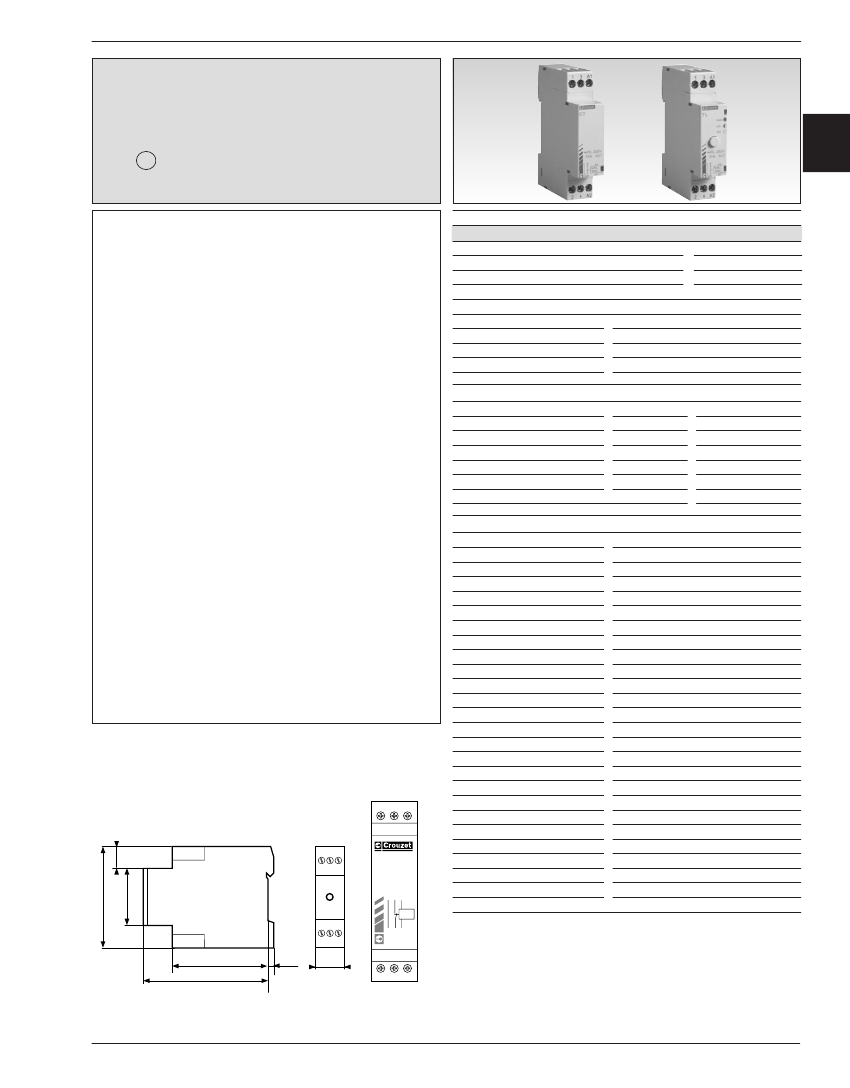

Hybrid Power Relay – RHP (Single Pole Relay)
■
■
■
■
■
■
■
■
■
20 Amp output (Resistive only)
Every SSR advantage without the drawbacks
Lifetime > 5 million operations full load
Noiseless
Functions: contactor – bistable
17.5 mm DIN rail mount
UL/c UL (listed)
Label NF-USE
CE compliant
Type
Part number
AC input contactor
DC input contactor
AC input distable relay
AC input day/night contactor
84
84
84
84
138
138
138
138
001
000
101
201
1
Operation:
Contactor
Output of the contactor is closed when the input is On.
Output of the contactor is opened when the input is Off.
Led is On when the output is closed.
Bistable Relay
Output of the bistable changes of status for every pulse on the input
and stays in its position between pulses.
Front plate push button allows to select the operation mode:
Stop – led off – output off
On forced – led flashing – output on
Auto – led on – bistable relay operation
Day/night contactor
Output of the contactor is closed when the input is On
Output of the contactor is opened when the input is Off.
Front plate push button allows to select the operation mode:
Stop – led off – output off
On forced – led flashing – output on – back to the Auto mode at the
next change of the input.
Auto – led on – day/night contactor operation
Compliance
CEI/EN 60947-4-3 (industrial environment)
CEI/EN 60669-2-1 (household environment)
CEI/EN 60601-1 (medical environment)
CEI/EN 60947-7-1 (connections in industrial env.)
CEI/EN 60998-2-1 (connections in household env.
Insulation:
Installation category: 3
pollution: 3
CEI60664-1: 4KV/3
dielectric CEI/EN 60669-2-1:
2 KV/1mm / 1mA / 50 Hz
Insulation CEI/EN 60669-2-1:
> 5MΩ/500VDC / 1 min
Vibrations CEI/EN 60068-2-6: frequencies: 10 to 55 Hz
magnitude: 0,35 mm
Specifications
Power supply
Frequency
Max. power consumption
90-260 Vac
50 / 60 Hz
11 VA
Input Control
Voltage
Frequency
Value
Input OFF
Input ON
Min. time input
90-260 Vac
50 / 60 Hz
0 – 46 Vac
76 – 260 Vac
50 ms
0 – 1 Vdc
4 – 32 Vdc
50 ms
0-32 Vdc
Output
Voltage
Max. current
Overload current 20A
Min current
Frequency
Contact
Switching frequency
lifetime
leakage current
Acoustic noise
ON position
switching
terminal capacity
2 x 2.5 mm2 without ferrule
1 x 4 mm2 without ferrule
Torque
1
3
A1
90-260 Vac
20A in AC1 / AC51 / AC7a
AC-51: 1,25 x Ie – 60s: 50 – 30
(CEI 60947-4-3)
100mA in AC1 / AC51 / AC7a
50 / 60 Hz
N.O.
20
/ min
> 5,000,000
< 5 mA
< 35 dB @ 1m
< 50 dB @ 0.5m
2 x 1.5 mm2 with ferrule
1Nm maxi. screw M3 (CEI 60947-1)
–5°C to +55°C
–40°C to +85°C
90 to 95% non-condensing
self extinguish
housing IP 50
terminal IP 20
70 gr
Operating temperature:
Storage temperature
Humidity
Housing
protection
(CEI 60529)
weight
18
81
45
N
1
I
3
A1
90...
260V~
2
4 A2
LOAD
44
60
5.5
17.5
2
4
A2
Products and specifications subject to change without notice.
Consult factory for application assistance.
Tel: (877)
502-5500
/ FAX: (619)
710-8540
/ www.crouzet-usa.com
1-3
