SURFBOARDS
THE BREADBOARDING MEDIUM FOR
R
TM
SURFACE MOUNT
33000 SERIES APPLICATION SPECIFIC ADAPTERS
IDS33206
REV 1-2012
MODEL
33206
B
ACCEPTS
THESE
DEVICES
PARTIAL
LISTING
SOT-23-6, SOT-23-L
SOT-26, SOT-457
SC-59-6, SC-74-R
TSOT-23-6, TSOP-6
ANALOG
RJ-6, UJ-6
FAIRCHILD
SuperSot-6
I.R.
Micro-6
**
LINEAR
S6 PKG.
PANASONIC
Mini-6-G1
*
Note 1
FOR 6 LEAD .95
MM
PITCH DEVICES
A
*SuperSot is a
Trademark of Fairchild
Semiconductor Corp.
**Micro-6 is a
Trademark of
International Rectifier
Corp.
NOTE 1: Not exact
device/pad match,
but acceptable for
many applications.
DEVICE
FOOTPRINT
I
Mini-6-G2
Mini-6-DA
RENESAS
WSOF 6 PIN
ROHM
SMD6, SMT6, TSMT6
T.I.
DDC (R-PDSO-G6)
DBW (R-PDSO-G6)
ALWAYS CONSULT DEVICE DATA SHEET TO INSURE PROPER FIT
D
E
G
SINGLE-IN-LINE ( SIP ) PINS
ON .100 in. CENTERS . SEE
PIN SPECIFICATION TABLE.
C
FIG.
A
B
C
D
E
F
G
H
I
F
H
PROTOTYPING
,
DEVICE
EVALUATION
AND
TEST
ADAPTER

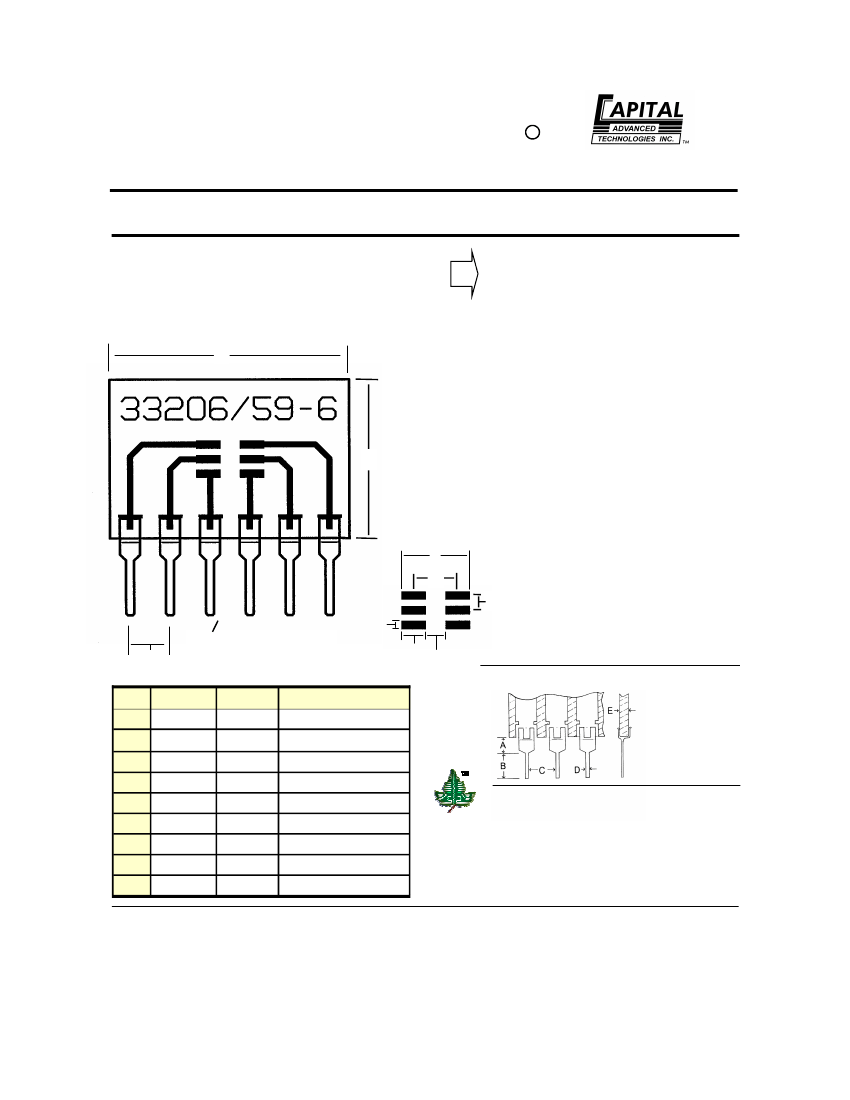

PIN SPECIFICATIONS / TOLERANCES
INCHES
.400
.600
.100
.110
.0375
.050
.020
.060
.160
MM
10.16
15.24
2.54
2.79
.95
1.27
.508
1.52
4.06
NOTE:
BOARD HEIGHT
+-
.5mm .020in.
BOARD WIDTH
+- .
5mm .020in
.
SIP PIN SPACE
+- .20mm .008in.
PAD CENTERLINE
In Inches
A = .062 +- .006
B = .130 +- .010
C =.100 +- .005
D = .020 +- .004
E = .031 +-.005
DEVICE LEAD PITCH
PAD LENGTH
PAD WIDTH
GAP
MAX PIN WIDTH
BOARD
SPECIFICATIONS
RoHS
Compliant
EC 2002/95
BOARD MATERIAL:
.8mm, +-.13mm .031in+-..005 in.
Thick G-10 FR-4 Glass Epoxy or equivalent.
CIRCUITS:
1 oz. Copper with RoHS compliant Lead
Free solder coating. Patten Position on board +-
.5mm .020in.
TOLERANCES:
If not noted are +- 20%. Nominal values are given.
Controlling unit is Millimeters. Values rounded to nearest decimal. Slight
Variations due to manufacturing process can occur.
Copyright 1997-2012 by Capital Advanced Technologies, Inc. All rights reserved.
Surfboards is a registered trademark of Capital Advanced Technologies, Inc. The Breadboarding medium for surface mount, and the
Leaf Circuit Logo are trademarks of Capital Advanced Technologies, Inc. All other trademarks are the property of their respective owners. Specifications, availability, and price is subject to change without notice. All
information given is believed to be accurate but is not guaranteed. The user of information given or products represented by such information is responsible for determining the suitability of said information or products for
a given purpose. No inducement is intended or permission granted for infringement of any patent or unauthorized use of any intellectual property of Capital Advanced Technologies or others.
CAPITAL ADVANCED TECHNOLOGIES, INC.
CAROL STREAM, ILLINOIS. USA.
PHONE 630-690-1696
WWW.CapitalAdvanced.Com
FAX 630-690-2498
