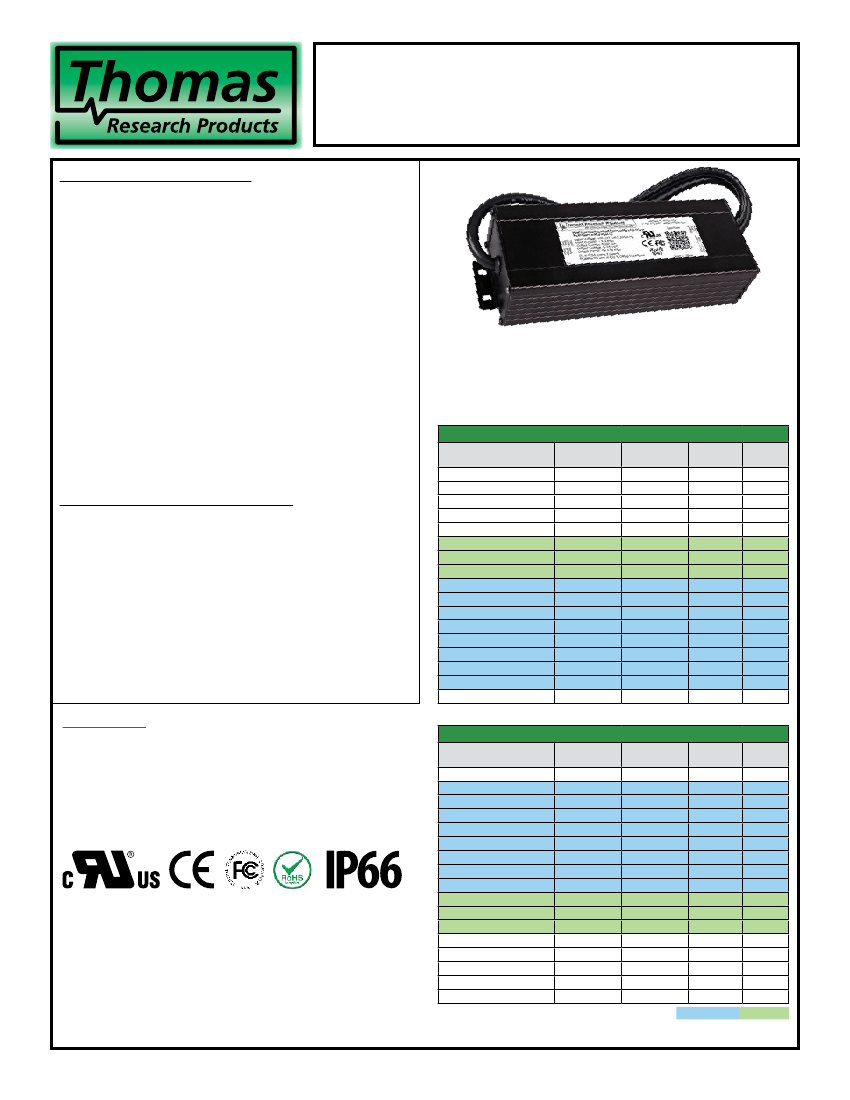

PLED-96W Series– Fixed Output & Dimmable

Flicker-Free LED Drivers

Constant Current & Constant Voltage with Isolation

Black Magic Thermal Advantage™ Aluminum Housing

Electrical Specifications

Input Voltage Range:

Input Over-Voltage:

Frequency:

Power Factor:

Inrush Current:

Input Current:

Maximum Power:

Current Accuracy:

Load Regulation:

THD:

Ripple & Noise:

(Vpk-pk)

Ripple:

(Ipk-pk)

Start-up Time:

Leakage Current:

Hold Up Time:

Output Protection:

100-277 Vac Nom. (90-305 V Min/Max)

Can endure 320Vac for 48 Hrs, 350Vac for 2 Hrs

50/60 Hz Nom. (47-63 Hz Min/Max)

>0.90 @ 60-100% load, 100-277Vac

<50.0 Amps max @ 230Vac, cold start 25ºC

1.30 Amps max

96W

± 2% Over input line variation

± 3%

< 20% @ 60-100% load, 100-277Vac

5% Vo max @ 20 MHz BW, Full load output

in parallel with 0.1 μF ceramic & 10 μF Electrolytic

5% Io max @ 20 MHz BW, Full load output

in parallel with 0.1 μF ceramic & 10 μFElectrolytic.

120 Hz component (Flicker Free)

200mS typical @ Full Load, 120Vac/60Hz (1000mS max)

0.28 mA max @ 120Vac, 0.78 mA max @ 277Vac

40mS typical @ Full Load, 277Vac

Over-Voltage, Over-Current, and

Short Circuit Protection with Auto Recovery

• Total Power: 96 Watts

• Input Voltage: 100-277 Vac Nom.

• UL Dry & Damp Location Rated

• IP66 & NEMA6

• High Power Factor

Constant Current Versions - Specifications

Model Number

PLED96W-274-C0350-XX

PLED96W-213-C0450-XX

PLED96W-137-C0700-XX

PLED96W-092-C1050-XX

PLED96W-069-C1400-XX

PLED96W-054-C1750-XX

PLED96W-048-C2000-XX

PLED96W-046-C2100-XX

PLED96W-039-C2450-XX

PLED96W-036-C2660-XX

PLED96W-034-C2800-XX

PLED96W-030-C3150-XX

PLED96W-027-C3500-XX

PLED96W-025-C3840-XX

PLED96W-024-C4000-XX

PLED96W-020-C4800-XX

PLED96W-018-C5350-XX

Output Current Output Voltage Max. Output

Max

(mA ±3%)

Range

(Vdc)

Power

(W)

Efficiency

350

450

700

1050

1400

1750

2000

2100

2450

2660

2800

3150

3500

3840

4000

4800

5350

92-274

71-213

46-137

31-92

23-69

18-54

16-48

16-46

14-39

12-36

12-34

10-30

9-27

9-25

8-24

7-20

6-18

95.9

95.6

95.9

94.5

95.5

95.7

95.2

94.8

94.5

92%

91%

90%

89%

88%

87%

86%

Environmental Specifications

Minimum Starting Temp:

Maximum Case Temp.

Storage Temperature:

Humidity:

Cooling:

Vibration Frequency:

Sound Rating:

Impact Resistance:

MTBF:

EMC:

Weight:

-30ºC

90°C

-40ºC to +85ºC

5% to 95%

Convection

5 to 55 Hz/2g, 30 minutes

Class A

1g/s

474,000 Hours @ full load and 40ºC ambient conditions

per MIL-217F Notice 2

FCC 47CFR Part 15 Class B compliant

21.6 oz. (612 grams)

Ordering Options:

-D:

0-10V & Resistance dimmable models dim 100-10%. Two extra wires on the output

side (+Purple/-Gray). Compatible with most quality 0-10V wall dimmers. See page 3.

-XX indicates dimming options are available. See options below. Blank = fixed current output

Constant Voltage Versions - Specifications

Model Number

PLED96W-018

PLED96W-020

PLED96W-024

PLED96W-025

PLED96W-027

PLED96W-030

PLED96W-034

PLED96W-036

PLED96W-039

PLED96W-046

PLED96W-048

PLED96W-054

PLED96W-069

PLED96W-092

PLED96W-137

PLED96W-213

PLED96W-274

Output Voltage Output Current Max. Output

Max

(Vdc ±5%)

Range

(mA)

Power

(W)

Efficiency

137

213

274

1338-5350

1200-4800

1000-4000

960-3840

875-3500

788-3150

700-2800

665-2660

613-2450

525-2100

500-2000

438-1750

350-1400

263-1050

175-700

113-450

88-350

Class 2:

94.5

94.8

95.2

95.7

95.5

94.5

95.9

95.6

95.9

US/Canada

86%

87%

88%

89%

90%

91%

92%

US Only

-D3: 3-wire dimmable models dim 100-10%. Three extra wires on the output side

(Yellow/Purple/Gray). Compatible with potentiometer dimming. See page 3.

-PD: PWM Dimmable models. Two extra wires on the output side(+Purple/-Gray). Dims

via positive 10% to 100% Duty Cycle, 200Hz to 1KHz, 0-10V Pulse. See page 4.

E332160

Note:

LED drivers are designed and intended to operate LED loads only.

Non-LED loading may be outside the specified design limits of our

LED drivers, and therefore cannot be covered by any warranty.

If you desire to use our LED drivers to operate non-LED loads

please contact us to discuss compatibility.

Specifications subject to change without notice.

Rev 10-1-14

Thomas Research Products • 1215 Bowes Rd • Elgin, IL 60123 • T 847-515-3057 • F 847-515-3047 • www.trpssl.com
