SURFBOARDS
THE BREADBOARDING MEDIUM FOR
R
TM
SURFACE MOUNT
33000 SERIES APPLICATION SPECIFIC ADAPTERS
IDS33003
REV 1-2012
MODEL
33003
B
ACCEPTS
(PARTIAL LISTING)
SC-70-3
SOT-323
ANALOG KS-3
CENTRAL SUPERMINI TM *
DOIDES INC. DFN322 *1
NEC PKG No. 30
ON SEMI CASE 419-AB-01
RENESAS SSP
TOSHIBA UFM / USM
ALWAYS CONSULT DEVICE DATA SHEET TO INSURE PROPER FIT
.
SEE WEBSITE FOR
SOLDERING
SUGGESTIONS

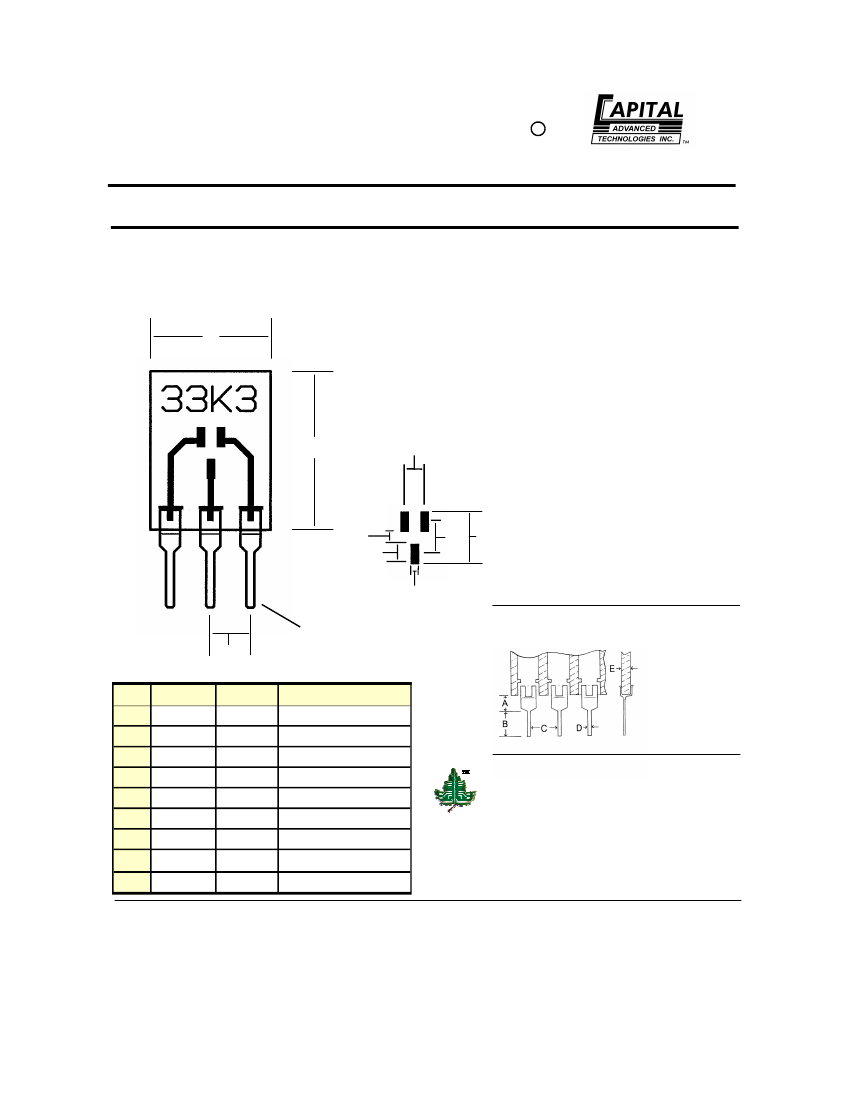

DEVICE FOOTPRINT
A
E
PINS ON .100 in. CENTERS
PROVIDE COMPATIBILITY WITH
CONVENTIONAL AND
SOLDERLESS BREADBOARDS AND
SOCKETS.
H
F
D
I
G
USE FOR PROTOTYPING,
DEVICE TEST OR EVALUATION,
SMD TO THROUGH HOLE
CONVERSION
PIN SPECIFICATIONS / TOLERANCES
SINGLE-IN-LINE (SIP) PINS
ON STANDARD .100 IN.
CENTERS. SEE PIN SPECS.
C
FIG.
A
B
C
D
E
F
G
H
I
INCHES
.400
.300
.100
.080
.0512
.050
.020
.030
.130
MM
10.16
7.62
2.54
2.03
1.30
1.27
.508
.76
3.30
NOTE:
BOARD HEIGHT
+-
.5mm .020in.
BOARD WIDTH
+- .
5mm .020in
.
SIP PIN SPACE
+- .20mm .008in.
PAD CENTERLINE
NOTE *1
This device
must be
mounted
offset to avoid
shorting of
pads.
In Inches
A = .062 +- .006
B = .130 +- .010
C =.100 +- .005
D = .020 +- .004
E = .031 +-.005
BOARD SPECIFICATIONS
BOARD MATERIAL:
.8mm, +-.13mm .031in+-..005 in.
Thick G-10 FR-4 Glass Epoxy or equivalent.
CIRCUITS:
1 oz. Copper with RoHS compliant Lead
Free solder coating. Patten Position on board +-
.5mm .020in.
TOLERANCES:
If not noted are +- 20%. Nominal values are given.
Controlling unit is Millimeters. Values rounded to nearest decimal. Slight
Variations due to manufacturing process can occur.
DEVICE LEAD PITCH
PAD LENGTH
PAD WIDTH
GAP
MAX LEAD WIDTH
RoHS
Compliant
EC 2002/95
Supermini is a
Trademark of Central
Semiconductor Corp.
*
