Vectorbord
®
Plugbord
tm
1MM & 2MM Hard Metric Plugbords
Features:

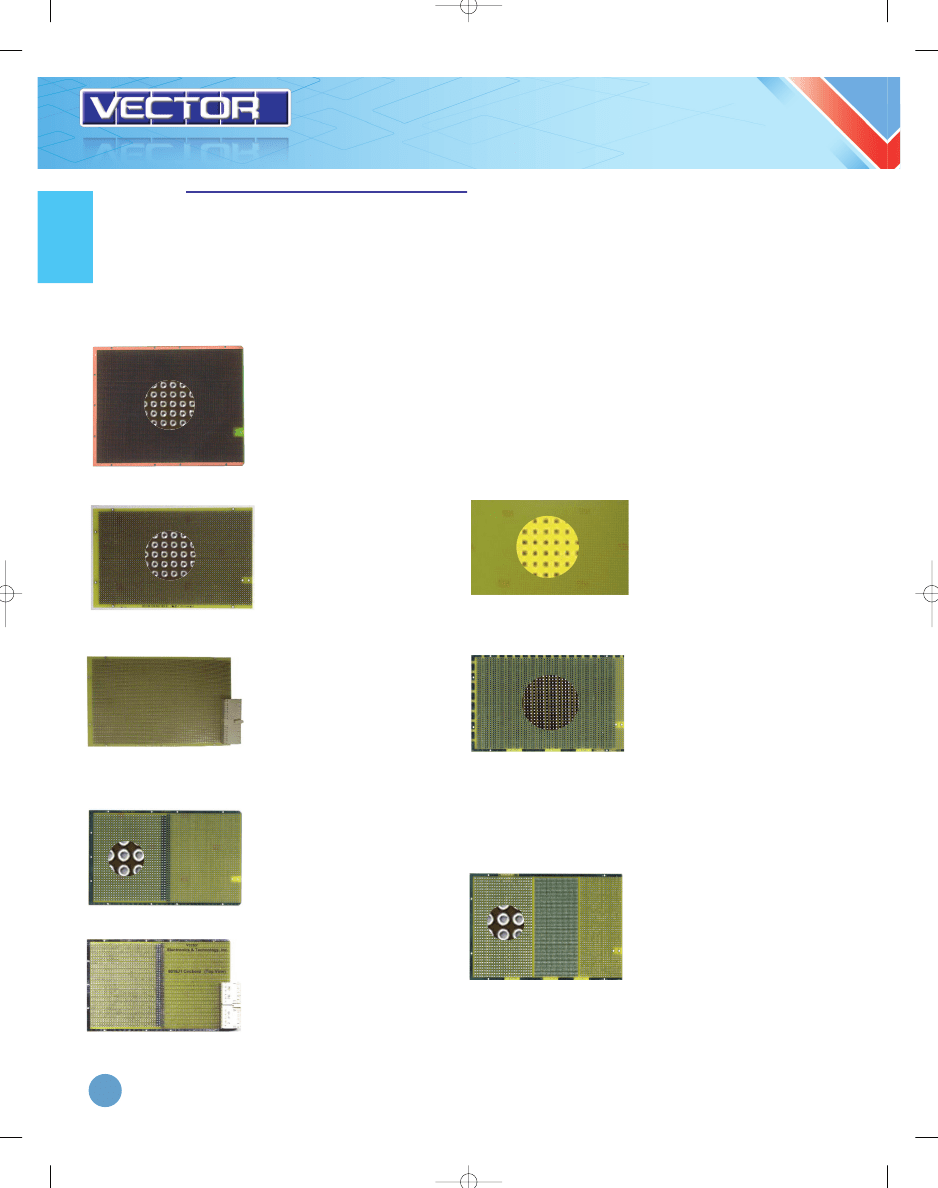

Plugbord
Several Versions of 2MM grid / combination grid
boards are manufactured in DIN Eurocard 3U stan-
dard. These utility boards become cPCI or PXI usable
by installation of a J1 ‘Type A’ or J2 ‘Type AB’ connec-
tor onto the board end. Vector K36C series tin plated
pins may be used for wiring of .025” diameter holes
and a variety of solder or wire-wrap pins and terminals
are available for .042” diameter holes.
All boards are made of FR-4 Epoxy Glass, UL94 V-O,
MIL-STD P13949, Type GF. All boards are .062”
(1/16” or 0.6mm) thick.
All boards described here fit into our Vector-Pak
CCA26 or CCK 26 series of 3U subracks.
• 3UX160MM Eurocard size (3.94” x 6.3”) fit in
Vector 3U DIN Subracks
• 2mm Connectors can be installed
• Copper plated thru holes, solder plated
• Grid Combination Boards
8020
100mm x 160mm x .062”TH
1mm grid in 3U Eurocard size. (3.94” x 6.3”)
.025” copper plated thru holes with annular rings,
NO SOLDER PLATING. Accepts cPCI 2mm J1
(25 row) & J2 (22 row) connectors on edge
Material: FR4
Solder Terminals: K36
8017
100mm x 160mm x .062”TH
2mm grid Pattern Q in 3U Eurocard size (3.94” x
6.3”). .025” holes plated thru with annular ring.
Accepts cPCI 2mm J1 (25 row) & J2 (22 row)
connectors on edge
Material: FR4
Solder Terminals: K36
47Q78WE
2mm Grid, holes
only, no Copper
Accepts cPCI 2mm J1 (25 row) & J2
(22 row) on edge.
Material: FR-4
8017J1
2mm grid, Pad-Per-Hole
Connector
Same as 8017 but with cPCI 2mm, J1
25 row connector installed
8024
3.94”H x 6.3”L x .062” TH
100mm x 160mm
8018
100mm x 160mm x .062”TH
Combo: 0.100” & 2mm grid in 3U Eurocard size
(3.94” x 6.3”), Pad-Per-Hole. Dual copper rows in
middle for Vcc/Gnd use. .025” & .042” holes plat-
ed thru with annular ring. Accepts cPCI 2mm J1
(25 row) & J2 (22 row) connectors on edge
Material: FR4
Solder Terminals: .025” dia. K36
.042” dia. T42-1, T46
2mm grid in 3U Eurocard size. 3-hole sol-
der pad pattern with voltage and ground
busses between pads and on board
perimeter both sides.
Row and column legends. .025” plated-thru
holes with annular ring. Card accepts 25-
row J1 Hard Metric connector (order
8024J1 for connector installed version).
Material: FR-4
WW Terminals: K36
Card Cage: CCA26
8028
3.94”H x 6.3”L x .062” TH
100mm x 160mm
8018J1
2mm/.100” Pad-Per-Hole Grid
Combo wJ1
Same as 8018 but with cPCI 2mm J1 25 row con-
nector installed
THREE-GRID COMBO. .100”, .050” AND
2mm all in 3U Eurocard size. Pad-per-
hole with voltage and ground busses on
board perimeter. .042”(.100” grid) and
.025”(.050” and 2mm) plated thru holes
with annular ring. Card edge accepts 25-
row J1 Hard Metric connector (order
8028J1 for connector installed version).
Material: FR-4
WW Terminals: (.025” holes) = K36
WW Terminals: (.042” holes) = T44, T46,
T49, T68
Card Cage: CCA26
