PLUGBORD
tm
PRINTED CIRCUIT PROTOTYPING BOARDS FOR D-SUBMINATURE CONNECTORS
Standard Density 25, 15, 9-Pin

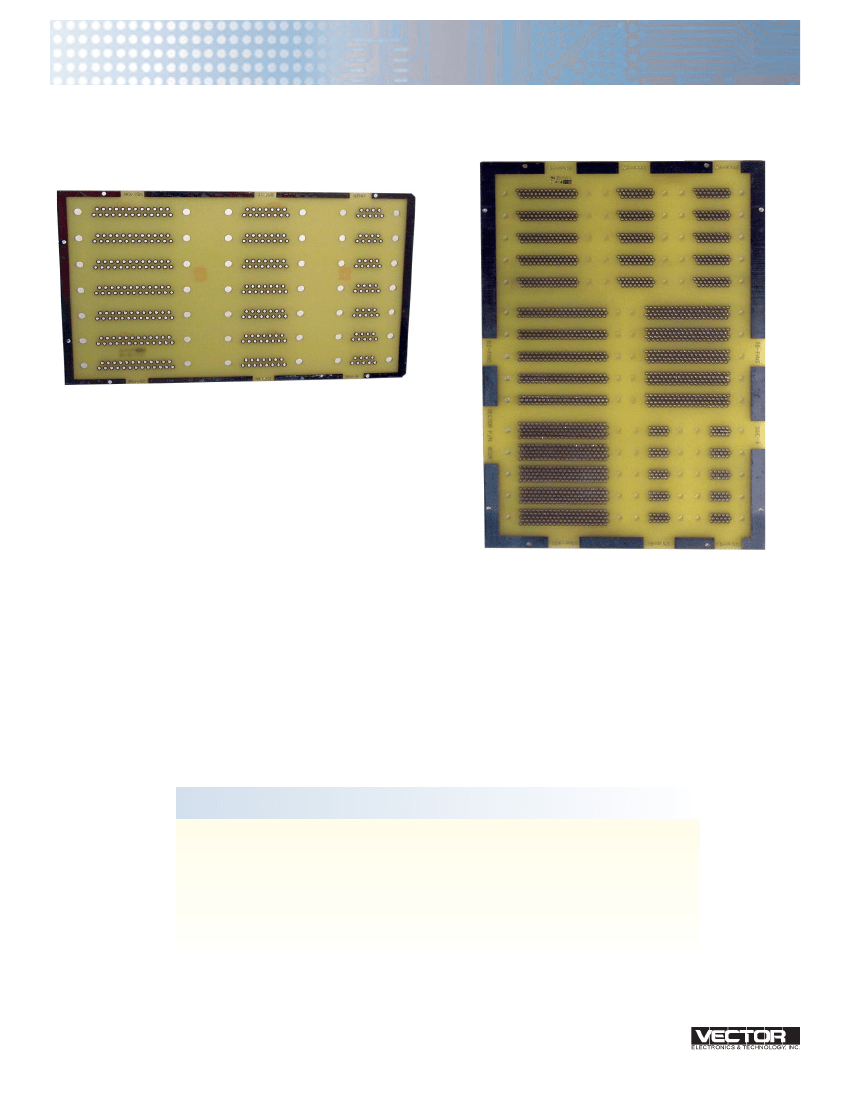

8025
Features:
•
•
•
•
•
Standard or high density patterns
Press-fit Pad-Per-Hole, Holes Plated-Thru
All Copper Circuit Patterns are Solder Coated
High Density 15,26,44,62,78 & 104-Pin
8026
FR-4 Epoxy Glass UL 94V-) Flame Rating
Boards Can Be Cut to Smaller Units
These .062” (1.57MM) Thick printed circuit boards feature SOLDER-COATED .039” (99MM) diameter holes.
3U and 6U Eurocard board dimensions will plug into VectorPak DIN-based subracks (ordered separately).
ORDERING INFORMATION:
Circuit Pattern
Part Nr.
8025
8026
WXL
3.94” x 6.3”
9.19” x 6.3”
Solder Side
Pads/Plated Holes
Pads/Plated Holes
Component Side
Pads/Plated Holes
Pads/Plated Holes
Material
FR-4
FR-4
